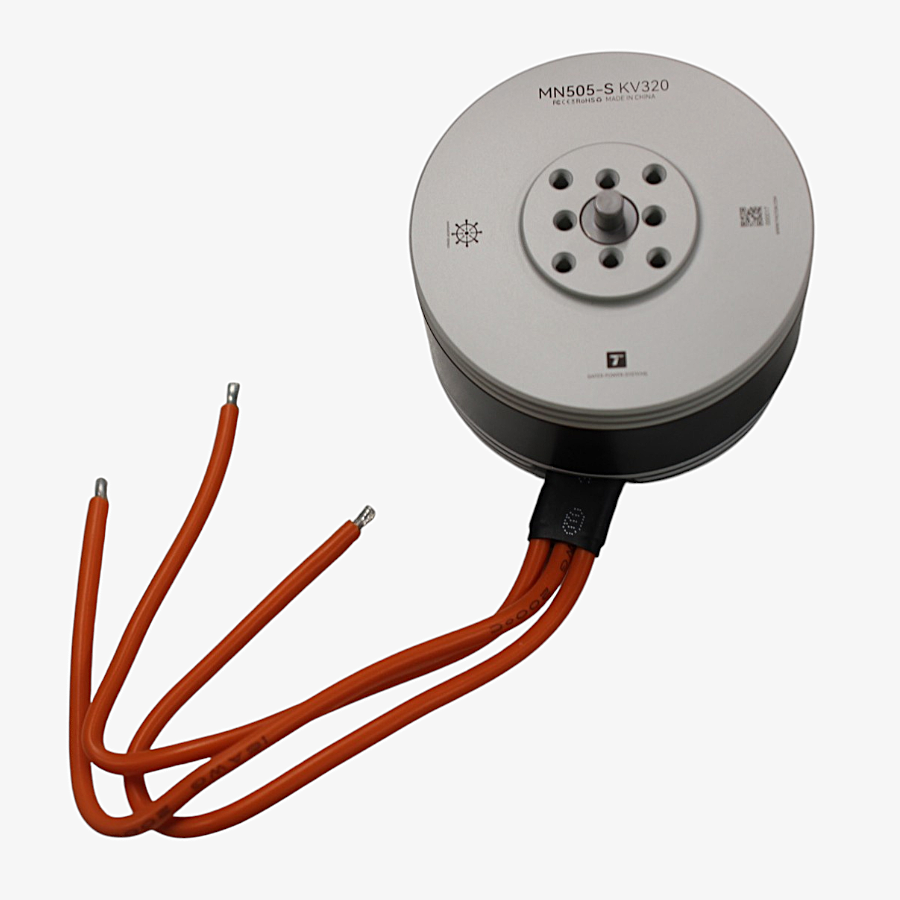

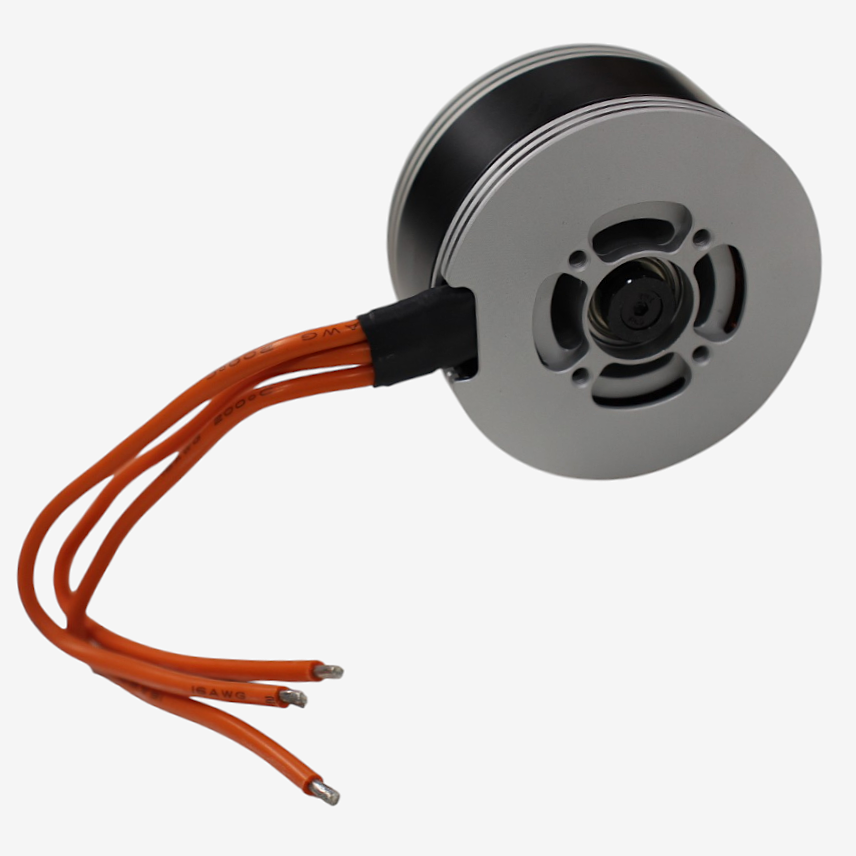

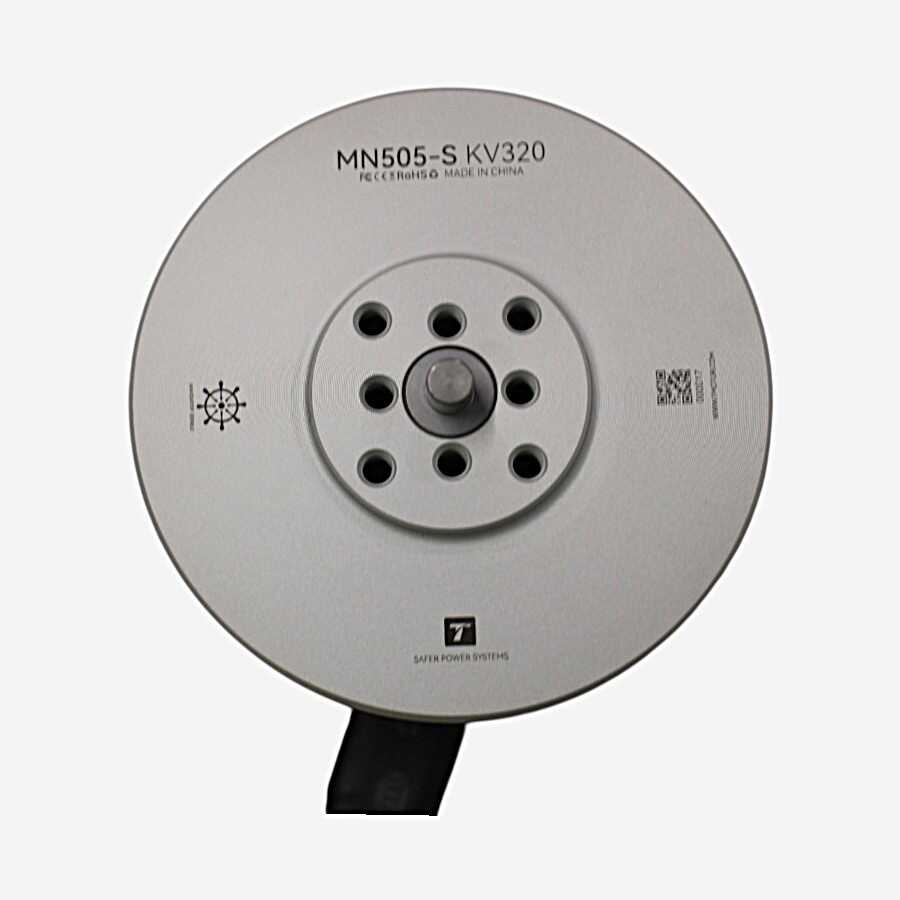

T Motor Navigator Waterproof Mn505-S 320 KV
Introducing the T-Motor Navigator Waterproof MN505-S 320 KV, a premium motor designed specifically for marine applications like underwater remotely operated vehicles (ROVs) and autonomous underwater vehicles (AUVs). Known for their exceptional motors in the drone and robotics industries, T-Motor brings the same level of performance and durability to the marine sector with this cutting-edge model.
Waterproof Protection: With a fully sealed construction, the MN505-S is built to resist water damage, making it perfect for immersion in harsh aquatic environments.
High KV Rating: Featuring a 320 KV, this motor is optimized for high-speed performance. While higher KV motors generally offer greater rotational speeds at the cost of torque, the MN505-S strikes an ideal balance for marine-based applications, ensuring optimal power and efficiency.
Compact & Lightweight: Designed to fit in space-constrained marine platforms, this motor combines a compact form factor with lightweight construction, making it an excellent choice for applications where every ounce counts.
Durable & Rugged: Built to withstand the challenges of underwater environments, the MN505-S offers unmatched reliability and longevity, even in the toughest conditions.
Superior Craftsmanship: T-Motor’s commitment to quality is evident in the use of premium materials and precision engineering, ensuring the motor performs consistently and lasts over time.
Versatile Compatibility: The MN505-S is compatible with a wide range of electronic speed controllers (ESCs), offering seamless integration across various marine vehicle platforms for versatile use.
Note: When mounting the motor, please make sure the thread inside the motor is ≤5mm.
Features:
- Strong power, long service life
- Excellent cooling performance
- Anti-high temperature/Anti-overload
- Dust-resistance/Waterproof/Anti-corrosion.
Specification:
| Stator | Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings. |
|---|---|
| Configuration | 24N28P |
| Shaft Diameter | IN: 6mm, OUT: 4mm |
| Bearing | Imported 696ZZ |
| Magnet Level | 180°C high temperature resistance: Level E |
| Silicon Cable | 16AWG*150MM |
| Copper Wire | 220°C high temperature resistance: Level C |
| Coil Insulation Test | 500V |
| Centrifugal Cooling Design | YES |
| Rotor Dynamic Balance Standard | </=5Mg |
| Motor Dynamic Balance Standard | </= 10Mg |
| IP | IP45 |
| Weight (g) | 225 (inc. cable) |
Package Includes:
1 x T Motor Navigator Waterproof Mn505-S 320 KV

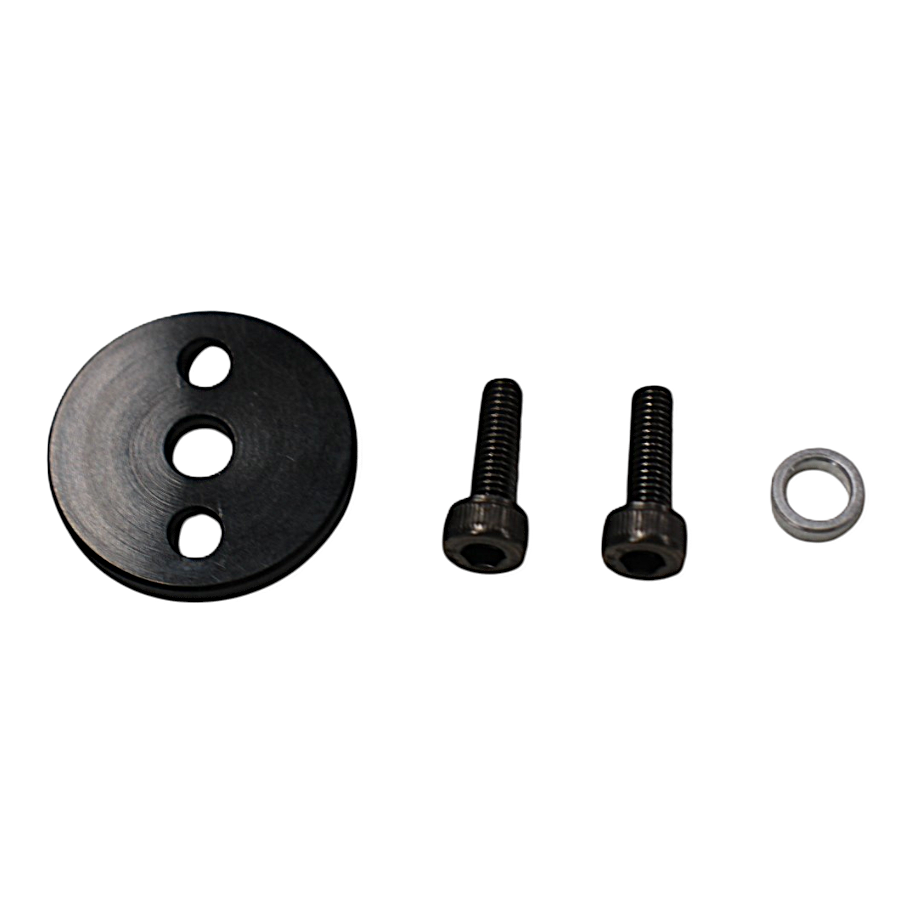

1 x Accessories Set (M3*10mm Mounting Screw*2, Cover*1, M3*8mm Motor Mounting Screw*4)
Build an Automatic Blinds Controller with Stepper Motor
Manual window blinds are a daily annoyance — you walk across the room, twist the rod, adjust for...
Read More →
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →
ESC Protocols Explained: DShot, OneShot, and PWM
The communication protocol between your flight controller and ESCs directly affects how responsive and reliable your drone feels....
Read More →Technical Specifications
| Brand | T -Motor |
|---|---|
| KV Rating | 320KV |
| SKU | AI5576 |
| Weight | 0.53 kg |
| Availability | In Stock |
Applications & Use Cases
The T Motor Navigator Waterproof Mn505-S 320 KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine T -Motor product sourced from authorized channels
