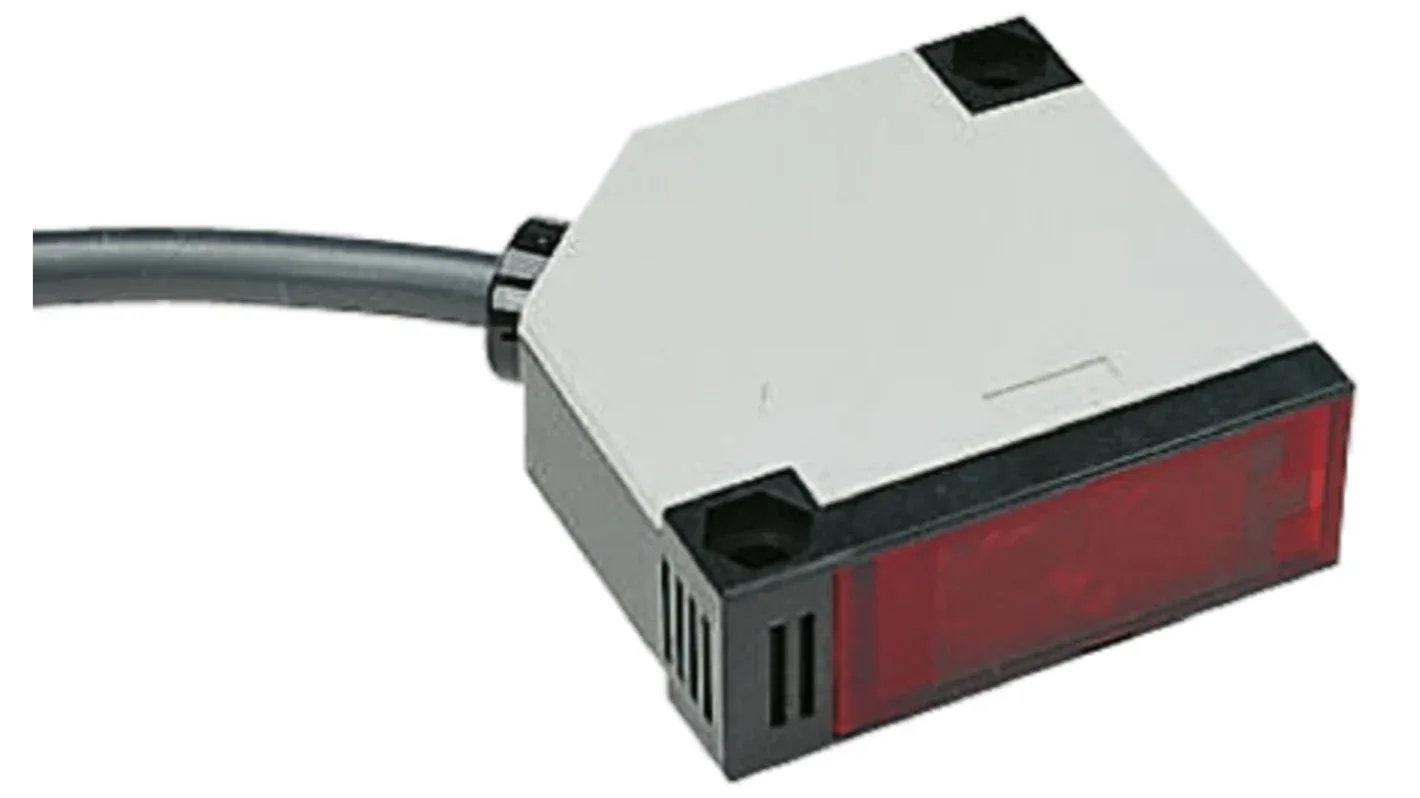

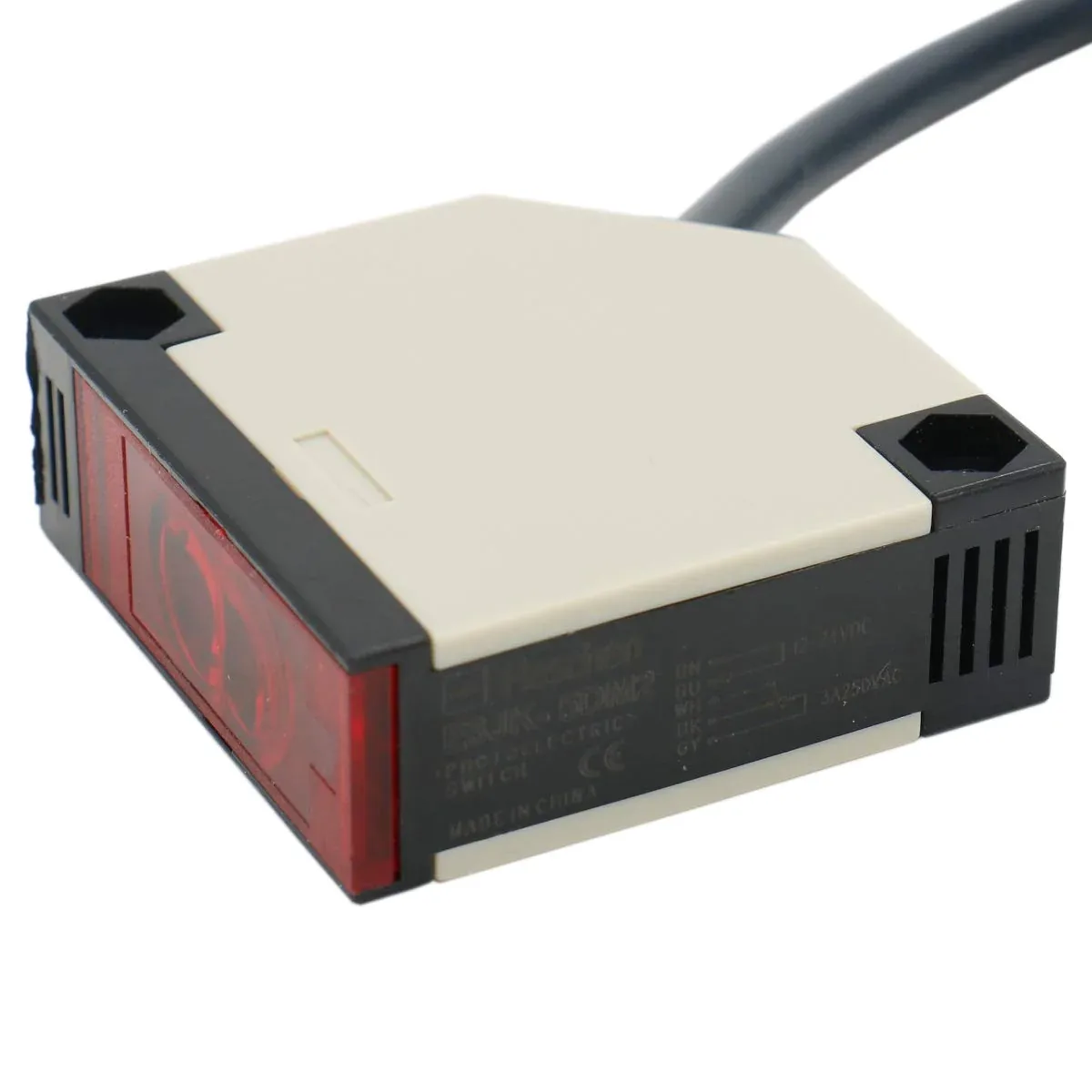

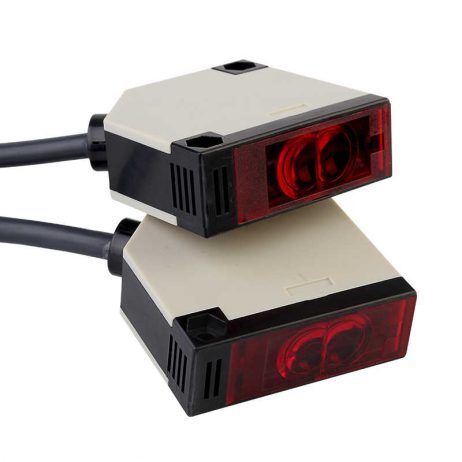

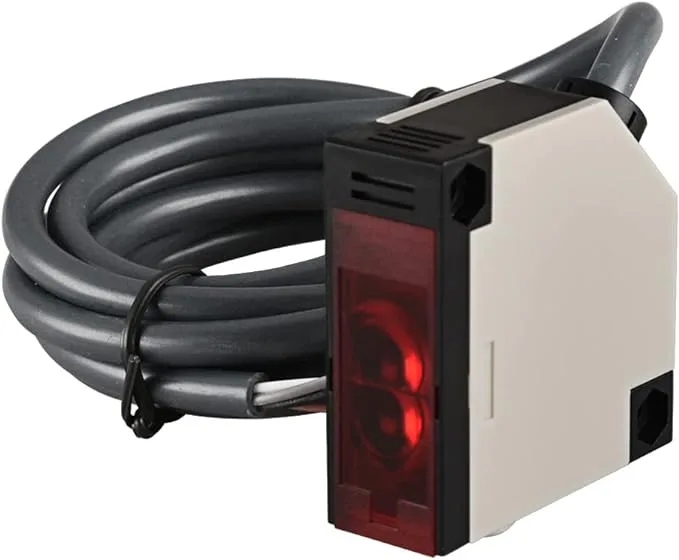

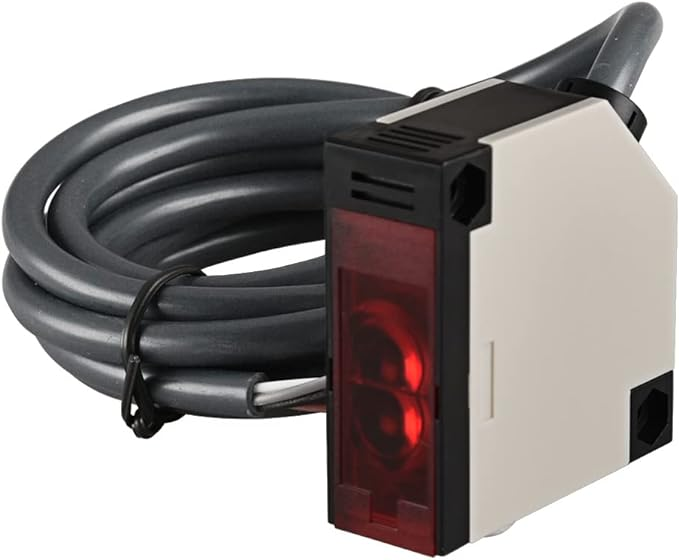

Switch Infrared Beam Photoelectric Sensor Photocell E3JK-5DM1 DC12-24V Detecting Distance 5M
Introducing the Switch Infrared Beam Photoelectric Sensor Photocell E3JK-5DM1, designed for precise object detection with a detecting distance of up to 5 meters. This photoelectric sensor utilizes infrared beams to detect the presence or absence of objects by analyzing the reflection or obstruction of the beam. With its synchronous loop gate circuit, it ensures accurate and reliable detection in various applications.
The E3JK-5DM1 DC12-24V sensor features square mirror reflective technology and is equipped with five wires for integrated circuit functionality. It represents a new generation of optical switching equipment, offering advanced features such as delay, expansion, external synchronization, anti-interference, and high reliability. Additionally, it includes dedicated self-diagnostic capabilities for regional stability and intelligent operation.
Features:
- Precision Detection: Utilizes infrared beams for accurate object detection, ensuring reliability in various applications.
- Long Detecting Distance: Offers a detecting distance of up to 5 meters with a tolerance of ±10%, providing flexibility in installation and usage.

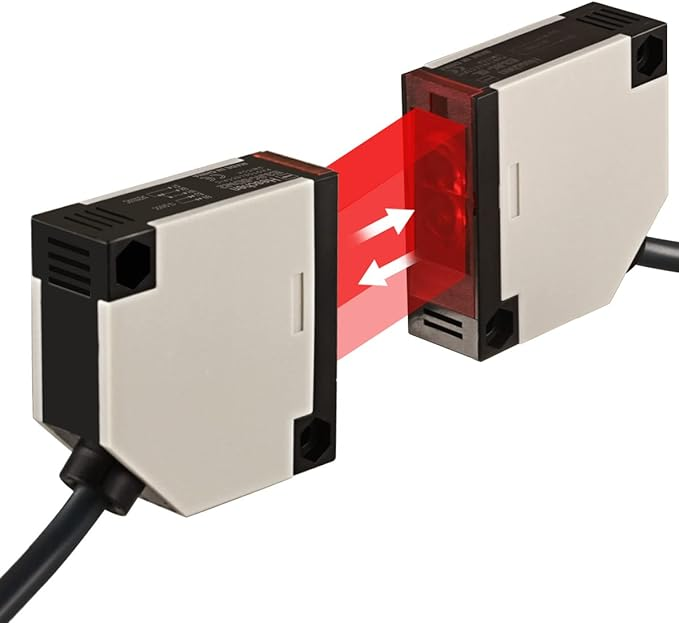

- Flexible Detecting Method: Implements an on-beam detection method, enabling the sensor to effectively detect opaque objects.
- Universal Voltage Compatibility: Supports both AC and DC universal voltage ranging from 12V to 240V, allowing for versatile integration into different electrical systems.
- Reliable Output Mode: Equipped with a five-wire relay output mode, featuring normally open and normally closed configurations for compatibility with diverse setups.
- Durable Construction: Constructed with ABS housing material, ensuring durability and longevity in various operating conditions.
- Advanced Integrated Circuit Technology: Incorporates advanced IC technology, offering features such as delay, expansion, external synchronization, and anti-interference, enhancing functionality and reliability.
- Self-Diagnostic Capabilities: Provides self-diagnostic capabilities for regional stability and intelligent operation, ensuring consistent performance.
Specifications:
| Specification | Details |
|---|---|
| Model | E3JK-5DM1 |
| Type | Infrared Beam Photoelectric Sensor |
| Detecting Distance | 5 meters (±10%) |
| Detecting Method | On-beam |
| Detecting Objects | Opaque objects |
| Working Voltage | AC and DC universal, 12~240V |
| Output Mode | Five-wire relay output, normally open + normally closed |
| Housing Material | ABS |
Enhance your automation and detection systems with the Switch Infrared Beam Photoelectric Sensor Photocell E3JK-5DM1, offering precision, reliability, and advanced features for various industrial and commercial applications.
Package Includes:
1 x Switch Infrared Beam Photoelectric Sensor Photocell E3JK-5DM1
