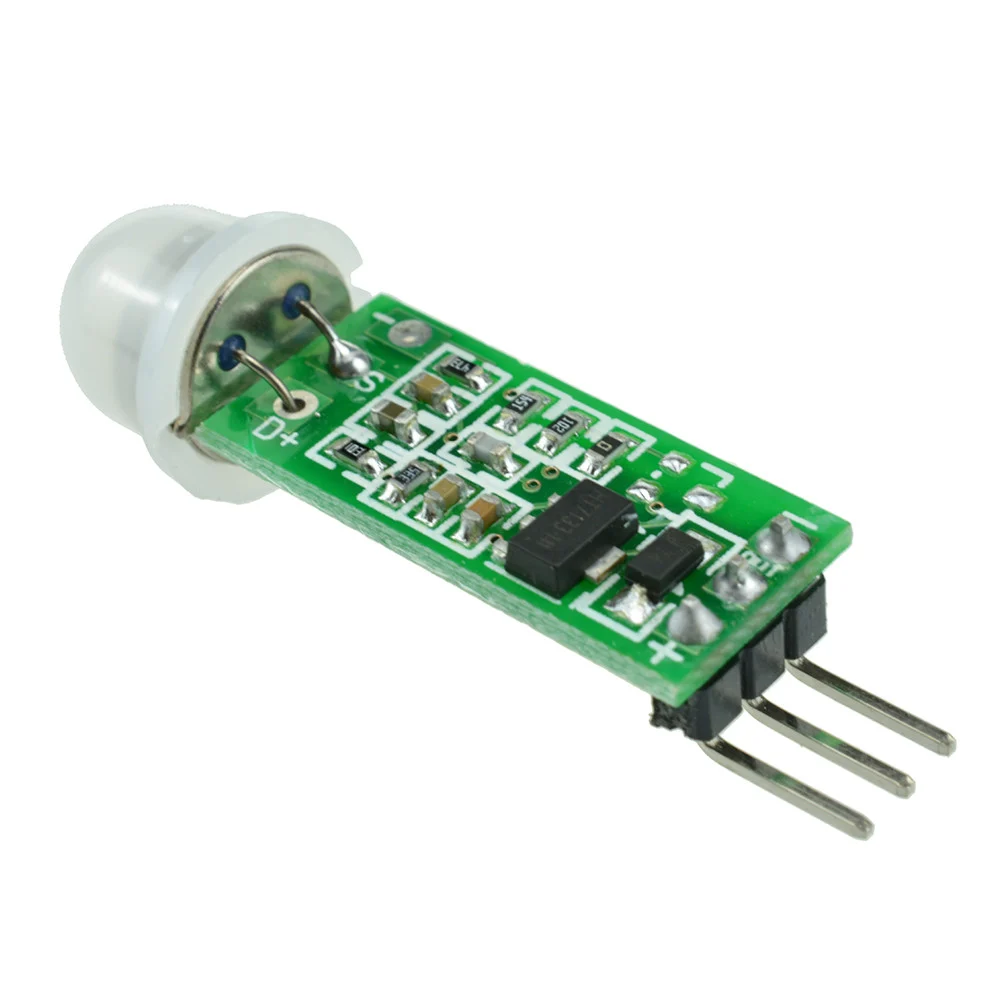

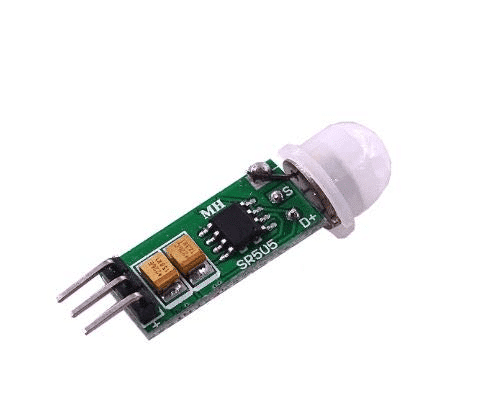

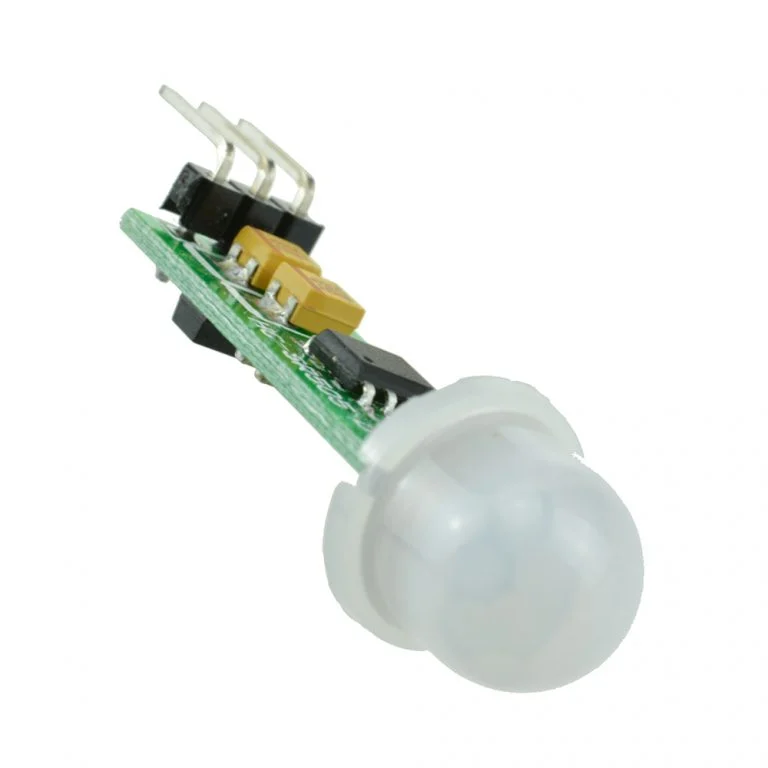

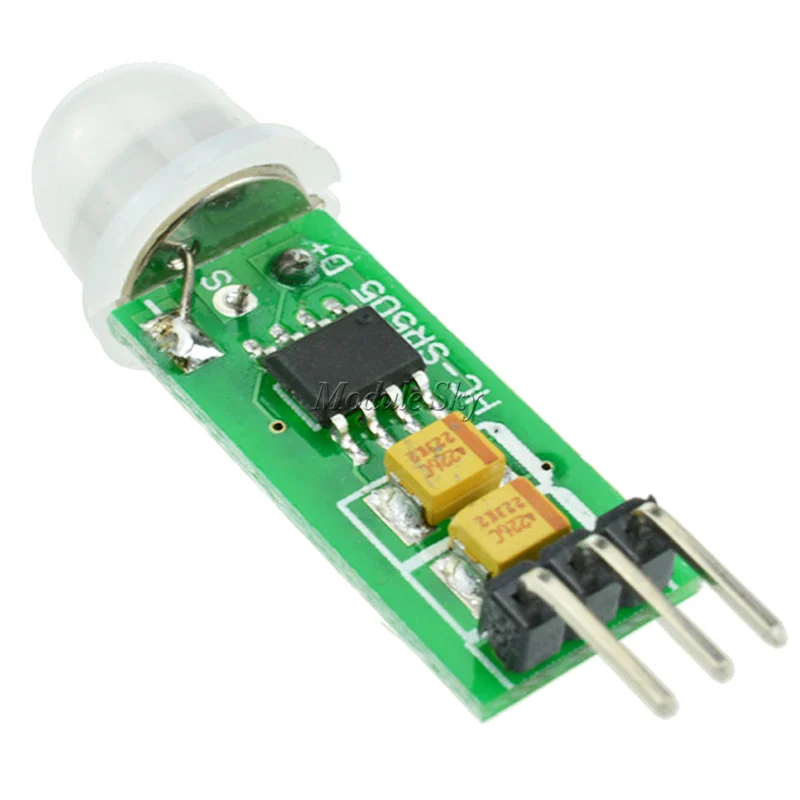

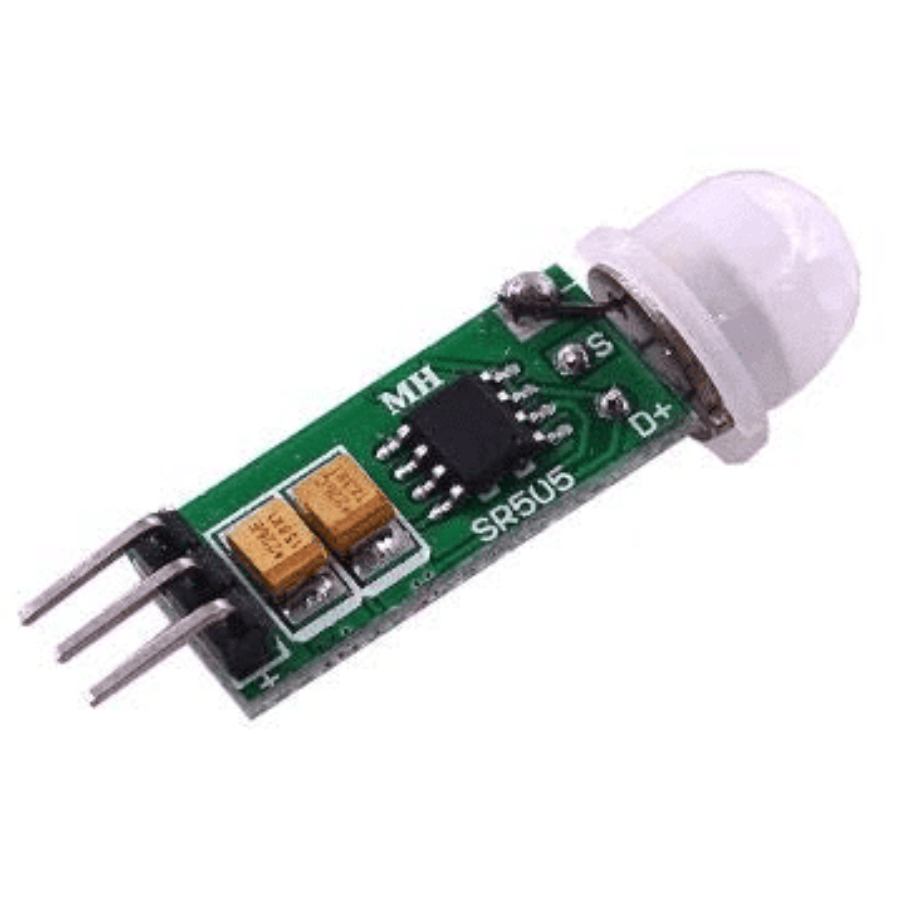

HC-SR505 Mini Infrared PIR Motion Detector Sensor Module
The HC-SR505 Mini Infrared PIR Motion Detector Sensor Module employs infrared technology to enable automatic control. With its high sensitivity, reliability, and compact size, it functions effectively even at ultra-low voltages. This module is widely utilized across a range of electrical equipment for automatic sensing, especially in battery-powered control products.
Applications:
Body induction lamps.
Body sensors toys.
Security Products.
Industrial automation and control.
Autosensing of electrical equipment.
Battery-powered automatic control.
Features
Low-power consumption
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
Wide operating voltage range: the default operating voltage DC4.5V-20V.
Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.
Output high signal: easy docking and all kinds of circuits.
Specifications:
Model
HC-SR505
Operating Voltage (VDC)
4.5 ~ 20
Average Current Consumption (mA)
0.06
Distance Measuring Range (CM)
10 ~ 300
Dimensions (LxWxH) mm
10 x 23 x 5
Weight (g):
10
Delay time
Default 8S + -30% (can be customized)
Operating Temperature (°C)
-20 to 80
Sensor Lens Diameter:
10mm
Induction angle
<100-degree cone angle
Package Includes
1 x HC-SR505 Mini Infrared PIR Motion Detector Sensor Module
The HC-SR505 Mini Infrared PIR Motion Detector Sensor Module is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
Building an automatic porch light
Creating a people counter for a room
Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
