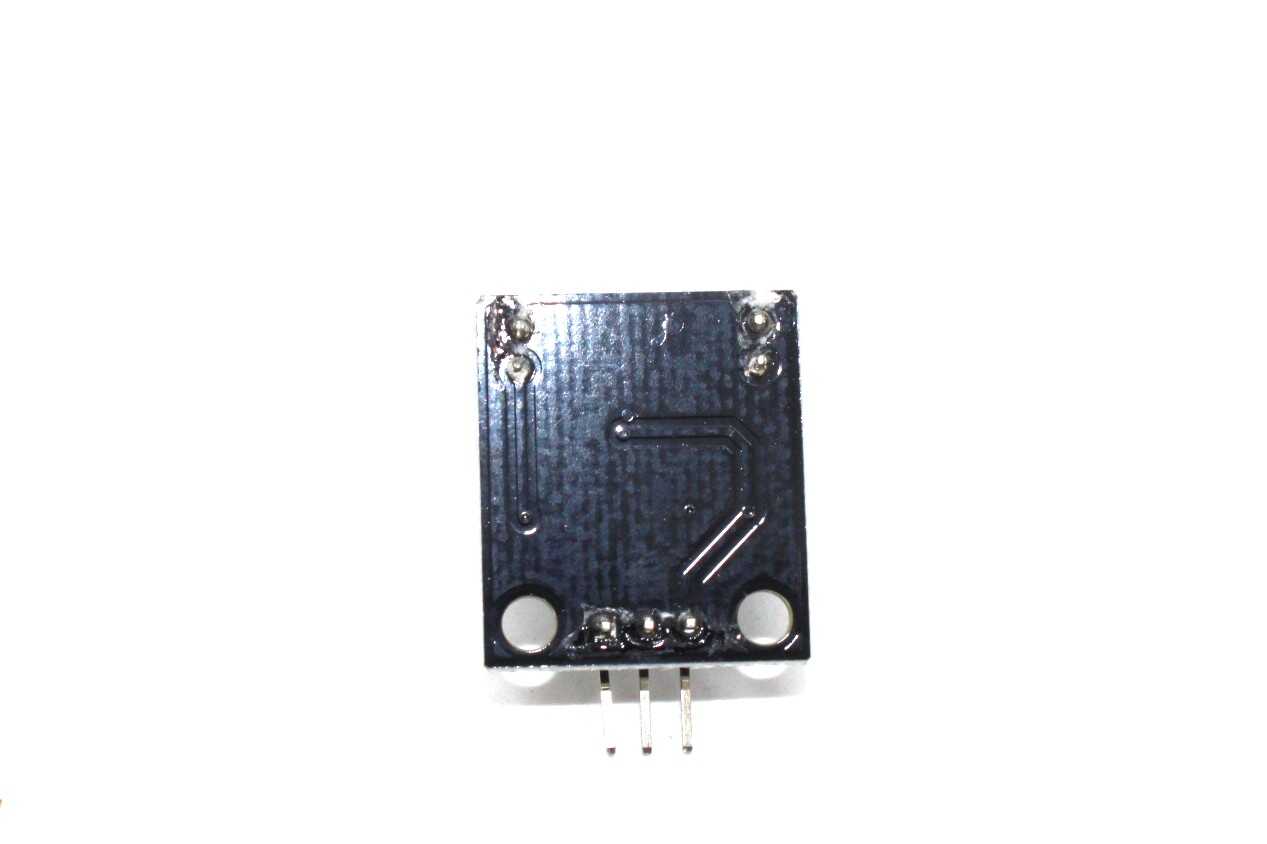

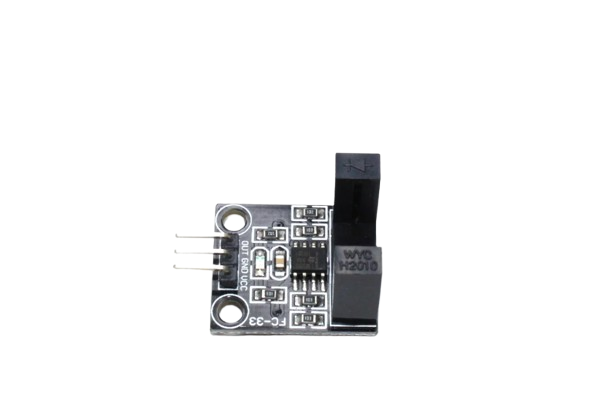

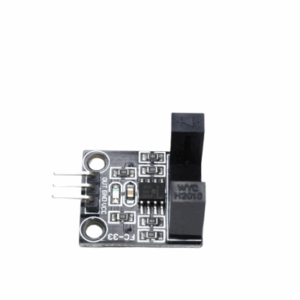

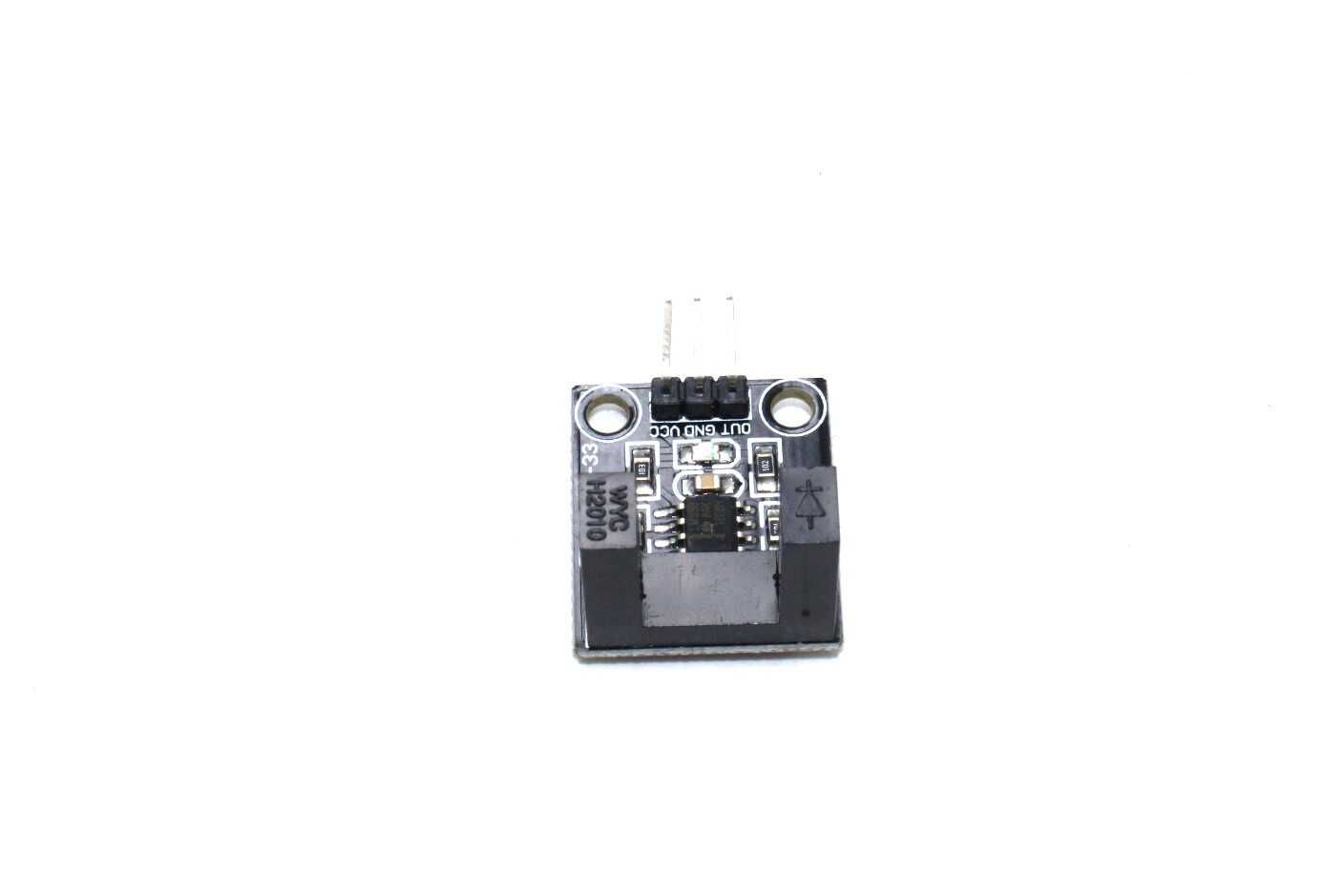

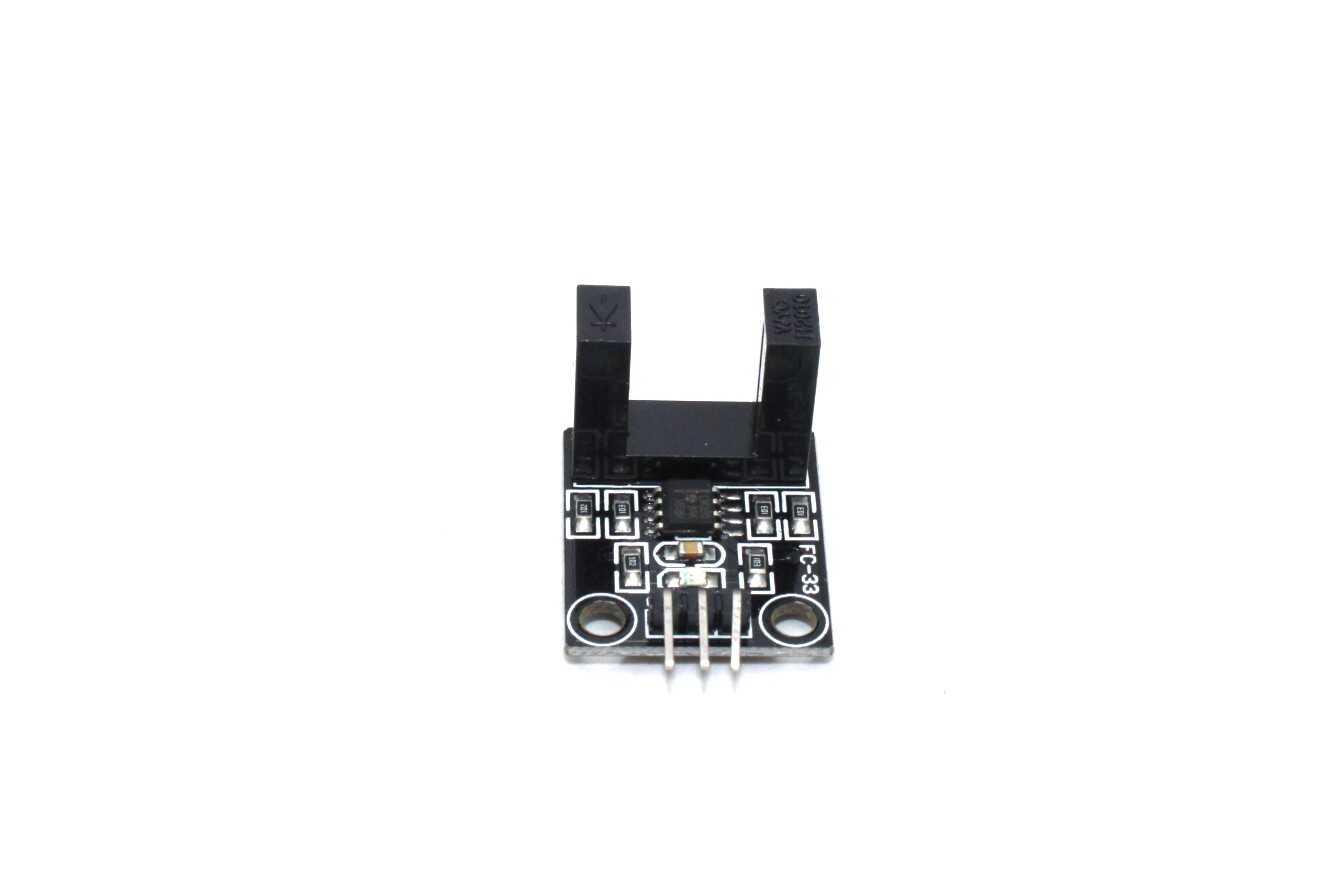

Correlation Photoelectric Infrared Count Slot Sensor Module 15 mm
Introducing the Correlation Photoelectric Infrared Count Slot Sensor Module with a width of 15mm, a high-quality infrared counter module designed to offer reliable performance at an affordable price point.
This module features a compact size and integrates the LM393 chip, ensuring seamless compatibility with various microcontrollers such as Arduino and Raspberry Pi. It is ideal for applications such as motor speed detection, pulse counting, position detection, and more.
Here’s how it works:
- The OUT pin outputs a low level when there is no object between the photoelectric sensor, indicated by the illuminated red LED.
- When an object is detected between the photoelectric sensor, the OUT pin outputs a high level, and the green LED remains off.
- The OUT pin can be directly connected to a microcontroller, enabling the MCU to calculate the number of rotations or movements detected per unit of time.
Please note that the sensitivity of this module is not adjustable.
Upgrade your project with the Correlation Photoelectric Infrared Count Slot Sensor Module, offering precise and reliable object detection for various applications.
Features
- The width of the optical coupling slot: 15mm
- With a signal output indication.
- Single signal output
- The circuit board output switch!
- The output valid signal is low.
- It is useful for workpiece counts.
- It’s also useful for industry counting, motor speed testing .
Specifications:
Main Chip | LM393 |
---|---|
Operating Voltage (VDC) | 3.6 ~ 5 |
Average Current Consumption (mA) | 33 |
Length (mm): | 22 |
Width (mm): | 20 |
Height (mm): | 17 |
Weight (g): | 5 |
The width of the optical coupling slot | 15 mm |
Package Includes
1 x Correlation photoelectric Infrared count Slot sensor module.
