This is the XT60 connector variant of the SwiftWing PDB02-XT60 – 3S–6S Power Distribution Board with XT60 Connector in Flight Controller & Accessories. Available at ₹472.50 (₹450.00 + GST) with free shipping across India.

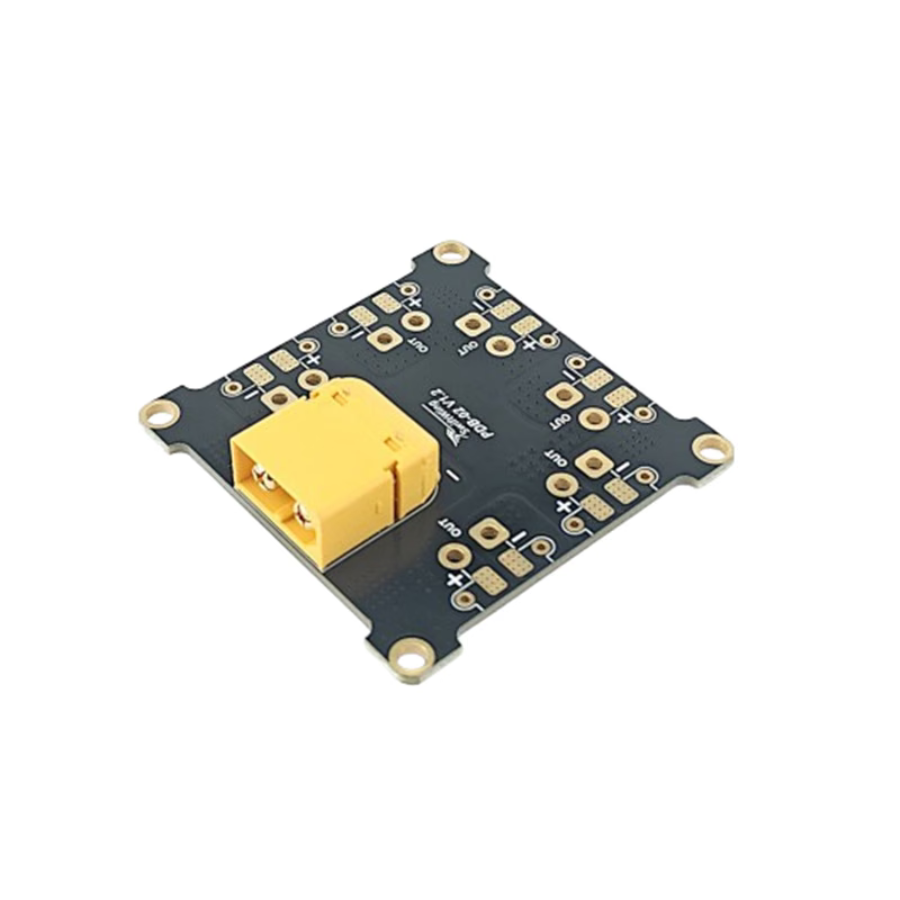

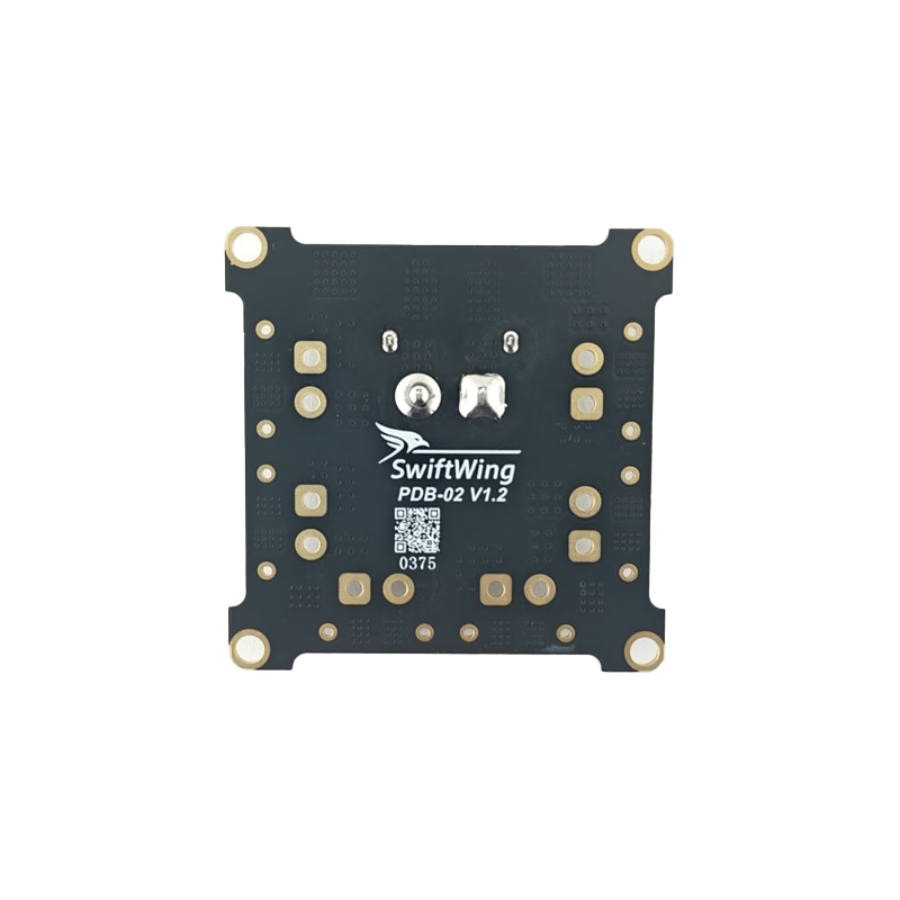

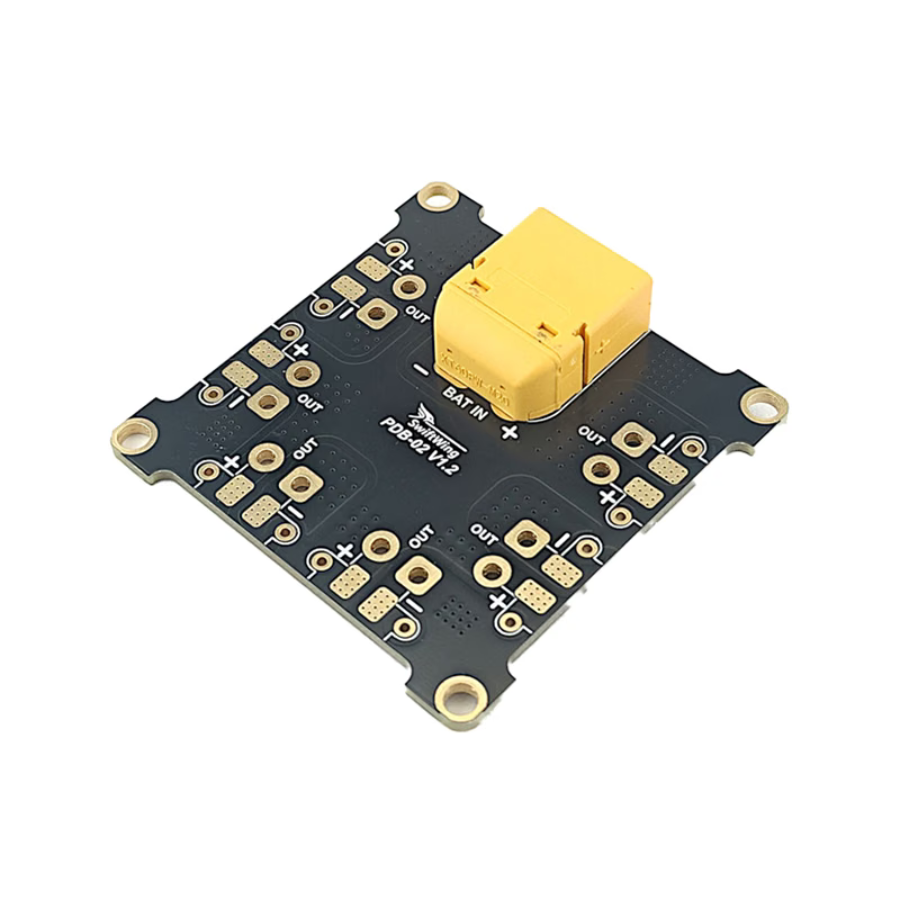

SwiftWing PDB02-XT60 – 3S–6S Power Distribution Board with XT60 Connector
Description:
The SwiftWing PDB-02-XT60 is a compact and high-current 4-layer Power Distribution Board designed for efficient energy management in multirotor drones and UAV systems.
Supporting 3S–6S LiPo batteries, it features a factory-installed XT60 input connector for quick and reliable power integration. Built with 2 oz copper layers and an ENIG finish, it ensures excellent conductivity and durability under demanding conditions. ESC outputs are provided as solder pads, offering flexibility for custom builds.
Ideal for racing drones, long-range UAVs, and robotics, this board delivers clean power distribution, simplified wiring, and dependable performance in a compact 50 × 50 mm design.
Features:
- Supports 3S–6S LiPo battery input
- Factory-installed XT60 connector for easy setup
- High-current 4-layer PCB design
- 2 oz copper layers for improved conductivity
- Compact 50 mm × 50 mm form factor
- ESC outputs via solder pads for flexible configuration
- Durable ENIG surface finish
- Ideal for drones, UAVs, and robotics applications
Specifications:
| Battery Input Voltage (V): | Recommended : 3S–6S LiPo (11.1–25.2 V) |
| Battery Connector Type | XT60 (factory-installed, ~60 A rating) |
| Input Voltage | 26 V DC Max. |
| Continuous Discharge Current (A) | ~60 A Max. (limited by XT60 connector rating) |

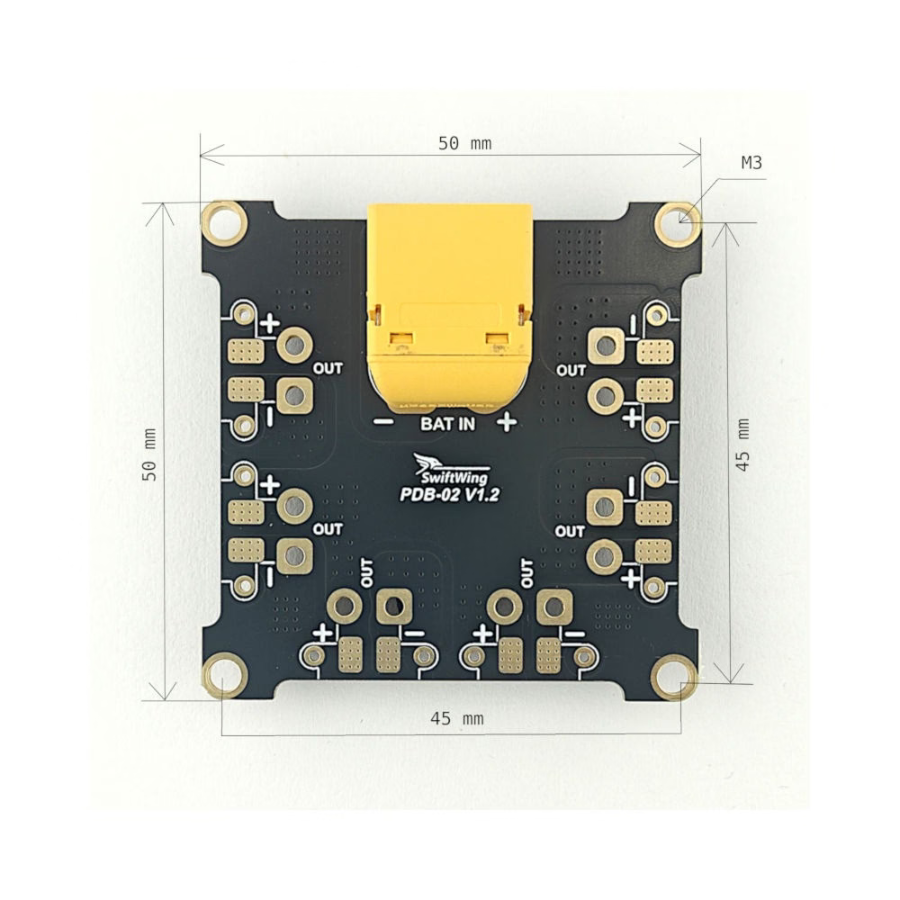

| Mounting Hole Diameter (mm) | 4 × M3 (45 mm spacing) |
| PCB layers | 4-layer, 2 oz copper |
| Board Size (mm) | 50 × 50 × 1.6 ±0.15 mm |
| Weight (g): | 21 |
Package Includes:
1 x SwiftWing PDB02-XT60 – 3S–6S Power Distribution Board with XT60 Connector
Whoop Drone for Indoor FPV: Best Tiny Whoops in India 2026
Whoop Drone for Indoor FPV: Best Tiny Whoops in India 2026 Imagine flying through your living room at...
Read More →
Drone VTX Power Levels: 25mW to 1000mW Comparison
Table of Contents Understanding Drone VTX Power Levels Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India Thermal cameras on drones are no longer...
Read More →Technical Specifications
| Brand | SwiftWing |
|---|---|
| Model | PDB02-XT60 |
| Cell Configuration | 3S |
| Connector Type | XT60 |
| SKU | AI5068 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SwiftWing PDB02-XT60 – 3S–6S Power Distribution Board with XT60 Connector is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
