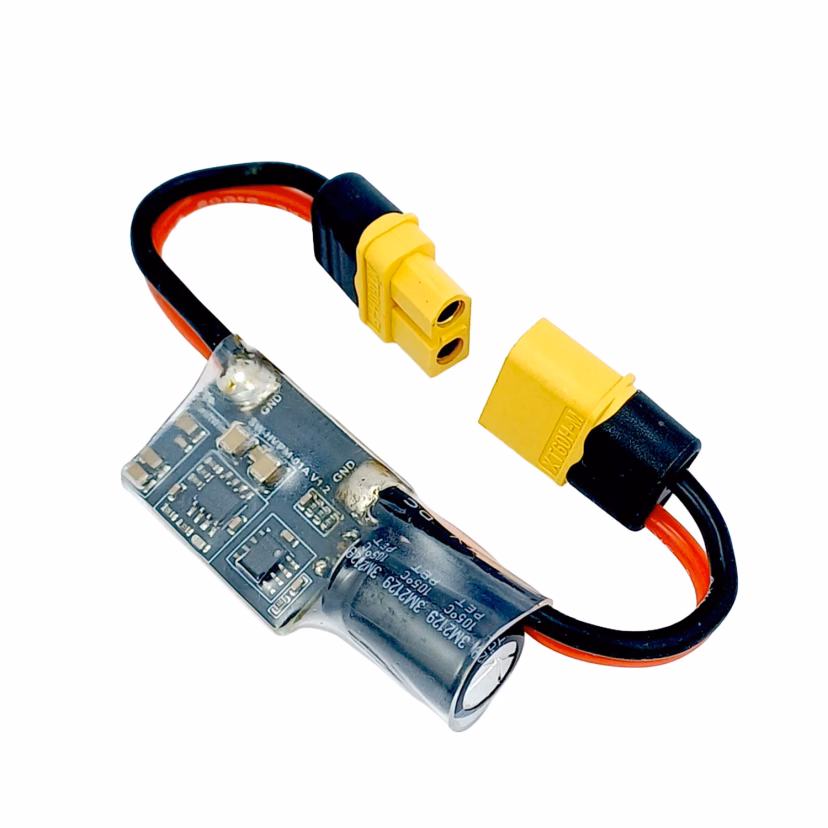

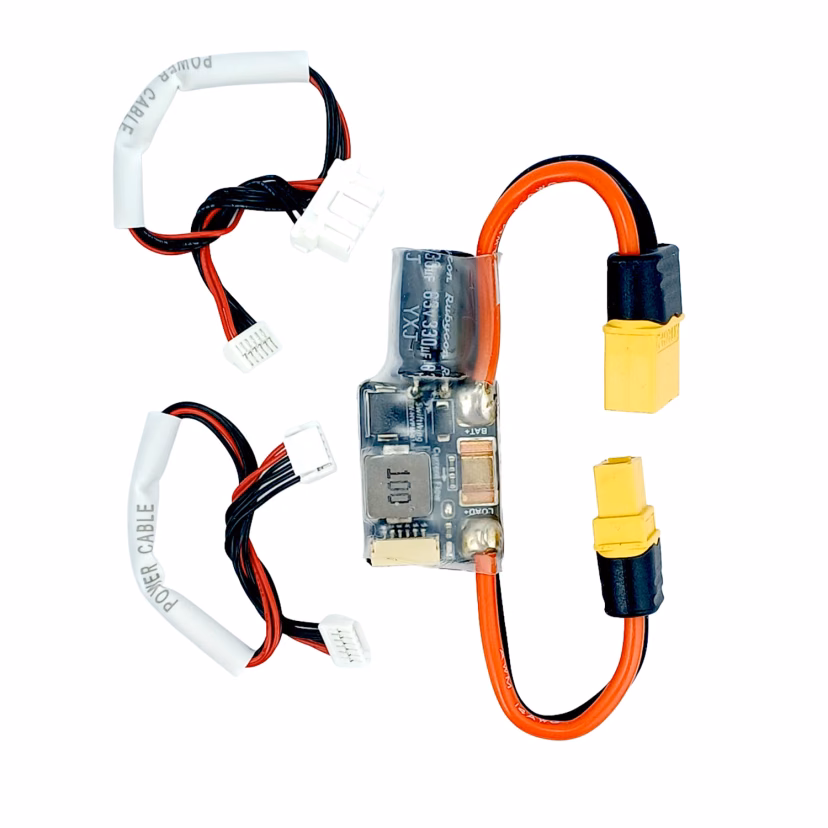

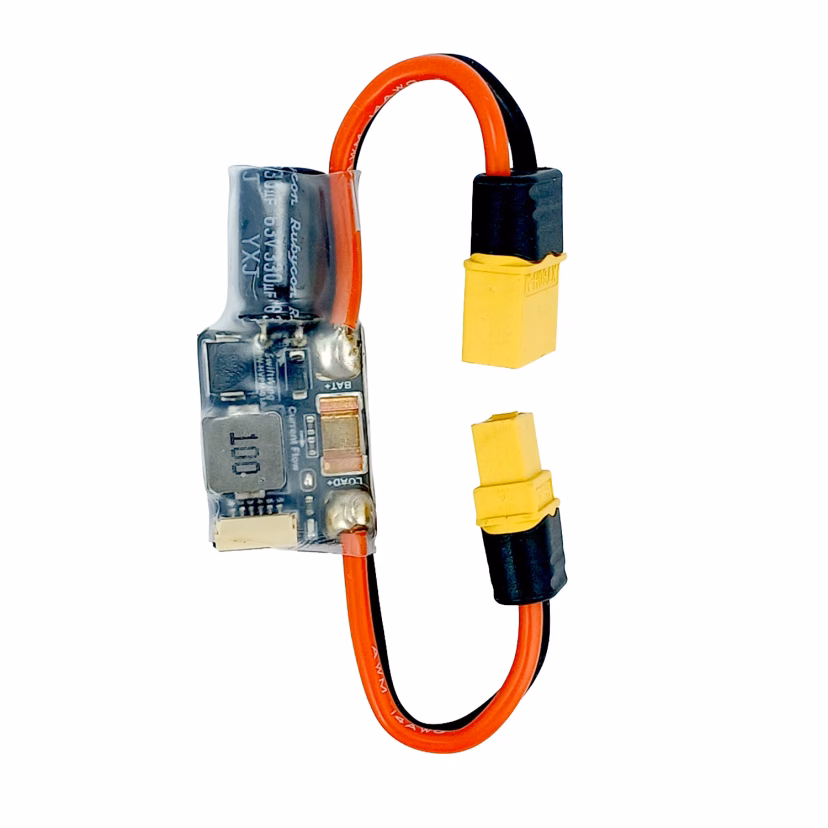

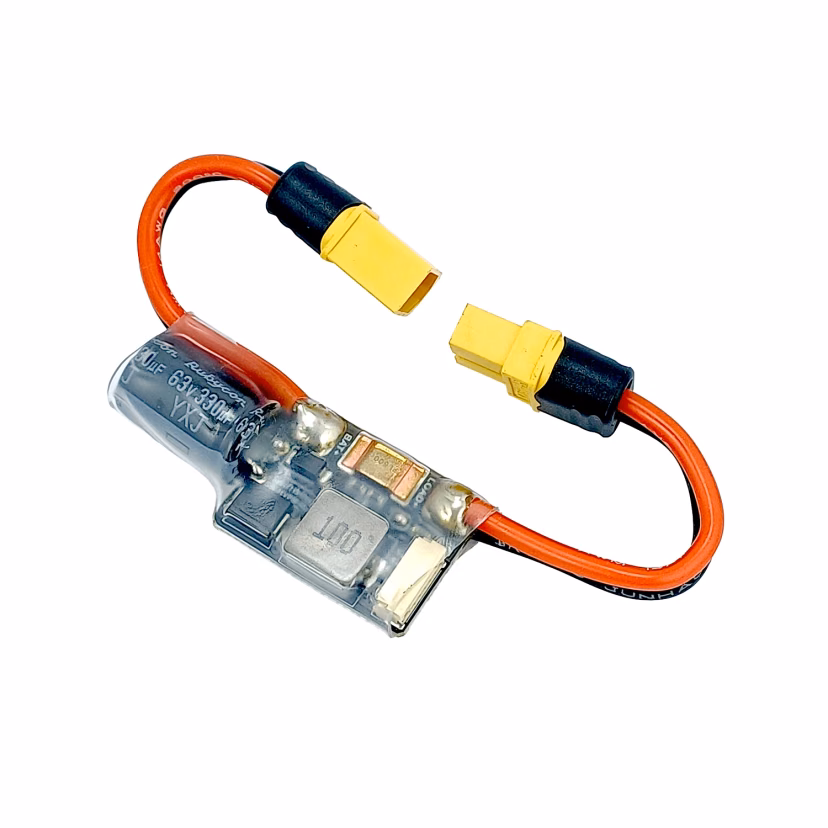

SwiftWing HVPM-01A High Voltage Analog Power Module (2S–14S, 60V) for ArduPilot & PX4

This is the 60V variant of the SwiftWing HVPM-01A High Voltage Analog Power Module (2S–14S, 60V) for ArduPilot & PX4 in GPS Modules. Available at ₹3,662.40 (₹3,488.00 + GST) with free shipping across India.

SwiftWing HVPM-01A High Voltage Analog Power Module (2S–14S, 60V) for ArduPilot & PX4

Description:

The SwiftWing HVPM-01A is a high-voltage analog power module designed for UAV platforms using ArduPilot and PX4 systems. It supports 2S–14S LiPo batteries and delivers a stable 5.3V regulated output for flight controllers. With integrated voltage and current sensing, it ensures real-time monitoring of power consumption and battery health. Built with a precision shunt sensor and low-resistance current path, it offers accurate measurements and efficient performance. A Rubycon low-ESR capacitor enhances stability under dynamic loads, while TVS protection safeguards against voltage spikes. Its compact XT60 inline design enables easy integration into drones and robotics systems. Ideal for multirotor, VTOL, and fixed-wing UAVs, this module improves reliability, efficiency, and overall flight performance in demanding applications.

Features:

• Supports 2S–14S LiPo battery systems
• Regulated 5.3V BEC output for flight controllers
• 3A continuous and 5A peak output current
• Voltage monitoring up to 60V
• Current sensing up to 120A
• Precision shunt-based measurement
• Rubycon low-ESR capacitor for stability
• Compact XT60 inline form factor

Specifications:

• Input Voltage Range: 9V – 60V DC
• Battery Compatibility: 2S – 14S LiPo
• BEC Output Voltage: 5.3V ±3%
• BEC Continuous Current: 3A
• BEC Peak Current: 5A (<3s)
• BEC Efficiency: Up to 90%
• Voltage Measurement Range: 0 – 60V
• Current Measurement Range: 0 – 120A
• Current Sensor Type: Precision Shunt-Based
• Voltage Sensor Type: Resistive Divider
• Measurement Accuracy: ±2% (after calibration)
• Voltage Divider Ratio: 20.66
• Amperes per Volt: 40 A/V
• Continuous Current (Recommended): 60A
• Maximum Burst Current: 120A
• Flight Controller Interface: JST-GH 6-Pin
• Protection: TVS (Transient Voltage Suppression)
• Input Capacitor: 330µF, 63V, Low-ESR (Rubycon)
• PCB Construction: 4-Layer, 2 oz Copper
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +85°C
• Connector Type: XT60 Inline
• PCB Thickness: 1.6 mm ±0.15 mm
• PCB Size: 30 × 22 mm
• Weight: 29g
