This is the Red variant of the SwiftCAN-HUB – 6 Port Powered CAN Hub for ArduPilot, PX4 & DroneCAN Systems in GPS Modules. Available at ₹5,181.75 (₹4,935.00 + GST) with free shipping across India.

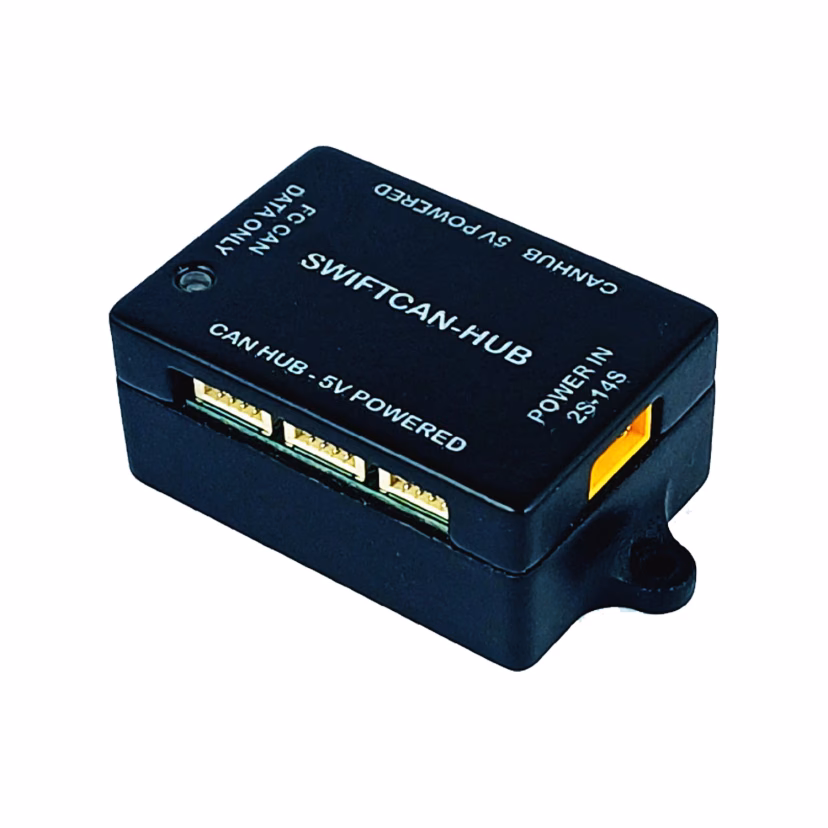

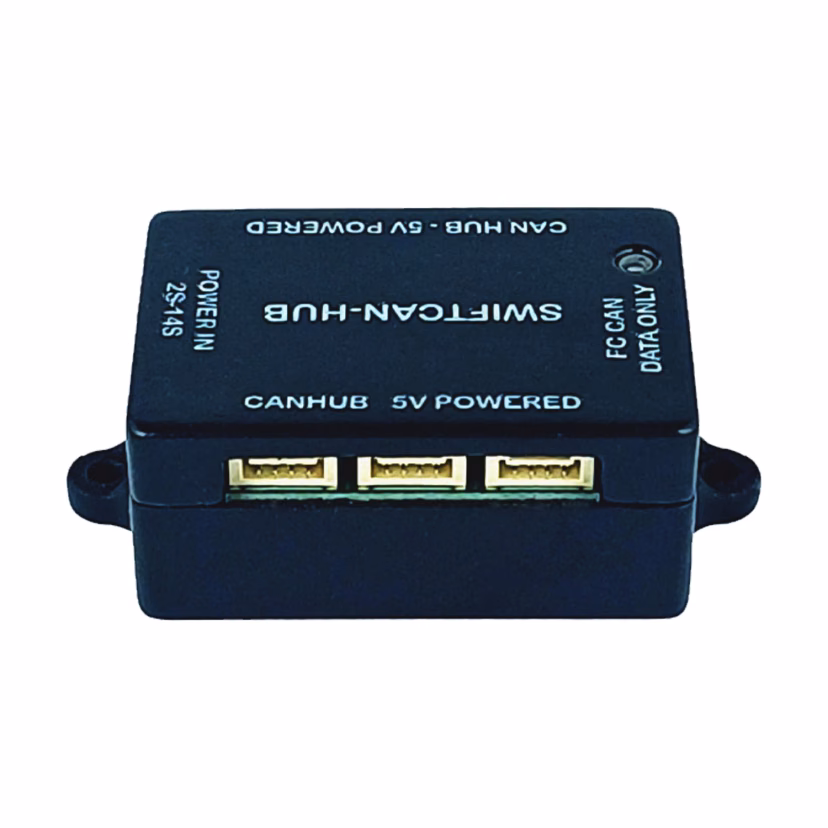

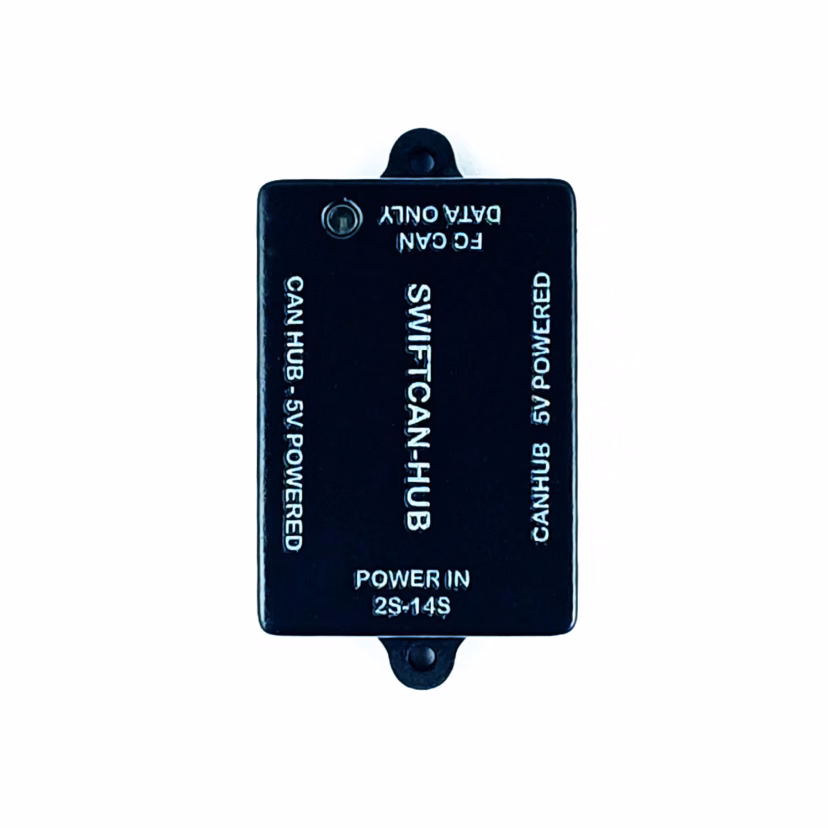

SwiftCAN-HUB – 6 Port Powered CAN Hub for ArduPilot, PX4 & DroneCAN Systems
Description:

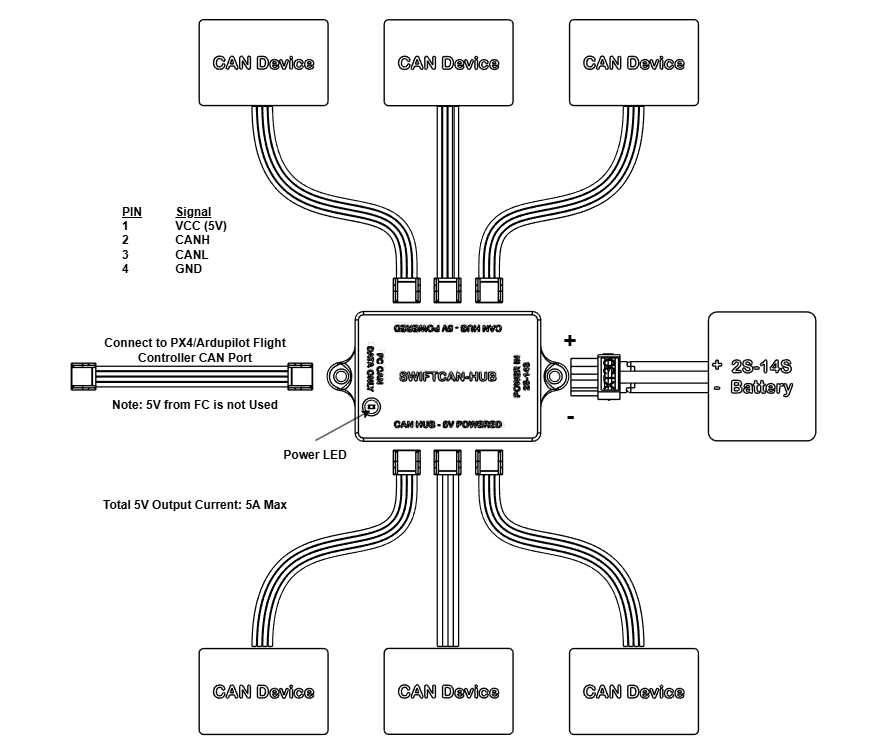

The SwiftCAN-HUB is a reliable and efficient CAN expansion solution designed for advanced UAV and robotics systems. It allows a single CAN interface from the flight controller to connect up to six CAN-based peripherals with ease. The built-in high-efficiency DC-DC regulator converts a 2S–14S LiPo battery input into a stable 5.3V output, delivering up to 5A current to connected devices. This removes the load from the flight controller and simplifies wiring architecture.
With JST-GH connectors, compact enclosure, and power status LED, the hub ensures robust connectivity and easy installation. It supports DroneCAN and other CAN-based devices like GNSS, ESCs, sensors, and telemetry modules. Ideal for multirotor UAVs, VTOL, robotics, and autonomous platforms, it enhances system scalability and performance.
Features:
- Expands 1 CAN port into 6 powered CAN ports
- Supports 2S–14S LiPo battery input
- High-efficiency onboard DC-DC regulator (>90%)
- Regulated 5.3V output for CAN peripherals
- Up to 5A total output current
- JST-GH 4-pin connectors for reliable connection
- Dedicated CAN input port for flight controller
- Compact enclosed design with power status LED
Specifications:
- Input Voltage: 2S–14S LiPo

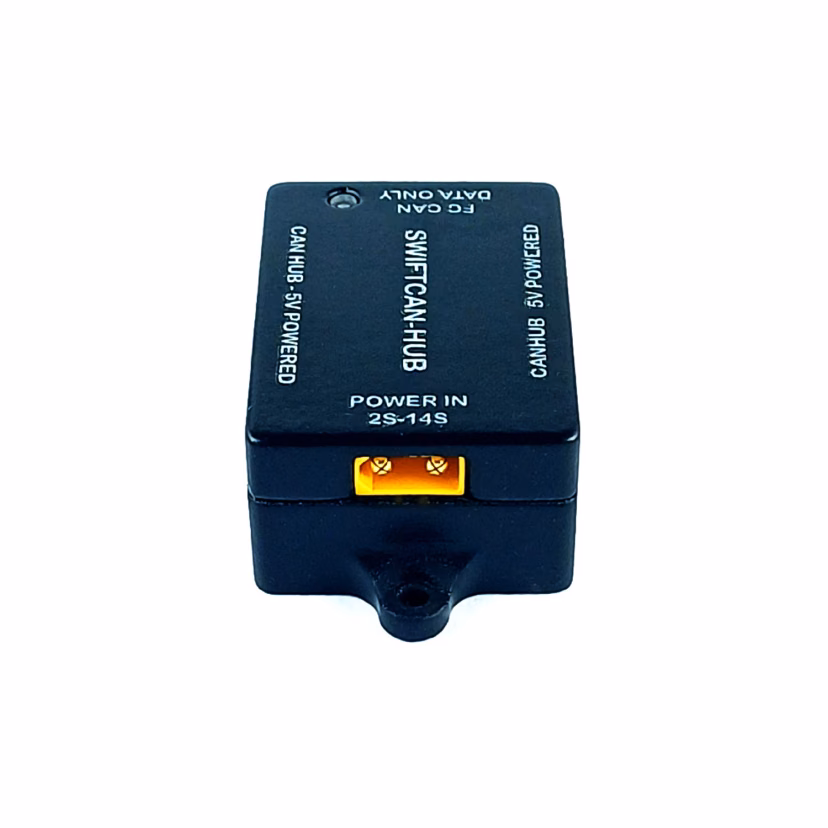

- Input Connector: XT30
- Output Voltage: 5.3V ±0.15V
- Maximum Output Current: 5A Total
- Efficiency: >90%
- CAN Peripheral Ports: 6
- Flight Controller CAN Port 1
- Connector Type: JST-GH 4 Pin
- Status Indicator: Red Power LED
- Operating Temperature: -20°C to +60°C

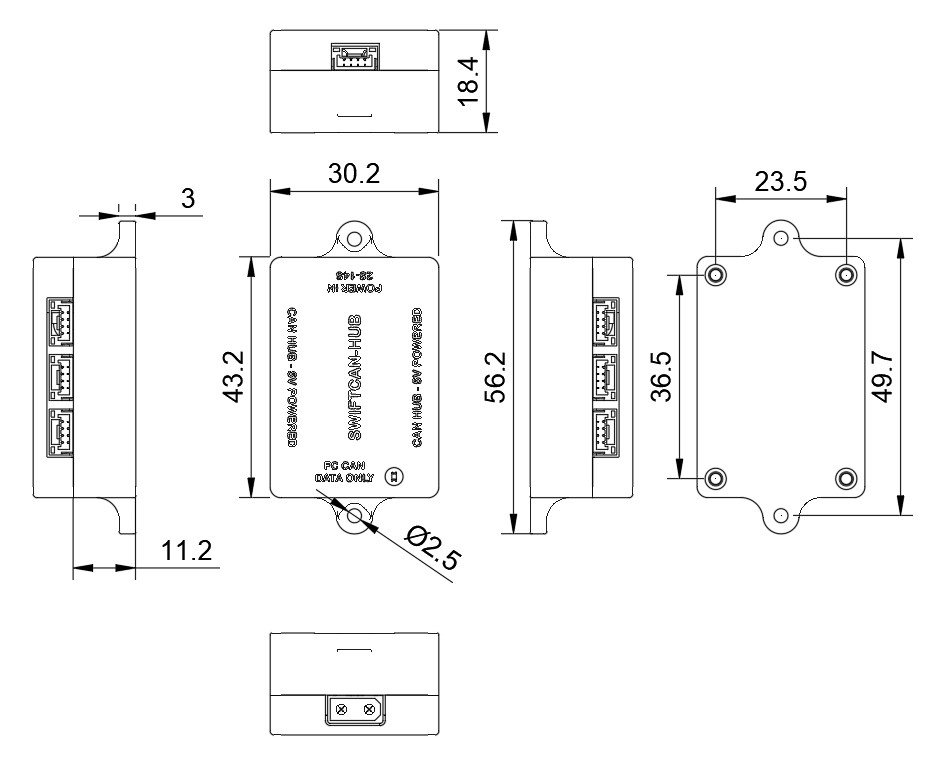

- Dimensions: 55 x 30 x 18 mm
- Weight: 22 g
Datasheet :
Package Includes:
1 x SwiftCAN-HUB – 6 Port Powered CAN Hub for ArduPilot, PX4 & DroneCAN Systems
1 x JST-GH 4-Pin Cable
Drone Winch System: Pick and Place Payload Delivery UAV
Drone Winch System: Pick and Place Payload Delivery UAV The idea of drones that can autonomously pick up...
Read More →
GPS Rescue Mode Setup: Return-to-Home Safety Feature in Betaflight
GPS Rescue Mode in Betaflight: Complete Setup Guide for Return-to-Home Safety Losing your FPV quad in a tree,...
Read More →
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →Technical Specifications
| Brand | SwiftWing |
|---|---|
| Interface / Protocol | CAN |
| Package Quantity | 4 pcs |
| Color | Red |
| SKU | AI5060 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SwiftCAN-HUB – 6 Port Powered CAN Hub for ArduPilot, PX4 & DroneCAN Systems is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
