Product description

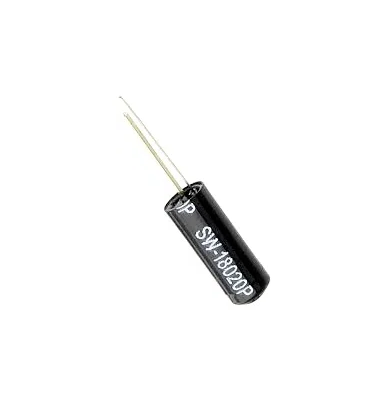

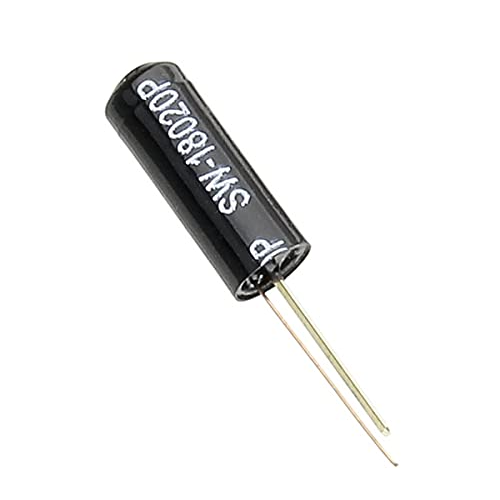

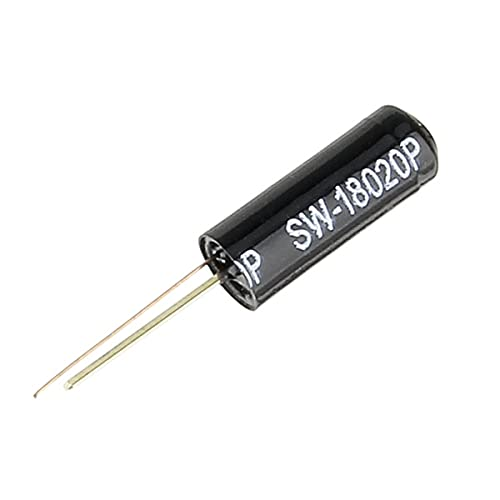

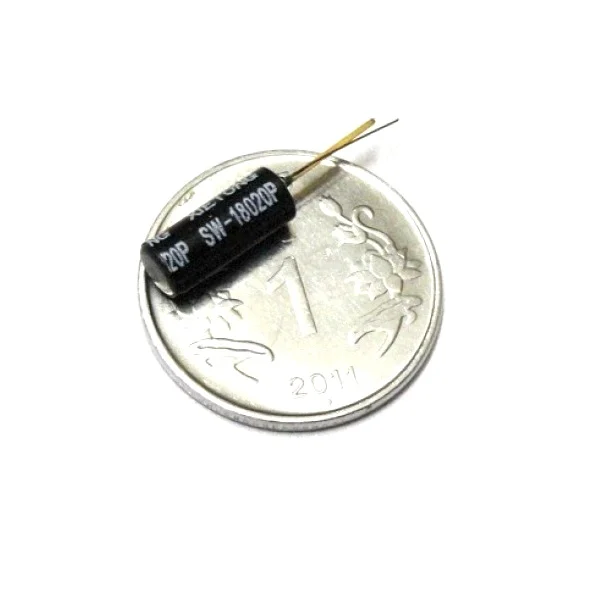

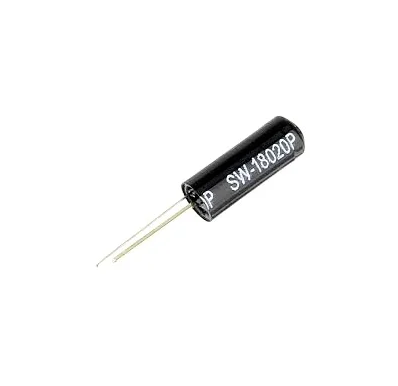

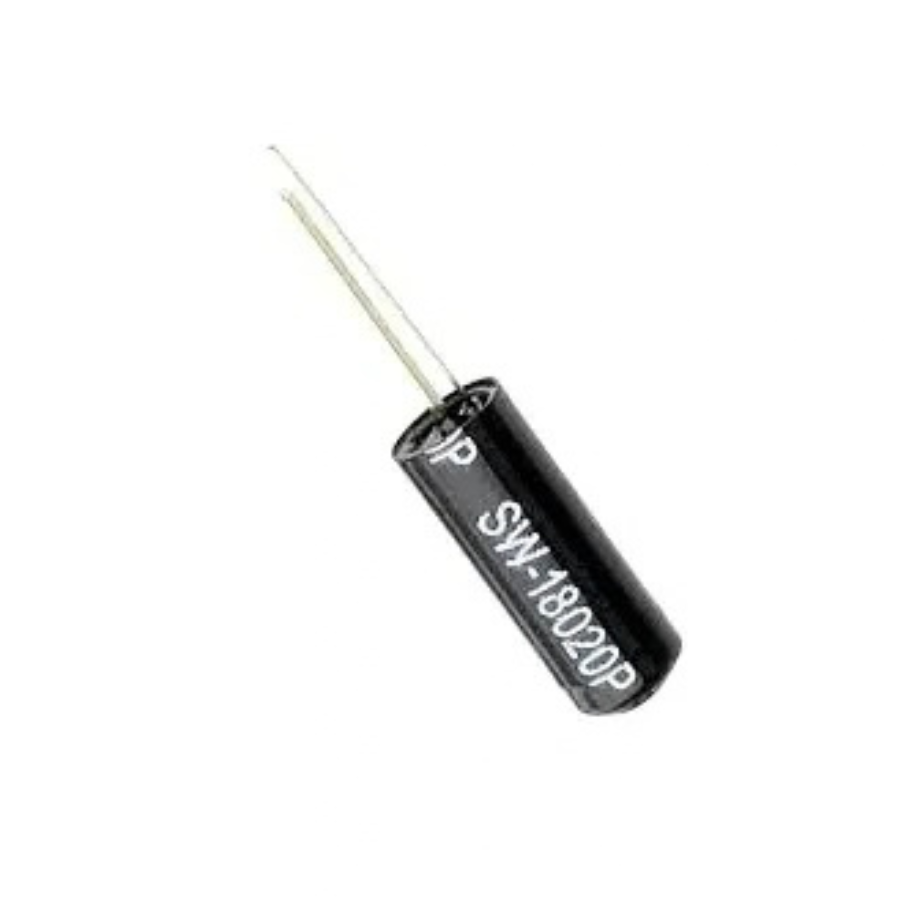

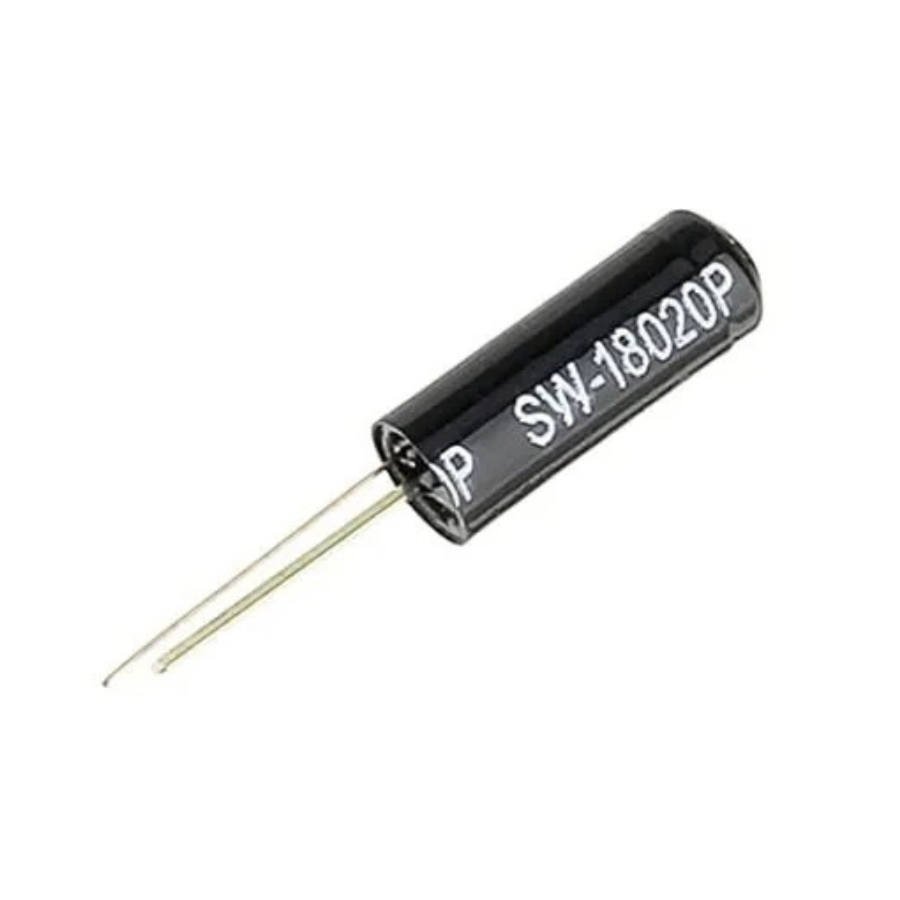

SW-18020P Vibration Sensor is a really simple vibration switch, it is used commonly in electronic toys, alarms, domestic appliances, electronic devices, and smart home systems. SW-18020 series is a spring-type, non-direction vibration-induced trigger switch, at any angle that can be triggered.
Applications
- Anti-theft alarm
- Smart Home systems
- Automotive devices
- Home electrical devices
- Air condition / Air warm blower fall prevention protection switches.
- Communication devices
- Electronic Scale
- Instruments / Toys
- Meters / Lamps
- Digital Shoes
- Sport Equipment
Features:
- Using the company’s high-sensitivity vibration switch, the default with SW-18020P vibration sensor.
- The comparator output, the signal clean, good waveform, driving ability, and more than 15mA
- With a fixed bolt hole, easy to install.
- The use of a wide voltage LM393 comparator.
Specification:
| Product | SW-18020P Vibration Sensor |
|---|---|
| Model | 18020P |
| Vibration sensor | SW-18020P |
| Max voltage | 12V |
| Max current | 50mA |
| Conductive time | ~2ms |
| Closed resistance | <10 ohm |
| Open resistance | >10M ohm |
| Operating temperature range | -40 to 80 C |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 4 × 3 × 2 cm |
Package Includes:
1 x SW-18020P Vibration Sensor
Tutorial:
SW-18020P Vibration Sensor Overview
The SW-18020P Vibration Sensor is a spring-type, non-directional switch that detects vibrations in its surrounding environment. Ideal for integrating into alarms, toys, appliances and smart home systems, it closes a contact whenever it senses motion, regardless of orientation.
Key Features of SW-18020P Vibration Sensor
- High-sensitivity spring switch for reliable vibration detection
- Non-directional trigger—activates at any angle
- Operates up to 12 V DC and handles currents up to 50 mA
- Built-in comparator output delivers a clean, stable waveform
- Compact, PCB-mountable design for easy integration
- Fast shipping from Zbotic across India
Applications and Use Cases
- Anti-theft alarms that trigger on tampering or impact
- Fall-prevention switches in air conditioners and blowers
- Vibration monitoring in automotive devices and power tools
- Motion activation in electronic toys and sports equipment
- Load detection in digital scales and measurement instruments
- Vibration feedback in home appliances and communication devices
How to Use SW-18020P Vibration Sensor
Mount the SW-18020P on a stable surface near the vibration source, connect VCC to a 5–12 V supply and GND to system ground. Tie the output pin to a digital input on your microcontroller or alarm circuit with a pull-down resistor (e.g., 10 kΩ) to read switch closures as logic HIGH signals when vibration occurs.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage and current can the SW-18020P handle?
The SW-18020P operates on a DC supply up to 12 V and is rated for a maximum switching current of 50 mA, making it suitable for low-power electronics and alarm circuits.
How do I interface the sensor output with an Arduino?
Connect the sensor’s VCC pin to the Arduino 5 V rail, GND to ground, and the output pin to a digital input. Use a 10 kΩ pull-down resistor between the output and ground to ensure a defined LOW state when no vibration is present.
Can the SW-18020P be used outdoors?
While the SW-18020P is designed for indoor electronic applications, you can use it outdoors if placed inside a protective enclosure that prevents moisture and dust from entering the sensor housing.
