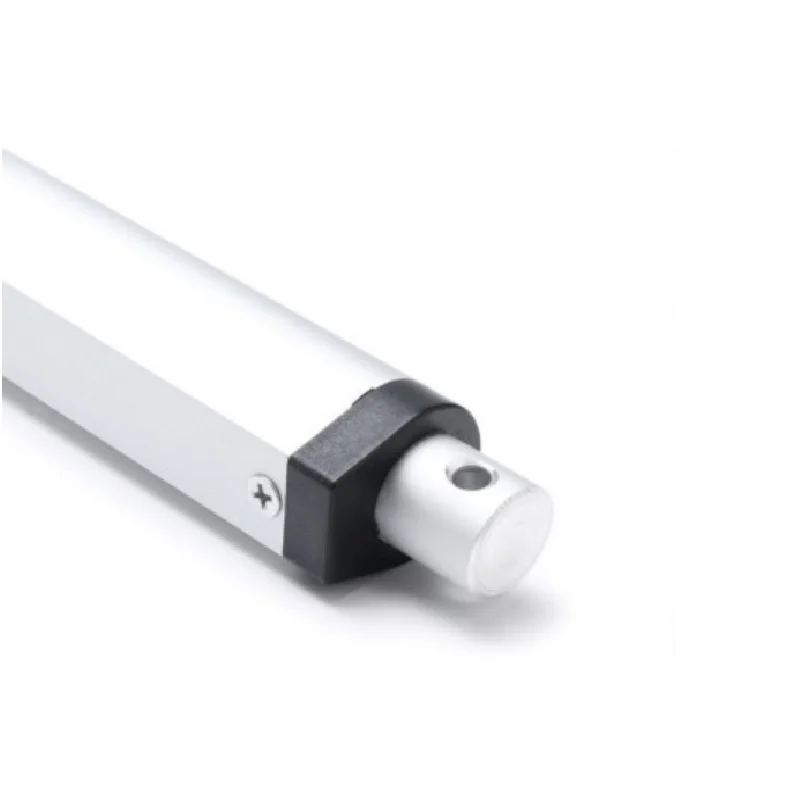

This is the 12V variant of the Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric Linear Actuator in Linear Actuators. Available at ₹6,183.20 (₹5,240.00 + GST) with free shipping across India.
This product offers reliable performance, sensitive action and stable running. It can adapt well to different environments. It is made of high-quality metal material and has a high-performance motor with a built-in stroke switch. It can achieve a maximum push/pull force of 2000N and a stroke speed of 7mm/s without any load. It is widely used in automotive, medical devices, engineering, and agricultural machinery industries.
Applications:
- Agricultural machinery
- Industrial electric lifting system
Note: The actual product may vary in terms of color and markings.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive
Specification-
| Stroke Length (mm) | 300 |
|---|---|
| Operating Voltage | 12V DC |
| No Load Current (mA) | 750 |
| Body Material | Aluminum Alloy |
| Operating Temperature Range (C) | -20 to 85 |
| Noise Level (dB) | <40 |
| Cable Length (cm) | 50 |
| Protection Standard | IP52 |
| Self-Locking Force (N) | 2000 |
| Speed at Full Load (mm/Sec) | 7 |
| Speed at No Load (mm/Sec) | 7 |
| Product Weight | 1210g |
| Shipping Weight | 1.21 kg |
| Shipping Dimensions | 43 × 8 × 6 cm |
Package Includes:
1 x Electric Linear Actuator
Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric Overview
The Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric Linear Actuator converts motor rotation into precise linear motion with a 300 mm travel and 2000 N self-locking force. Operating at 12 V DC and moving at 7 mm/s, it’s ideal for applications requiring reliable push-pull action under heavy loads.
Key Features of Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric
- 300 mm stroke length for extended linear travel
- High self-locking force of 2000 N ensures stable position holding
- Travel speed of 7 mm/s for controlled motion
- Built-in micro-motion limit switch for end-of-stroke protection
- Durable metal housing and precision screw-nut mechanism for long service life
- Fast shipping from Zbotic
Applications and Use Cases
- Adjusting solar panel tilt angles in renewable energy installations
- Raising and lowering hatches or access panels in marine vessels
- Automating gate openers and sliding barriers in security systems
- Controlling loader beds or conveyor guards in industrial machinery
- Positioning farm equipment attachments in agricultural setups
- Fine-tuning cleaning nozzles and spray arms in car wash systems
How to Use Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric
Mount the actuator by securing the sliding seat at the rod end and the bracket points on the shell to your structure, then connect a regulated 12 V DC power supply to its input leads. Use a simple switch or controller to drive the actuator forward or backward; the built-in limit switches will stop motion at each end of the 300 mm stroke. Ensure wiring and load alignment before operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the actuator hold its position when powered off?
Yes, the 2000 N self-locking mechanism prevents backdriving and maintains the rod position under load even when power is removed.
What power supply is needed?
This linear actuator requires a stable 12 V DC source capable of delivering the motor’s current. A quality 12 V battery or regulated power adapter ensures smooth operation at 7 mm/s.
How do I mount the actuator?
The actuator features an adjustable sliding seat on the rod end and mounting points on its shell. Secure both ends with compatible fasteners, align the rod with your load, and tighten to prevent misalignment during travel.
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 300mm |
| SKU | AI2612 |
| Weight | 1.43455 kg |
| Availability | In Stock |
Applications & Use Cases
The Stroke Length DC12V 300MM 7MM/S 2000N Putter Electric Linear Actuator is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
