This is the 12V variant of the Linear Actuator Stroke Length 200MM,7mm/S,1500N,12V in Linear Actuators. Available at ₹3,321.70 (₹2,815.00 + GST) with free shipping across India.

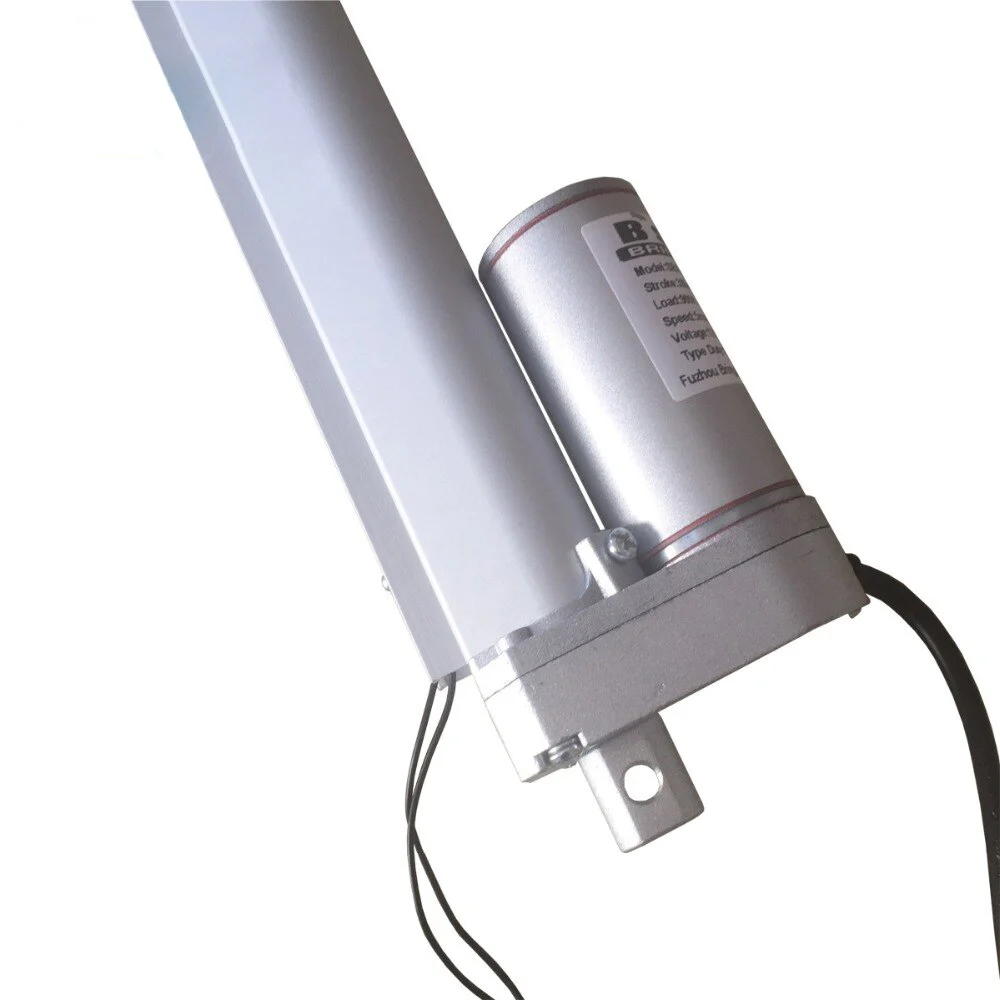

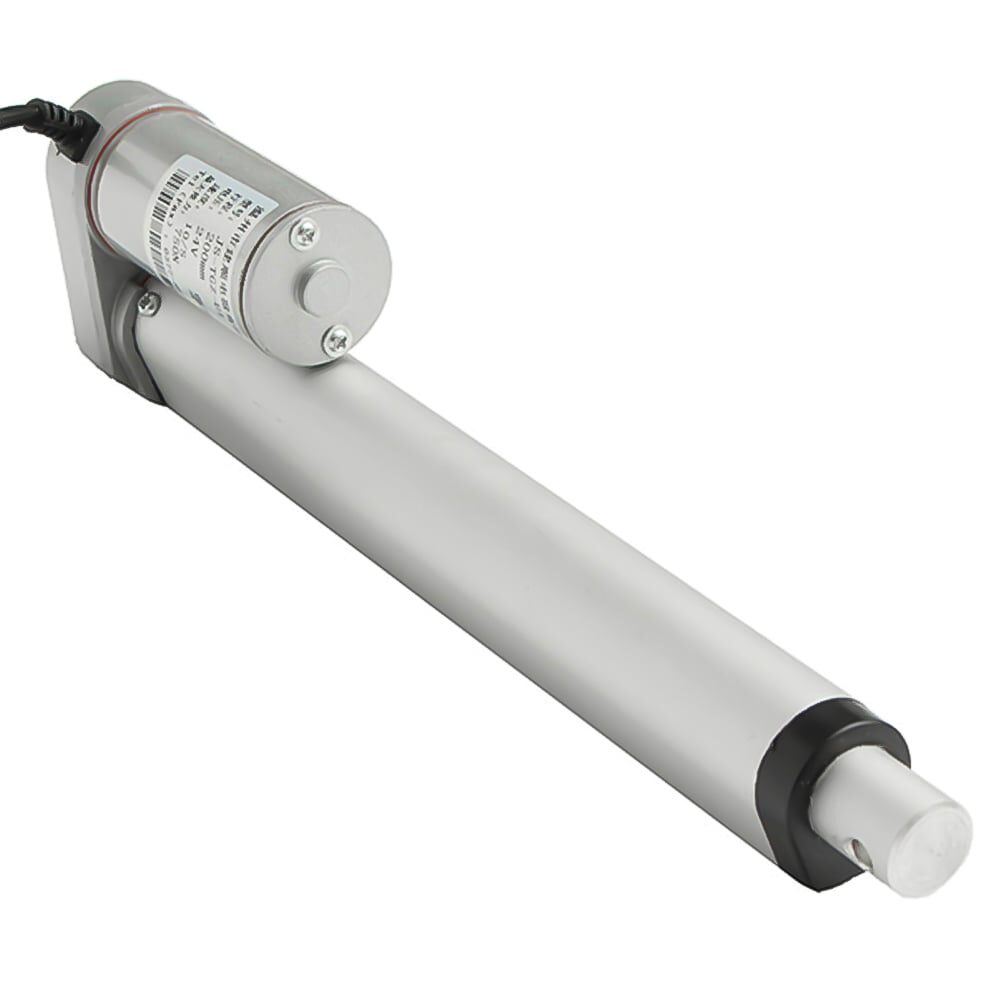

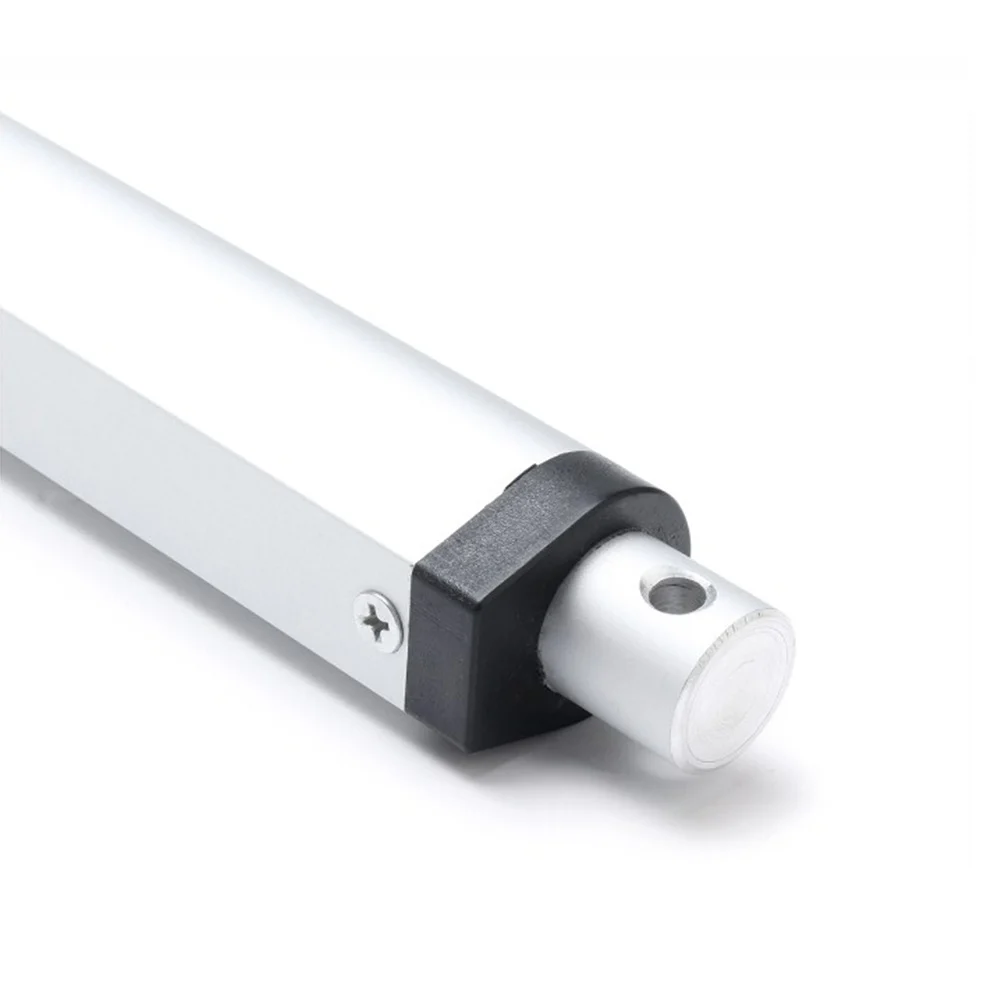

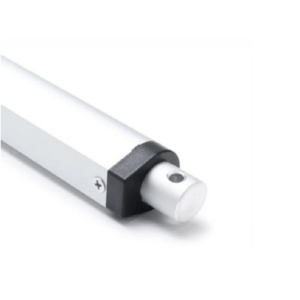

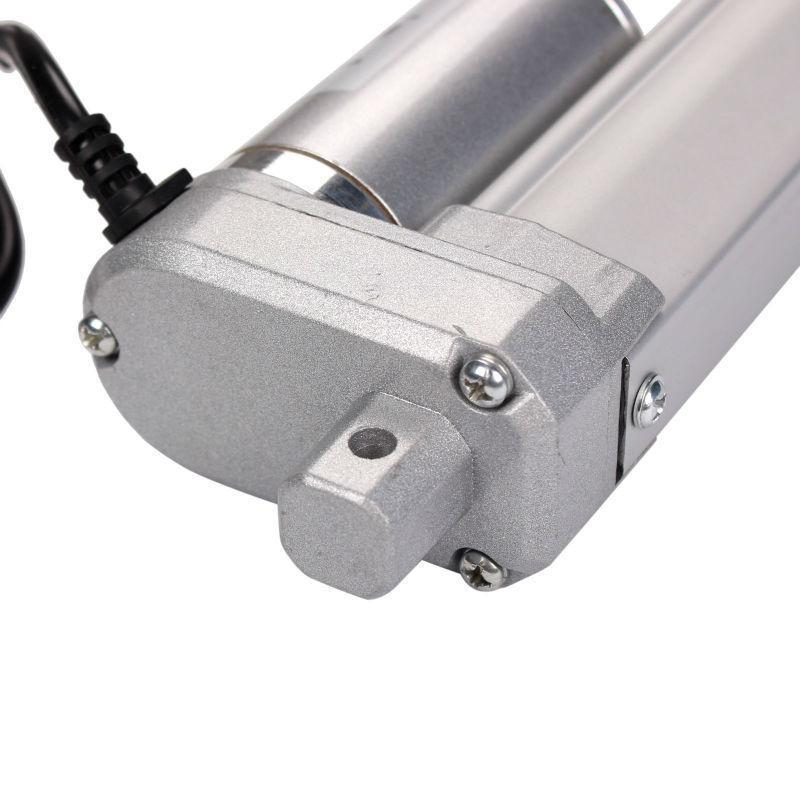

Linear Actuator Stroke Length 200MM,7mm/S,1500N,12V
This Miniature Linear Actuator Stroke Length 200MM, 7mm/S,1500N,12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex process. This electric push rod is a kind of electric driving device as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.
Linear Actuator Parts:
Following figure shows various parts of Linear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.
Note: It’s works on reverse polarity.
Features:
-
Aluminium frame and extension tube
-
Compact Design
-
Built in Limit Switch
-
Low Noise
-
Moisture-proof Surface
-
Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
-
Permanent magnet DC motor drive: Voltage 12VDC
-
Self Locking Force: 1500N
Applications:
-
Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
-
The medical electric bed, surgical bed, traction bed
-
Electric equipments: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
-
Chair for medical use: Electric wheelchair, massage chair, dental chair.
-
Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Specification:
-
Permanent magnet DC motor drive: Voltage 12VDC
-
Self Locking Force: 1500N
-
The current required to push 150KG is 1.5~2A
-
Working temperature: -20ºC to +63ºC
-
Aluminium frame and extension tube
-
Compact Design
-
Built in Limit Switch
-
Low Noise
-
Moisture-proof Surface
-
Long life: A service life of more than 50000 times
Package Includes:
1 x Linear Actuator Stroke Length 200MM,7mm/S,1500N,12V
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Size | 200mm |
| SKU | AI2522 |
| Weight | 1.25 kg |
| Availability | In Stock |
Applications & Use Cases
The Linear Actuator Stroke Length 200MM,7mm/S,1500N,12V is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
