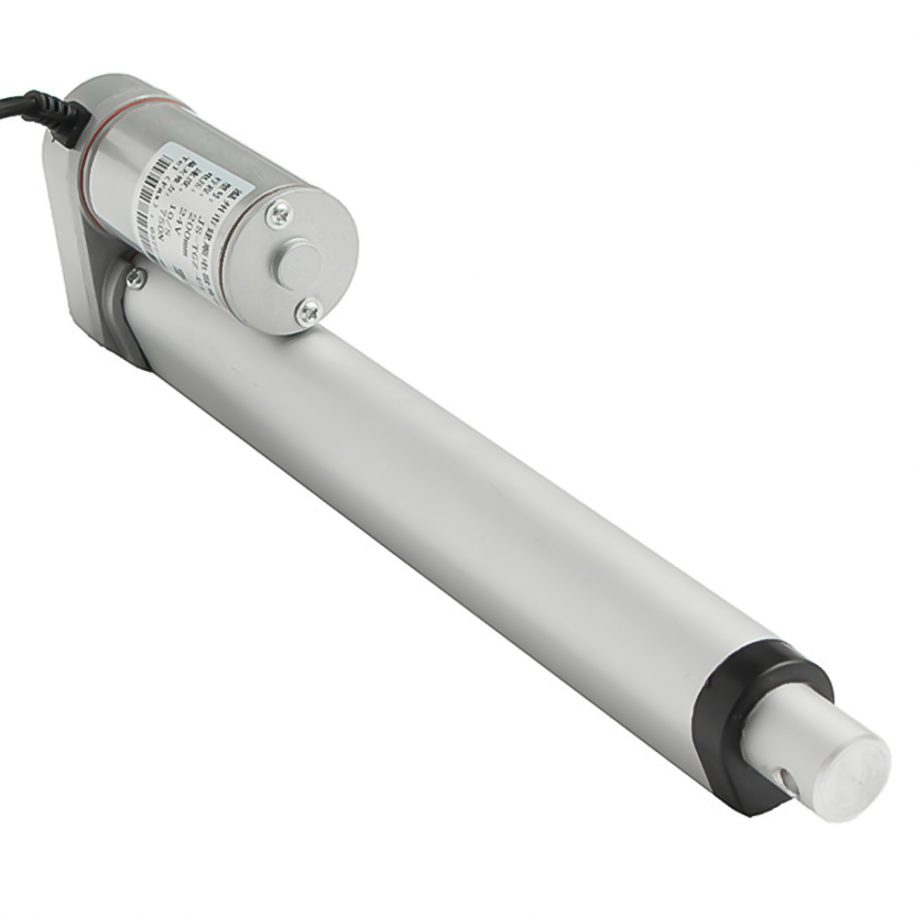

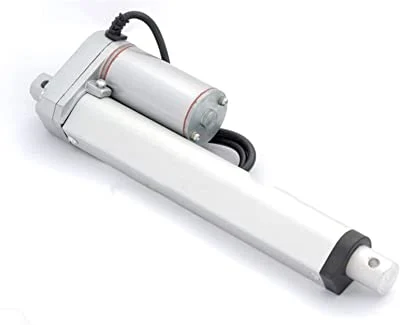

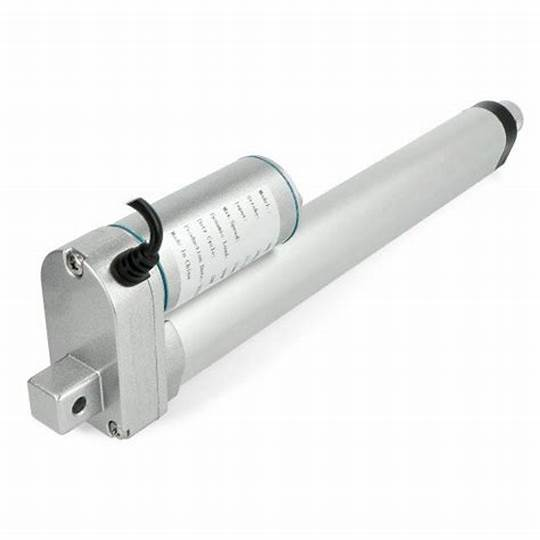

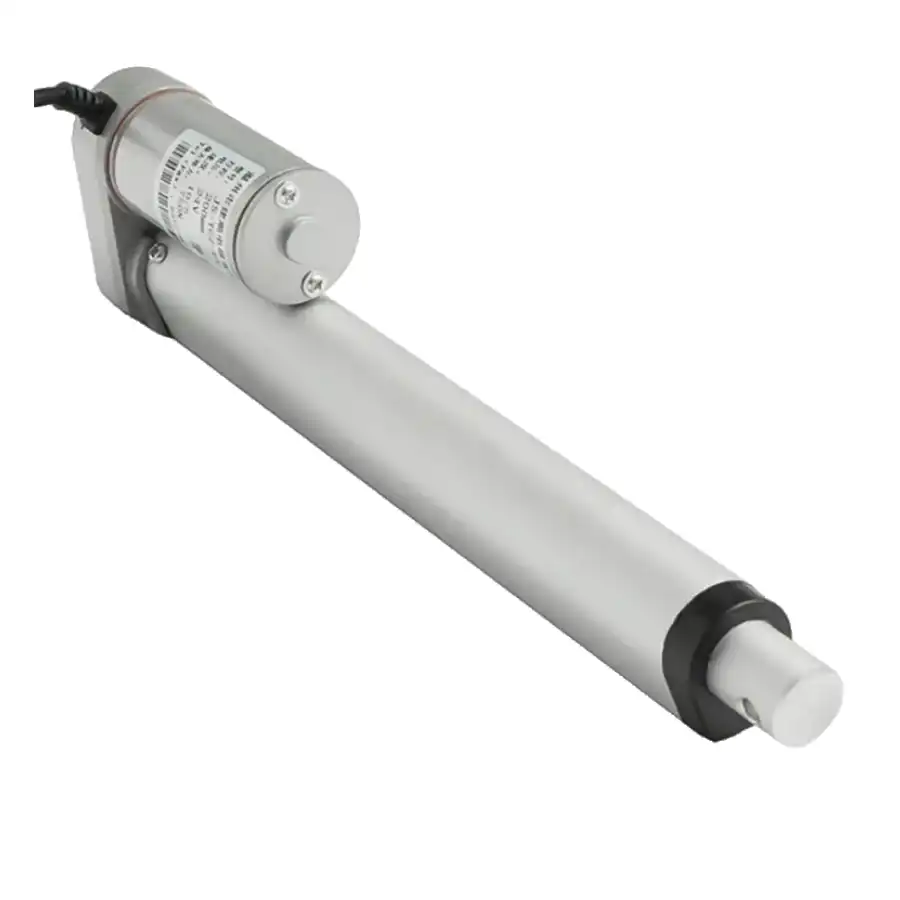

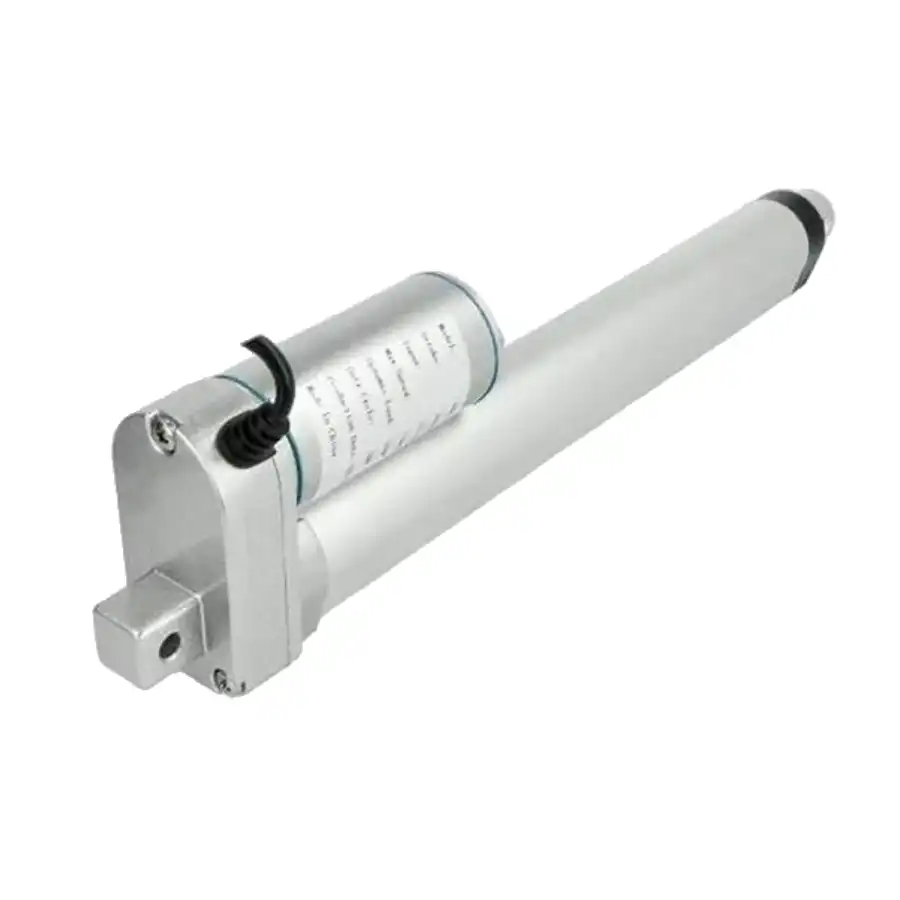

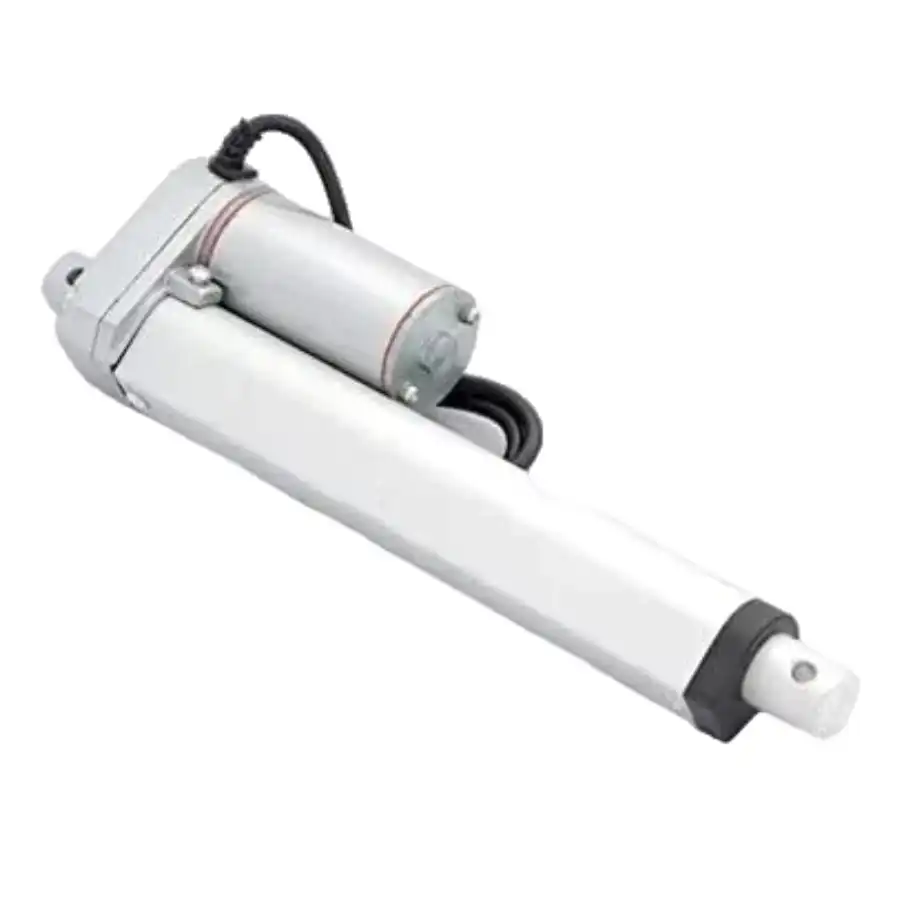

Stroke Length 200MM 7MM/S 2000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

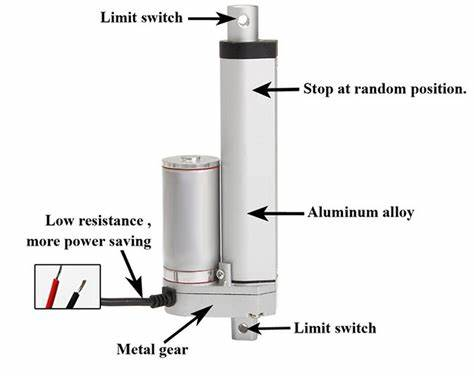

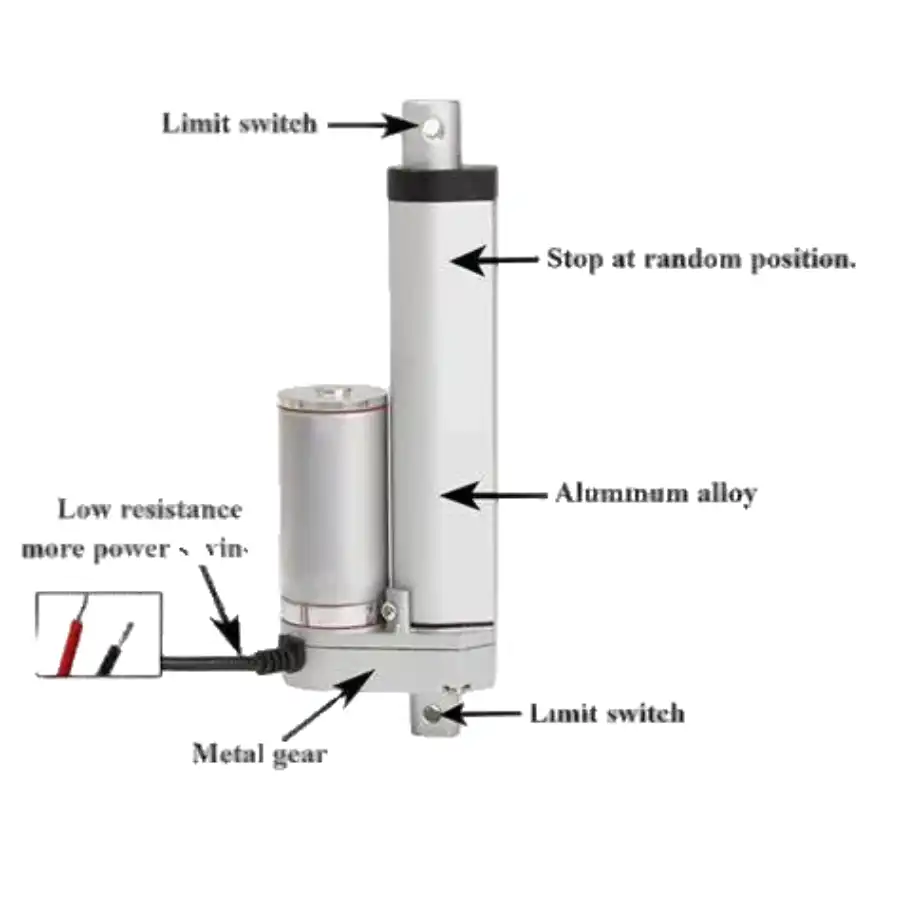

This Miniature Stroke Length DC12V 200MM 7MM/S 2000N Putter Electric Linear Actuator is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push-rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.
With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 2000N, and stroke speed is up to 7mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery
Note: It’s works on reverse polarity.
Specification:
| Stroke Length (mm) | 200 |
|---|---|
| Dimensions(LxWxH) | 30x 7.4×3.8cm |
| Operating Voltage | 12V DC |
| No Load Current (mA) | 750 |
| Body Material | Aluminum Alloy |
| Operating Temperature Range (C) | -20 to 85 |
| Noise Level (dB) | <40 |
| Cable Length (cm) | 50 |
| Protection Standard | IP52 |
| Self-Locking Force (N) | 2000 |
| Speed at Full Load (mm/Sec) | 7 |
| Speed at No Load (mm/Sec) | 7 |
| Shipping Weight | 1.045 kg |
| Shipping Dimensions | 33 × 8 × 6 cm |
Applications:
- Agricultural machinery
- Industrial electric lifting system
Package Include:
1 x Stroke Length 200MM 7MM/S 2000N DC12V Electric Putter Electric Linear Actuator
