Product Description

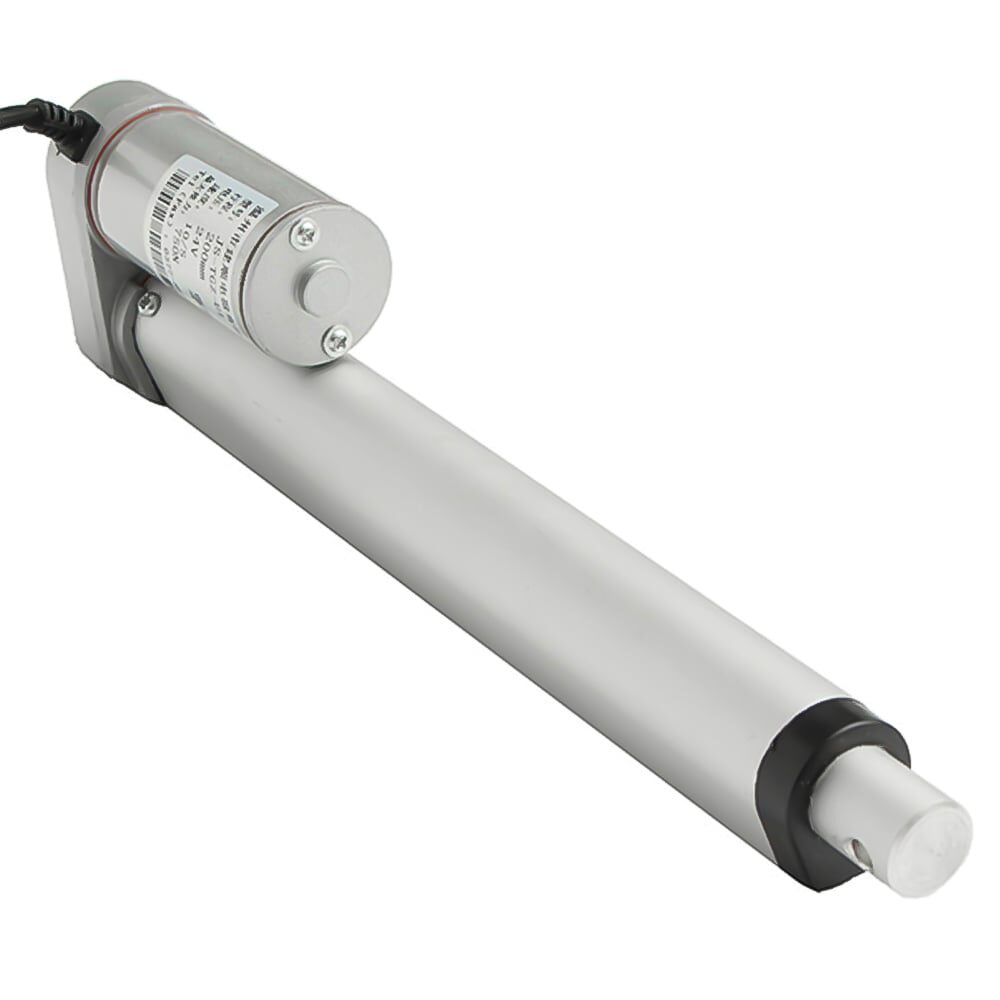

This product is a Miniature Linear Actuator with a stroke length of 200 mm, a speed of 7 mm/s, a force of 1500 N, and a voltage of 24 V. It is an electric device that converts the rotational motion of a motor into the linear back-and-forth motion of a rod. It can be used for various applications, such as industrial, agricultural, construction, cleaning, marine, and cargo equipment. It can also be controlled remotely, centrally, or automatically. The device consists of a drive motor, a reduction gear, a screw, a nut, a guide sleeve, a rod, a sliding seat, a shell, and a micro-motion control switch.
Note:
1. The actual product may vary in terms of colour and markings.
2. The following conditions can cause serious damage to the product.

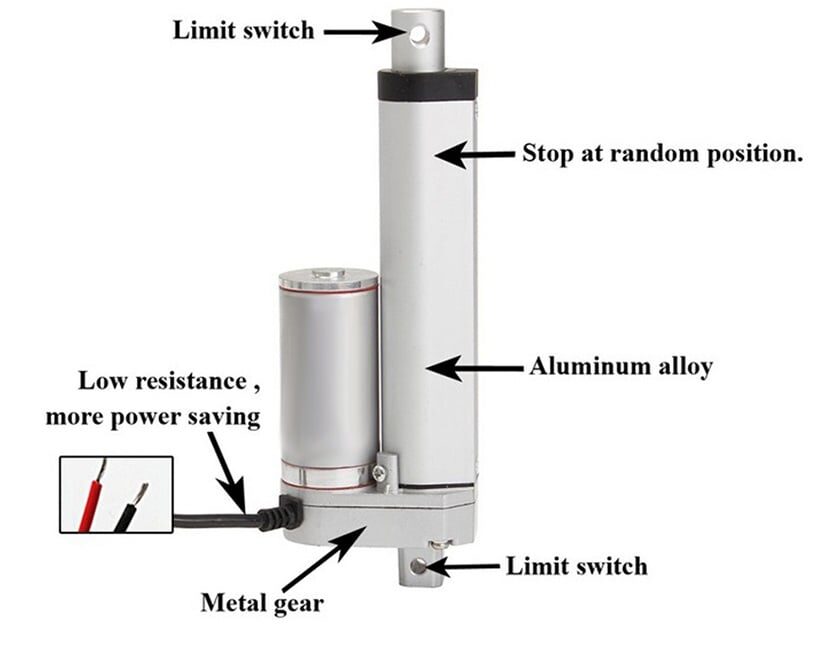

Linear Actuator Parts:
The following figure shows various parts of Linear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 24VDC
- Self Locking Force: 1500N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Specification-
| Stroke Length | 200mm (apprx. 8inches) |
|---|---|
| Permanent magnet DC motor drive | Voltage 12VDC |
| Operating temperature | -20ºC to +63ºC |
| Maximum static load | 337.2 lbs. ( 1500 Newtons ) |
| Protection Level | IP55 |
| Mounting hole diameter (both ends) | 1/4” (6.4mm) |
| Maximum current draw | ≤2A |
| Self Locking Force | 1500N |
| Motor Diameter | 36 mm |
| Speed at no load | 0.28in/sec (7 mm /sec) |
| Speed at full load | 0.22in/sec (5.5 mm/sec) |
| Noise level | 45 dB |
| Length (mm): | 317 |
| Width (mm) | 77 |
| Height (mm) | 36 |
| Weight (g): | 1034 |
| Shipping Weight | 1.05 kg |
| Shipping Dimensions | 33 × 9 × 4.5 cm |
Package Includes:
1 x Linear Actuator Stroke Length 200MM,7mm/S,1500N,24V
