This is the 12V variant of the Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric Linear Actuator in Linear Actuators. Available at ₹4,779.00 (₹4,050.00 + GST) with free shipping across India.

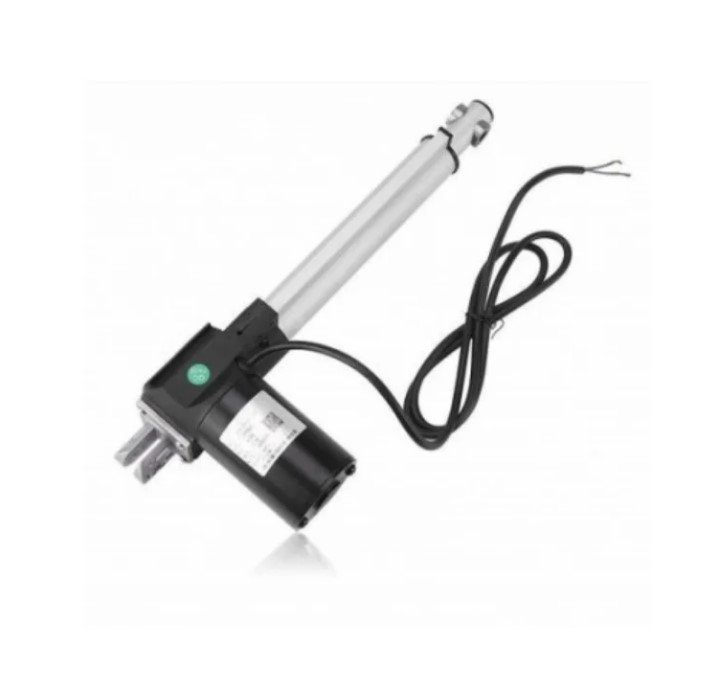

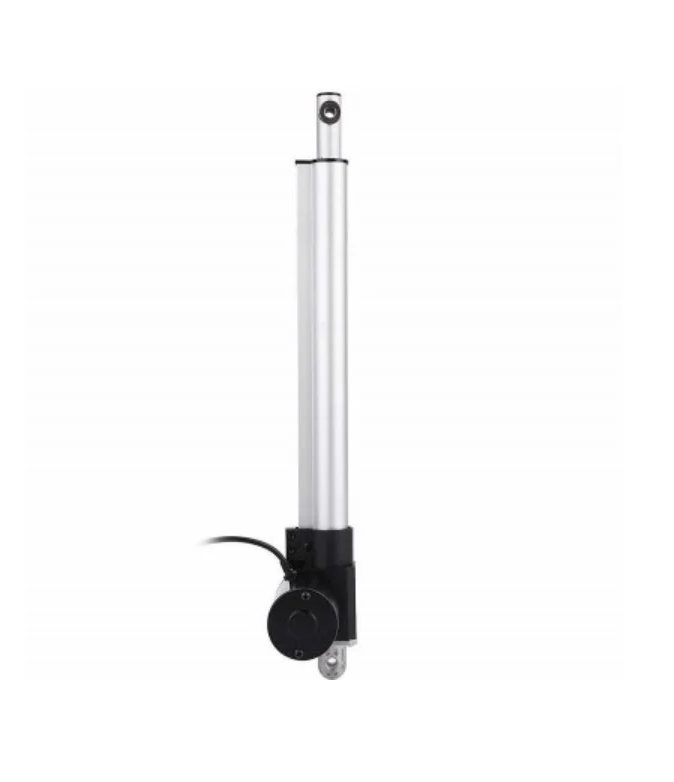

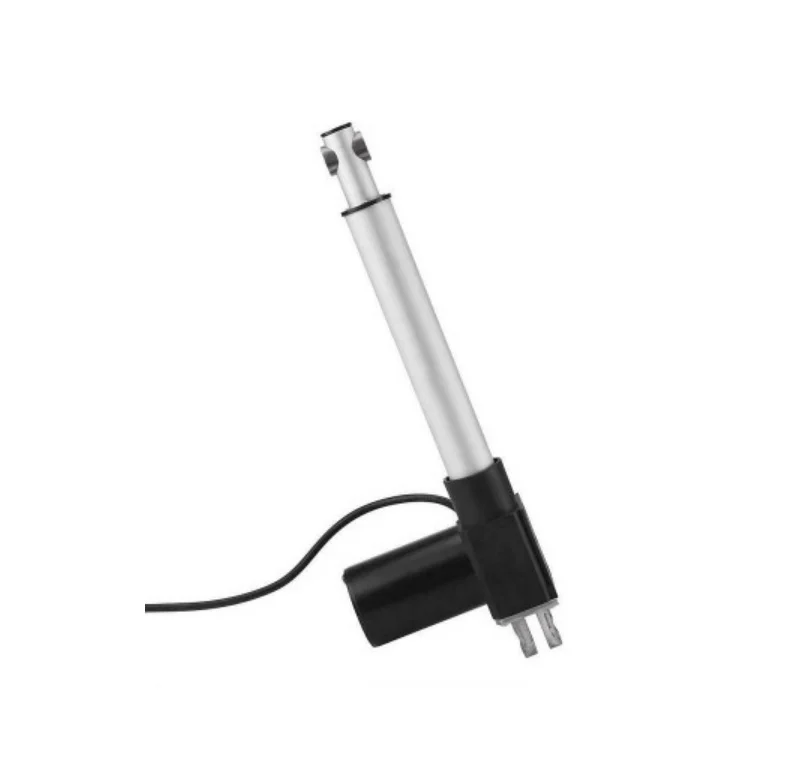

Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric Linear Actuator
With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 6000N, and stroke speed is up to 5mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery,
Applications:
- Agricultural machinery
- Industrial electric lifting system
- Door
- Window
Note: The actual product may vary in terms of color and markings.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive
Specifications:
- Stroke Length (mm): 100
- Operating Voltage: 12V
- No Load Current (mA): 750
- Body Material: Aluminum Alloy
- Operating Temperature Range (C): -20 to 85
- Noise Level (dB): <40
- Cable Length (cm): 50
- Protection Standard: IP52
- Self Locking Force (N): 6000
- Speed at Full Load (mm/Sec): 5
- Speed at No Load (mm/Sec): 7
Packages Includes:
1 x Electric Linear Actuator
Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric Overview
The Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric Linear Actuator is a compact 12 V DC push-rod device offering 100 mm travel and up to 6000 N self-locking thrust. Designed to convert motor rotation into smooth linear motion at 5 mm/s under full load, it’s ideal for remote or automated control in industrial and mobile equipment.
Key Features of Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric
- 100 mm precise stroke length with built-in limit switches
- Operates on 12 V DC supply for easy integration
- Self-locking push-pull force up to 6000 N for secure positioning
- Speed of 5 mm/s under full load for controlled movement
- Robust construction: motor, reduction gearbox, screw & nut assembly
- Fast shipping from Zbotic.in – orders dispatched within 24 hours
Applications and Use Cases
- Adjusting implements on agricultural machinery
- Raising and lowering cargo hatches on vessels
- Tilting or leveling platforms in clean sweeping vehicles
- Actuating valves and dampers in construction equipment
- Positioning stages or slides in laboratory automation
- Height adjustment systems in industrial assembly lines
How to Use Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric
Mount the actuator using compatible clevis or bracket mounts at both ends, ensuring alignment to prevent side loads. Connect the two motor leads to a 12 V DC power source, observing polarity for extension and retraction. Verify that built-in limit switches stop the rod at full extension and retraction, then secure all fasteners before operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum thrust force of this linear actuator?
This actuator delivers up to 6000 N of self-locking push or pull force, suitable for heavy-load applications.
Can I adjust the stroke length beyond 100 mm?
The built-in limit switches are set for a fixed 100 mm travel. To change stroke length, mechanical modifications or a different model are required.
How should I mount the actuator for best performance?
Use matched clevis or trunnion mounts on both ends, keep alignment straight, and secure pins or bolts to avoid side loading and ensure smooth operation.
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 100mm |
| SKU | AI0994 |
| Availability | Out of Stock |
Applications & Use Cases
The Stroke Length DC12V 100MM 5MM/S 6000N Putter Electric Linear Actuator is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
