Product Description:

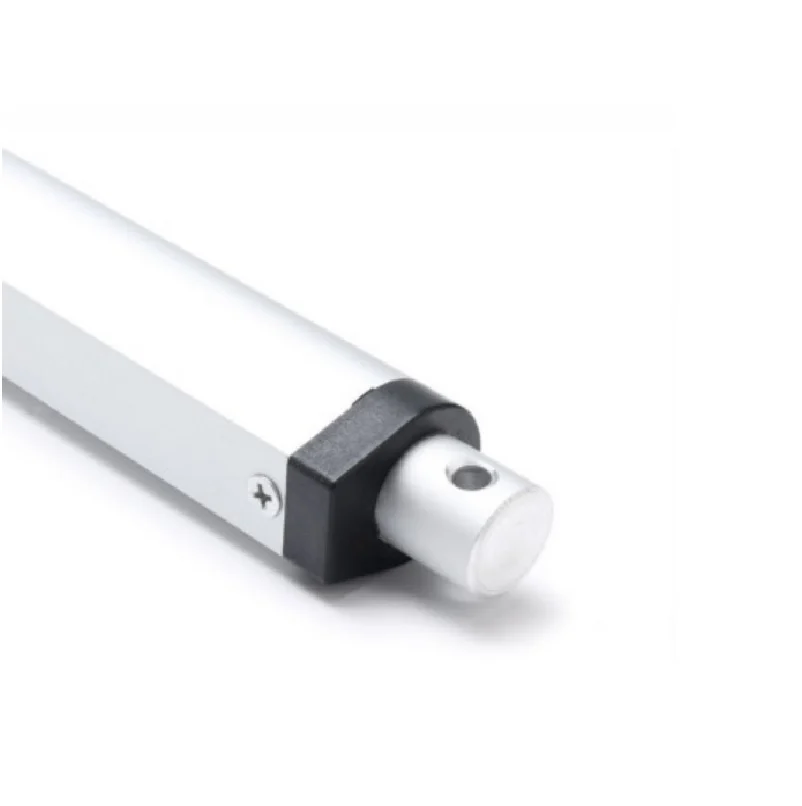

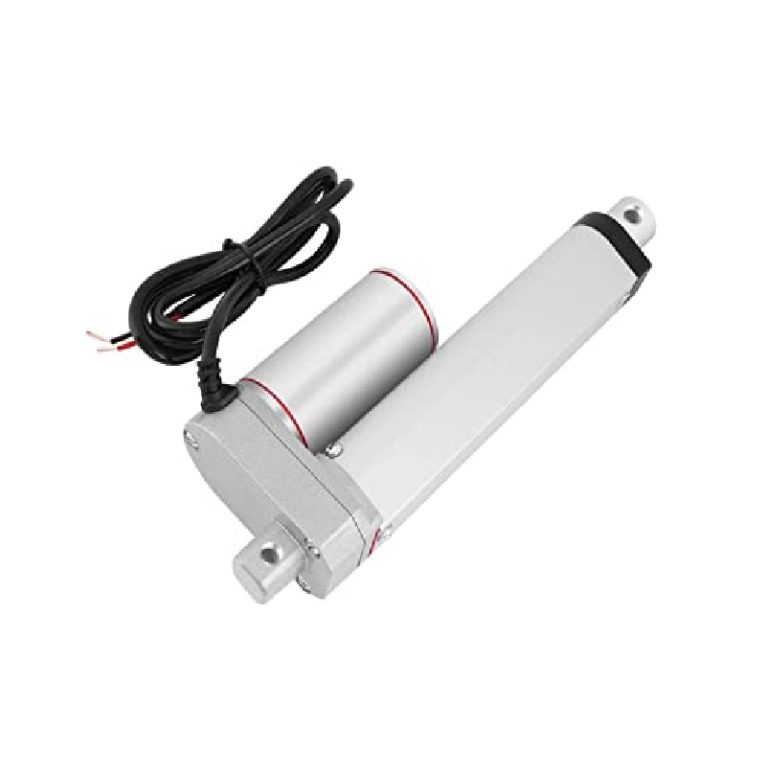

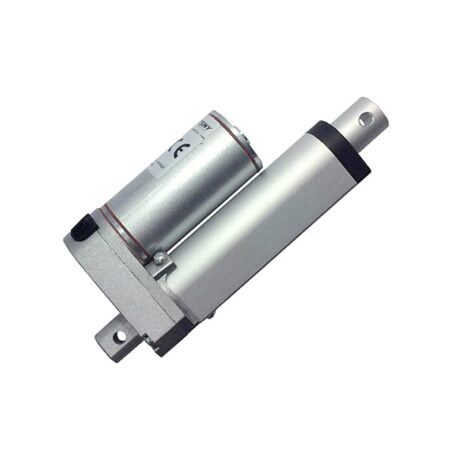

This product is a Miniature Linear Actuator with a stroke length of 50 mm, a speed of 12 mm/s, a force of 1000 N, and a voltage of 12 V. It is an electric device that converts the rotational motion of a motor into the linear back-and-forth motion of a rod. It can be used as an actuator in various simple or complex processes to achieve remote, centralized, or automatic control. It is suitable for industrial, agricultural, construction, cleaning, marine, and cargo applications. The electric device consists of a drive motor, a reduction gear, a screw, a nut, a guide sleeve, a rod, a sliding seat, a shell, and a micro-motion control switch. It has reliable performance, sensitive action, stable operation, and good adaptability to different environments. It is made of high-quality metal material and has a high-performance motor with a built-in stroke switch. The maximum push/pull force is 1000 N, and the no-load speed is 12 mm/s. This type of device is widely used in automotive, medical, engineering, and agricultural fields.
Applications:
- Agricultural machinery
- Industrial electric lifting system
Note: The actual product may vary in terms of color and markings.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive
Specification-
| Stroke Length (mm) | 50 |
|---|---|
| Operating Voltage | 12V DC |
| No Load Current (mA) | 750 |
| Body Material | Aluminum Alloy |
| Operating Temperature Range (C) | -20 to 85 |
| Noise Level (dB) | <40 |
| Cable Length (cm) | 50 |
| Protection Standard | IP52 |
| Self-Locking Force (N) | 1000 |
| Speed at Full Load (mm/Sec) | 12 |
| Speed at No Load (mm/Sec) | 12 |
| Shipping Weight | 0.766 kg |
| Shipping Dimensions | 17 × 4 × 8 cm |
Package Includes:
1 x Stroke Length DC12V 50MM 12MM/S 1000N Putter Electric Linear Actuator
