This is the 12V variant of the Stroke Length DC12V 100MM 10MM/S 900N Putter Electric Linear Actuator in Linear Actuators. Available at ₹3,514.04 (₹2,978.00 + GST) with free shipping across India.
Looking for Dc12v 100mm 10mm? Stroke Length DC12V 100MM 10MM/S 900N Putter Electric Linear Actuator is available at Zbotic with fast shipping across India.

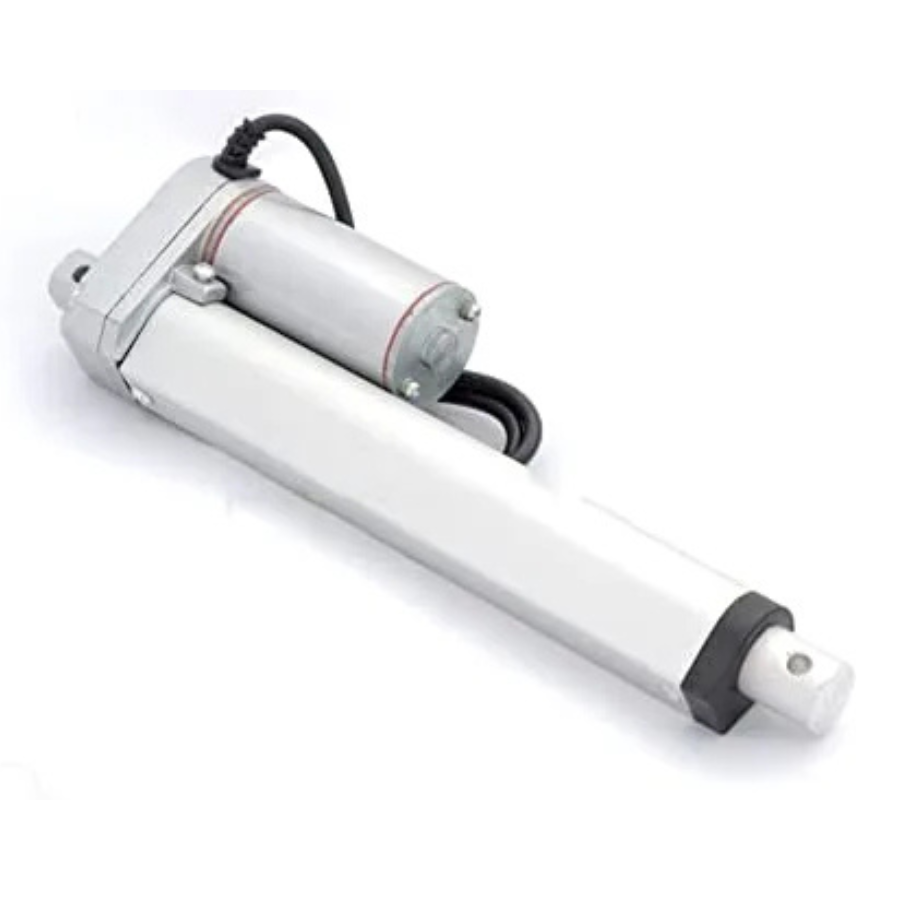

This product is a Miniature Linear Actuator with a stroke length of 100 mm, a speed of 10 mm/s, and a force of 900 N. It operates on 12 V and can be used as an electric push rod for various applications, such as industrial, agricultural, construction, cleaning, marine, and cargo equipment. An electric push rod converts the rotational motion of a motor into the linear motion of a rod. It can act as an executive device for remote, centralized, or automatic control in simple or complex processes. The electric push rod consists of a drive motor, a reduction gear, a screw, a nut, a guide sleeve, a rod, a sliding seat, a shell, and a micro-motion control switch. The product features reliable performance, sensitive action, stable operation, and good adaptability to different environments. It is made of high-quality metal and has a high-performance motor with a built-in stroke switch. The maximum push/pull force is 900 N and the maximum speed is 10 mm/s without load. Electric push rods are widely used in automotive, medical, engineering, and agricultural industries.
Applications:
- Agricultural machinery
- Industrial electric lifting system
Note: The actual product may vary in terms of color and markings.
Features:
- Aluminum frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive
Specification-
| Stroke Length (mm) | 100 |
|---|---|
| Operating Voltage | 12V DC |
| No Load Current (mA) | 750 |
| Body Material | Aluminum Alloy |
| Operating Temperature Range (C) | -20 to 85 |
| Noise Level (dB) | <40 |
| Cable Length (cm) | 50 |
| Protection Standard | IP52 |
| Self-Locking Force (N) | 900 |
| Speed at Full Load (mm/Sec) | 10 |
| Speed at No Load (mm/Sec) | 10 |
| Shipping Weight | 0.875 kg |
| Shipping Dimensions | 33 × 8 × 6 cm |
Package Includes:
1 x Electric Linear Actuator
Stroke Length DC12V 100MM 10MM/S 900N Putter Electric Overview
The Stroke Length DC12V 100MM 10MM/S 900N Putter Electric is a compact linear actuator designed to convert 12 V DC motor rotation into precise 100 mm of linear movement at 10 mm/s, delivering up to 900 N of self-locking thrust. It serves as a reliable electric push rod for automation tasks requiring controlled extension and retraction in industrial, agricultural, marine, and construction equipment.
Key Features of Stroke Length DC12V 100MM 10MM/S 900N Putter Electric
- 100 mm stroke length for moderate travel requirements
- 10 mm/s extension/retraction speed for smooth operation
- 900 N self-locking force ensures load holds when power is off
- Operates on standard 12 V DC supply for easy integration
- Compact, lightweight design (1.045 kg) for tight installations
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Adjusting solar panel tilt angles in solar tracking systems
- Opening and closing greenhouse vents for climate control
- Actuating hatches or doors on marine vessels and RVs
- Positioning machine guards or safety shields in manufacturing
- Controlling valves or dampers in HVAC and fluid systems
- Automating adjustable beds, chairs, and medical equipment
How to Use Stroke Length DC12V 100MM 10MM/S 900N Putter Electric
Mount the actuator using compatible brackets at each end, secure the rod and body to stationary and moving parts, then wire the two lead cables to a 12 V DC power source with a DPDT switch or motor driver. Adjust limit switches if provided, cycle the actuator to verify full 100 mm travel, and lock connections. For best performance, keep the lead screw clean and lubricated.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on orders above ₹499
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What mounting options are compatible with this actuator?
This actuator works with standard clevis or flange brackets sized for a 100 mm stroke rod and 12 mm mounting pins. Zbotic carries matching brackets for secure installation.
Can I adjust the end-of-stroke positions?
Yes. Internal or external limit switches can be set by positioning the adjustable nuts on the lead screw to stop travel at desired extended and retracted positions.
How do I power the actuator and control its direction?
Connect to a 12 V DC supply and use a DPDT switch or dedicated motor driver to reverse polarity, allowing extension or retraction at 10 mm/s speed.
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 100mm |
| SKU | AI2608 |
| Weight | 0.93 kg |
| Availability | In Stock |
Applications & Use Cases
The Stroke Length DC12V 100MM 10MM/S 900N Putter Electric Linear Actuator is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
