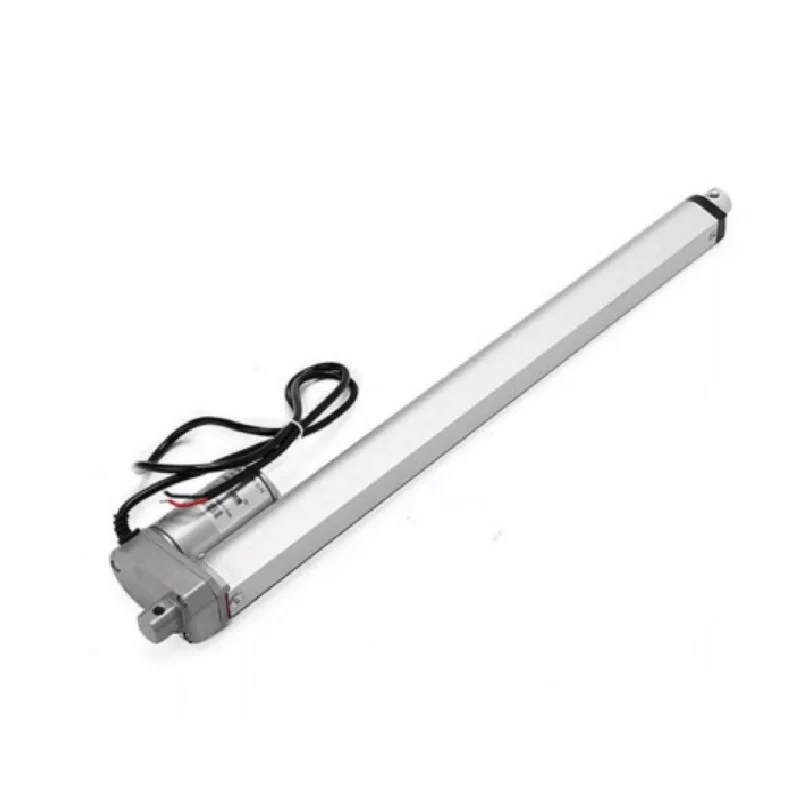

This is the 12V variant of the Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter Electric Linear Actuator Putter for Doors /Windows in Linear Actuators. Available at ₹7,670.00 (₹6,500.00 + GST) with free shipping across India.
Introducing the Stroke Length DC24V 400MM 7MM/S 2000N Putter Electric Linear Actuator, a versatile electric push rod designed for various industrial, agricultural, and automotive applications. This linear actuator serves as an efficient solution for tasks ranging from construction and clean sweeping vehicles to vessels and cargo handling.
Functioning as an electric driving device, it converts the rotary motion of the motor into linear reciprocating motion, making it suitable for both simple and complex processes. Whether for remote control, centralized control, or automatic control, this electric push rod proves indispensable in diverse applications.
Comprised of a drive motor, reduction gear, screw, nut, guide sleeve, push-rod, sliding seat, shell, and micro-motion control switch, this actuator boasts reliable performance, sensitive action, and stable operation. Constructed with high-quality metal materials and equipped with a high-performance motor and built-in stroke switch, it ensures durability and precision in its movements.
Capable of exerting a maximum push/pull force of up to 2000N and achieving a stroke speed of up to 7mm/s under no-load conditions, this linear actuator finds common usage in automotive, medical devices, and engineering industries, as well as agricultural machinery.
Note: It’s works on reverse polarity.
Applications:
- Agricultural machinery
- Industrial electric lifting system
- Door
- Window
specification-
| Stroke Length (mm) | 400 |
|---|---|
| Operating Voltage | 24V |
| No Load Current (mA) | 750 |
| Body Material | Aluminum Alloy |
| Operating Temperature Range (C) | -20 to 85 |
| Noise Level (dB) | <40 |
| Protection Standard | IP52 |
| Self-Locking Force (N) | 2000 |
| Speed at Full Load (mm/Sec) | 7 |
| Speed at No Load (mm/Sec) | 7 |
| Shipping Weight | 1.375 kg |
| Shipping Dimensions | 54 × 8 × 6 cm |
Package Include:
1 x Stroke Length 400MM 7MM/S 2000N DC24V Electric Putter Electric Linear Actuator Putter for Doors /Windows.
Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter Overview
The Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter is a heavy-duty electric linear actuator designed for precise pushing and pulling motions over a 400 mm travel. With a maximum thrust of 2000 N and a full-load speed of 7 mm/s at 24 V DC, it’s ideal for automating doors, windows, hatches and other industrial applications requiring reliable self-locking motion.
Key Features of Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter
- 400 mm stroke length for medium-range extension and retraction
- 7 mm/s speed at full load for smooth and controlled movement
- 2000 N self-locking thrust holds position securely when power is off
- 24 V DC operation compatible with standard industrial power supplies
- Durable housing and integrated limit switches to prevent over-travel
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Automatic opening and closing of sliding doors and windows
- Ventilation louvers and roof vents in greenhouses or workshops
- Adjustable control panels or machine guards in factory automation
- Hatch actuation on service vehicles, sweepers and utility vans
- Solar panel tilt adjustment for optimal sun tracking
- Electrically controlled furniture, such as lift-top desks or cabinets
How to Use Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter
Mount the electric putter using compatible M8 pin brackets at both ends, ensuring alignment with the moving part. Connect the red and black wires to a regulated 24 V DC supply (observe correct polarity) and control extension/retraction with a DPDT switch or dedicated actuator controller. Secure all connections, power on, and test travel limits—adjust mounting brackets or wiring as needed for smooth operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the actuator self-locking when power is off?
Yes, the built-in gearbox and motor design provide a self-locking feature, maintaining position under up to 2000 N thrust without power.
Can I connect this actuator directly to a 24 V battery?
Absolutely. Just ensure the battery can deliver sufficient current (peak up to 5–6 A) and include an inline fuse for protection.
What mounting accessories are required?
This linear actuator has standard M8 mounting holes at both ends. You can use universal M8 pin brackets or clevis mounts sold separately to secure it in your installation.
Technical Specifications
| Voltage Range | 12V - 24V |
|---|---|
| Size | 400mm |
| SKU | AI6074 |
| Weight | 1.651 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Stroke Length 400MM 7MM/S 2000N DC 24V Electric Putter Electric Linear Actuator Putter for Doors /Windows is a versatile linear actuators used across a wide range of applications including automated doors, adjustable furniture, solar tracker systems, robotics, and agricultural equipment.
Common use cases:
- Building a solar panel tilt mechanism
- Motorizing a standing desk
- Creating a linear motion system for robotics
This product is ideal for automation engineers and DIY furniture builders.
Technical Tip: Check stroke length, force rating, and speed. Larger stroke = longer actuator body. Use limit switches for end-stop protection.
