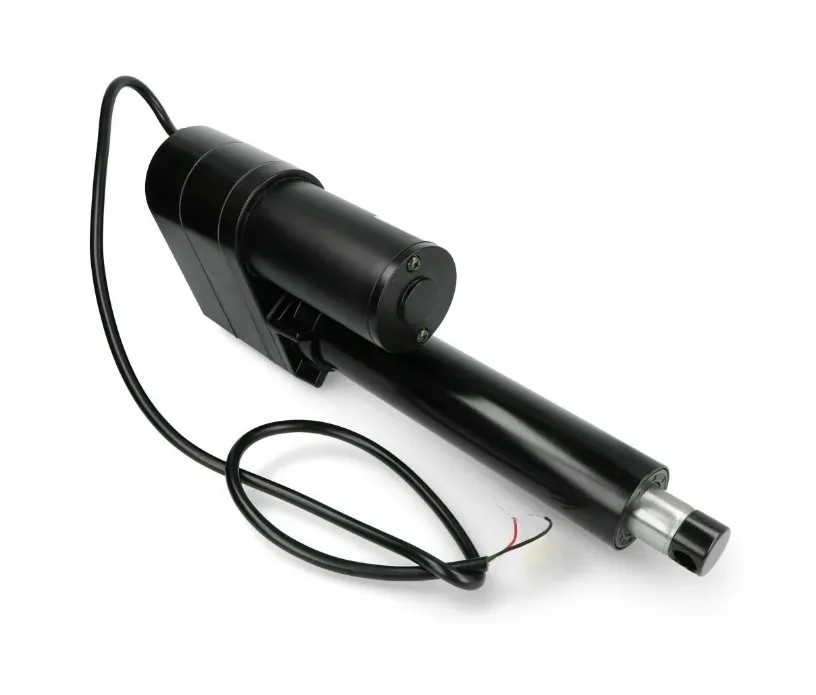

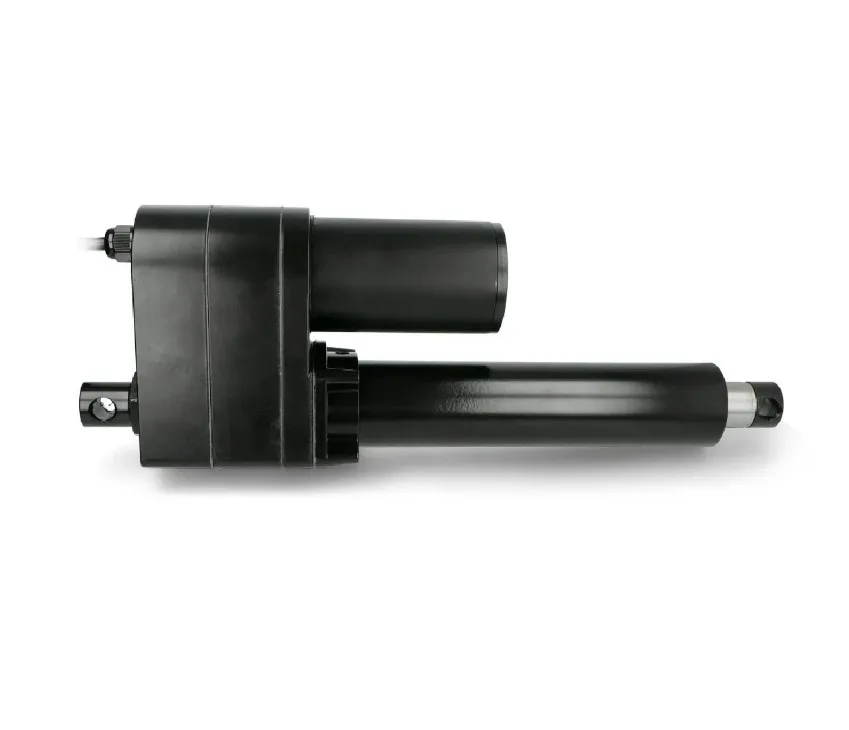

Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

This is the 12V variant of the Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows in Linear Actuators. Available at ₹23,010.00 (₹19,500.00 + GST) with free shipping across India.

Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows

Electric putter, also known as push rod motor, electric cylinder and linear actuator.
The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.
How it works:After the motor is slowed by the gear, drive a pair of screw nuts. The motor rotation into a linear motion, the use of motor reversal to complete the putter action. Such as through a variety of lever, rocker or connecting rod and other institutions to complete the rotation, shake and other complex movements.
Built-in stroke switch,and low noise design,noise level is less than 42d.

Applications:

1. Tilt adjustment of solar panels in photovoltaic installations
2. Element of precision and industrial automation systems
3. Opening and closing of industrial valves
4. Home automation – elements tilt windows and door sashes
5. Agricultural machinery components

Features:

1. Built-in stroke switch
2. Low noise design,noise level is less than 42dB
3. Electric putter, also known as push rod motor, electric cylinder and linear actuator.
4. The electric putter is an electric drive that converts the motor’s rotational motion into a straight reciprocating motion of the push rod.
5. Can be used in a variety of simple or complex process as the implementation of mechanical use, in order to achieve long-range control, centralized control or automatic control.
6. Main use: electric bed, electric sofa, electric stand lift rod, industrial electric lift system, camera frame, video machine, wedding system.

Specifications:

1. Motor type: permanent magnet dc motor drive
2. Rated voltage :12VDC
3. Maximum thrust/pull: 800N
4. Self-locking force: 200KG
5. Speed: 5 mm/s
6. Effective stroke :100mm
7. Standard protection level: IP54
8. Base noise design, noise level below 42dB
9. Ambient temperature:-26 to 50℃

Packages Includes:

1 x DC12V Electric Putter Electric Linear Actuator

Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter Overview

The Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter is a compact linear actuator designed to convert rotary motion into precise push–pull action. Ideal for automating doors, windows, vents and other panels, this 12V DC actuator delivers reliable force and self-locking performance.

Key Features of Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter

• 100 mm Stroke Length: Provides precise 100 mm extension and retraction for controlled movement.
• 5 mm/s Speed: Smooth linear travel at a constant 5 mm per second ideal for gradual opening and closing.
• 800 N Maximum Thrust: Delivers up to 800 N push or pull force with 200 kg self-locking capacity.
• 12 V DC Permanent Magnet Motor: Efficient drive with durable gearbox and screw-nut mechanism for extended service life.
• Built-in Self-Locking: Holds position under load without power, ensuring safety and stability in any orientation.
• Fast Shipping from Zbotic: Dispatched within 24 hours with tracking for non-backordered items.

Applications and Use Cases

• Automated window opener for improved ventilation and climate control.
• Motorized door latch or pet flap for secure access control.
• Greenhouse vent actuators to regulate temperature and humidity.
• Rooflight and skylight automation in smart homes.
• Solar panel tilt adjustment for optimal sun tracking.
• Display cabinet or exhibit case lift mechanisms in retail and museums.

How to Use Stroke Length 100MM 5MM/S 8000N DC12V Electric Putter

Mount the actuator using compatible brackets at both ends, ensuring alignment with the moving part. Connect to a 12 V DC power source or motor controller, observing correct polarity. Securely fasten wiring and test extension/retraction using a switch or control board, making any necessary limit adjustments for smooth travel.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What maximum load can this actuator handle?

This electric putter provides up to 800 N of thrust or pull and maintains position under a 200 kg self-locking force, making it suitable for most door and window automation tasks.

How do I mount the actuator on a window frame?

Use sturdy mounting brackets at the actuator’s base and rod end. Align the actuator in line with the window’s hinge axis, secure with M6–M8 bolts, and verify smooth travel before final tightening.

Can I adjust the speed or stroke limits?

The actuator runs at a fixed speed of 5 mm/s, but you can fine-tune start/stop positions by setting mechanical limit switches or using a PWM controller to slightly vary motor voltage.
