Product Description

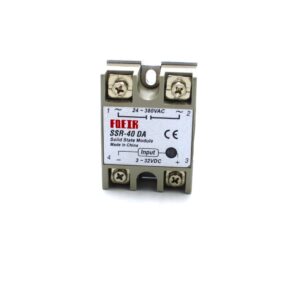

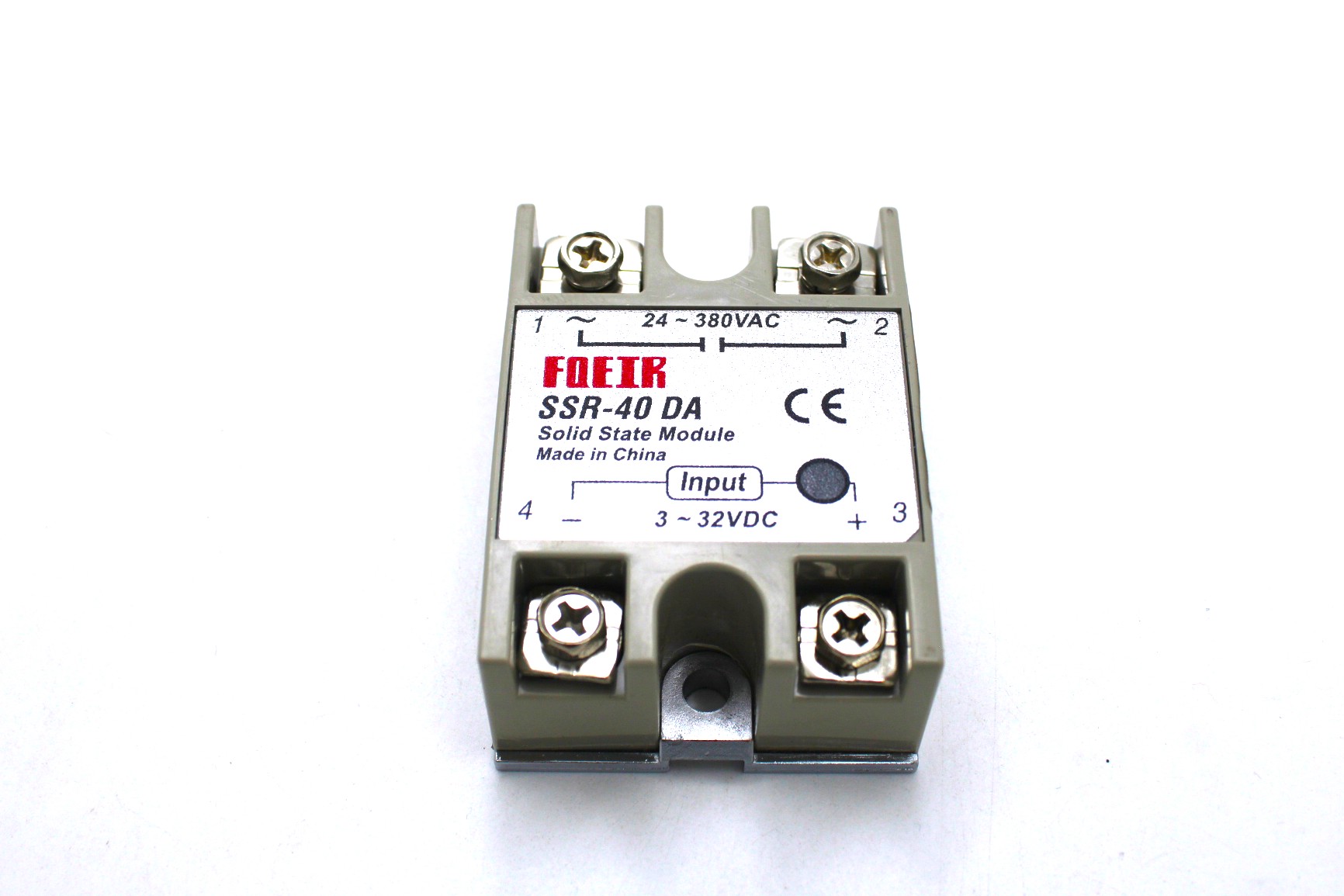

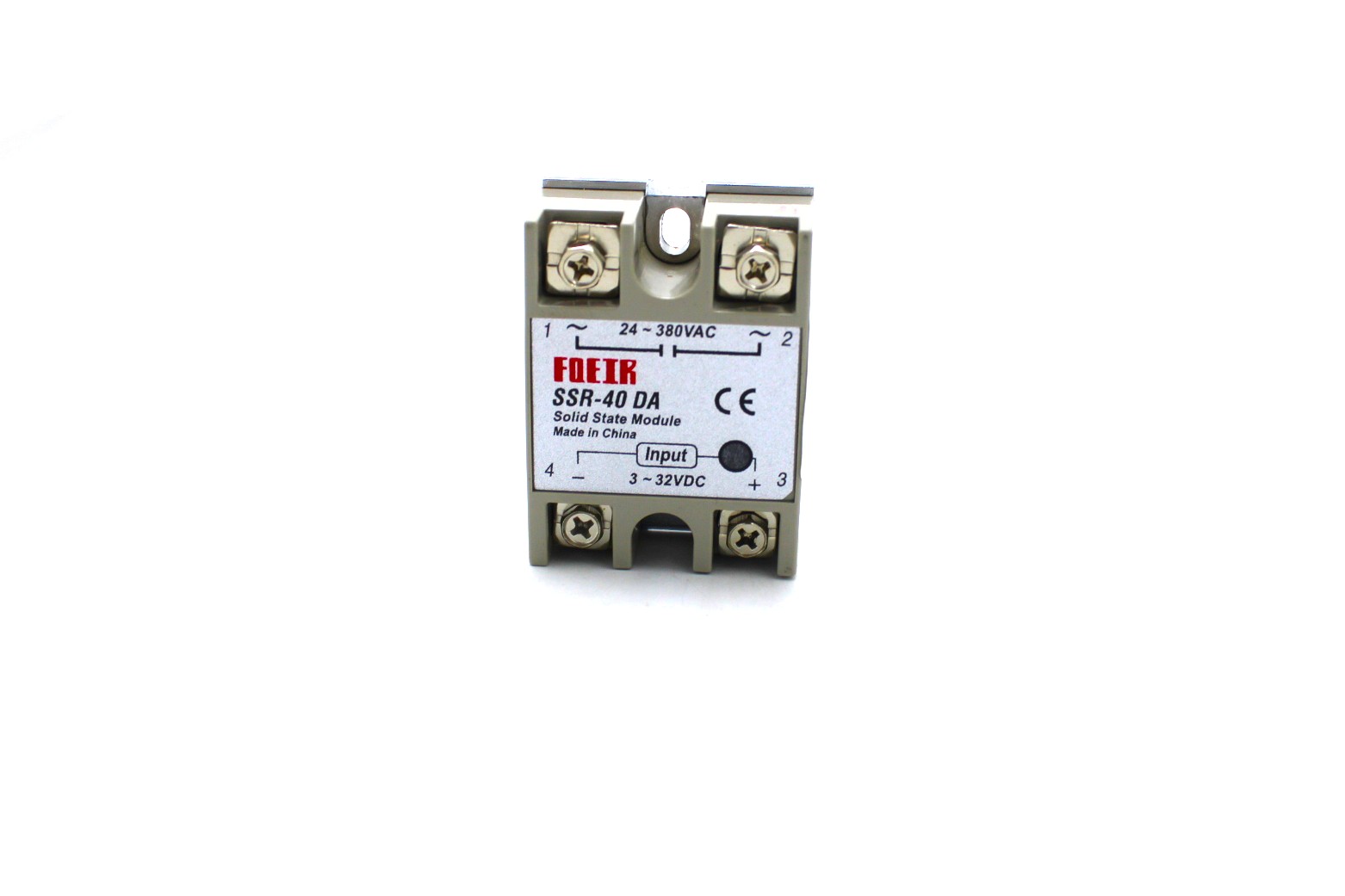

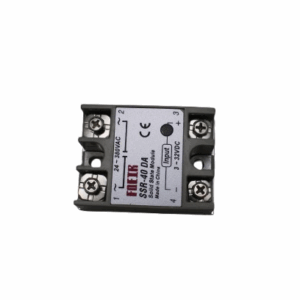

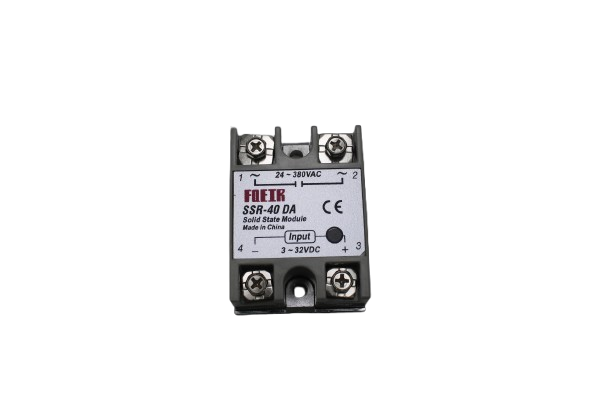

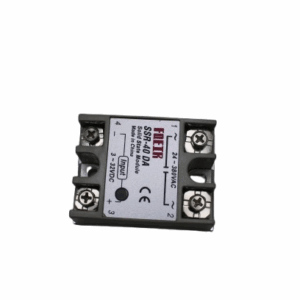

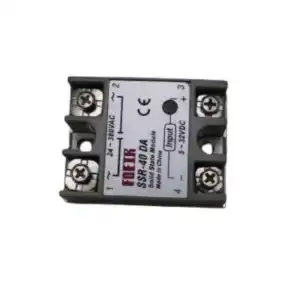

The SSR-40DA Solid State Relay Module, with a 3-32VDC/24-380VAC 40A specification, is a solid state relay capable of switching high-current AC loads via lower voltage DC signals. Solid state relays have several advantages over mechanical relays, including quicker switching times, increased longevity, and silent, spark-free operation.
Solid state relays are advantageous because they switch using significantly lower voltage and current compared to mechanical relays. Additionally, the absence of moving parts means they can operate faster and more frequently without degradation.

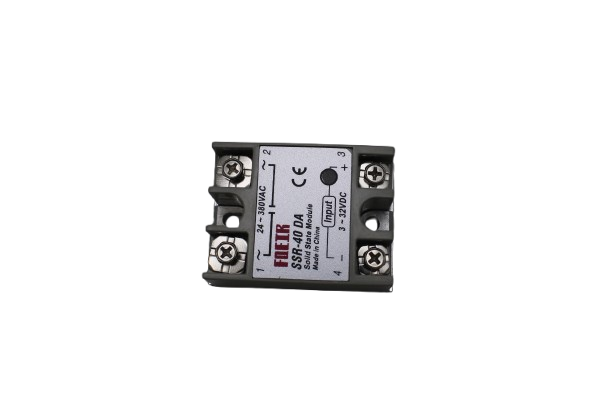

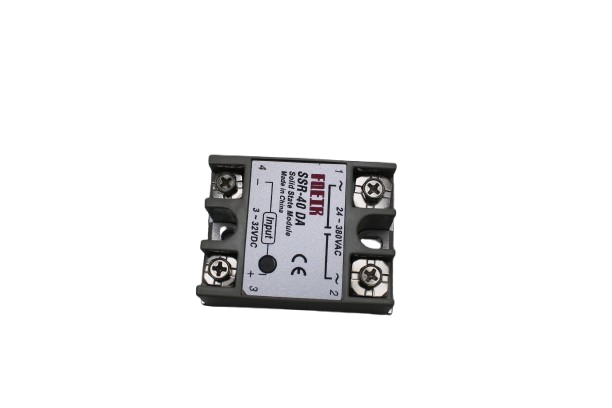

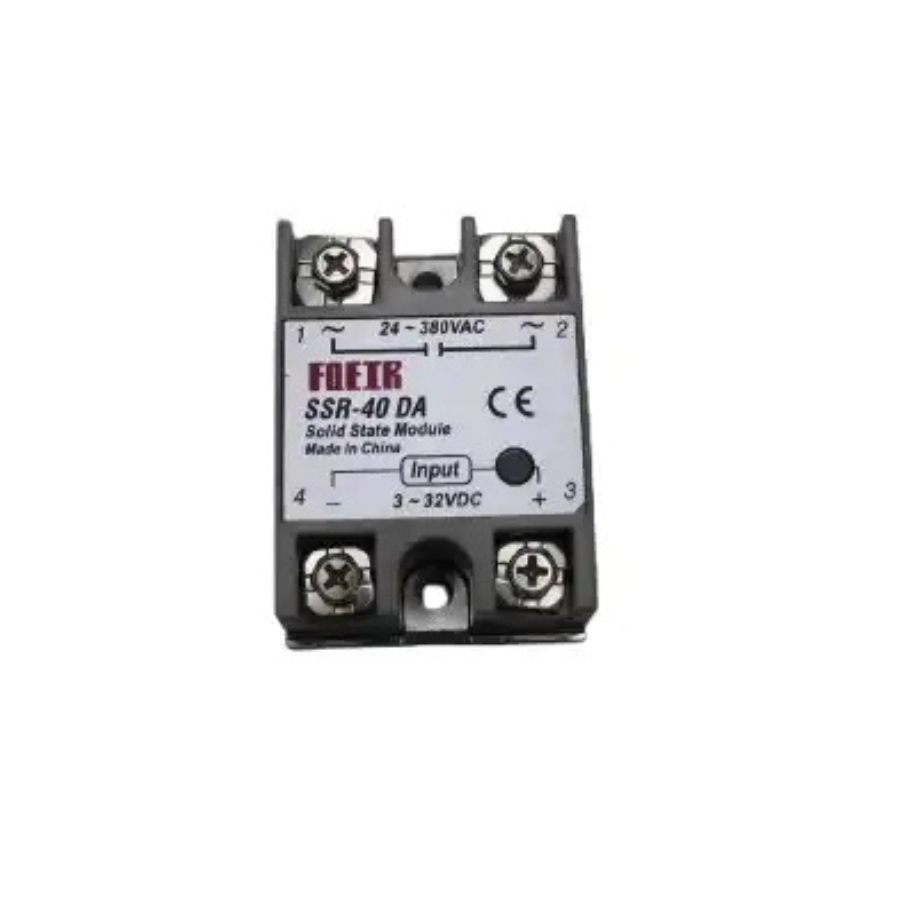

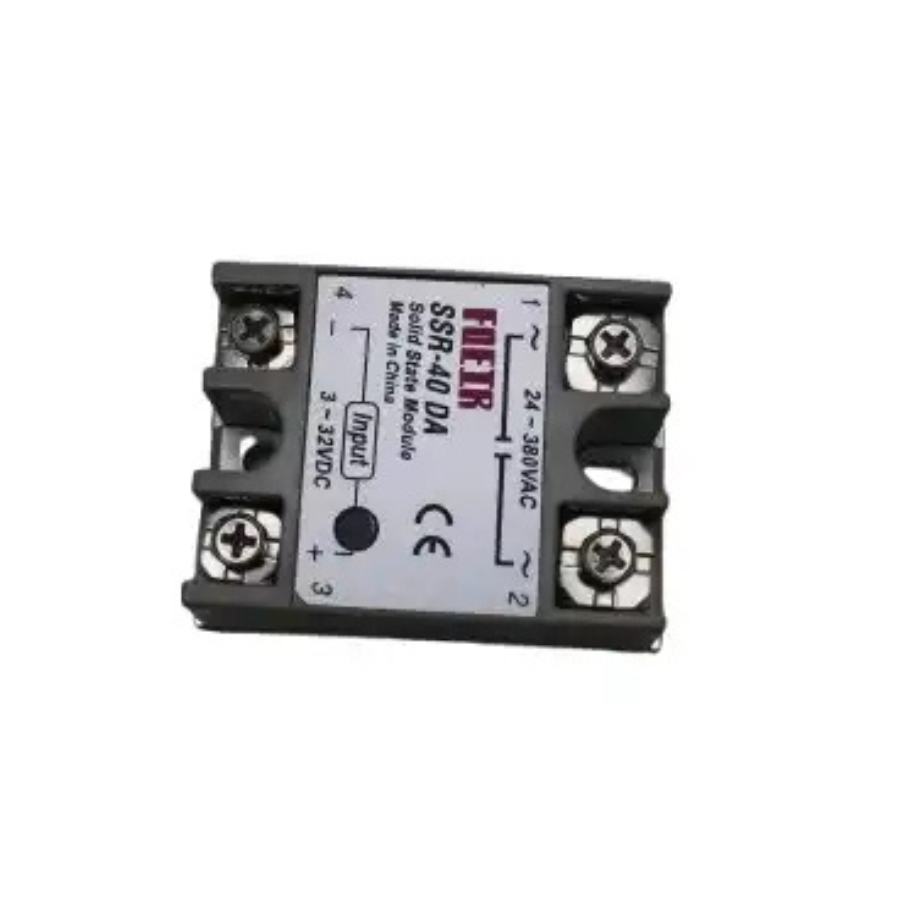

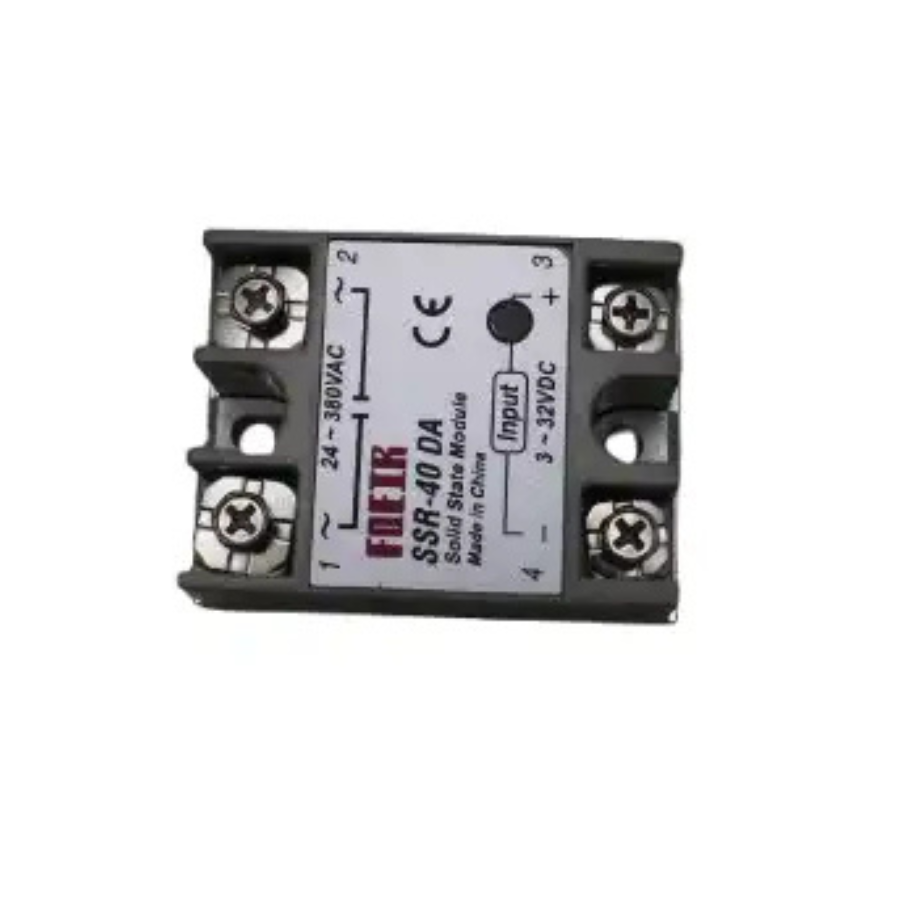

This particular solid state relay can manage a current load of up to 40A. It operates with a 3-32V DC input and employs a zero cross trigger control method for load switching. The relay features four screw terminals for connection to ring or fork connectors and includes a plastic cover to safeguard the terminals.
Features :
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification-
| Model | SSR-40DA |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VDC) | 3-32 |
| Switching Voltage (VAC) | 24-380@40A |
| Operating Temperature Range (°C): | -20 to 85 |
| Material: | ABS |
| Length (mm): | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (g): | 95 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 7 × 6 × 3 cm |
Package includes :
1 x SSR-40DA Solid State Relay Module
ESP32 Hall Effect Sensor: Magnetic Field Detection Guide
Did you know the ESP32 has a built-in hall effect sensor right inside the chip? The ESP32 hall...
Read More →
NodeMCU V3 vs V2: Differences and Which One to Buy in India
Walk into any Indian electronics market or browse any local online store, and you will find NodeMCU boards...
Read More →
IoT Fleet Management: GPS Tracking for Delivery Vehicles
Table of Contents Introduction and Overview Hardware Components Required GPS Module Integration with ESP32 Cloud Platform Setup Real-Time...
Read More →Technical Specifications
| Model | SSR-40DA |
|---|---|
| Current Rating | 40A |
| SKU | AI2604 |
| Weight | 0.12 kg |
| Availability | In Stock |
Applications & Use Cases
The SSR-40DA Solid State Relay Module 3-32VDC/24-380VAC 40A is a versatile solid state relays used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
