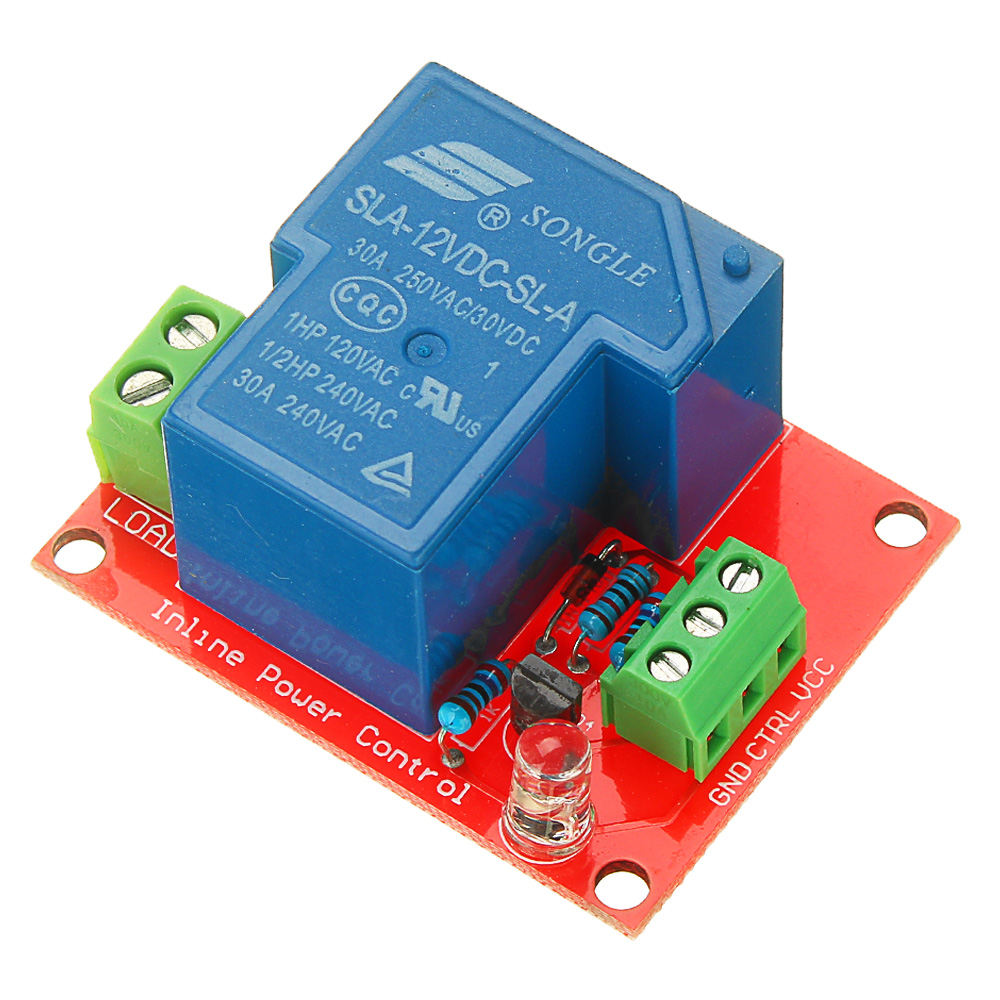

12v Module 457269 - Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level
iqa8u75i
  • 12v Module 457269 - Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level
  • iqa8u75i

Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level

(32 customer reviews)
Share:
Add to wishlist
Add to compare

This 1 Channel 12V Relay Module is capable of actuating 240VAC/30A circuits safely – Eliminating dangers of high current circuits for users.

Operating Voltage – 12VDC Max Current Control – 30A Max Voltage Control (AC) – 240V Max Voltage Control (DC) – 30V

Output Modes – Normally Open / Normally Closed Dimensions – 40 x 34 x 22mm Weight – 35g

Despite being able to actuate high current and high voltage circuits, the relay itself operates on up to 12VDC, which is safe for users if a fault occurs.

Without a relay, if the high current circuit were to leak directly into a user, it could cause serious harm to a user and damage to the components.

Brand: Generic SKU: AI3673
Category:
Tags: , , , ,

Original price was: ₹220.66.Current price is: ₹154.58. (₹131.00 + GST)

Purchase this product now and earn 3 Zbotic Points!

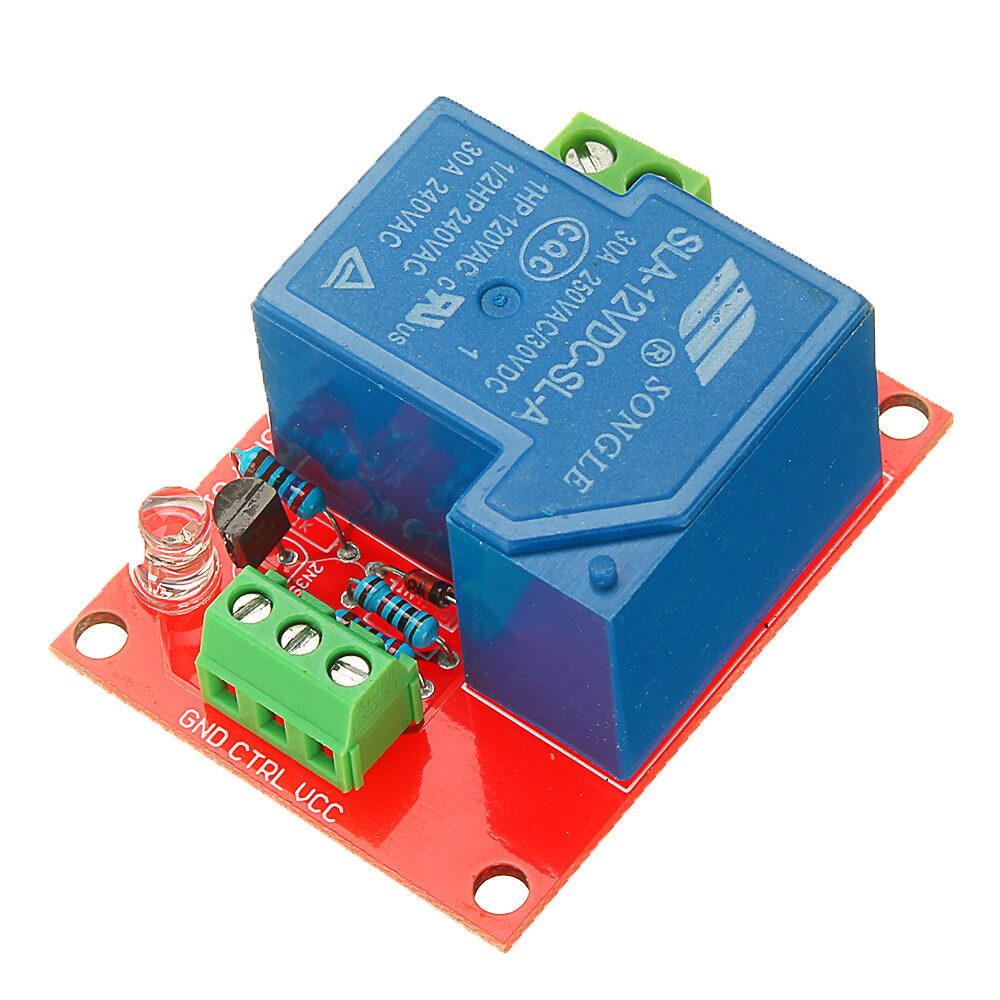

This is the 12V variant of the Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level in Relay Modules. Available at Original price was: ₹220.66.Current price is: ₹154.58. (₹131.00 + GST) with free shipping across India.

Songle Single-Channel 12V 30A Relay Module Power Failure RelayHigh Level

This 1 Channel 12V Relay Module offers safe actuation of 240VAC/30A circuits, effectively mitigating the risks associated with high current circuits for users. Operating at a voltage of 12VDC, it ensures user safety even in the event of a fault. The relay module is designed to handle a maximum control current of 30A and can control both AC and DC circuits up to 240V and 30V, respectively. With output modes including Normally Open and Normally Closed, and compact dimensions of 40 x 34 x 22mm, weighing only 35g, it provides versatility and convenience in various applications. Without such a relay module, direct exposure to high current circuits could pose severe risks to users and potentially cause damage to components.
Specification:
Output control terminal: relay 4 pin SLA-012VDC-SL-A normally open type.
Contact voltage: 240VAC/30VDC 10A
2P KF301 terminal withstand voltage: 300VAC 16
Input: 12V high level drive
TTL: 0-12V 100MA
PACKAGE INCLUDES
1 X Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level
Tags:
Also in Relay Modules:
6 Channel 5V Relay Module Solid State Low Level SSR DC Control 250V 2A with ResistiveDC 5V Bluetooth 4 Channels Relay Module Internet Smart Remote Control Mobile Phone Switch Wireless Relay Module4 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse5V Modbus RTU 2Channels Relay Module Input Optocoupler, Isolation RS485 MCU
Related Articles:
Smart Temple IoT: Crowd Monitoring and Donation Counter

Smart Temple IoT: Crowd Monitoring and Donation Counter

Table of Contents IoT for Religious Institutions Crowd Monitoring and Safety Digital Donation Counter Environment and Heritage Preservation...

Read More →
 IoT Bridge Health Monitor: Structural Vibration Sensing

IoT Bridge Health Monitor: Structural Vibration Sensing

Table of Contents Structural Health Monitoring Overview Vibration and Strain Sensors Sensor Node Design Data Collection Architecture Analysis...

Read More →
 Smart Pet Feeder with ESP32: Automated Food Dispenser Build

Smart Pet Feeder with ESP32: Automated Food Dispenser Build

Building a smart pet feeder with ESP32 DIY is one of the most rewarding IoT home automation projects...

Read More →

Technical Specifications

Operating Voltage12V
Current Rating30A
SKUAI3673
Weight0.04 kg
AvailabilityIn Stock

Applications & Use Cases

The Songle Single-Channel 12V 30A Relay Module Power Failure Relay High Level is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.

Common use cases:

  • Switching high-voltage AC appliances with a microcontroller
  • Building a smart home relay board
  • Automating irrigation pumps in agriculture

This product is ideal for electronics engineers, IoT developers, and automation hobbyists.

Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).

Shipping & Delivery

  • Free shipping on orders above ₹999 across India
  • Dispatched within 1-3 business days
  • Expected delivery: 3-7 business days depending on location
  • Secure packaging to ensure safe transit of electronic components
Weight 0.04 kg
15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
