SmartElex GPS Data Logger Shield for Arduino

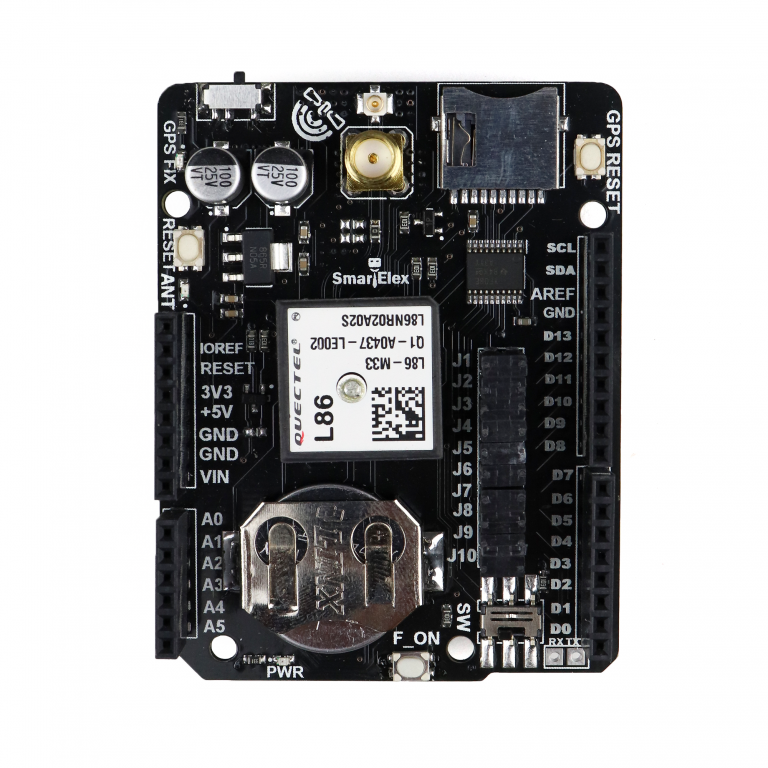

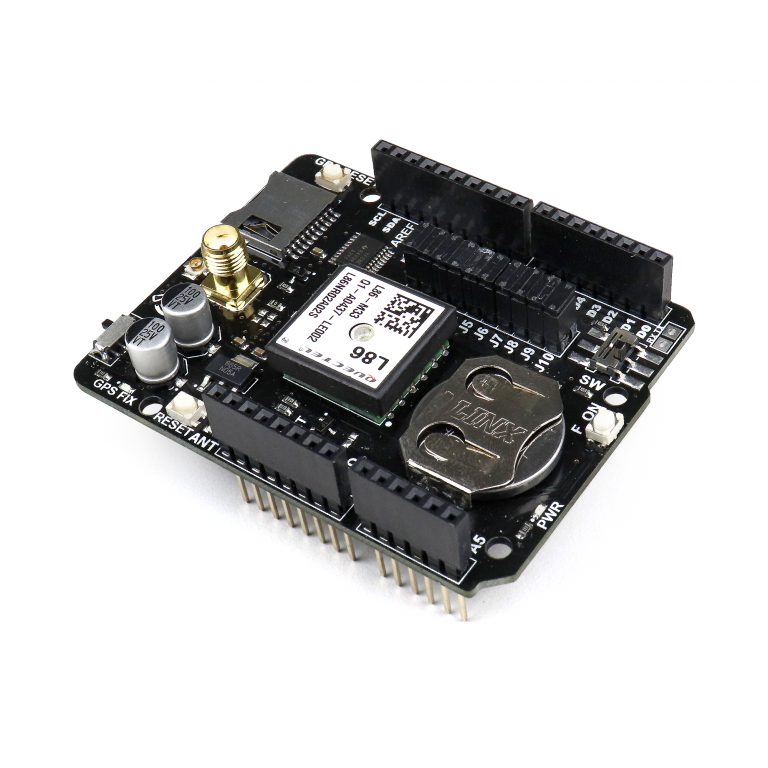

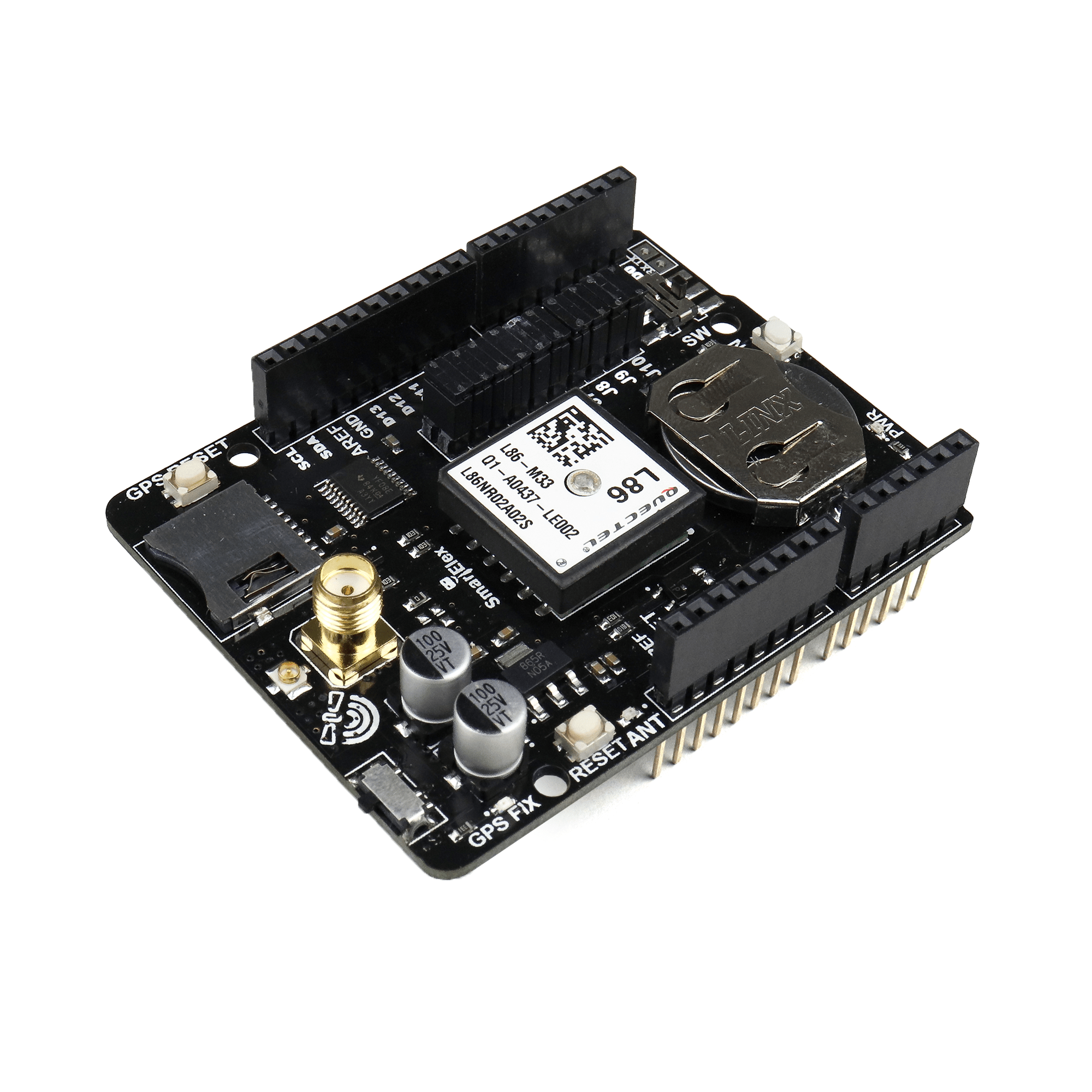

SmartElex presents the all-new GPS shield that works seamlessly with your Arduino UNO or Leonardo. You can use this shield to log data to an SD card, or omit the SD card and create a geocaching project. The shield features the popular Quectel L86 Module.
If you want to enclose your project, you will appreciate this shield’s external antenna support. Just connect an external active GPS antenna to the shield’s antenna connector, and the module will automatically switch to use the antenna. You can place the antenna wherever you like.

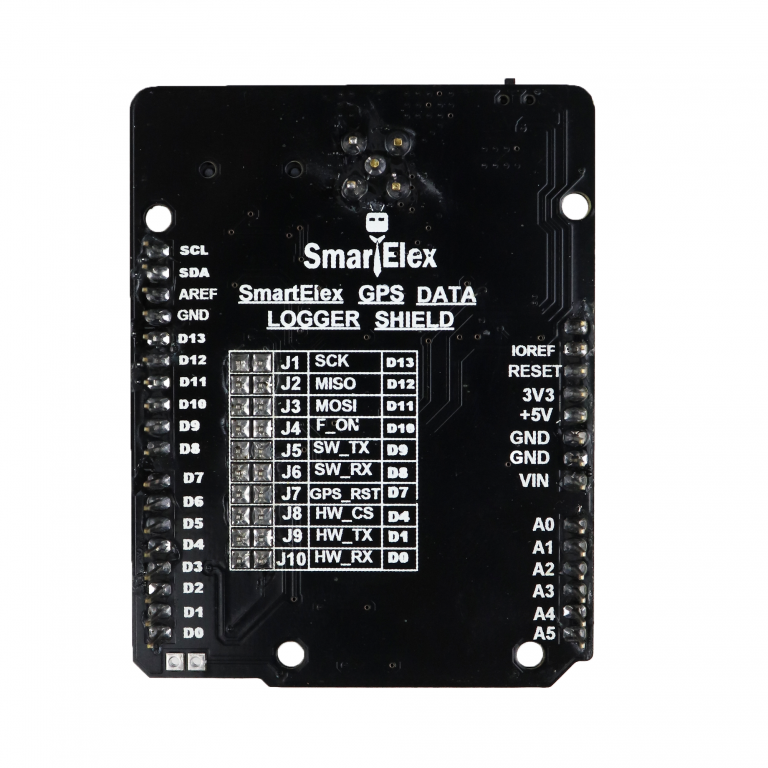

Pin Configurations:
Jumper
Pin Name
Arduino Pins
J1
SCK
D13
J2
MISO
D12
J3
MOSI
D11
J4
F_ON
D10
J5
SW_TX
D9
J6
SW_RX
D8
J7
GPS_RST
D7
J8
CS
D4
J9
HW_TX
D1
J10
HW_RX
D0
Features
The multi-GNSS engine for GPS, GLONASS, Galileo, and QZSS.
Embedded patch antenna.
Automatic antenna switching function.
High sensitivity: -167dBm @Tracking, -149dBm @Acquisition
99 acquisition channels, 33 tracking channels
Balloon mode, for high altitude up to 80km
Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
Great anti-jamming performance due to multi-tone active interference canceller
SmartElex GPS Data Logger Shield for Arduino Overview
The SmartElex GPS Data Logger Shield for Arduino is a plug-in expansion board designed to capture multi-GNSS positioning data directly on Arduino UNO or Leonardo. It logs satellite fixes to an SD card (or can be used without one) for applications such as geocaching, route tracking, and high-altitude experiments.
Key Features of SmartElex GPS Data Logger Shield for Arduino
Quectel L86 multi-GNSS engine supporting GPS, GLONASS, Galileo, and QZSS
Embedded patch antenna plus automatic switch to an external active GPS antenna
High sensitivity: -167 dBm @Tracking, -149 dBm @Acquisition
99 acquisition channels and 33 tracking channels for rapid satellite lock
Balloon mode enabling operation up to 80 km altitude
Support for DGPS and SBAS (WAAS, EGNOS, MSAS, GAGAN) and multi-tone interference cancellation
Compatible with Arduino UNO/Leonardo and fast shipping from Zbotic
Applications and Use Cases
Outdoor data logging for hiking, cycling or vehicle routes
High-altitude balloon experiments tracking flight profile up to 80 km
DIY geocaching devices without the need for external storage
Robotics navigation and waypoint following projects
Academic projects on satellite positioning and GNSS performance
How to Use SmartElex GPS Data Logger Shield for Arduino
Mount the shield onto your Arduino UNO or Leonardo, insert a formatted SD card into the onboard holder (optional for geocaching), and attach power. If using an external active antenna, plug it into the SMA connector—automatic switching will engage. Load example sketches from the Quectel SDK or Arduino IDE to begin logging NMEA or binary GNSS data.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: Can I use this shield without an SD card?
A: Yes. You can omit the SD card and still receive live GNSS data for real-time applications like geocaching or display on a serial monitor.
Q: How do I connect an external GPS antenna?
A: Simply attach an active GPS antenna to the shield’s SMA connector. The module automatically senses and switches from the onboard patch antenna to the external one.
Q: Which satellite augmentation systems are supported?
A: The shield supports DGPS corrections and SBAS networks including WAAS, EGNOS, MSAS, and GAGAN to improve positioning accuracy.
The SmartElex GPS Data Logger Shield for Arduino is a versatile shield for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
