Product Description

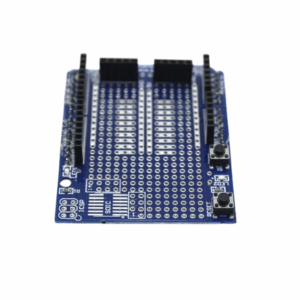

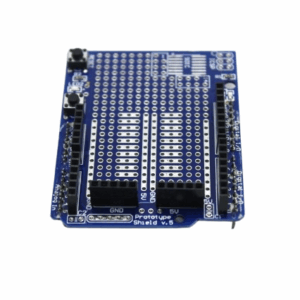

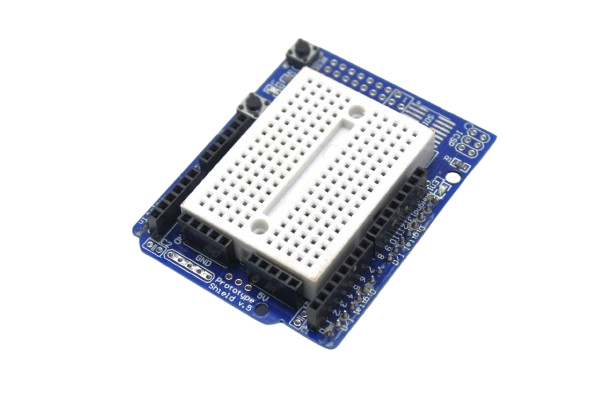

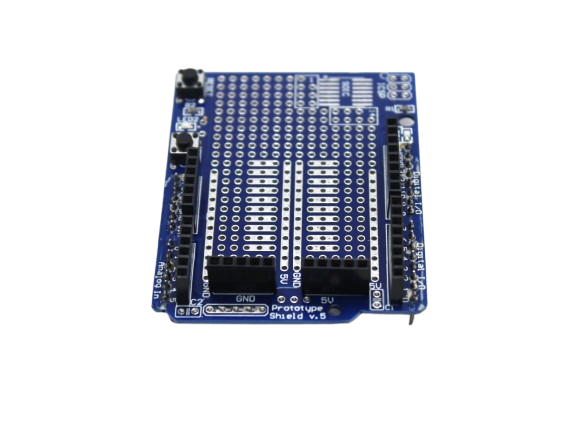

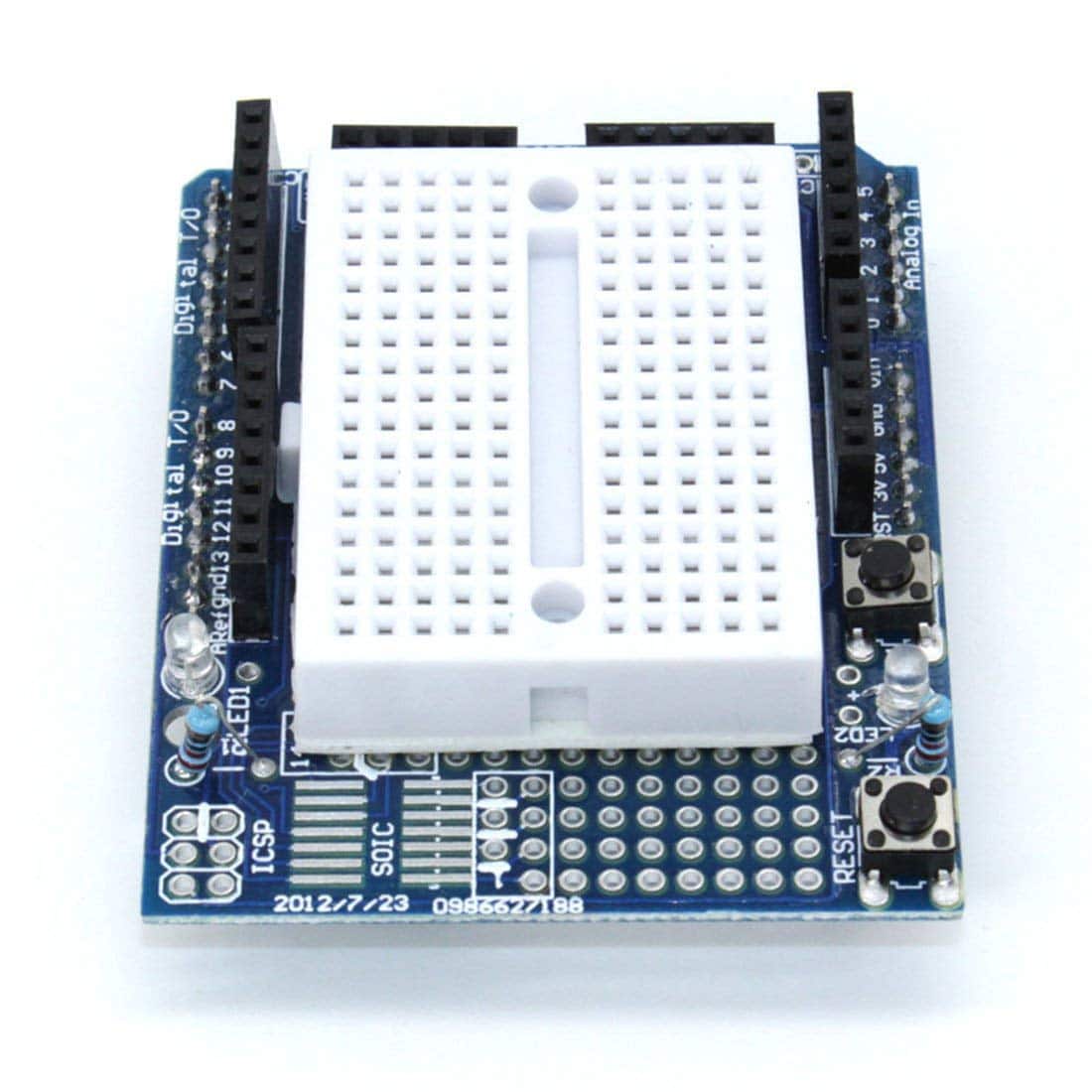

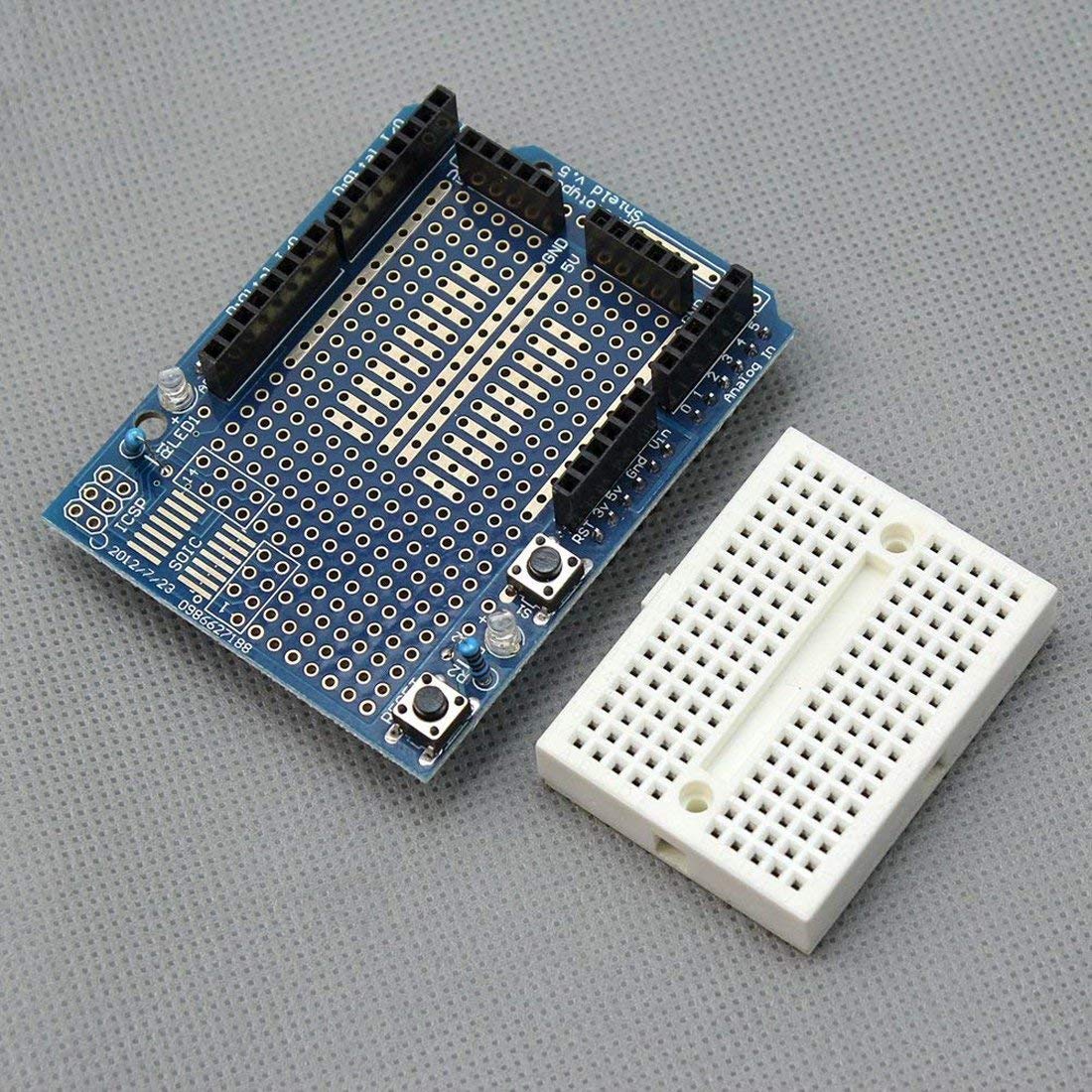

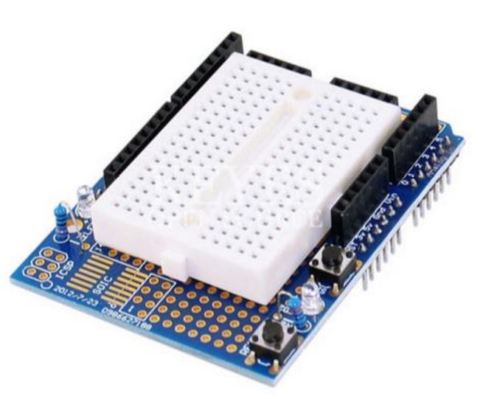

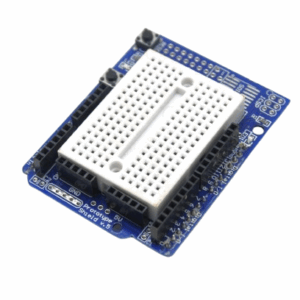

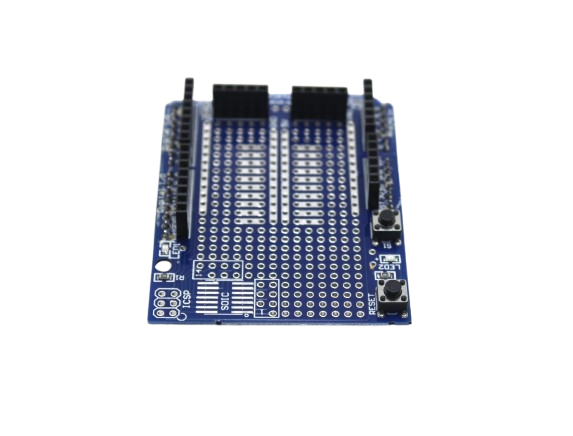

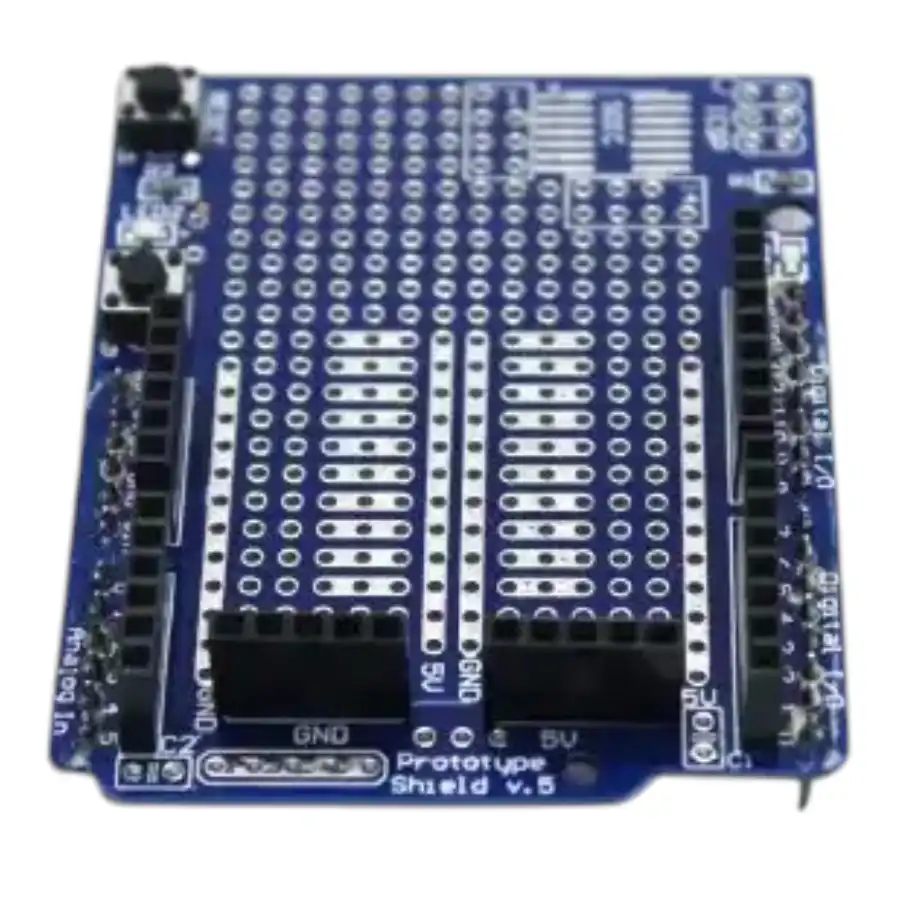

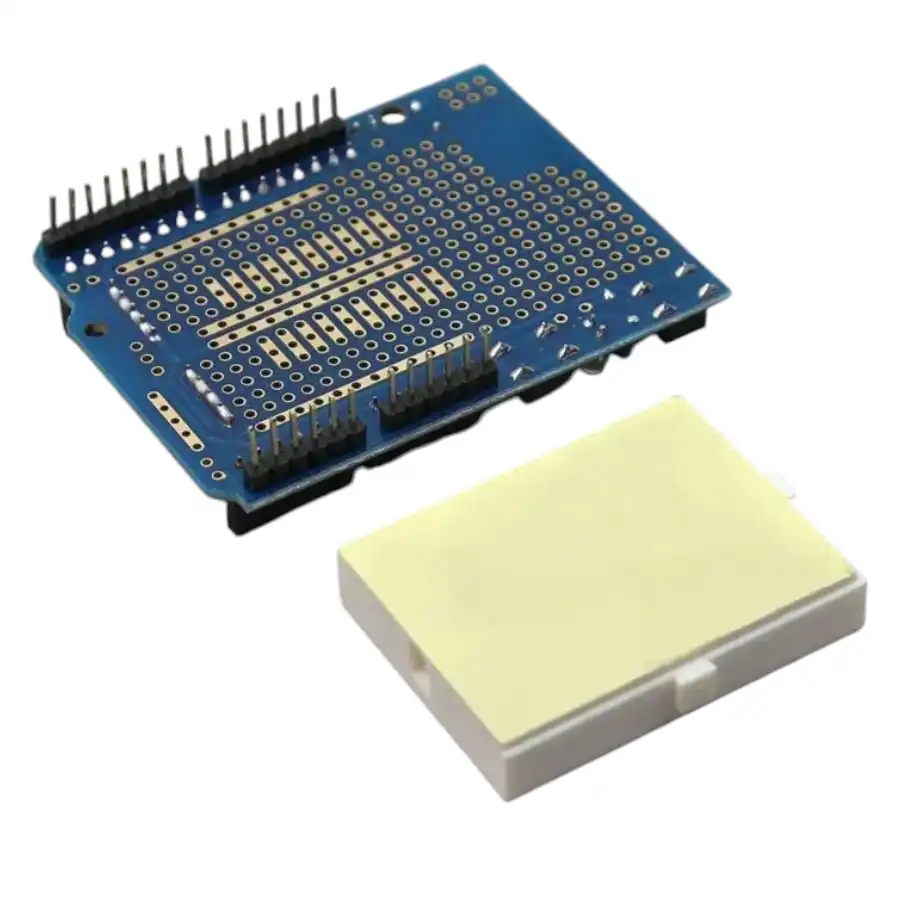

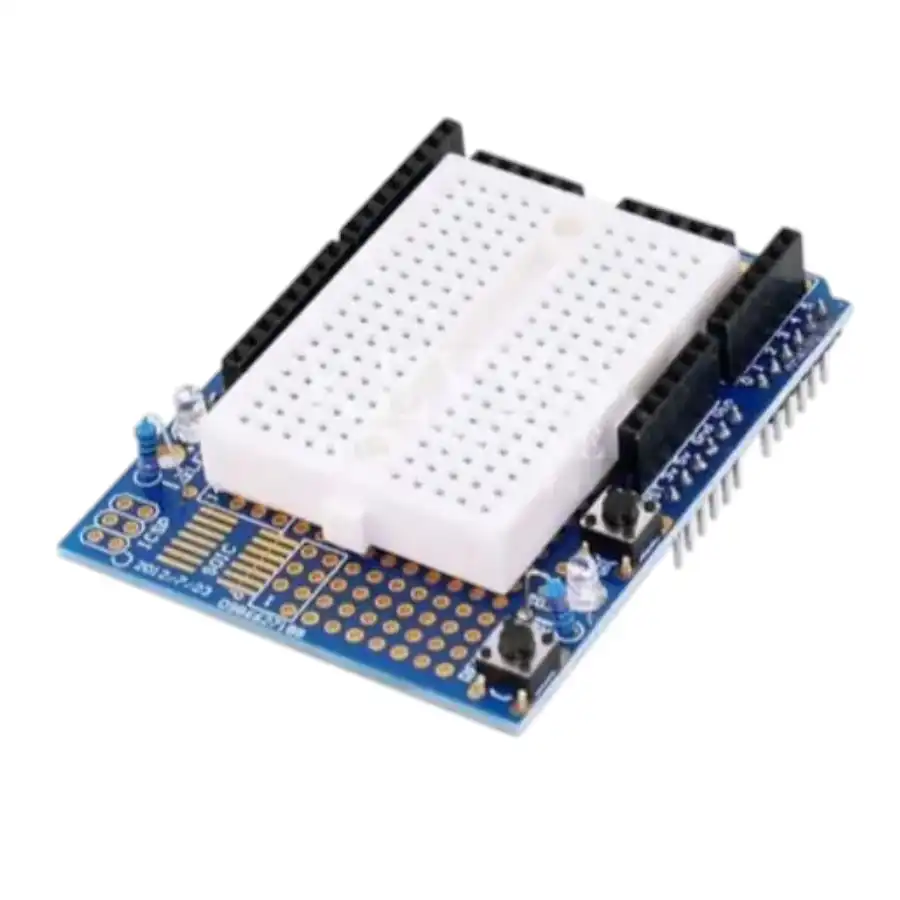

- Introducing the Proto Shield for Arduino Uno Mini Breadboard, the ideal tool for efficient prototyping and project development. This versatile shield eliminates the need for separate breadboards, providing a convenient platform for creating custom circuits directly on your Arduino or compatible board.
- Designed to fit multiple Arduino models, including the UNO, Mega, Leonardo, NG, Diecimila, and Duemilanove, the shield features a spacious prototyping area with a standard 0.1″x0.1″ grid and ample pads. It comes with header pins and empty solder pads, offering direct access to all Arduino I/O pins for easy expansion and customization.
Features:
- Standard Prototyping Grid: Features a 0.1″x0.1″ grid layout with spacious pads, perfect for building custom circuits.
- Versatile Header Options: Comes with stacking headers and plain headers, allowing flexibility in soldering preferences.
- IC Pattern: Includes an IC pattern for adding DIP ICs up to 20 pins, enhancing project versatility.
- Power Rails: Equipped with power rails down the middle and sides for convenient power distribution.
- User-Friendly Design: Features a reset button and an extra general-use button for enhanced functionality.
- LED Indicators: Includes two 3mm general-use LEDs (red and green) with matching resistors for visual feedback.
- ICSP Stacking Header: Provides a pass-thru ICSP stacking header for stacking additional shields or using an AVR programmer.
- Surface-Mount Chip Area: Offers a surface-mount chip area for up to 14 SOIC size parts, expanding project possibilities.
- Compatibility: Compatible with tiny breadboards for added convenience.
- Gold-Plated Pads: Ensures reliable electrical connections and long-lasting performance.
- Power Stability: Includes 0.1uF capacitors on either side for extra power stability, ensuring smooth operation.
Specifications:
| Specification | Details |
|---|---|
| Prototyping Grid | Standard 0.1″x0.1″ grid with large pads |
| Header Options | Comes with stacking headers and plain headers |
| IC Pattern | Supports DIP ICs up to 20 pins |
| Power Rails | Middle and side power rails for easy distribution |
| Buttons | Reset button and extra general-use button |
| LED Indicators | Two 3mm general-use LEDs (red and green) with matching resistors |
| ICSP Stacking Header | Pass-thru ICSP stacking header for stacking shields or using an AVR programmer |
| Surface-Mount Chip Area | Supports up to 14 SOIC size parts |
Upgrade your Arduino projects with the Proto Shield (Prototype) for Arduino Uno Mini Breadboard, offering unmatched versatility, convenience, and functionality for all your prototyping needs. Whether you’re a beginner or an experienced maker, this shield is the perfect companion for bringing your ideas to life
Package Includes :

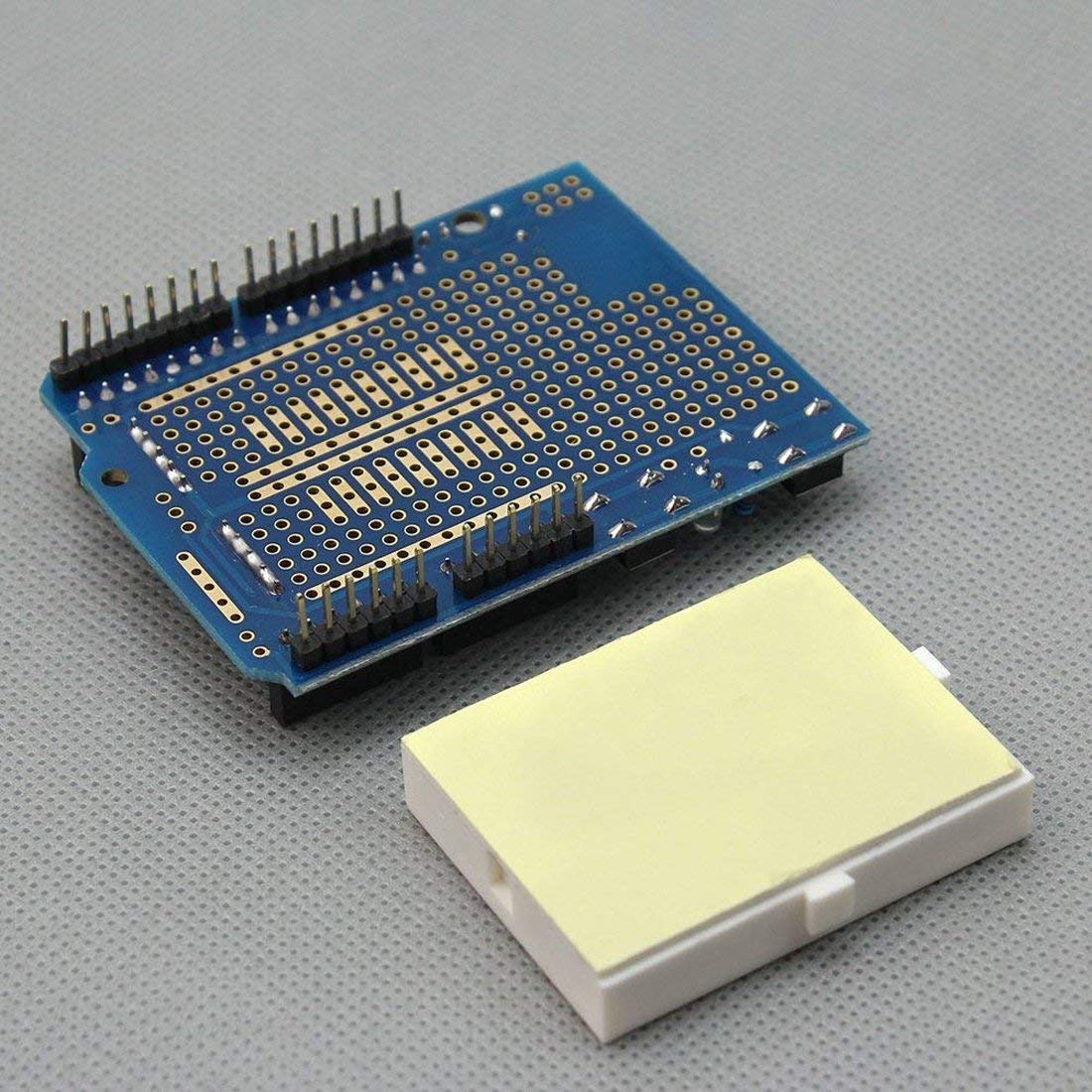

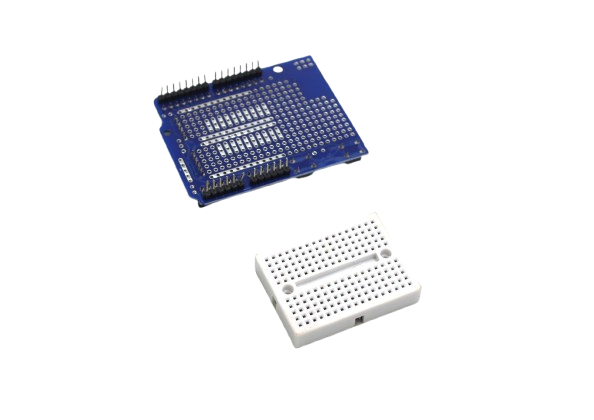

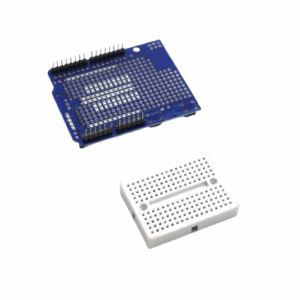

- 1 x UNO Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard
Arduino Timer Registers: Precise Timing Without delay()
Understanding Arduino timer registers is the single most important step you can take to move beyond beginner-level sketches...
Read More →
Arduino Inclinometer: Tilt Angle Measurement with ADXL345
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
ESP8266 NodeMCU Getting Started Guide India
The ESP8266 NodeMCU getting started guide covers everything you need to know to begin building WiFi-connected projects with...
Read More →Technical Specifications
| SKU | AI0130 |
|---|---|
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Proto Shield (Prototype) for Arduino Uno Mini Breadboard is a versatile shield for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
