Product Description:

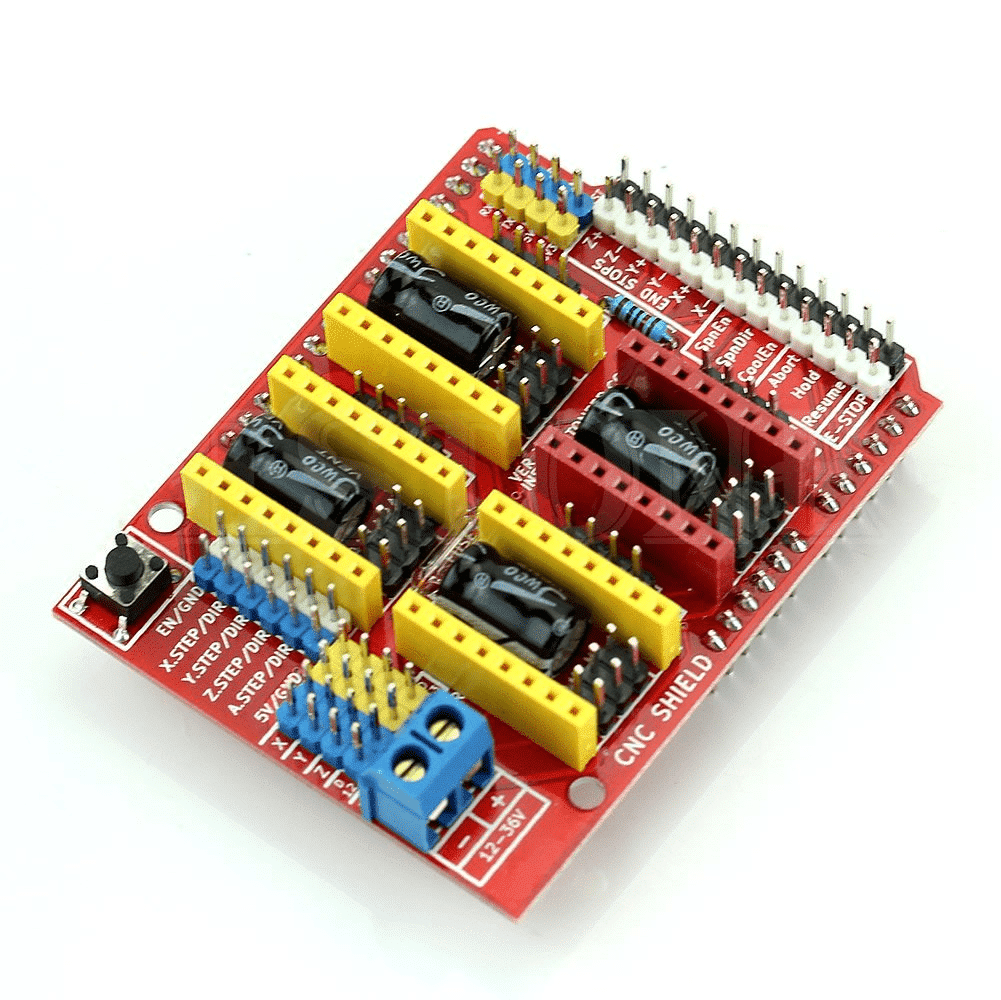

CNC Shield V3 Engraving Machine 3D Printer A4988 DRV8825 Driver Expansion Board
Presenting the CNC Shield V3 Engraving Machine 3D Printer A4988 DRV8825 Driver Expansion Board, a versatile tool that enables your Arduino to build a variety of devices, including engraving machines, 3D printers, and mini CNCs.
This shield is designed for easy integration, plugging directly into your Arduino board and removing the need for separate wiring and connections. It offers four slots for stepper motor drive modules, with each slot capable of managing one stepper motor. You can control each stepper motor using just two IO pins on the Arduino.
Building your own CNC engraving machine is straightforward – simply connect the Arduino CNC Shield V3 to an Arduino UNO and upload the GRBL firmware. This powerful expansion board unleashes the potential of your Arduino, opening up a world of possibilities in fabrication and automation projects.
Features
- The extension board can be used for Small CNC routers, Carving Machine, 3D Printers, DIY Laser Cutters, and almost any project where you need to control a stepper motor with high precision.
- This shield allows you to control upto 4 stepper motors.
- Controller each stepper motor requires 2 IO Pins only, which saves a lot of IO Pins for other purposes.
- Arduino compatible
- Latest Arduino CNC Shield Version 3.10
- GRBL 0.9 compatible. (Open-source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
- Supports PWM Spindle and direction pins.
- 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
- Supports Coolant enable.
- Supports removable A4988 compatible stepper drivers. (A4988, DRV8825 and others) (Not Included)
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping)
- Compact design.
- Stepper Motors can be connected with 4 pin Molex connectors or soldered in place.
- Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
- Uses removable A4988 or DRV8825 compatible stepping driver.
Specifications:
| Feature | Description |
|---|---|
| Application | Small CNC routers, Carving Machine, 3D Printers, DIY Laser Cutters, and more |
| Stepper Motor Control | Up to 4 stepper motors can be controlled |
| IO Pins Required | Each stepper motor requires only 2 IO pins, saving IO pins for other purposes |
| Compatibility | Arduino compatible |
| CNC Shield Version | Latest Arduino CNC Shield Version 3.10 |
| Firmware Compatibility | GRBL 0.9 compatible (Open-source firmware for turning G-code commands into stepper signals) |
| Spindle Control | Supports PWM spindle and direction pins |
Package Includes
- 1 x CNC Shield V3 – Engraving Machine 3D Printer A4988 DRV8825 Driver Expansion Board
