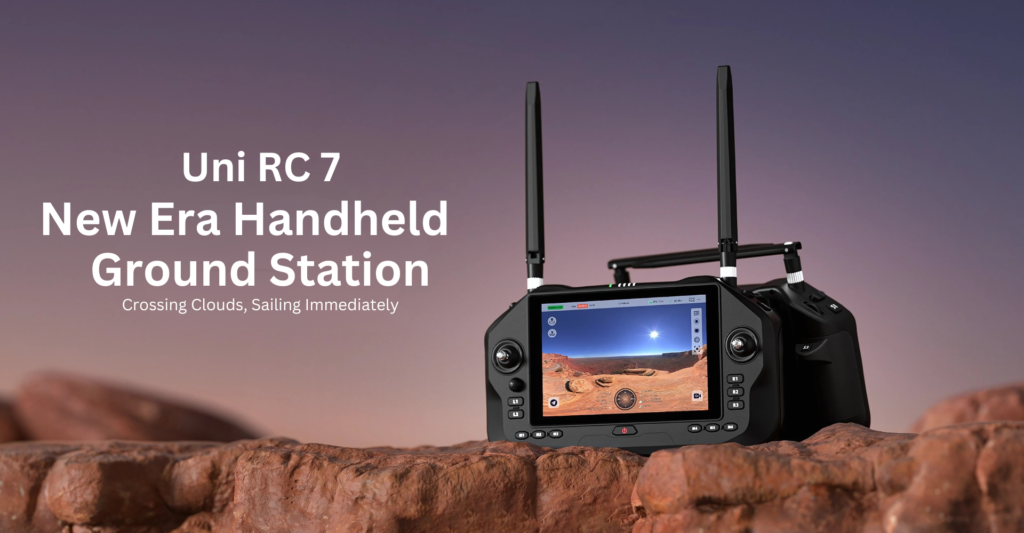

Looking for Siyi Uni Rc New? Siyi Uni RC 7 New Era Handheld Ground Station is available at Zbotic with fast shipping across India.
- Description:

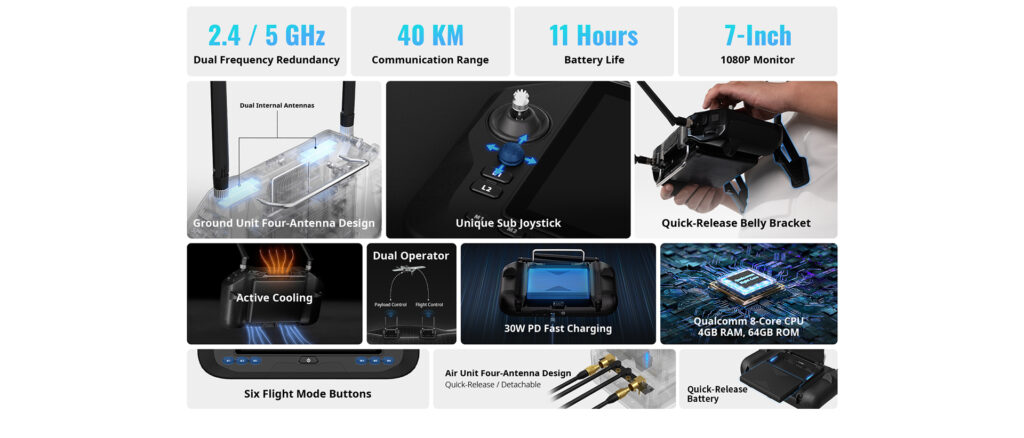

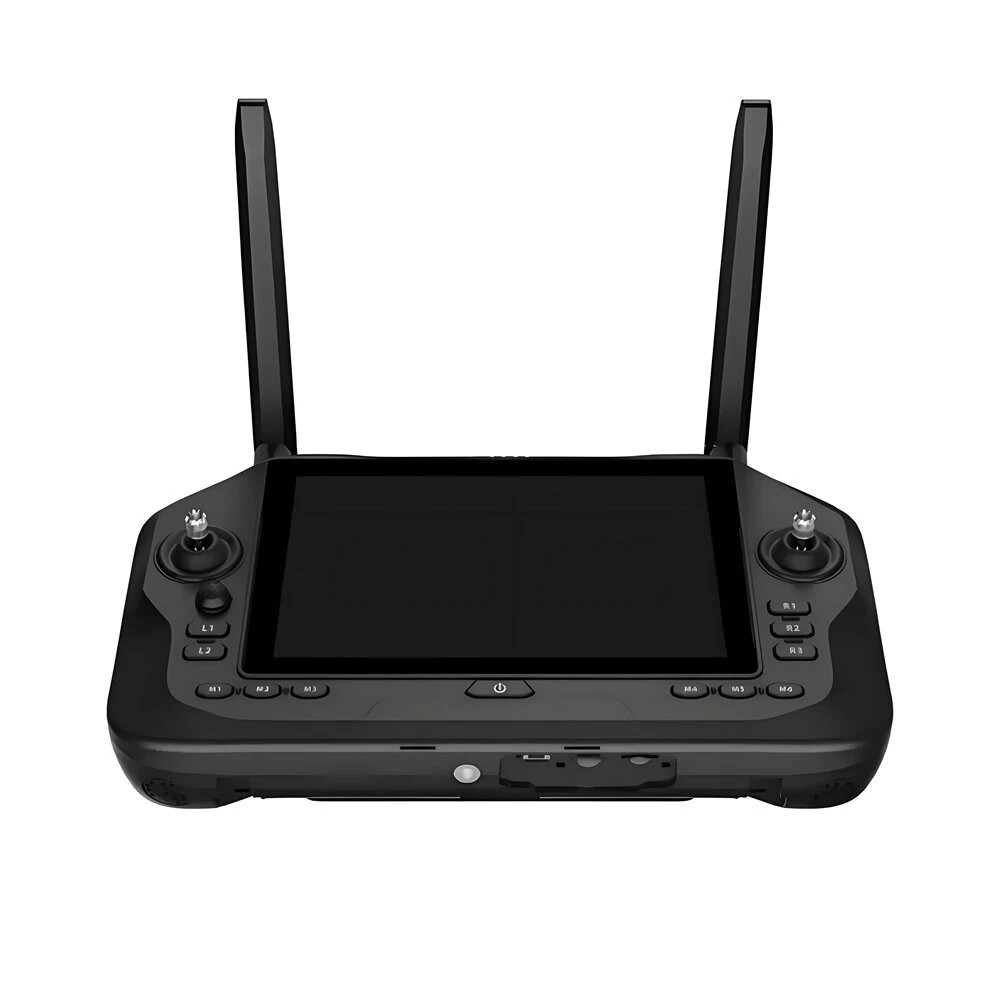

The Siyi Uni RC 7 New Era Handheld Ground Station handheld ground station is a cutting-edge device from SIYI, designed to cater to drones, vehicles, boats, and smart robotics. With advanced communication technology, exceptional anti-interference capabilities, and a 40 KM transmission range, it redefines UAV control. Featuring a 7-inch high-resolution touchscreen, precise joysticks, and robust encryption, the UniRC 7 ensures a seamless, secure, and intuitive operational experience across diverse applications.Key Features
Communication and Connectivity:
- Transmission Technology:
- Self-developed by SIYI for automatic channel selection and enhanced anti-interference.
- Transmission Range:
- Up to 40 KM in ideal conditions.
- Image Transmission:
- 4K@30fps for single stream or 1080p@60fps for dual streams.
- Transmission bitrate up to 65 Mbps with latency as low as 170 ms.
- Encryption:
- AES encryption ensures secure data transfer.
User Interface and Controls:
- Display:

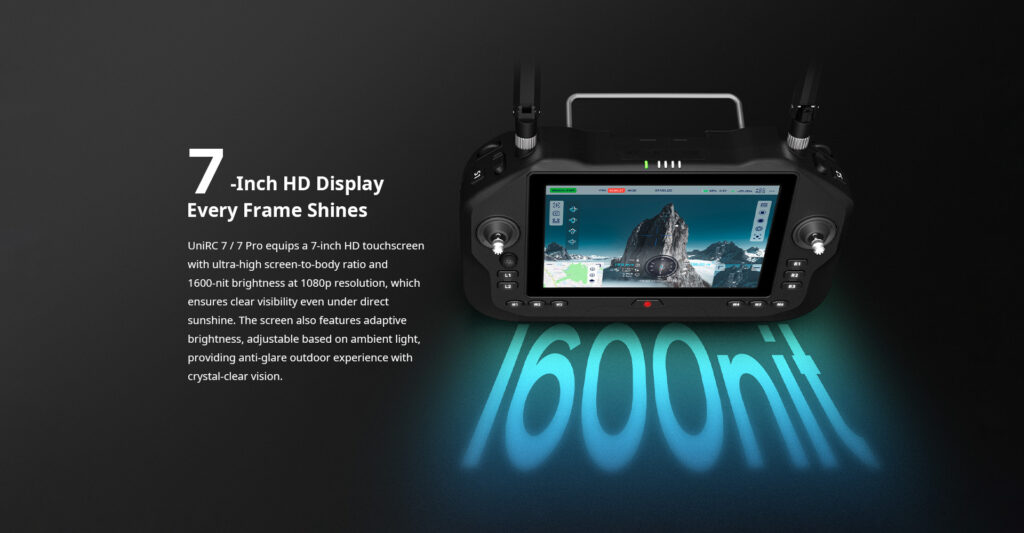

- 7-inch touchscreen with 1280×800 resolution and 1600-nit brightness for excellent visibility.
- Control Inputs:

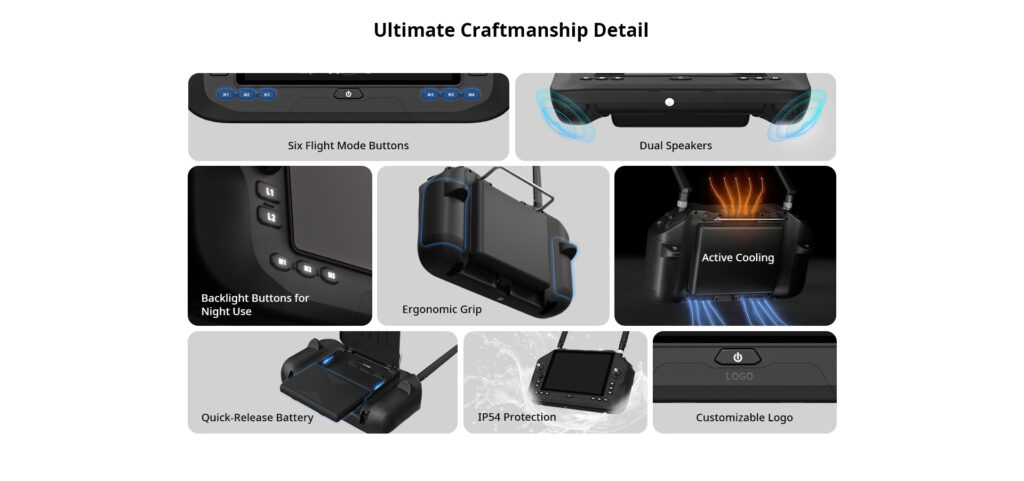

- Includes a sub joystick, 6 flight mode buttons, 2 main joysticks, and customizable buttons for precise control.
Battery and Charging:

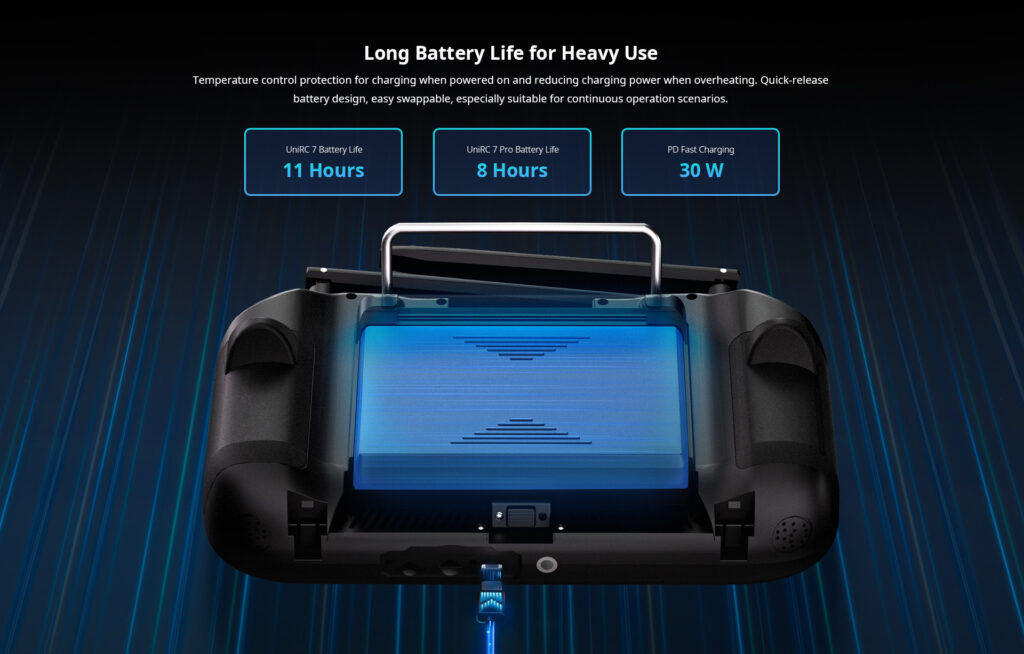

- Battery Life:
- Up to 11 hours of continuous usage.
- Quick Charging:
- PD 30W protocol for fast recharging within 4.5 hours.
Durability and Design:
- Rugged Build:
- IP54-rated for protection against dust and water splashes.
- Lightweight Design:
- Compact and portable at just 1.44 kg.
Specifications:
Ground Unit
- Hardware:
- 4GB RAM + 64GB ROM for smooth operation.

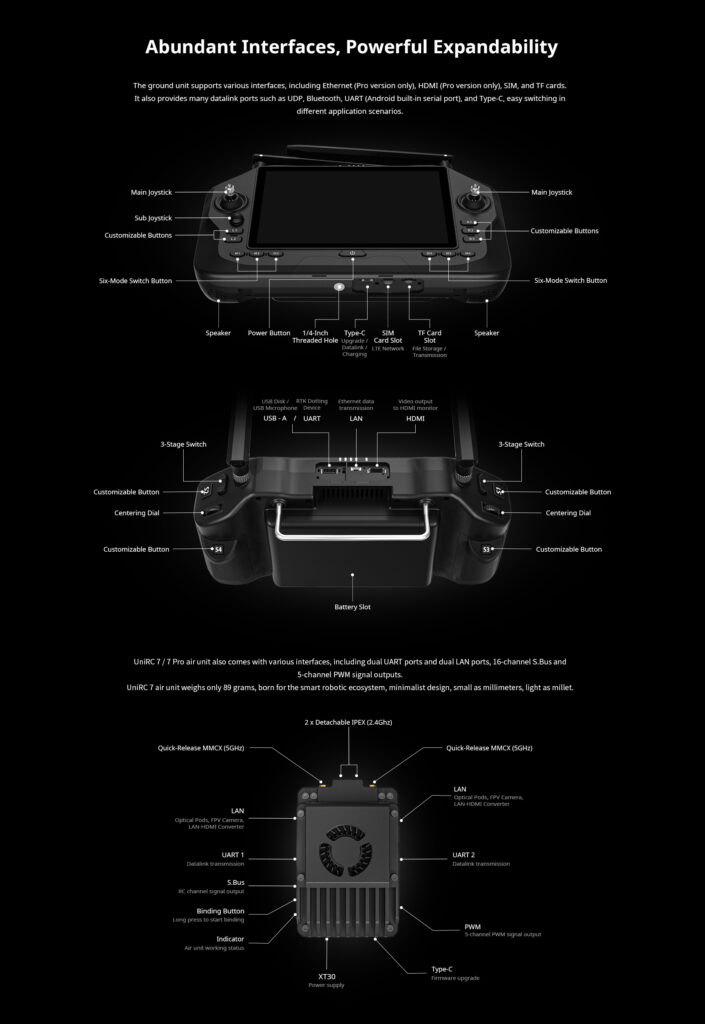

- Interfaces:
- Type-C port and TF card slot for additional compatibility.
- Connectivity:
- Supports Wi-Fi 5, Bluetooth 5.0, and GNSS (GPS/GLONASS/BeiDou/Galileo/QZSS).
- Battery:
- 13,400 mAh capacity for extended operation.
Air Unit:
- RC Signal Output:
- 16-channel S.Bus and 5-channel PWM.
- Working Voltage:
- 7–76 V for versatile drone compatibility.
- Weight:
- Approx. 90 g without antennas.
- Approx. 90 g without antennas.
Useful link:
Siyi Uni RC 7 New Era Handheld Ground Station
The UniRC 7 is SIYI’s advanced handheld ground station, designed for drones, vehicles, boats, and smart robotics. It features 2.4 GHz transmission, a 40 KM communication range, 4K 30fps decoding, 65 Mbps bitrates, AES encryption, and a 7-inch 1280×800 resolution touchscreen with 1600-nit brightness. With a unique sub joystick, six flight mode buttons, and quick-release belly brackets, the UniRC 7 offers precise control and exceptional performance, setting a new benchmark in UAV operations.

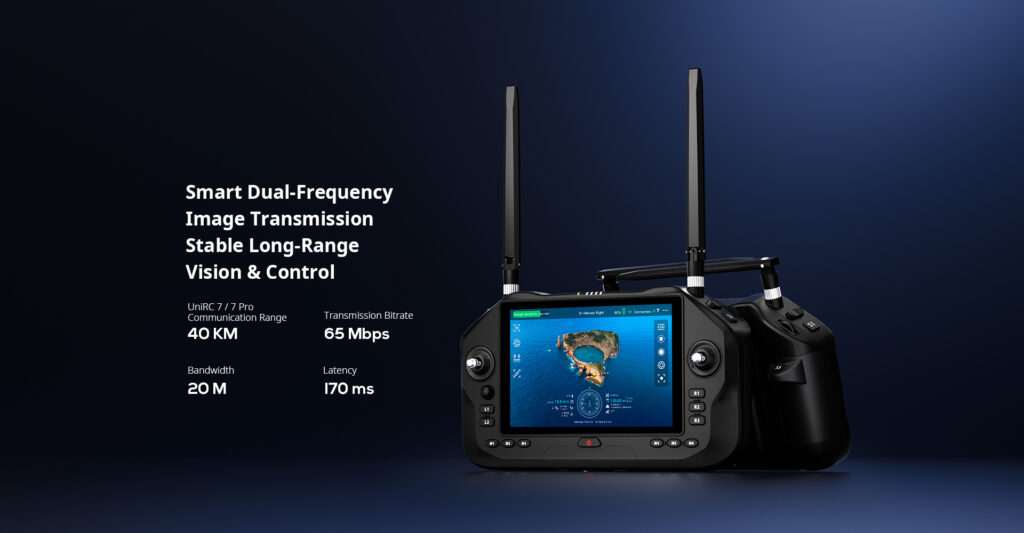

The UniRC 7 integrates SIYI’s next-generation self-developed image transmission technology, offering enhanced anti-interference capabilities and a reliable 40 KM transmission range. It supports real-time image transmission at 4K@30fps for single streams or 1080p@60fps for dual streams, with a transmission bitrate of up to 65 Mbps and latency as low as 170 ms. With AES encryption, the UniRC 7 ensures secure and seamless data transmission for dependable UAV operations.
Why Choose UniRC 7 New Era Handheld Ground Station
The UniRC 7 stands out with its advanced transmission technology, secure data communication, and intuitive control systems. Whether you’re monitoring agricultural fields or navigating complex maritime tasks, this handheld ground station ensures reliability and efficiency, making it a trusted choice for UAV professionals worldwide.
Siyi Uni RC 7 New Era Handheld Ground Station Overview
The Siyi Uni RC 7 New Era Handheld Ground Station is SIYI’s flagship control unit for drones, vehicles, boats and smart robotics. Equipped with a 7-inch high-brightness touchscreen and advanced 4 GHz transmission, it delivers long-range control and real-time 4K video streaming up to 40 km.
Key Features of Siyi Uni RC 7 New Era Handheld Ground Station
- Self-developed 4 GHz transmission with automatic channel selection, anti-interference design and up to 40 km range
- 4K 30 fps live video feed at 65 Mbps bitrate secured by AES encryption
- 7-inch 1280×800 touchscreen with 1600 nit brightness for clear outdoor visibility

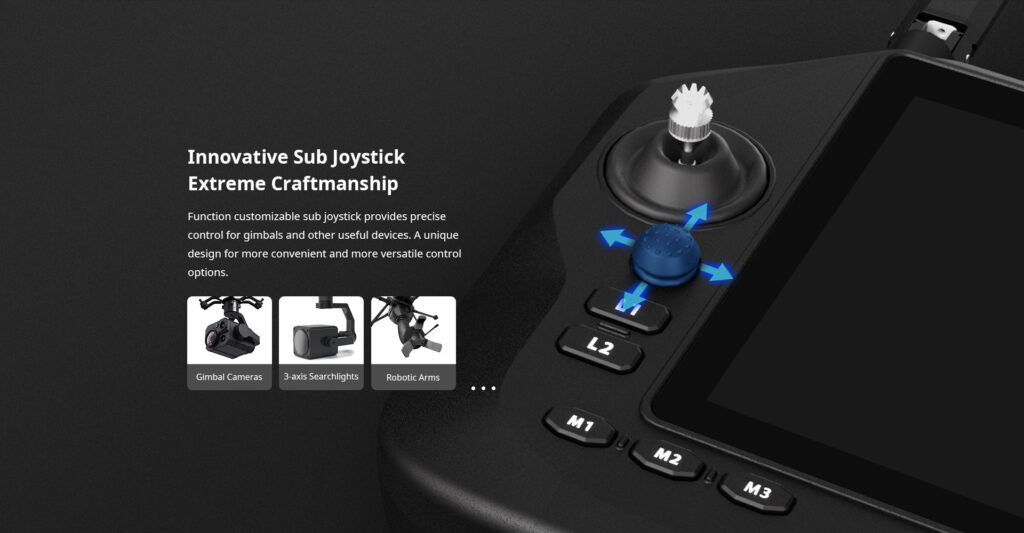

- Unique sub joystick and six dedicated flight mode buttons for intuitive control

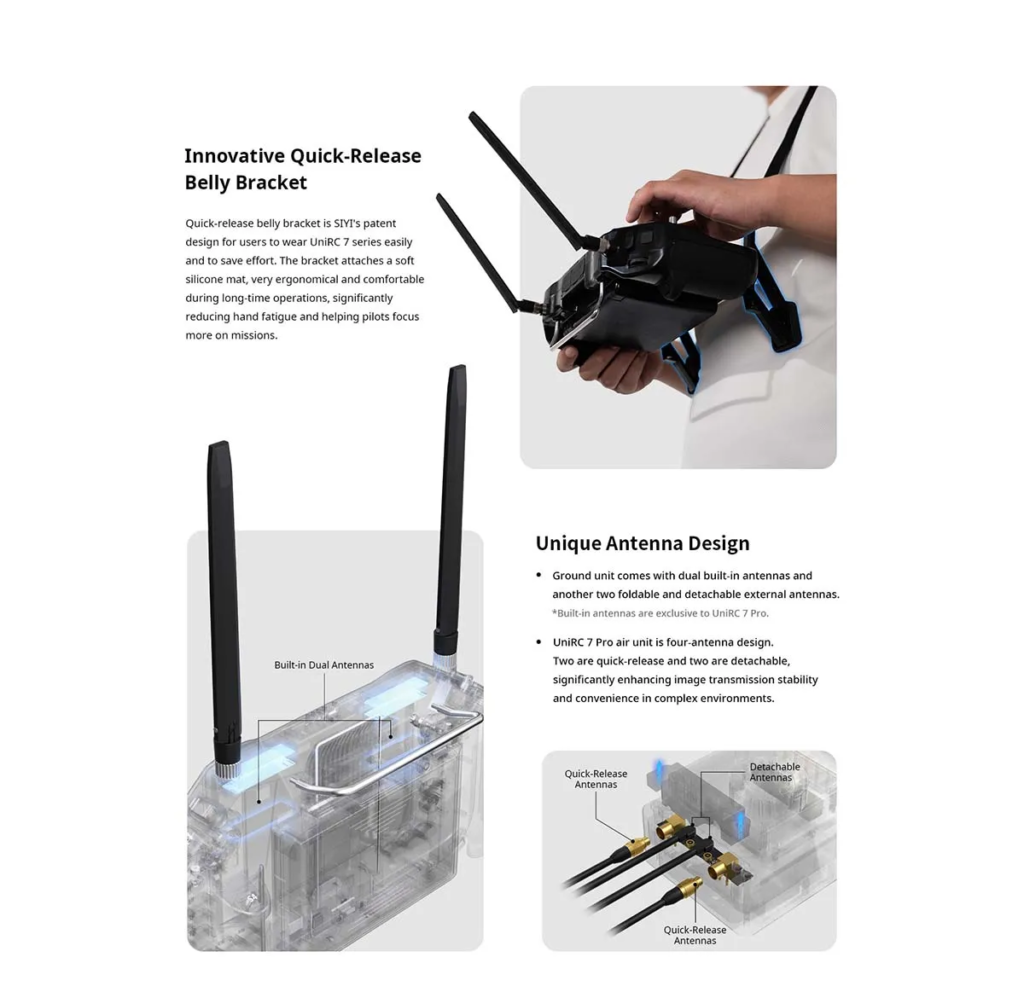

- Quick-release belly brackets for fast mounting and removal
- Genuine SIYI product with fast shipping from Zbotic
Applications and Use Cases
- Aerial mapping and surveying with long-range drones in agriculture and construction
- Remote monitoring and piloting of unmanned boats in marine research
- Control of ground vehicles for inspection in industrial sites
- Field testing of smart robotic platforms in warehouses and outdoor environments
- Search and rescue missions requiring secure and stable video transmission
How to Use Siyi Uni RC 7 New Era Handheld Ground Station
Unbox the Uni RC 7, attach it to your harness or vehicle using the quick-release belly brackets, power it on, and pair it with your SIYI transmitter. Use the touchscreen to select your flight mode, adjust video settings, and operate the sub joystick and six dedicated buttons to control your drone, boat or robotic platform with precision.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum transmission range of the Uni RC 7?
The Uni RC 7 can maintain stable data and video links up to 40 km in open-field line-of-sight conditions, thanks to its advanced 4 GHz transmission technology and anti-interference design.
Can I monitor 4K video in real time on the ground station?
Yes, the Uni RC 7 streams 4K video at 30 fps with a 65 Mbps bitrate directly to its 7-inch 1280×800 touchscreen, delivering crisp and smooth live feeds.
How do I secure the Uni RC 7 to my flight vest?
Use the bundled quick-release belly brackets to attach the Uni RC 7 securely to your harness or vest; they lock the ground station in place and allow fast mounting and removal during operations.
