Radiomaster ER8G 2.4GHz ELRS PWM Receiver

Looking for Er8g Receiver? Radiomaster ER8G 2.4GHz ELRS PWM Receiver is available at Zbotic with fast shipping across India.

Er8g Receiver – Radiomaster ER8G 2.4GHz ELRS PWM Receiver

Description:

The Radiomaster ER8G 2.4GHz ELRS PWM Receiver are based on the revolutionary ExpressLRS system. ER8G 2.4GHz ELRS PWM Receiver offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The Radiomaster ER8G 2.4GHz ELRS PWM Receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.

The Radiomaster ER8G 2.4GHz ELRS PWM Receiver Receiver has the same functionality as the ER8GV only without a built in Vario for competitions that prohibit the use of Vario or simply for users who do not need a vario on their receiver.

Features:

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed and ultra-long range
• Support 8 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• ER8GV receiver is built-in high-precision air pressure sensor (Vario)
• Supports Wi-Fi updates and WEBUI configuration
• Reserve 4pin CRSF input port
• High quality 2.54 mm connector

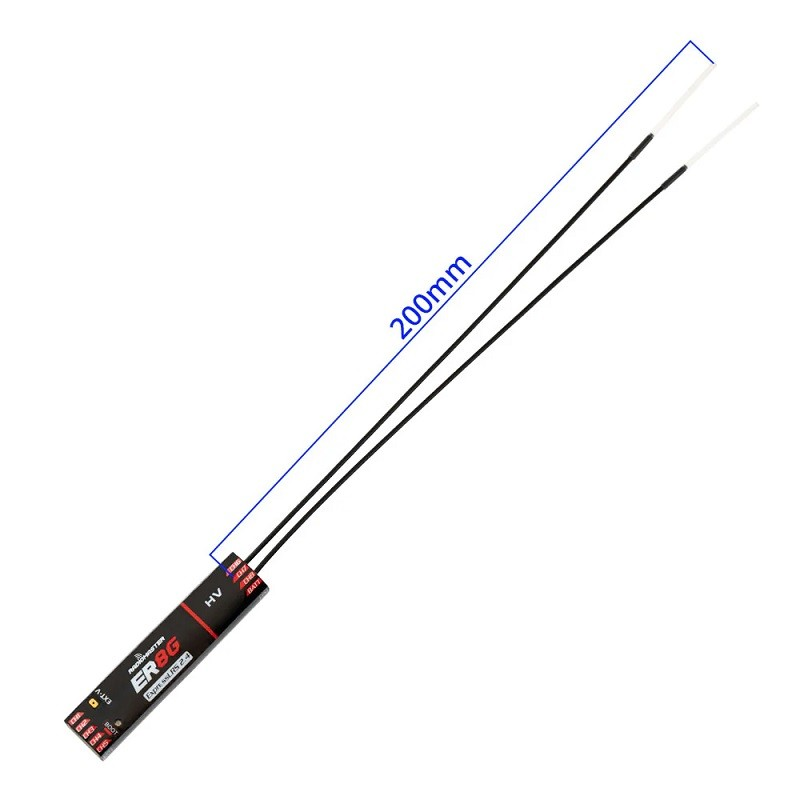

• Standard 20 cm High Sensitivity Antenna
• For fixed-wing aircraft and gliders
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications:

Package Includes:

• 1 x ER8G  2.4GHz ELRS PWM Receiver
• 2 x Heat-shrink tube
• 1 x Voltage telemetry wire (Type-A)
• 1 x CRSF wire
• 1 x ELRS- RX- SBUS wire
• 1 x User Card

Radiomaster ER8G 2.4GHz ELRS PWM Receiver Overview

The Radiomaster ER8G 2.4GHz ELRS PWM Receiver is a slim, high-performance receiver based on the ExpressLRS system, designed for glider pilots and RC enthusiasts. It provides eight PWM outputs, built-in voltage and battery telemetry, plus an integrated vario sensor for precise flight data and ultra-long range control.

Key Features of Radiomaster ER8G 2.4GHz ELRS PWM Receiver

• ExpressLRS 2.4GHz protocol for ultra-long range and sub-10 ms latency
• Eight PWM outputs to drive servos, speed controllers or accessories
• Built-in voltage telemetry and automatic flight battery detection
• Integrated vario sensor measures real-time climb and sink rates
• Wi-Fi firmware updates and WEBUI configuration via 4-pin CRSF port
• 20 cm high-sensitivity antenna; genuine Radiomaster unit with fast shipping from Zbotic

Applications and Use Cases

• High-performance RC gliders requiring a low-profile, lightweight receiver
• Fixed-wing model aircraft with multiple control surfaces
• FPV glider builds needing real-time vario and voltage telemetry
• Custom UAV platforms where reliable, long-range link is critical
• Educational projects using PWM servos and flight data monitoring

How to Use Radiomaster ER8G 2.4GHz ELRS PWM Receiver

Mount the ER8G in a dry location with the antenna extended, then connect your servos or ESCs to the eight PWM pins. Short the bind pad or use the ExpressLRS Lua script on your compatible transmitter to enter binding mode. After binding, use a Wi-Fi connection to access WebUI for channel mapping, telemetry thresholds and firmware updates. Finally, verify correct telemetry data and servo response before flight.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How do I bind the ER8G receiver to my ExpressLRS transmitter?

Power up the receiver with the bind pad shorted, then run the ExpressLRS Lua script on your transmitter and select “Bind.” The receiver’s LED will flash rapidly when bound. Remove the bind jumper once the link is confirmed.

Can I connect this receiver directly to servos without a flight controller?

Yes. The ER8G provides eight independent PWM outputs at standard servo voltage levels, allowing you to connect servos or electronic speed controllers directly without needing an SBUS-capable flight controller.

How can I view voltage and vario telemetry on my radio?

After binding, enable telemetry in your ExpressLRS transmitter settings. The ER8G will automatically send receiver voltage and vario data over the link. Use your radio’s telemetry page to monitor real-time voltage, climb rate and sink rate during flight.
