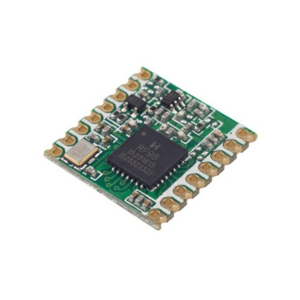

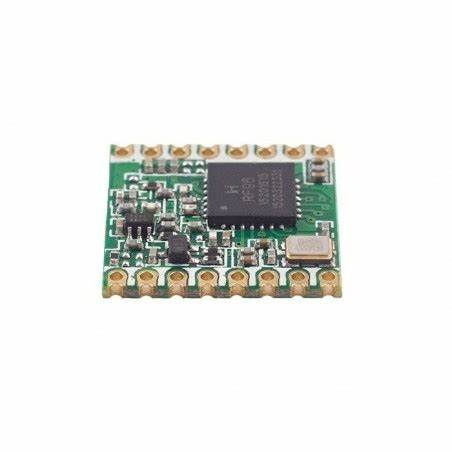

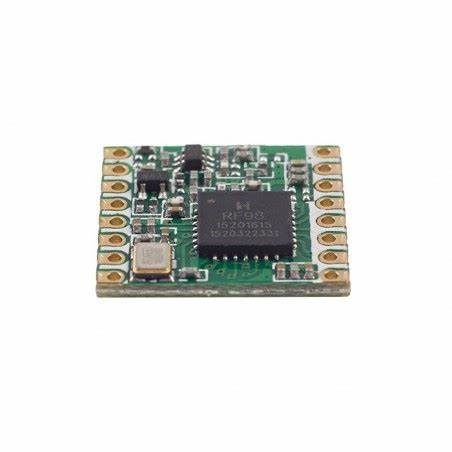

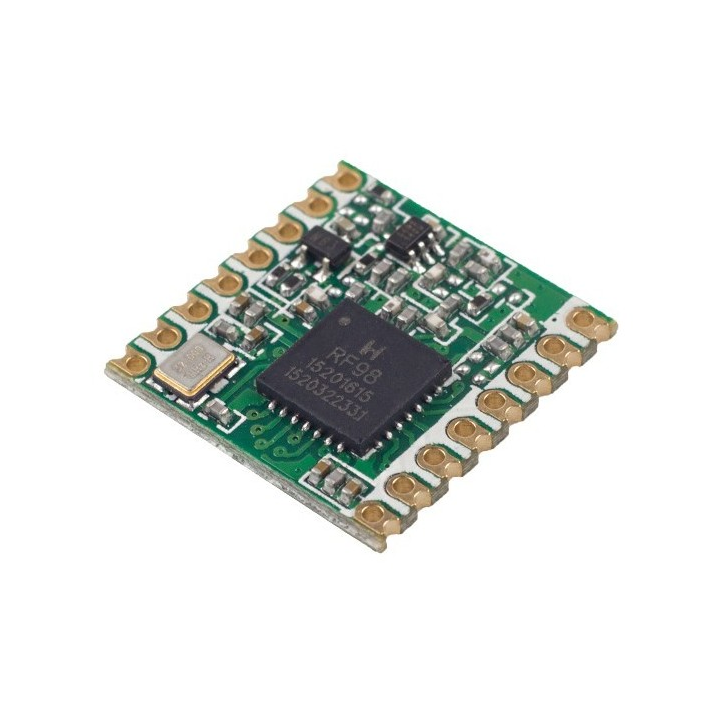

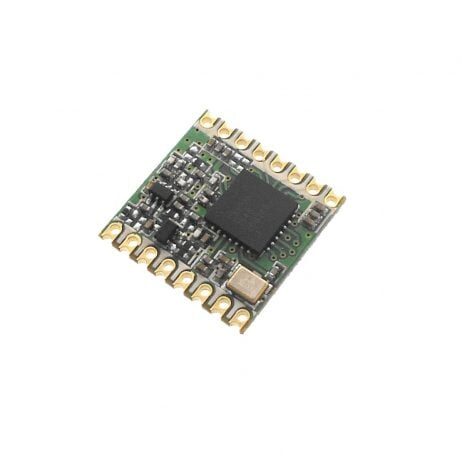

RFM98W 433mhz Wireless Receiving Module
This RFM98W 433MHz Wireless Receiving Module exclusively operates at 433MHz frequency.
The RFM98W transceivers are equipped with the LoRaTM long-range modem, enabling ultra-long range spread spectrum communication with high interference immunity, all while minimizing current consumption.
By employing Hope RF’s patented LoRaTM modulation technique, the RFM98W achieves remarkable sensitivity exceeding -148dBm using cost-effective components such as a low-cost crystal and bill of materials. This exceptional sensitivity, combined with the integrated 20 dBm power amplifier, results in an industry-leading link budget, making the RFM98W ideal for applications requiring extensive range or robustness. Moreover, LoRaTM modulation offers significant advantages in both blocking and selectivity compared to conventional modulation techniques, effectively resolving the traditional design compromise between range, interference immunity, and energy consumption.
Application:
- Automated Meter Reading.
- Home and Building Automation.
- Wireless Alarm and Security Systems.
- Industrial Monitoring and Control
- Long-range Irrigation Systems
Features:
- LoRaTM Modem.
- 168 dB maximum link budget.
- 20 dBm – 100 mW constant RF output vs. V supply.
- 14 dBm high-efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Preamble detection.
- 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Built-in temperature sensor and low battery indicator.
Specification:
| Length (mm): | 16 |
|---|---|
| Width (mm) | 16 |
| Height (mm) | 2 |
| Weight (g): | 3 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 7 × 4 × 1 cm |
Package Includes:
1 x RFM98W 433mhz WirelessReceiving Module (Only 433mhz)
Technical Specifications
| Model | RFM98W |
|---|---|
| Frequency | 433mhz |
| SKU | AI3557 |
| Weight | 0.001859 kg |
| Availability | In Stock |
Applications & Use Cases
The RFM98W 433mhz Wireless Receiving Module (Only 433mhz) is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
