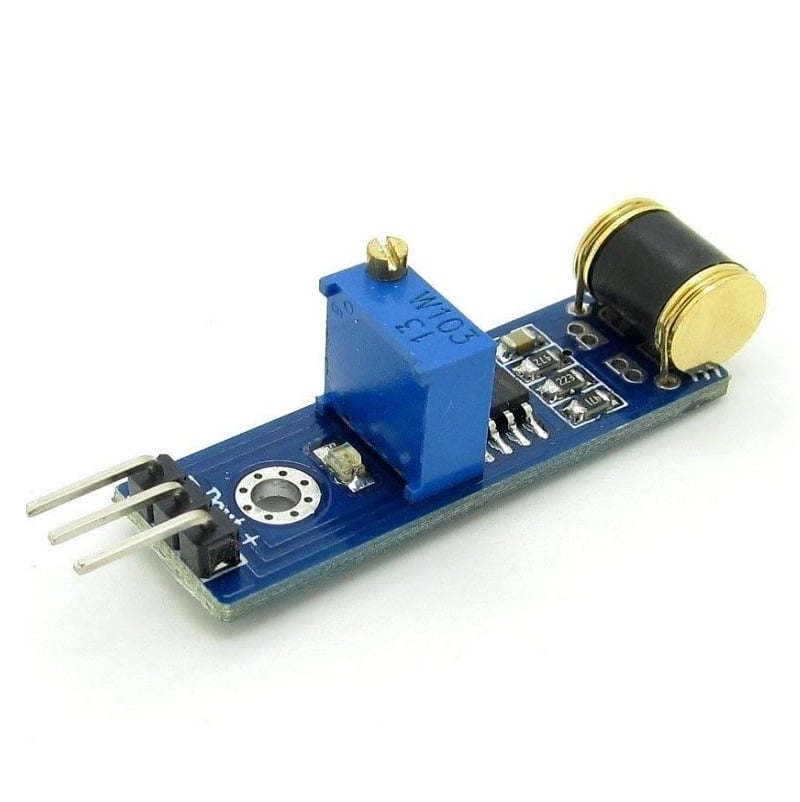

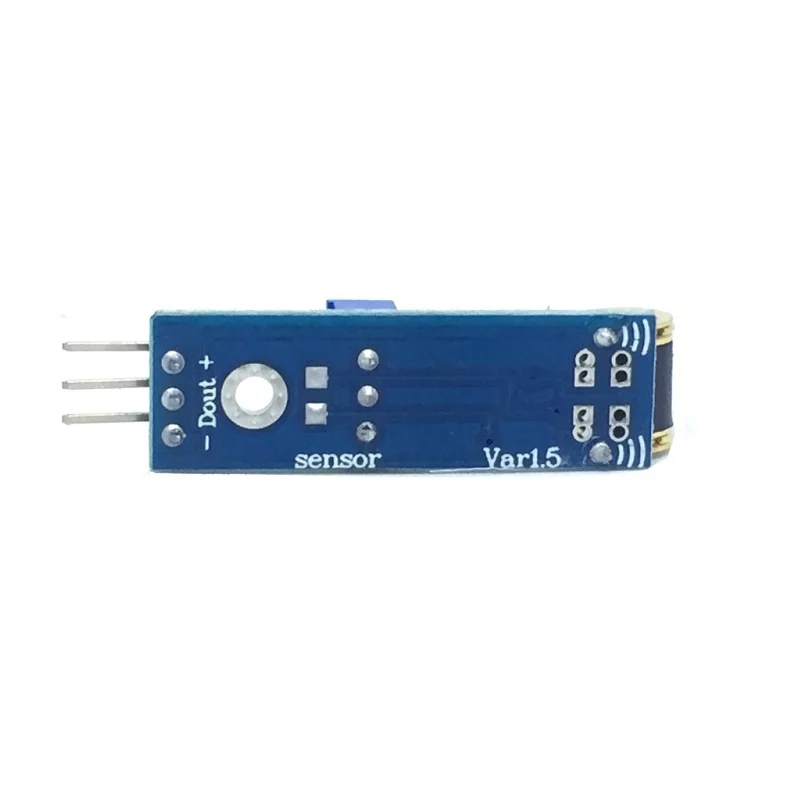

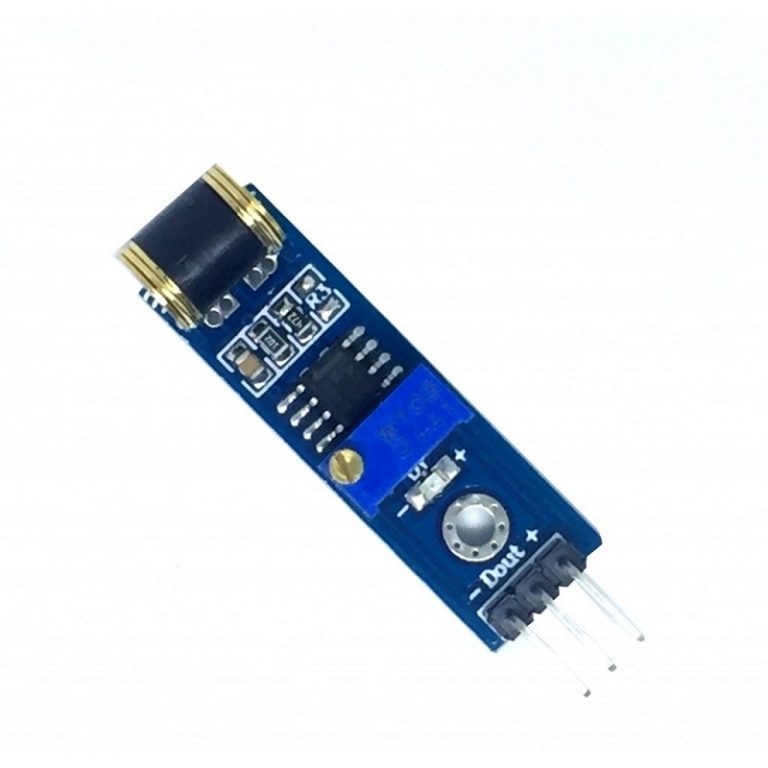

801S Vibration Shock Sensor Module
The 801S module is a highly sensitive vibration sensor that includes a digital output pin (D0), which provides a high or low signal depending on vibration intensity. The threshold of this signal can be adjusted with the onboard potentiometer. Moreover, an ADC can interpret the digital output to assess vibration levels. The module employs the precision vibration sensor 801S, which changes its resistance significantly when vibrated, acting as a switch during strong vibrations. According to the datasheet, this gold-plated device can endure up to 60 million shocks. In terms of voltage output, the 801S is integrated into a voltage divider circuit.
Features :
- Micro-Shock detecting
- 60,000,000 times shock guarantee (special gold alloy plated)
- Has a signal output instruction
- Digital output signal
- The output valid signal is high, the light goes out
- The sensitivity is adjustable (fine-tuning)
- The wide detection range of vibration, no direction
- With mounting holes, firmware installation is flexible and convenient.
Specification:
| IC Chip | LM393 |
|---|---|
| Operating Voltage (VDC) | 3 ~ 5 |
| PCB Size ( L x W ) mm | 35 x 12 |
| Height (mm) | 9 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 5 × 3 × 3 cm |
Package Includes :
1 x 801S Vibration Shock Sensor Module
Best Sensor Modules for Arduino Beginners: Starter Bundle Guide
If you are just starting with Arduino and wondering which sensor modules to buy first, you are not...
Read More →
MPU6050 IMU Sensor: Complete Tutorial with Arduino & Python
The MPU6050 is one of the most powerful and affordable sensor modules available to hobbyists and engineers in...
Read More →
MLX90614 IR Thermometer: Contactless Temperature Measurement with Arduino
The MLX90614 is a factory-calibrated infrared thermometer sensor that enables truly contactless temperature measurement with Arduino — no...
Read More →Technical Specifications
| SKU | AI3418 |
|---|---|
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 801S Vibration Shock Sensor Module is a versatile vibration/tilt sensor and modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
