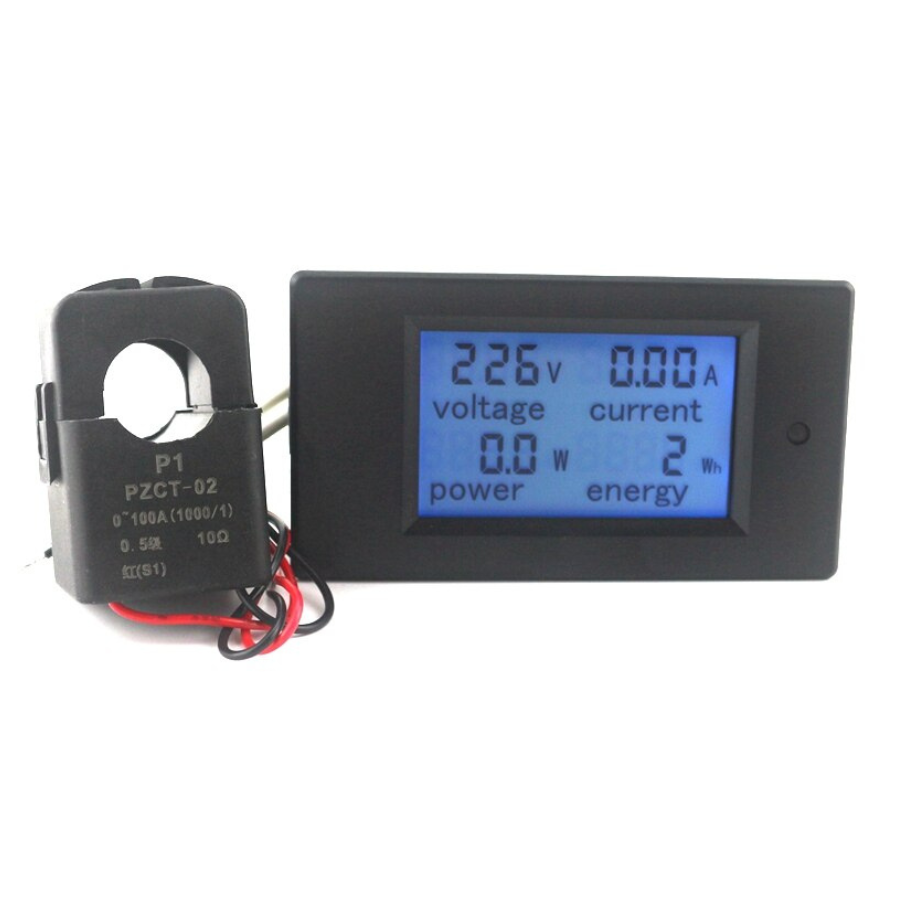

This is the 260V variant of the PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy Meter with Open CT in Digital Voltage, Current and Frequency Meter. Available at ₹1,548.16 (₹1,312.00 + GST) with free shipping across India.
Function:
1. Electrical parameter measurement function (voltage, current, active power, energy)
2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
3. Power alarm threshold preset function (can set power alarm threshold).
4. The reset function of energy key.
5. Store data when power off.
6. Large-screen LCD (display voitagurrent, active power, energy at the same time)
7. Backlight function.
Key function
1. Display Interface
Display interface is a large-screen LCD, it can display voltage, current, power, energy
parameters at the same time.
Display format:
1. Power: test range: 0-22kW Within 1kW, the display format is 0.0-999.9W: Within 1kW-10kW, the display format is 1000-9999W; 10kW and above, the display format is 0.1-22.0kW.
2. Energy: test range: 0-9999kWh Within 10KWh, the display format is 0-9999Wh: 10kWh and above, the display format is 10~9999kWh
3. Voltage: test range: 80-260V Display format: 80-260V
4. Current: test range: 0-100A Display format: 0.00-99.99A
Features:
1. Backlight control
Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
2. Reset energy
Step1: Long press the key for 5 seconds until the number in energy display window flash, then release the key.
Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state. If you don’t want to clear, then long press the key for 5 seconds again until the number doesn’t flash, it means the energy value is not cleared and will exit the reset state.
3. Set power alarm threshold
Step1: Long press the key until the LCD screen display “SET CLr”, then release the key to enter the setting state.
Step2: Power window display the current power alarm value and the last digit begin to flash,
then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.
Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~22.0kW
Precautions:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.
3. Wiring order can’t be wrong
Specification :
1. Working voltage: 80-260VAC
2. Test voltage: 80~260VAC
3. Rated power: 100A/22000W
4. Operating frequency: 45-65Hz
5. Measurement accuracy: 1.0 grade
Package Include:
1 x PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy Meter with Open CT
PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy Overview
The PZEM-061 is a compact panel-mounted meter designed to monitor AC voltage, current, active power and cumulative energy in real time. With its open CT sensor, it supports 80–260VAC input and up to 100A load, making it ideal for precise electrical parameter measurement in residential and light industrial systems.
Key Features of PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy
- Comprehensive measurements: Simultaneously displays voltage, current, active power and energy on a large LCD.
- Wide input range: Operates from AC 80V to 260V and accepts up to 100A via the included open CT.
- Overload alarm: User-set power threshold triggers backlight and display flashing when exceeded.
- Energy reset and data retention: Push a single button to reset energy readings; stores data automatically during power outages.
- Backlit display: White backlight ensures clear visibility in dim environments.
- Fast shipping from Zbotic: Genuine stock ready to dispatch within 24 hours.
Applications and Use Cases
- Solar inverter output monitoring to optimize panel performance.
- Home energy management panels for tracking daily power consumption.
- UPS and battery charging system load analysis.
- Generator set load monitoring in remote or backup power installations.
- Workshop and light-industrial equipment power usage tracking.
How to Use PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy

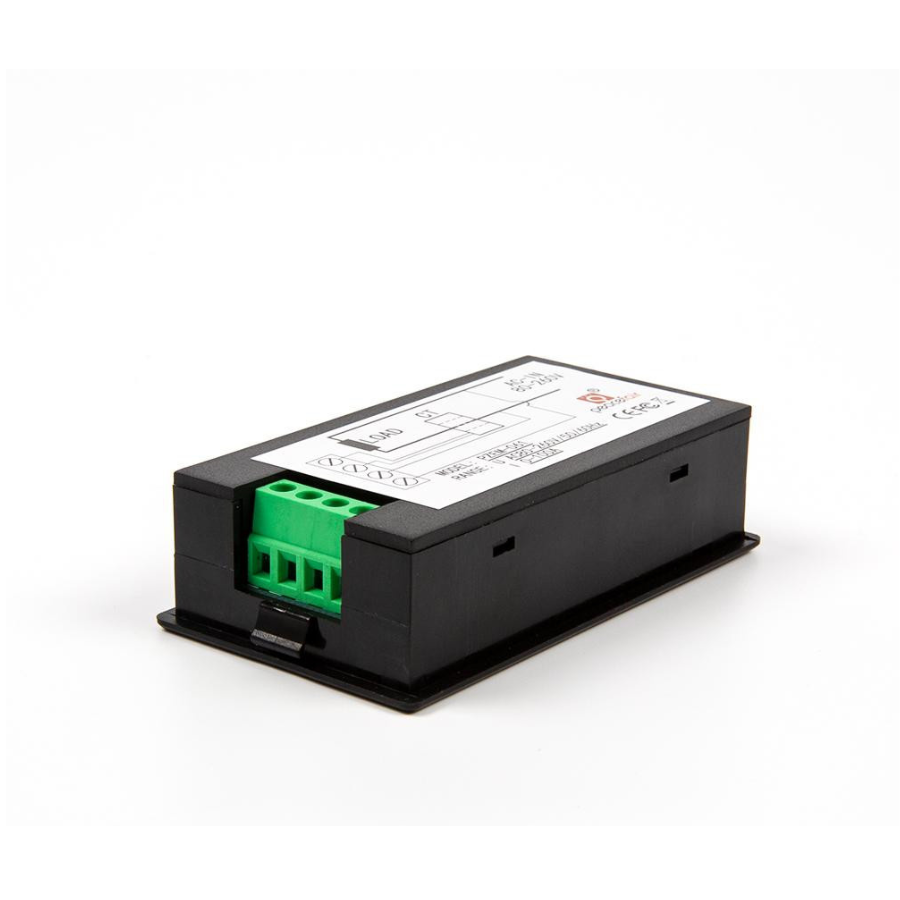

Install the PZEM-061 into a 90×50×25mm cutout and secure it on the panel. Connect the phase and neutral wires to the input terminals, route the live conductor through the open CT sensor, then tighten the CT clamp. Power up the meter, use the front button to set the power alarm threshold, and monitor readings on the backlit LCD. Press the energy key to reset cumulative kWh as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What measurement parameters does the PZEM-061 provide?
The PZEM-061 displays AC voltage, current, active power and cumulative energy simultaneously on its large backlit LCD. All four values update in real time for comprehensive monitoring.
How do I set and trigger the overload alarm?
Use the front panel key to enter the alarm threshold menu, adjust the power limit to your preferred value, and confirm. When consumption exceeds this value, the display backlight and numeric readouts will flash to alert you.
Will the meter retain energy data after a power failure?
Yes. The PZEM-061 features non-volatile memory that stores the cumulative energy reading automatically when power is lost, so you won’t lose logged data when the supply is restored.
Technical Specifications
| Model | PZEM-061 |
|---|---|
| Current Rating | 100A |
| SKU | AI3762 |
| Weight | 0.2028 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PZEM-061 AC80-260V 100A Voltage Current Watt Power Energy Meter with Open CT is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
