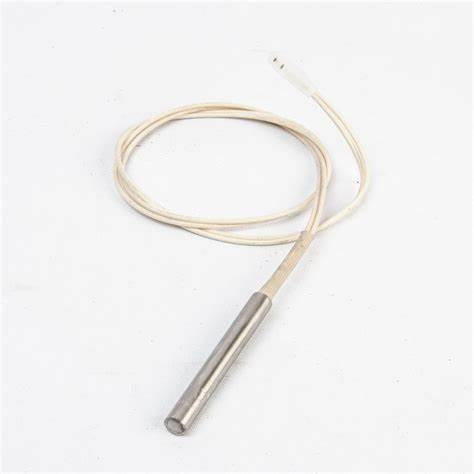

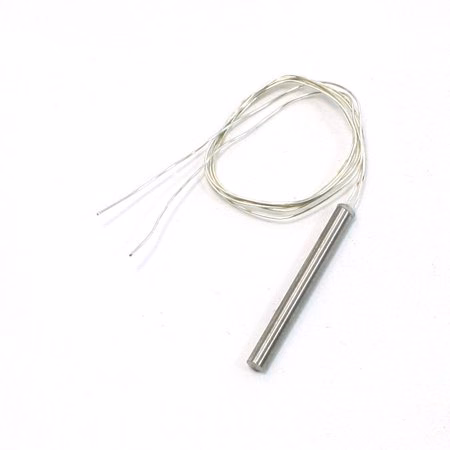

This is the 30mm variant of the PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor in Temperature & Humidity Sensor. Available at ₹143.96 (₹122.00 + GST) with free shipping across India.
Product Description:
A PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor is an ideal choice for precision temperature sensing. This sensor is a type of resistance temperature detector (RTD), which is a temperature sensor that has a resistor whose resistance value varies with temperature. This resistor is a thin strip of Platinum with a resistance of 1000 ohms at 0°C, hence the name PT1000. Unlike most NTC/PTC thermistors, PT1000 sensors are more stable and accurate (but also more costly). They are suitable for measuring temperature in laboratory and industrial settings, and they are known for their accuracy (better than thermocouples), repeatability, and stability.
This PT1000 sensor has a 316L stainless steel shield that can withstand temperatures up to 550°C. (Try saying that five times fast!)

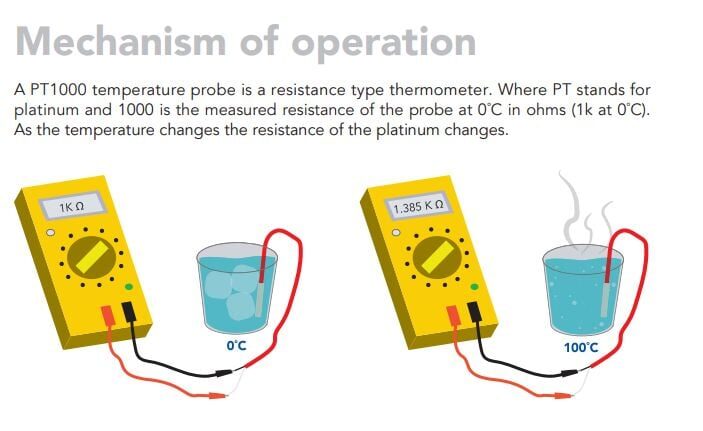

How does the sensor work?
- As the temperature in your application changes then the electrical resistance will also change. An increase in temperature will increase the resistance of the temperature sensor.
- The measurement is completed by your instrument by applying a small measurement voltage and utilizing a bridge type circuit.
PT1000 features:
- Based on resistance measurement principles.
- Resistor material is Platinum with a value of 1000 ohm at temperature 0°C.
- Platinum has a positive resistance-temperature factor; resistance increases with rising temperature.
- Resistance variation is a function of temperature: 3.85Ω/°C nominal.
- High accuracy and stability compared to thermocouples, silicon-based temperature sensors, or thermistors.
Package Includes :
1 x PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Temperature Sensor.
PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe Overview
The PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe is a precision RTD sensor featuring a 1000 Ω platinum element at 0 °C. Encased in a 316L stainless steel sheath with a 4 mm diameter and 30 mm sensing length, it provides fast, accurate temperature readings for demanding industrial and laboratory environments.
Key Features of PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe
- RTD element: 1000 Ω platinum resistor (PT1000) for high accuracy and stability
- Probe dimensions: 4 mm diameter, 30 mm insertion length, 316L stainless steel construction
- Cable: 1 m PTFE-insulated silver-plated copper, fully waterproof
- Accuracy: ±(0.3 °C + 0.5 % of reading) for precise measurements
- Thermal response time: < 0.5 s for rapid detection of temperature changes
- Operational durability: Withstands ambient and process temperatures up to 550 °C
- Fast shipping from Zbotic for quick deployment in critical applications
Applications and Use Cases
- Industrial process control in pipelines, reactors, and storage tanks
- Laboratory temperature monitoring for research and calibration
- HVAC system performance testing and balancing
- Food and beverage equipment where sanitary, waterproof probes are required
- Environmental chambers and climatic test cabinets
- OEM integration in machinery and automation panels
How to Use PT1000-S Waterproof 1m 30mm Stainless Steel Pole Probe
Insert the 30 mm stainless steel tip into the medium or mounting port, secure the probe with its rod form factor, and route the 1 m PTFE-insulated cable to your RTD-compatible transmitter or data logger. Ensure tight connections on the PT1000 input terminals, then power the instrumentation to begin continuous temperature monitoring.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum operating temperature of the PT1000-S probe?
The 316L stainless steel sheath is rated for continuous exposure up to 550 °C. For best long-term stability, maintain the probe within the specified temperature range of your RTD input device.
How do I wire the PT1000-S sensor to my data logger?
Connect the two PTFE-insulated silver-plated copper conductors to the RTD input terminals on your transmitter or data logger. Observe correct polarity and use appropriate lead-wire compensation if required by your instrumentation.
Is the cable fully waterproof and suitable for outdoor use?
Yes. The 1 m cable uses PTFE insulation over silver-plated copper conductors, providing complete waterproofing and chemical resistance for use in wet or corrosive environments.
