Product Description

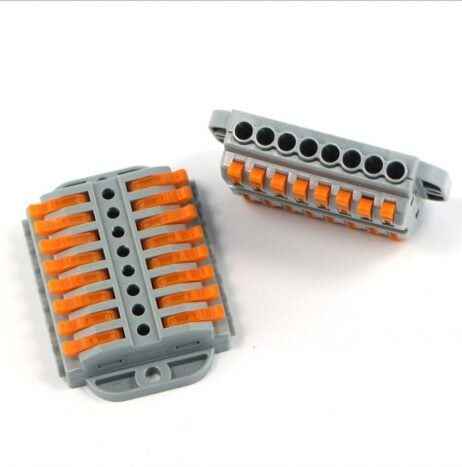

This is a PCT-223-8 Stationary Type Quick Connection Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 4mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A.
These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 8-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Package Includes:
1 x PCT-223-8 Stationary Type Quick Connection Terminal
Technical Specifications
| Model | PCT-223-8 |
|---|---|
| SKU | AI2562 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PCT-223-8 Stationary Type Quick Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
