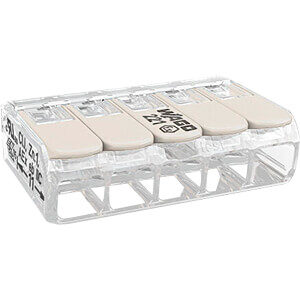

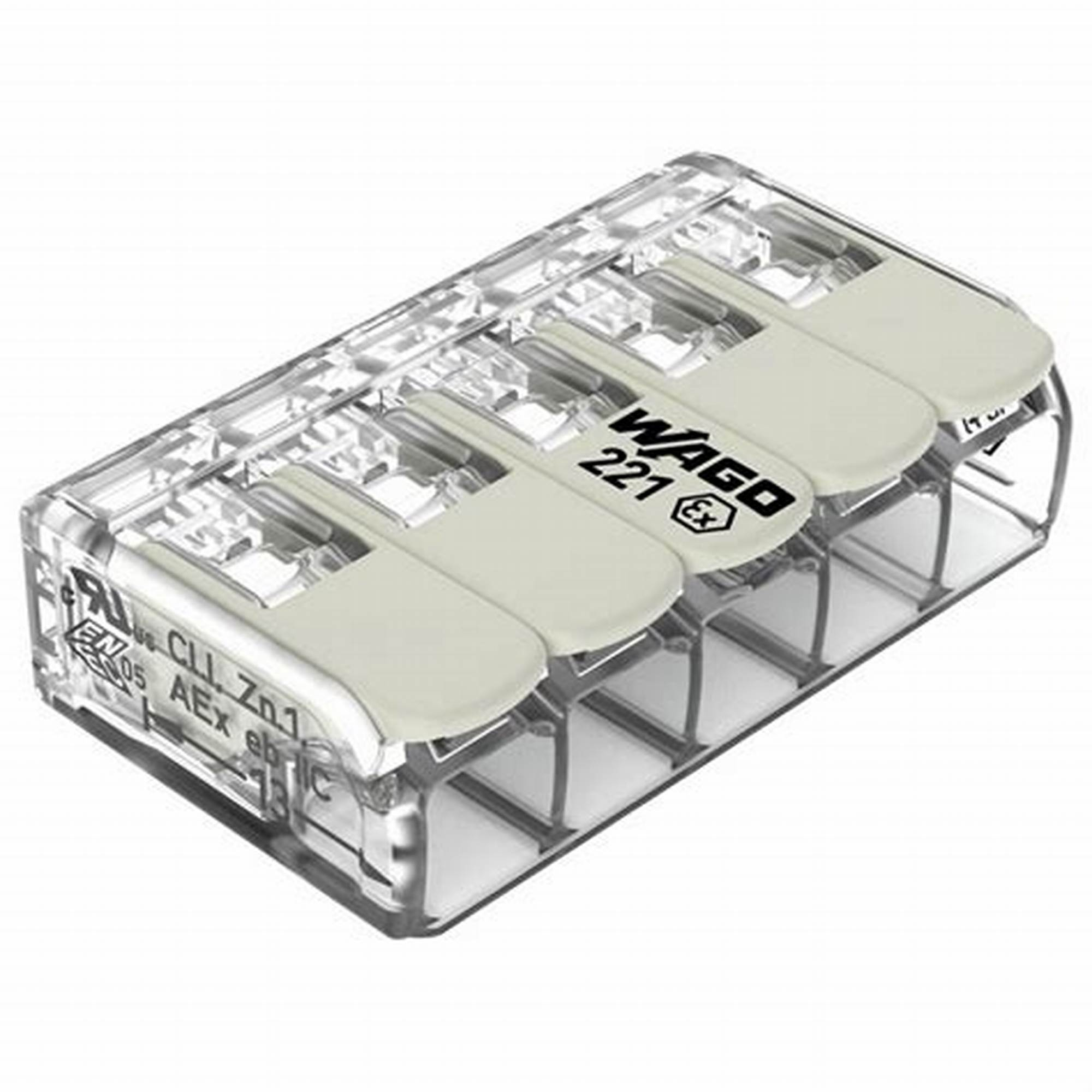

WAGO 221-485 Connection Terminal

Looking for Wago 221 485 Connection? WAGO 221-485 Connection Terminal is available at Zbotic with fast shipping across India.

WAGO 221-485 Connection Terminal

Safety note 1:
The permissible working voltage of the terminal with adapter (440 V or 275 V) depends on the installation method.
Safety note 2:
Approved only in conjunction with mounting adapter (WAGO 221-501). The terminals must be installed in a housing that meets the requirements of a recognized type of protection according to EN 60079-0, section 1 or EN 60079-31. When installing the terminals in an enclosure of the “eb” type of protection in accordance with EN 60079-7, the clearances and creepage distances in accordance with Table 2 of this standard must be observed. Regarding the use of accessories, see point 1. The terminals can be used in both Group II and Group I, as the standard requirements are identical in this case.
The use of this component requires a new assessment by a designated site.

Specification:

1. Type: Lever Connector Terminal
2. Model: WAGO 221-485
3. Usage: Electrical wiring connections
4. Compatibility: Suitable for solid, stranded, and fine-stranded conductors
5. Wire Gauge: Compatible with wire gauges ranging from 0.14 to 4 mm² (24-12 AWG)
6. Rated Voltage: Typically rated for voltages up to 450 volts
7. Current Rating: Typically rated for currents up to 32 amps
8. Termination Type: Lever-operated, tool-free connection mechanism
9. Number of Conductors: Supports connection of three conductors per terminal
10. Housing Material: Made of durable and flame-retardant polyamide (PA)
11. Operating Temperature: Suitable for use within a temperature range of -40°C to 85°C (-40°F to 185°F)
12. Mounting: Can be mounted on DIN rails or directly on surfaces
13. Features: Compact design, vibration-resistant, and maintenance-free
14. Certifications: Compliant with various international standards such as IEC, UL, CSA, and VDE for safety and performance.

WAGO 221-485 Connection Terminal Overview

The WAGO 221-485 Connection Terminal is a 2-conductor lever-operated connector designed for safe, tool-free wiring of power circuits up to 440 V/24.5 A. Its transparent housing allows visual inspection of the connection, making it ideal for industrial control panels and junction boxes.

Key Features of WAGO 221-485 Connection Terminal

• Rated voltage 440 V and nominal current 24.5 A for reliable power distribution
• Lever-actuated clamp enables tool-free insertion and release of conductors
• Transparent polycarbonate housing for quick visual verification of wire seating
• Accepts solid, stranded and fine-stranded conductors from 0.14 mm² to 4 mm²
• Compatible with WAGO 221-501 mounting adapter for hazardous-area installations
• Genuine product with fast shipping from Zbotic—order ships within 24 hours

Applications and Use Cases

• Power distribution and branching in industrial control cabinets
• Junction boxes for machinery and automation equipment
• DC and AC wiring in solar panel combiner boxes
• Installations requiring explosion-protected housings (with adapter)
• Field wiring in building management and HVAC systems
• Maintenance and retrofit projects for quick conductor changes

How to Use WAGO 221-485 Connection Terminal

Open the orange levers, insert stripped conductors (9 mm strip length) into the housing until they stop, then close the levers to secure the connection. For hazardous-area installations, snap the terminal onto the WAGO 221-501 mounting adapter inside an enclosure compliant with EN 60079-0/31 and observe required clearances per EN 60079-7.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What conductor sizes and types are supported?

The WAGO 221-485 accepts solid, stranded and fine-stranded conductors from 0.14 mm² to 4 mm², including ferruled wires, ensuring broad compatibility with common field cables.

Do I need the WAGO 221-501 adapter?

Yes. To meet explosion-protection standards (EN 60079-0/31) and use in hazardous areas, the 221-485 must be mounted on the WAGO 221-501 adapter inside a compliant enclosure.

Can it be used for DC power applications?

Absolutely. This terminal is rated up to 440 V and 24.5 A for both AC and DC circuits, making it suitable for solar, battery and other DC installations.
