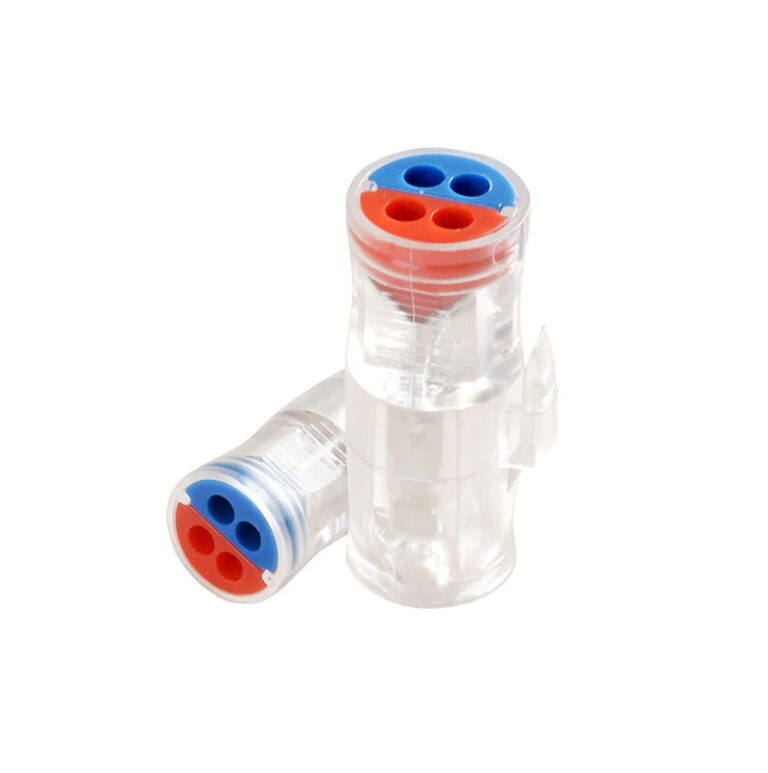

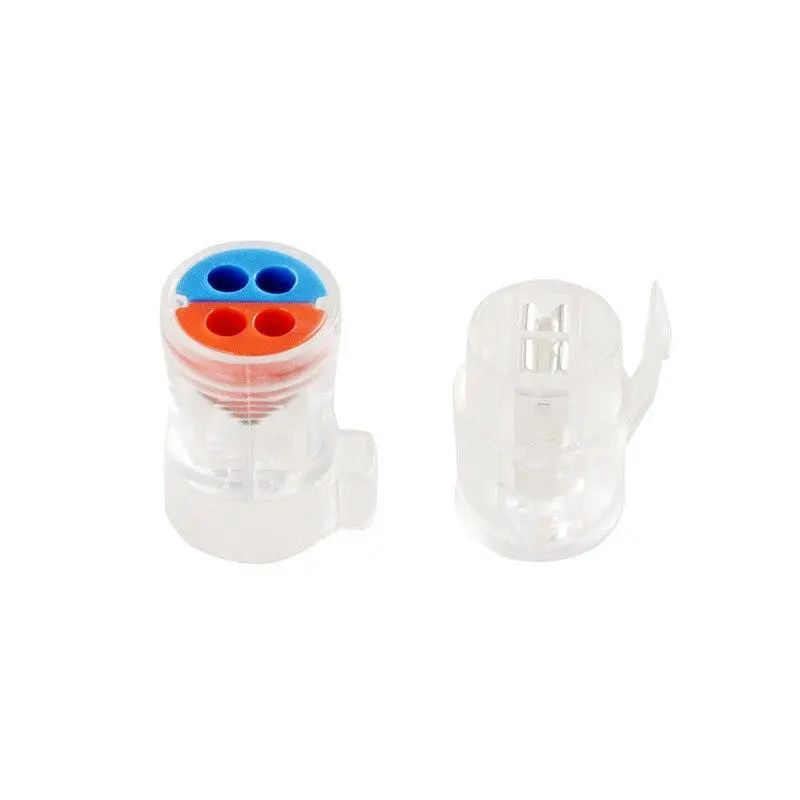

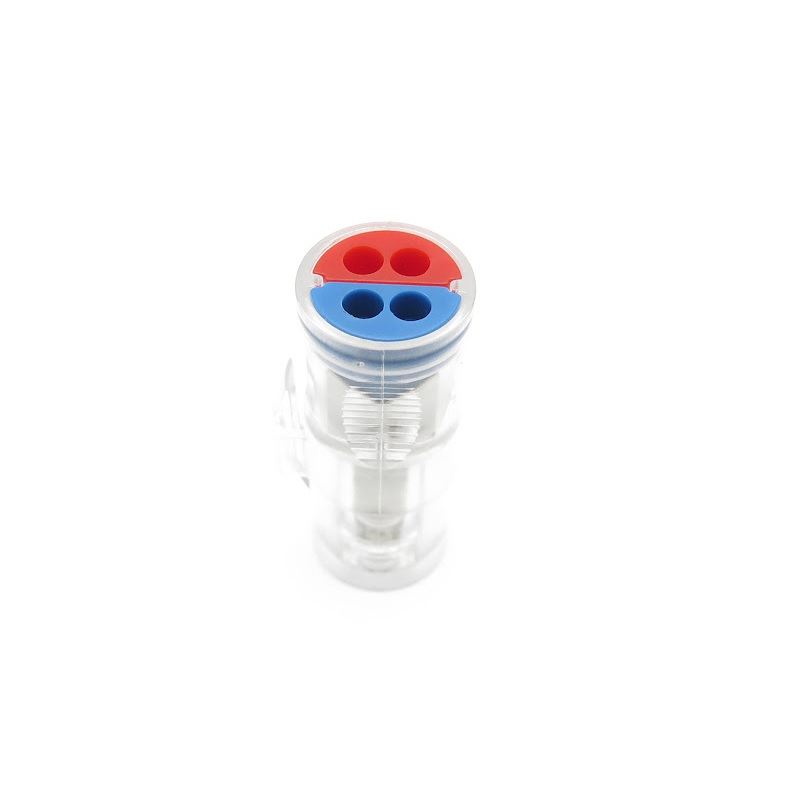

LT-724 Quick Connection Terminal
The LT Connector facilitates the creation of a 2-wire connection from 2 pair connections. Featuring a compact locking wire connector with a spring lever, it accommodates single-strand hardwire with an area ranging from 0.75mm² to 4mm² or soft wire with an area of 1.5mm² to 2.5mm². This connector is designed to withstand a rated voltage of up to 400V with an electric current peak of 6A, allowing for a maximum power of 4KW. The stripping length of the connector is between 11mm and 13mm.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 2:4 -Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Package Includes:
1 x LT-724 Quick Connection Terminal
LT-724 Quick Connection, Terminal Overview
The LT-724 Quick Connection Terminal is a compact splicing connector designed to merge a 2-pair input into two separate wires securely. Featuring a spring lever and nickel-plated contacts, it supports single-strand hardwire from 0.75mm² to 4mm² and soft wires from 1.5mm² to 2.5mm² for quick, reliable electrical connections up to 400V and 6A.
Key Features of LT-724 Quick Connection, Terminal
- High-grade insulative nylon construction for enhanced durability
- Strong spring locking lever ensures a secure grip on conductors
- Nickel-plated metal contact points for optimal conductivity and corrosion resistance
- Supports single-strand wires (0.75–4mm²) and soft wires (1.5–2.5mm²)
- Rated for 400V, 6A and up to 4kW of continuous power
- Compact 2:4 conductor terminal block for space-saving installations
- Fast Shipping from Zbotic: ships within 24 hours
Applications and Use Cases
- Connecting LED strip runs in residential and commercial lighting projects
- Splicing wires in control panels and distribution boxes
- Joining power feeds for small motors and appliances
- Extending cables for renewable energy systems like solar modules
- Prototyping and test setups in electronics labs
How to Use LT-724 Quick Connection, Terminal
To use the LT-724, strip each conductor to 11–13mm, lift the spring lever, insert the stripped wire fully into the terminal slot, then close the lever to lock the conductor in place. Repeat for the remaining conductors, ensuring all connections are seated securely before applying power.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire sizes are compatible with the LT-724 terminal?
This terminal supports single-strand hardwire conductors from 0.75mm² up to 4mm² and soft wires from 1.5mm² to 2.5mm², making it versatile for most common wiring tasks.
Can I reuse the LT-724 connector after disconnecting a wire?
Yes, the durable spring lever mechanism allows repeated connections and disconnections without damaging the locking mechanism or contacts.
What are the electrical ratings of the LT-724 connector?
The LT-724 is rated for a maximum voltage of 400V, a peak current of 6A, and can handle up to 4kW of continuous power in standard operating conditions.
Technical Specifications
| Model | LT-724 |
|---|---|
| SKU | AI2528 |
| Weight | 0.00585 kg |
| Availability | In Stock |
Applications & Use Cases
The LT-724 Quick Connection, Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
