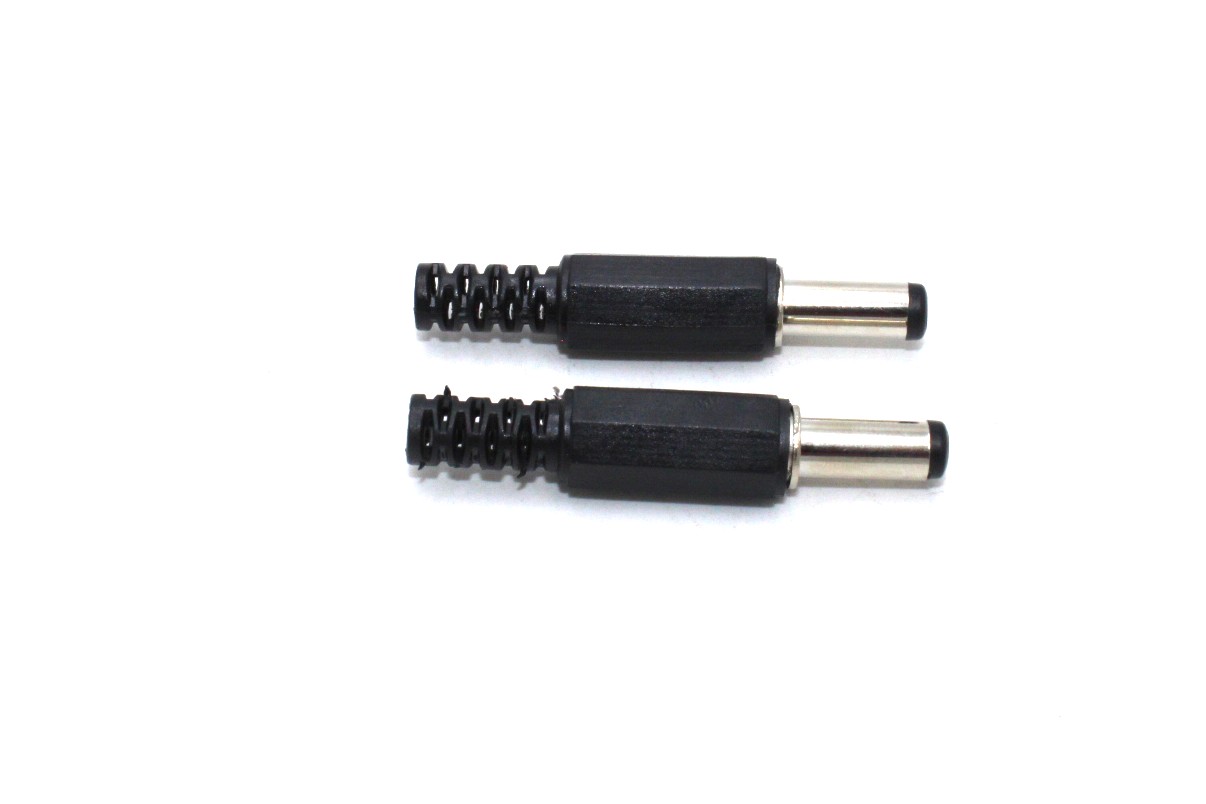

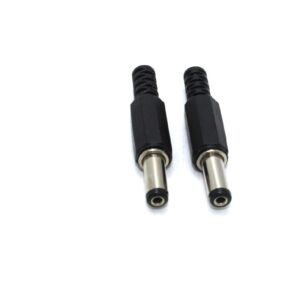

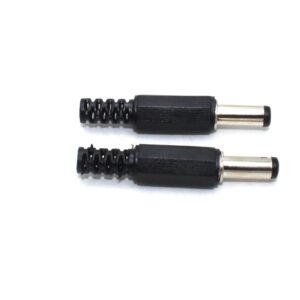

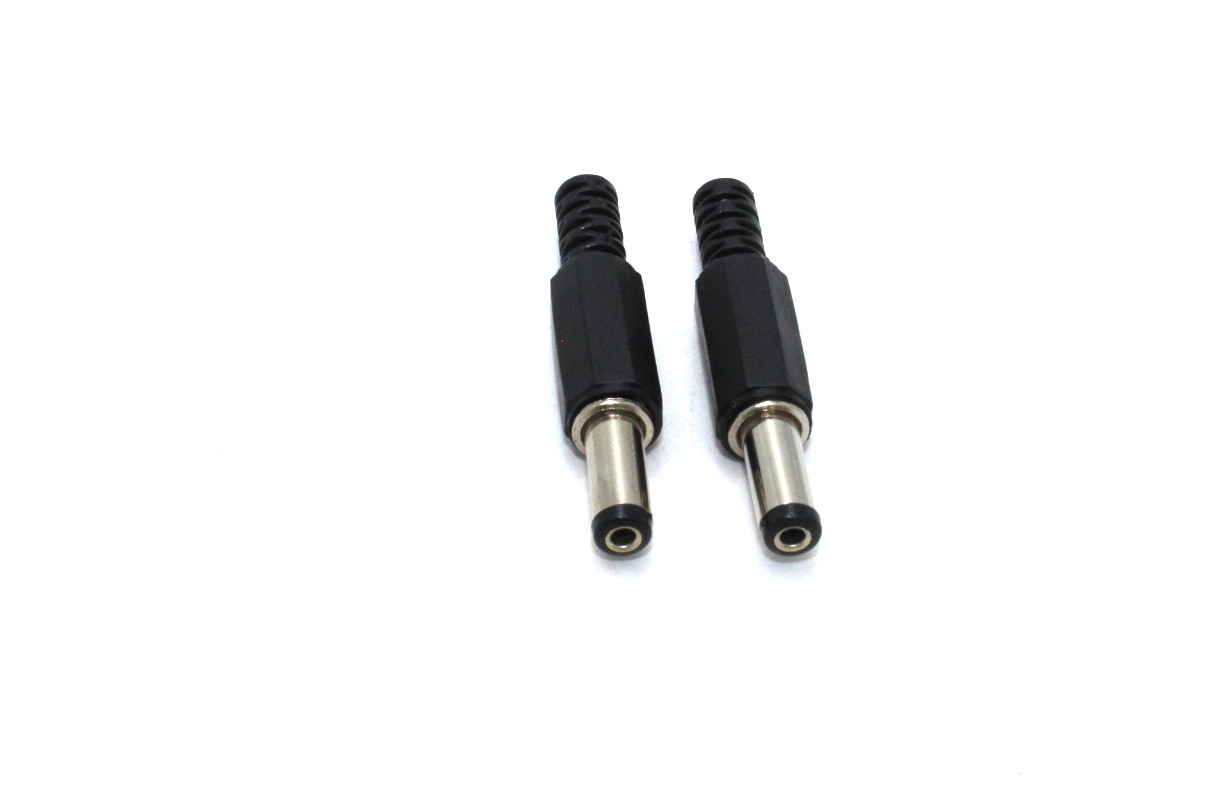

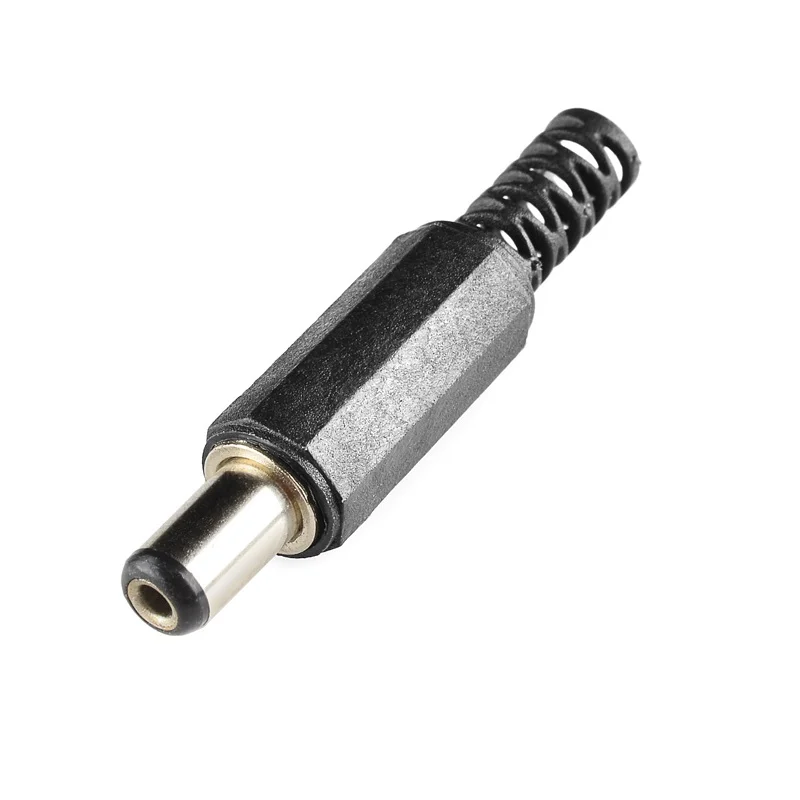

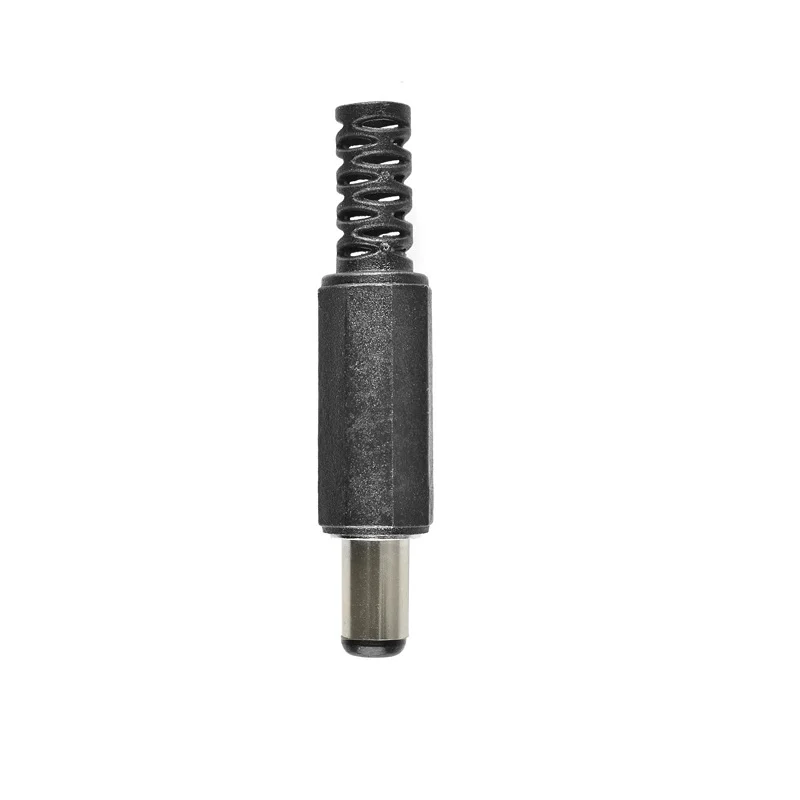

DC Jack Connector Male 2.1mm x 5.5mm
This connector is a DC barrel Jack male connector. It fits with standard 2.1mm DC barrel jack female connector.

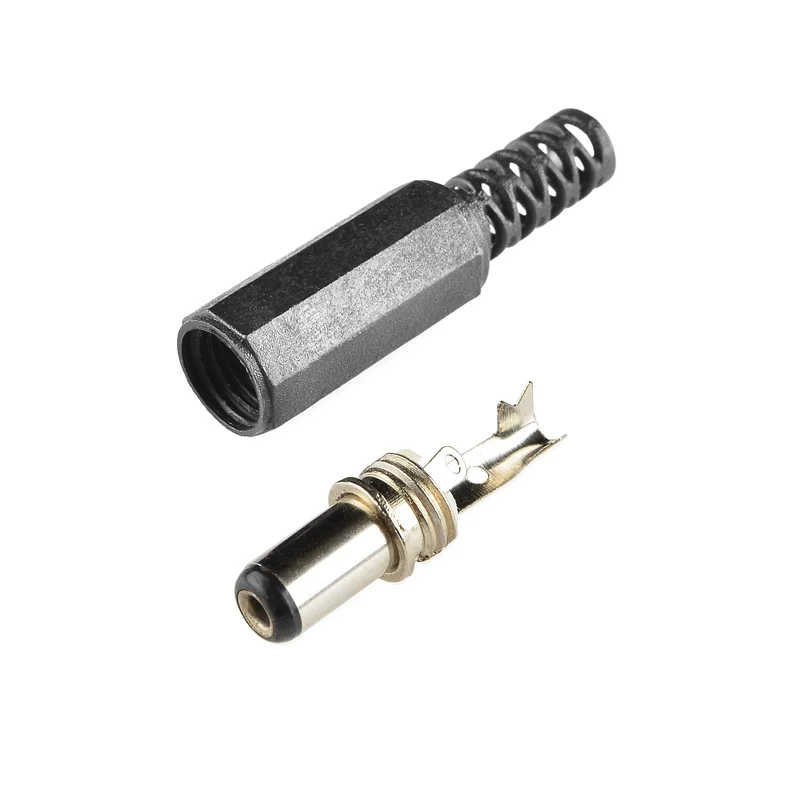

This barrel jack plug is great for adding a common connector to the end of our wires. This jack is compatible with 5.5mm barrel jacks that have a 2.1mm center pole diameter. The outer shell unscrews to reveal solder terminals and a crimp strain relief. The outer shell has strain relief as well.
This is a general-purpose connector to be used in a variety of applications where a male 2.1mm DC barrel jack is there to receive DC power. This kind of connector is normally found in the wall DC adaptor.
Specification:
Item Type | DC Jack |
---|---|
Rated Current (A) | 2 |
Rated Voltage (V): | 3.3 ~ 24 |
Allowed Wire Size (AWG): | 22 ~ 20 |
Color: | Black, silver |
Shape | Cylindrical |
Diameter(mm) | 2.1 |
Length (mm): | 46 |
Shipping Weight | 0.008 kg |
Shipping Dimensions | 8.5 × 7.5 × 1.8 cm |
Package Includes:
1 x Dc jack connector Male 2.1mm x 5.5mm (Pack of 2)
