Product Description
This product is a CH-813 0.08-2.5mm 2 Pole Wire Connector Terminal Block with a Spring Lock Lever. It allows you to connect cables securely and easily. It has three separate line connections for Live, Neutral, and Earthing wires. You can use it with single-strand hardwire from 0.08mm to 2.5mm2 or soft wire from 0.08mm to 4.0mm2 (or AWG28 to AWG12). It can handle a rated voltage of up to 400V and a peak electric current of 32A, resulting in a maximum power of 7KW.
We offer different models, sizes, and pole numbers of these connectors to suit your needs. You can click on the links below to buy the one you want. PCT Spring Lever Connector PCT-212, 213, 215, 218 and CH-812, 813, 2-4, 2-6, etc. have a compact design and a spring lever that locks the wires in place.
The benefit of these connectors over wire Joint:
- Safe and Efficient: It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing the thermal cycling release of wires connected together. If you are a DIY person these guys will make you sleep better at night when doing your own wiring projects.
- Universal Compatibility: The connector for joining braided and solid wire and wires of differing sizes. They work with almost every gauge of normal household wiring: ceiling fans, sockets, switches, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more

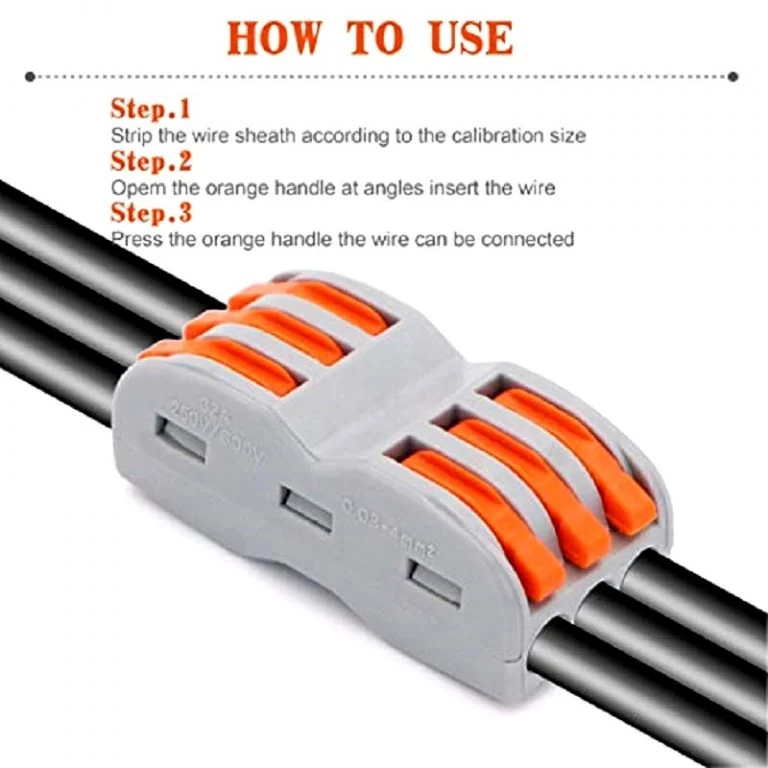

- Convenient and Practical: Just lift up the lever, insert the stripped wire, and press the lever closed, holds it tight, and make a solid connection. These are a good purchase for those of people that are doing electrical projects or work where you need to connect lots of wires. Sometimes you need to jumper something or run tests on a circuit .they do not mess up the wire ends nearly as much, keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.
- Revolution: If you’ve never used them, get some. We believe that you will be excited when using these little smart connectors over the traditional, old-school plastic block with nuts-bolts now.
Features:Â
- Compact, Super easy, Reliable, and Reusable.
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
specification-
Item Type | CH |
---|---|
Rated Current (A) | 32 |
Rated Voltage (V): | 250, 4k |
Allowed Wire Size Range (AWG): | 28 ~ 12 |
Color: | Grey, Orange |
Model | CH-813 SPL-3 |
Body Material | Modified Nylon (PA66) |
Contact Material | Stainless Steel |
Rated Power (W) | 7 KW |
No. of Contact Points | 3 |
Operating Temperature (Ω) | -20 to 85 |
Shipping Weight | 0.01 kg |
Shipping Dimensions | 4 × 4 × 1 cm |
Package Includes:
1 x CH-813 0.08-2.5mm 3 Pole Wire Connector for 3 Wireline Splicing
