LT-22 Quick Connection Terminal

LT-22 Quick Connection Terminal

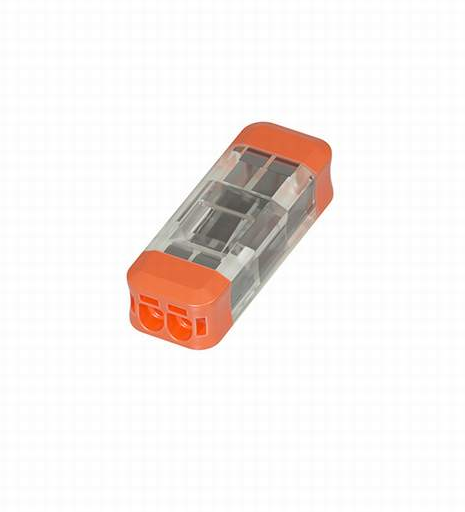

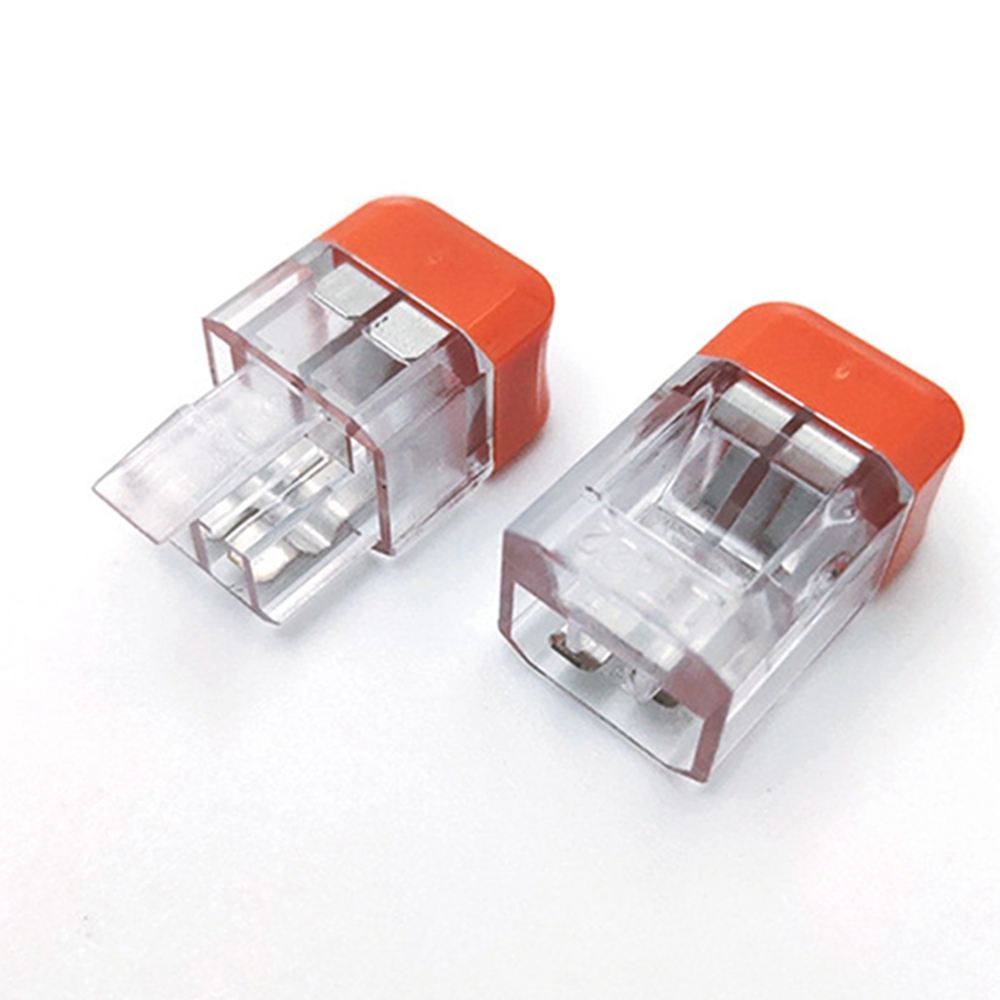

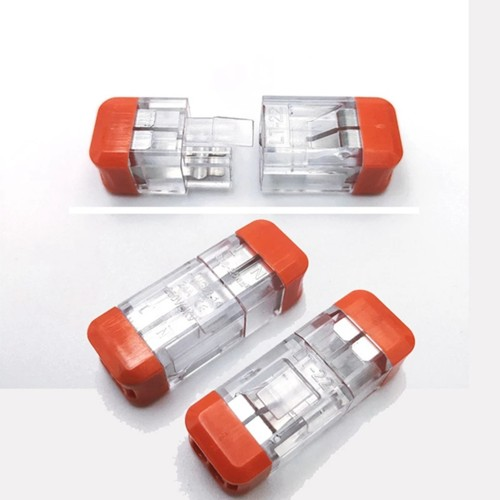

The LT-22, also known as a luminaire disconnect connector, is a plug-in connector designed for easy and secure disconnection and insertion. With 2 inputs and 2 outputs, it supports both single-strand hard wire and multi-strand stranded wire in the range of 0.08 to 2.5mm², making it ideal for wiring large lamps. Its split-mating design allows for quick and straightforward lamp installation. The transparent housing provides clear visibility of the internal wiring, while a snap-lock bar ensures stable, reliable connections, even in high-vibration environments. The LT-22 also features an electric measuring hole for post-wiring safety checks using an electric measuring pen, and a tool insertion mechanism for easy wire release if needed. Designed to operate reliably at temperatures up to 60°C, with a maximum tolerance of 105°C, the LT-22 offers a safe and efficient solution for large lighting installations.

Specification:

Rated voltage: 450V

Rated current: 24A.

Rated pulse voltage: 4KV

Applicable wire diameter: 4 * 0.08-2.5mm2 single strand hard wire or multi strand stranded wire Stripping length: 11-13mm.

Product Size: 35 * 13 * 10.5 mm

PACKAGE INCLUDES

1 X LT-22 Quick Connection Terminal
