This is the 5mm variant of the CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire Line Connection in PCT and DC Power Connectors. Available at ₹16.17 (₹13.70 + GST) with free shipping across India.

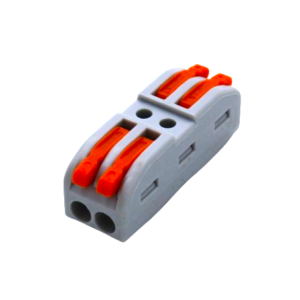

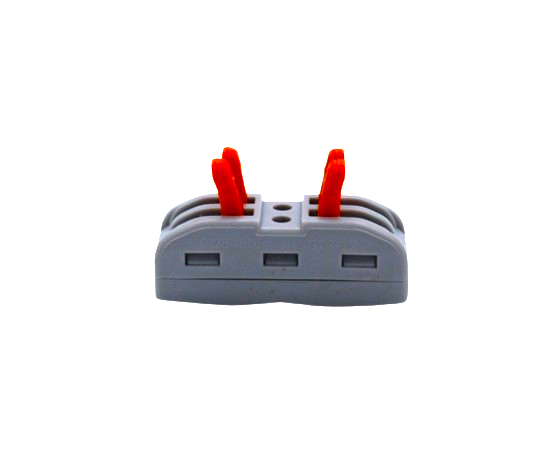

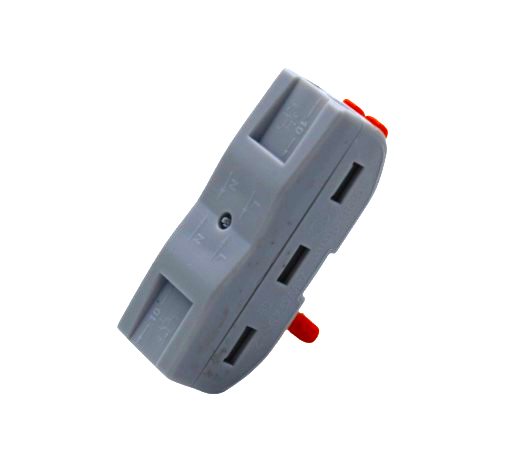

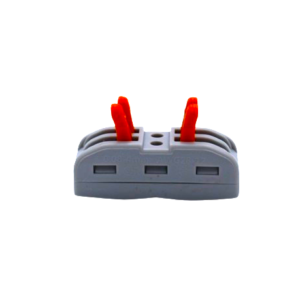

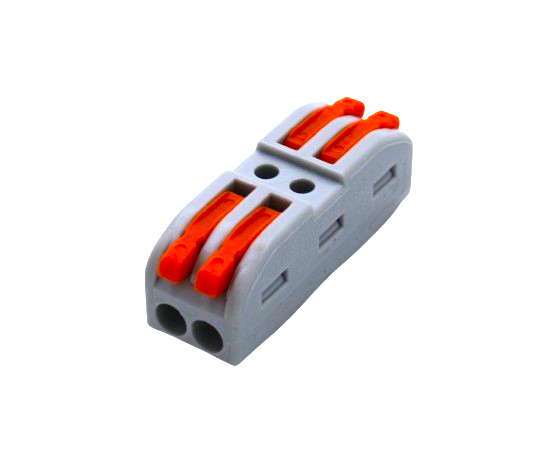

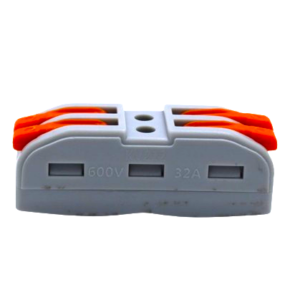

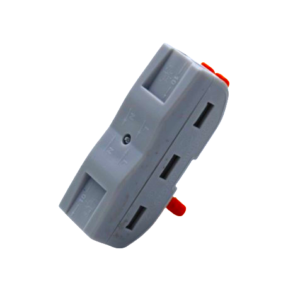

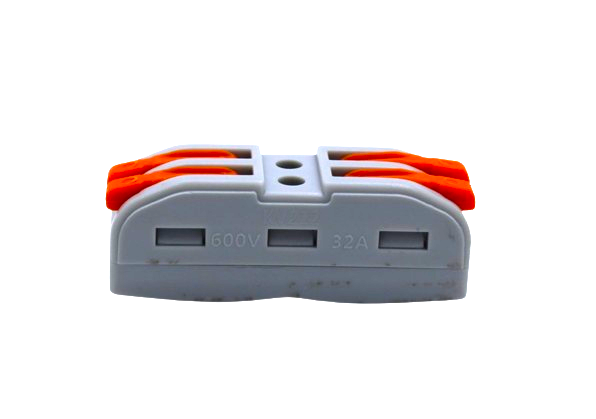

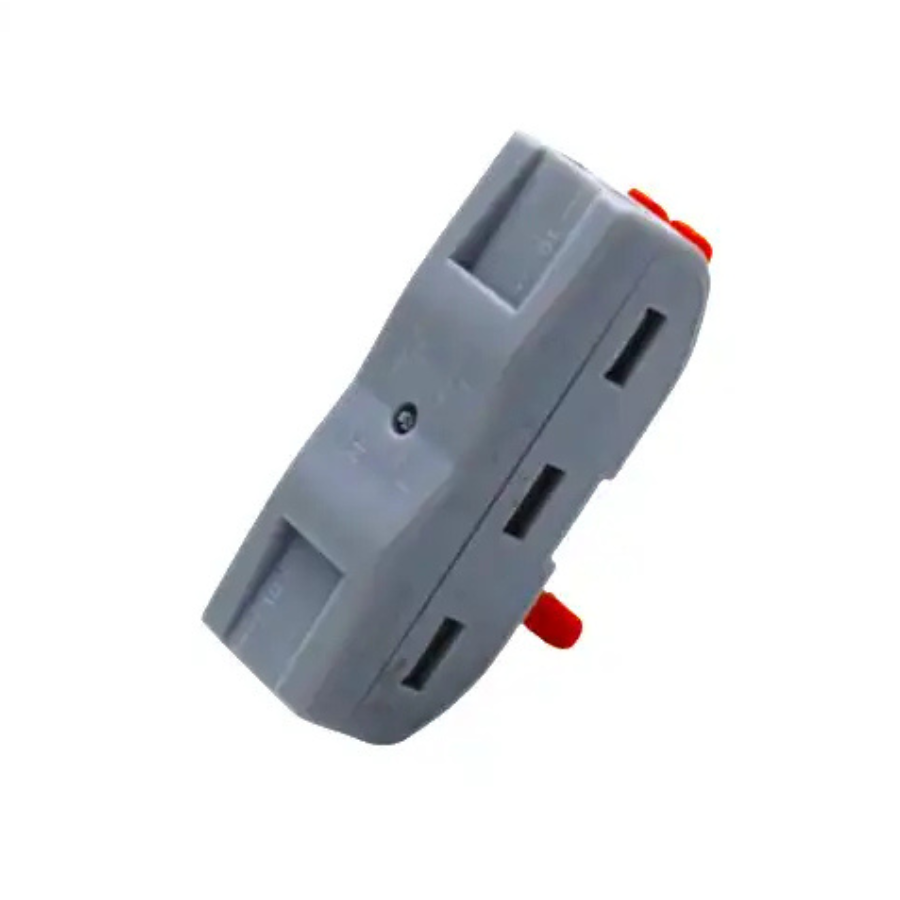

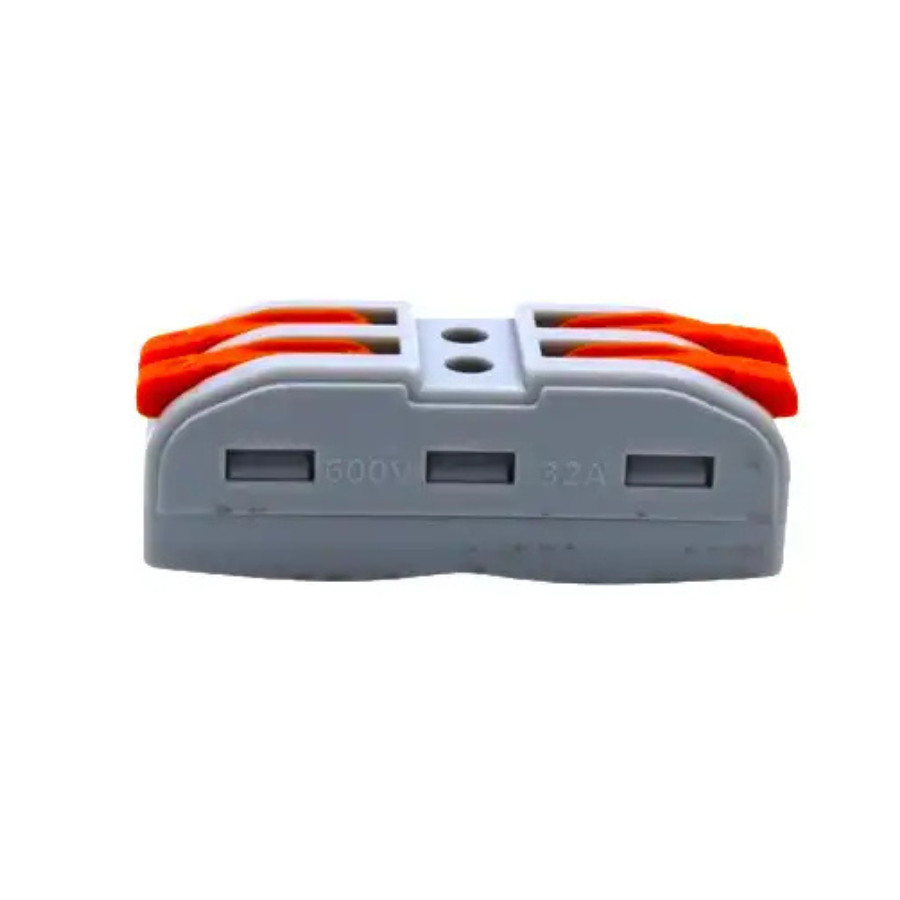

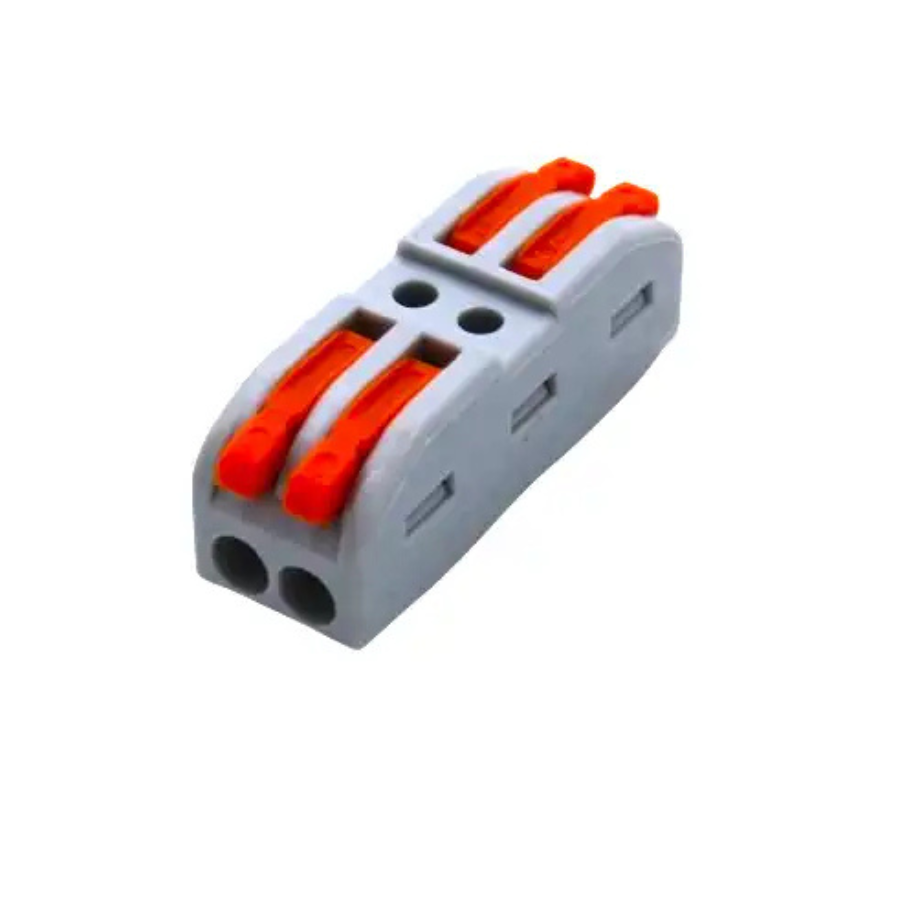

CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire Line Connection
The CH-812 0.08-2.5mm 2 Pole Wire Connector Terminal Block with Spring Lock Lever is designed for cable connections, featuring two separate line connections that can accommodate Live and Neutral wires individually.
The PCT Spring Lever Connector series, including models like PCT-212, 213, 215, 215, 218, as well as CH-812, 813, 2-4, 2-6, etc., offers a compact locking wire connector with a spring lever mechanism. These connectors are suitable for use with single strand hardwire ranging from 0.08mm to 2.5mm² in area or soft wire from 0.08mm to 4.0mm² in area (equivalent to AWG28 to AWG12). They are capable of handling a rated voltage of up to 400V and an electric current peak of 32A, resulting in a maximum power of 7KW.
Benefit of these connectors over wire Joint:
- Safe and Efficient: It has the fewest installer possibilities for error of any connector, like not tightening wire properly or with sufficient torque. It is very good at preventing the thermal cycling release of wires connected together. If you are a DIY person these guys will make you sleep better at night when doing your own wiring projects.
- Universal Compatibility: The connector for joining braided and solid wire and wires of differing sizes. They work with almost every gauge of normal household wiring: ceiling fans, sockets, switches, loudspeakers, lamps, electrical boxes, chandeliers, light switches, fan controls, and much more

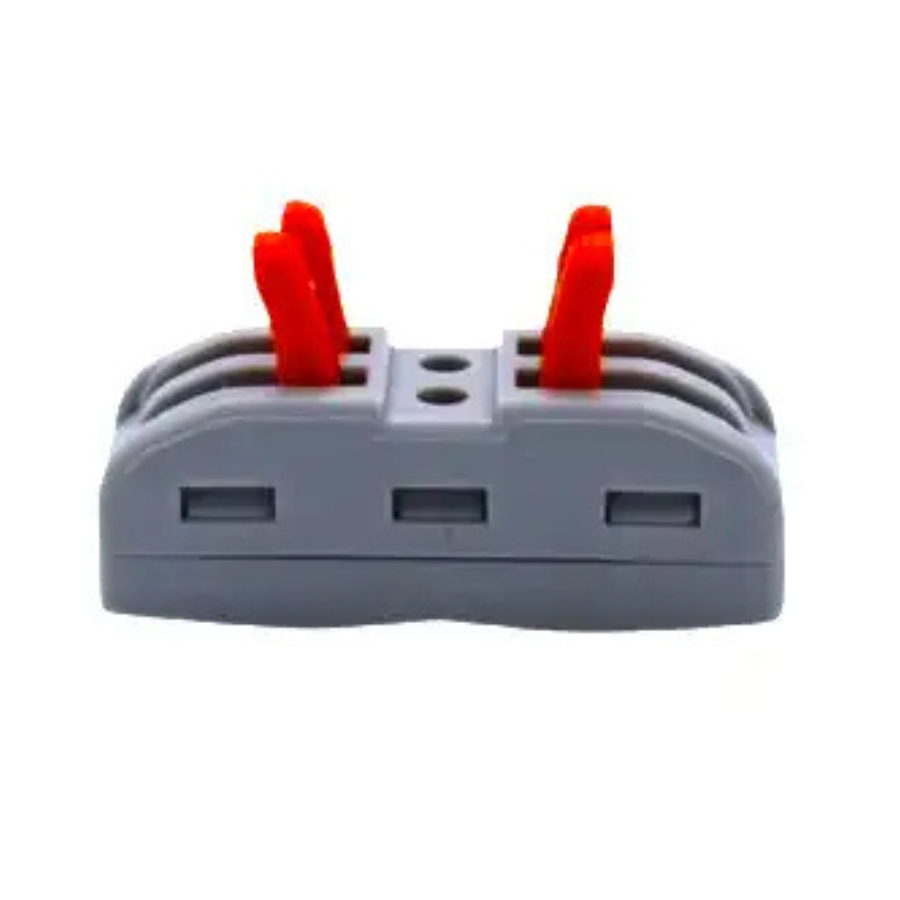

- Convenient and Practical: Just lift up the lever, insert the stripped wire, and press the lever closed, holds it tight, and make a solid connection. These are a good purchase for those of people that are doing electrical projects or work where you need to connect lots of wires. Sometimes you need to jumper something or run tests on a circuit .they do not mess up the wire ends nearly as much, keeping electrical boxes relatively roomy and not having to twist a fistful of copper wire together.
- Revolution: If you’ve never used them, get some. We believe that you will be excited when using these little smart connectors over the traditional, old-school plastic block with nuts-bolts now.
Features
- Compact, Super easy, Reliable, and Reusable.
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Specification:
Model: CH-812
Rated Voltage: 220V
Rated Impulse Voltage: 4KV
Material of Insulation: Modified Nylon(PA66)
Compact, Super easy, Reliable, and Reusable.
Color: Grey+Orange
Rated Current:32A
Rated power: 7KW
Gauge:28~12AWG
Package Includes
1 x CH-812 0.08-2.5mm 2 Pole Wire Connector for 2 Wireline Splicing
Technical Specifications
| Model | CH-812 |
|---|---|
| Size | 2.5mm |
| SKU | AI1062 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire Line Connection is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
