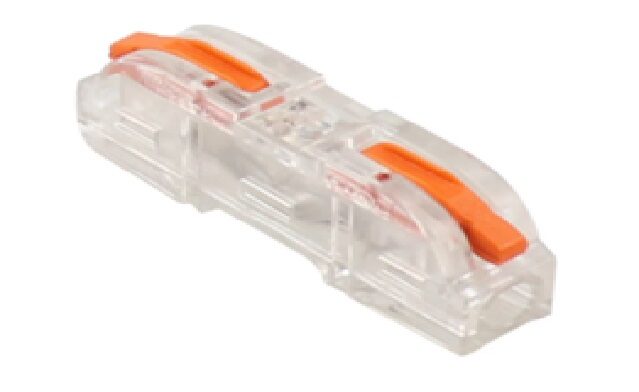

LT-211T(SPL-1) Transparent Quick Connection Terminal
Introducing the LT-211T(SPL-1) Transparent Quick Connection Terminal, part of the PCT series compact splicing connectors designed to simplify wiring connections, save time, and enhance efficiency in distribution or junction boxes. With its compact design, this terminal allows for high wiring density and enables connections to be made even in narrow spaces.
Features:
- High-grade Insulative Material: Constructed with high-grade insulative nylon material, ensuring durability and safety in electrical connections.
- Strong Spring Locking Lever: Equipped with a strong spring locking lever mechanism, providing secure and reliable wire connections.
- Nickel Plated Metal Point: Features a nickel-plated metal point inside the connector, offering excellent conductivity and corrosion resistance.
- Good Temperature Resistance: Withstands temperatures up to 85°C, ensuring stable performance even in challenging environments.
- Compact Splicing Connector: Compact design enables easy installation and enhances wiring efficiency.
- 4-Conductor Terminal Block: Provides flexibility for connecting multiple wires in a single terminal block.
- Operating Levers: Includes operating levers for convenient and hassle-free wire insertion and removal.
- Max. Continuous Service Temperature: Designed for continuous operation at temperatures up to 85°C.
Specifications:
Specification | Details |
---|---|
Model | LT-211(SPL-1) |
Rated Voltage | 600 V |
Rated Current | 20 A |
Color | Transparent |
Material | High-grade Insulative Nylon |
Wire Compatibility | Single-strand hardwire: 0.08mm to 4mm² |
Soft wire: 0.08mm to 4.0mm² (AWG28 to AWG12) | |
Temperature Resistance | Up to 85°C |
Conductor Terminal Block | 4-Conductor |
Upgrade your wiring connections with the LT-211T(SPL-1) Transparent Quick Connection Terminal, providing secure and efficient wire connections for various electrical applications.
Package Includes:
1 x LT-211(SPL-1) Transparent Quick Connection Terminal
