This is the 5mm variant of the PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection in PCT and DC Power Connectors. Available at ₹35.64 (₹30.20 + GST) with free shipping across India.
Looking for Pct-218 Connector? PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection is available at Zbotic with fast shipping across India.
This is a PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector [212, 213, 215, 215, 218] package contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

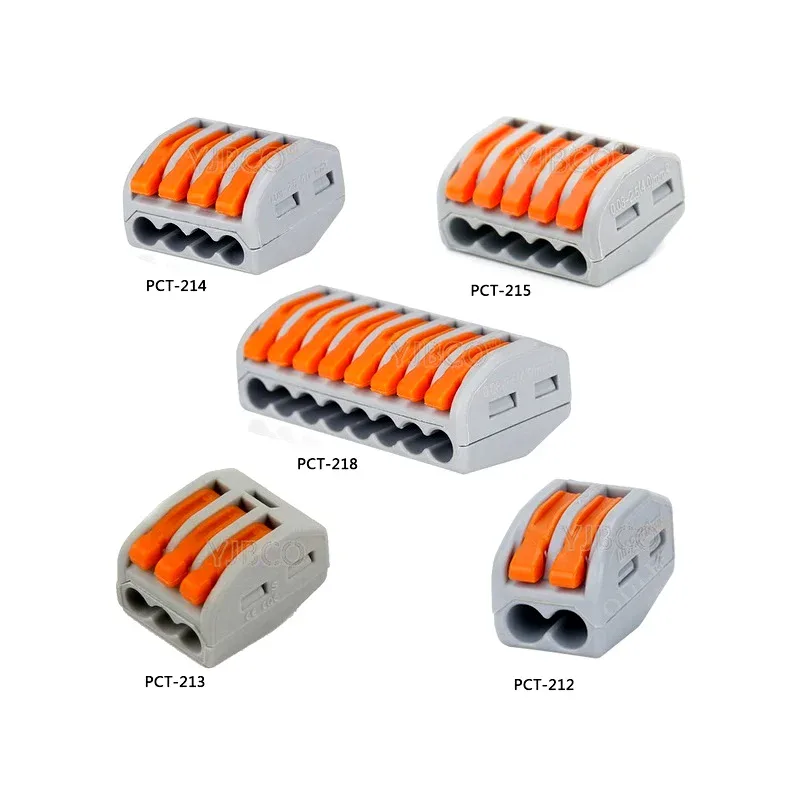

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.
- PCT-212 is a Two-wire connector
- PCT-213 is a Three-wire connector
- PCT-214 is a Four-wire connector
- PCT-215 is a Five wire connector
- PCT-218 is an Eight-wire connector
- CH-812 is a Two to Two-wire connector
- CH-813 is Three to Three wire connector
- CH-2-4 is a Four to Two-wire connector
- CH-2-6 is a Six to Two-wire connector
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Package Includes:
1 x PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block
PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block Overview

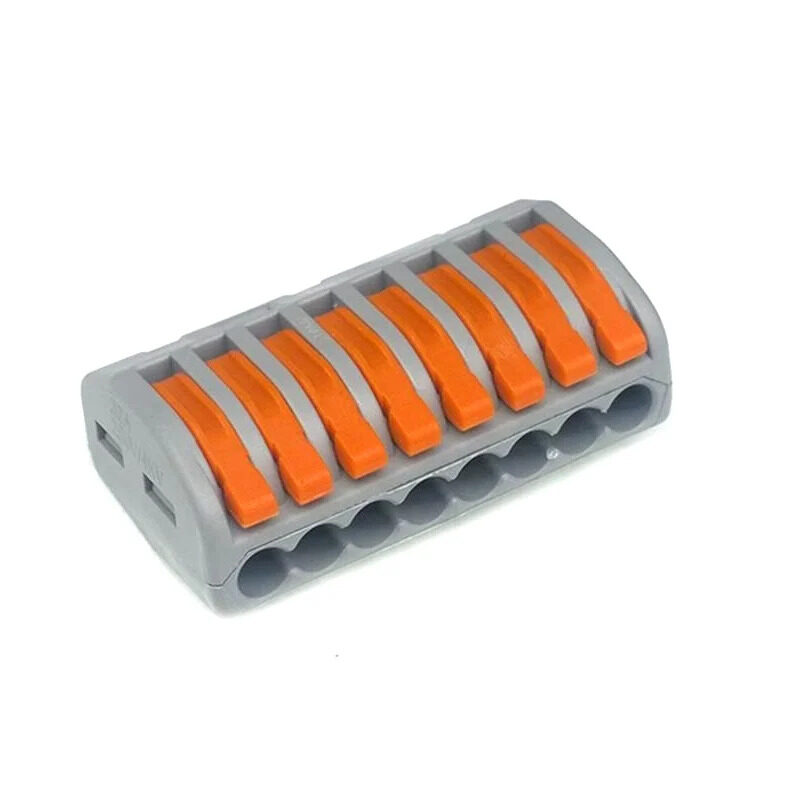

The PCT-218 8 Pole Wire Connector Terminal Block is a compact, spring lock lever connector designed for secure cable connections in control panels, lighting fixtures, and distribution boxes. It accommodates single-strand and fine-stranded conductors, providing a reliable electrical link with quick push-in and release functionality.
Key Features of PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block
- 8-Pole Configuration: Connect up to eight conductors in a single compact module.
- Spring Lock Lever: Tool-free clamping and release for fast, reliable connections.
- Wide Wire Range: Supports 0.08–2.5mm² rigid wire and 0.08–4.0mm² flexible wire (AWG28–AWG12).
- High Electrical Rating: Rated voltage 220 V AC, rated impulse voltage 4 kV, rated current up to 32 A, maximum power 7 kW.
- Durable Insulation: Made of modified Nylon (PA66) in grey and orange for clear pole identification.
- Genuine Product & Fast Shipping: Supplied by Zbotic with nationwide delivery, ready to ship from our India warehouse.
Applications and Use Cases
- Terminal connections in industrial control cabinets and PLC assemblies.
- Wiring of LED lighting systems and lighting distribution boards.
- Cable joins in building automation, HVAC and security panels.
- Power and signal distribution in machinery and robotics enclosures.
- Prototyping and bench testing of electronic circuits requiring multiple connections.
How to Use PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block

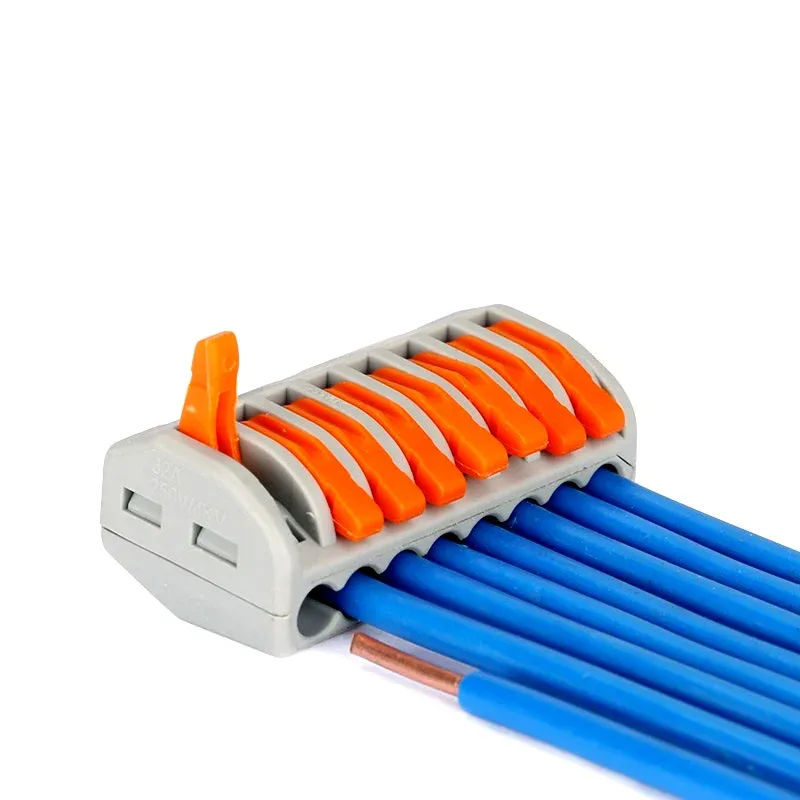

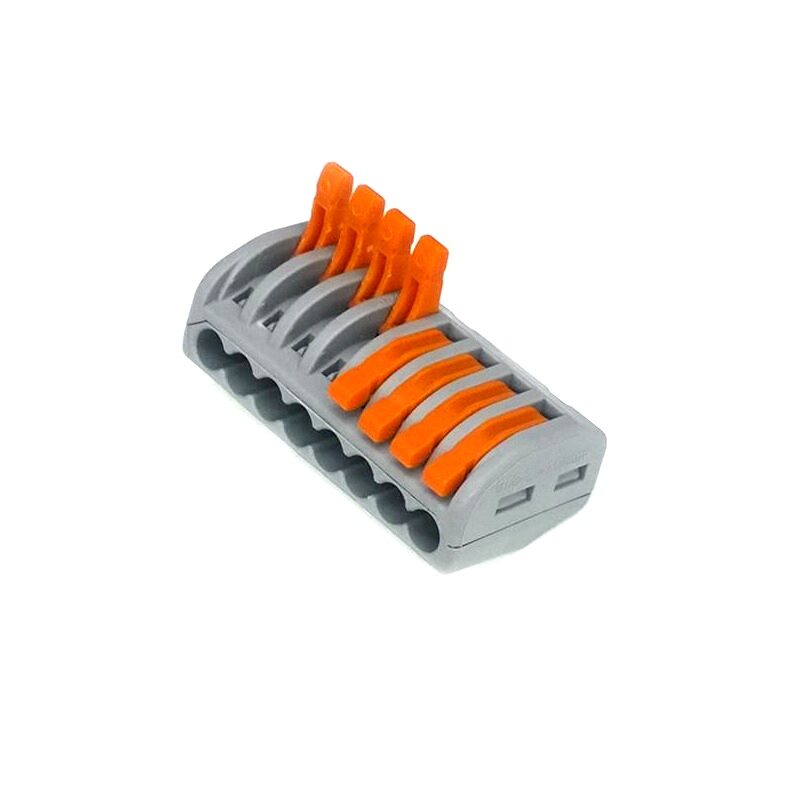

To install, lift the orange spring lever on each pole, insert the stripped wire end fully into the slot, then press down the lever until it locks. Ensure the conductor is securely held by gently tugging on the wire before connecting power.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire sizes are supported by the PCT-218 connector?
The PCT-218 accepts single-strand hard wires from 0.08 mm² to 2.5 mm² and flexible conductors from 0.08 mm² to 4.0 mm² (AWG28–AWG12).
What electrical ratings does the PCT-218 offer?
It is rated for 220 V AC with a rated impulse voltage of 4 kV, supports currents up to 32 A and a maximum power of 7 kW.
Can I reuse the PCT-218 connector after removing wires?
Yes, the spring lock lever mechanism allows multiple cycles of wire insertion and removal without loss of clamping force, making it ideal for maintenance and prototyping.
Technical Specifications
| Model | PCT-218 |
|---|---|
| Size | 2.5mm |
| Interface / Protocol | BLE |
| SKU | AI1426 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The PCT-218 0.08-2.5mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
