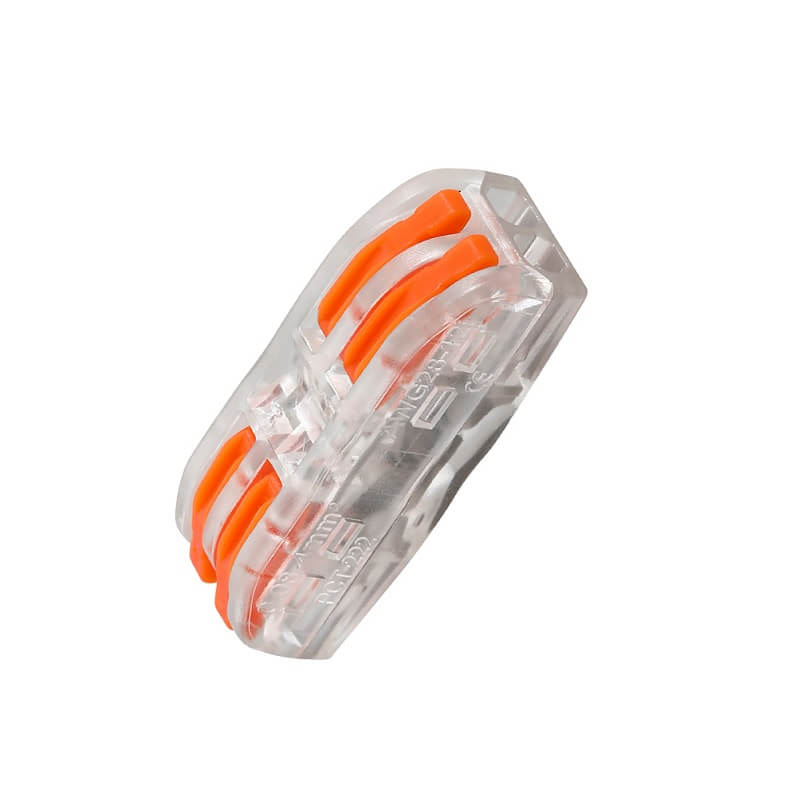

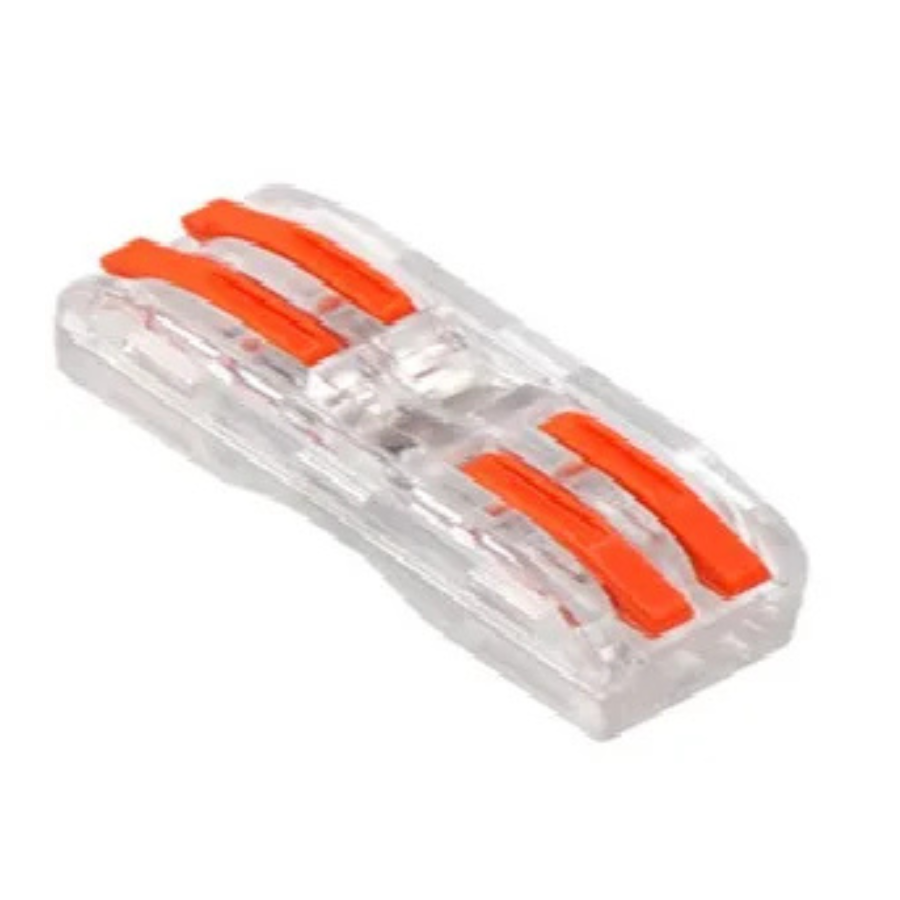

PCT-222T(SPL-2) Transparent Quick Connection Terminal
Introducing the PCT Spring Lever Connector series – PCT-212, PCT-213, PCT-215, PCT-218, and more, along with CH-812, CH-813, and other models. These connectors feature a compact locking wire connector with a spring lever mechanism, designed for hassle-free electrical connections.
Features:
- Universal Compatibility: Suitable for single-strand hardwire with 0.08mm to 2.5mm² area or soft wire with 0.08mm to 4.0mm² area (or AWG28 to AWG12), making them compatible with a wide range of wiring setups.
- Safe and Efficient: Minimizes installer errors by ensuring proper wire tightening and torque, reducing the risk of thermal cycling release. Ideal for DIY projects, providing peace of mind and reliable connections.
- Convenient and Practical: Simply lift up the lever, insert the stripped wire, and press the lever closed to create a solid and secure connection. Perfect for various electrical applications such as ceiling fans, sockets, switches, loudspeakers, lamps, and more.
- Revolutionary Design: These connectors offer a modern alternative to traditional plastic blocks with nuts and bolts. Their compact size, ease of use, and reliability make them a preferred choice for electrical projects.
Specifications:
Specification | Details |
---|---|
Models | PCT-212, PCT-213, PCT-215, PCT-218, CH-812, CH-813, and more |
Connector Type | Spring lever connector |
Wire Compatibility | Single-strand hardwire: 0.08mm² to 2.5mm² <br> Soft wire: 0.08mm² to 4.0mm² (AWG28 to AWG12) |
Rated Voltage | Up to 400V |
Electric Current Peak | 32A |
Maximum Power | Up to 7KW |
Housing Material | High-grade insulative Nylon |
Metal Point Material | Nickel-plated |
Temperature Resistance | Up to 85°C |
Terminal Block | 4-conductor terminal block with operating levers |
Upgrade your electrical connections with the PCT Spring Lever Connector series, offering compact, reliable, and reusable solutions for your wiring needs.
Explore the different models and sizes available to find the perfect fit for your requirements.
Package Includes:
1 x PCT-222T(SPL-2) Transparent Quick Connection Terminal
