Non Contact Infrared Thermopile sensor ISB TS45H

This is the Red variant of the Non Contact Infrared Thermopile sensor ISB TS45H in PIR / IR and Optical Sensor. Available at ₹387.04 (₹328.00 + GST) with free shipping across India.

Non Contact Infrared Thermopile sensor ISB TS45H

Introducing the ISB-TS45H Non-Contact Infrared Thermopile Sensor, an innovative solution for accurate temperature measurements without direct contact. This advanced sensor is perfect for a range of applications, including ear and forehead thermometers, industrial temperature monitoring, and more.

Features:

1. Accurate Non-Contact Temperature Measurement: The ISB-TS45H sensor enables precise temperature measurement without the need for physical contact, ensuring convenience and safety in various applications.
2. Wide Detection Angle: With a detection angle of 90 degrees, this sensor provides comprehensive coverage for efficient temperature monitoring.
3. Compact and Efficient Design: The chip size of 1.1×1.1 mm² and sensitive area of 0.35×0.35 mm² contribute to the sensor’s compact form factor and efficient performance.
4. High Sensitivity and Reliability: The sensor features a thermopile resistance range of 80-115 KΩ, ensuring high sensitivity and reliability even in demanding environments.
5. Fast Response Time: With a time constant of less than 13 ms, the ISB-TS45H sensor delivers rapid response, allowing for quick temperature readings in real-time applications.
6. Versatile Applications: From medical devices like ear and forehead thermometers to industrial temperature control systems, this sensor is suitable for a wide range of applications.

Specifications:

• Chip Size: 1.1×1.1 mm²
• Sensitive Area: 0.35×0.35 mm²
• Detection Angle: 90°
• Thermopile Resistance: 80-115 KΩ
• Noise Voltage: 38 nV/Hz½
• NEP: 0.23 nW/Hz½
• Voltage Response: 20.11 V/mm²/W
• Responsivity: 134-194 V/W
• Temp. Coefficient of Resistance: 0.06%/℃
• Time Constant: ≤13 ms
• Specific Detectivity: 1.51 E08 cmHz½/W
• NTC Resistance: 100±3% KΩ
• NTC β: 3950±1% K

With its advanced features and reliable performance, the ISB-TS45H Non-Contact Infrared Thermopile Sensor is an essential tool for accurate temperature measurement in various applications. Experience precision and efficiency with this innovative sensor solution.

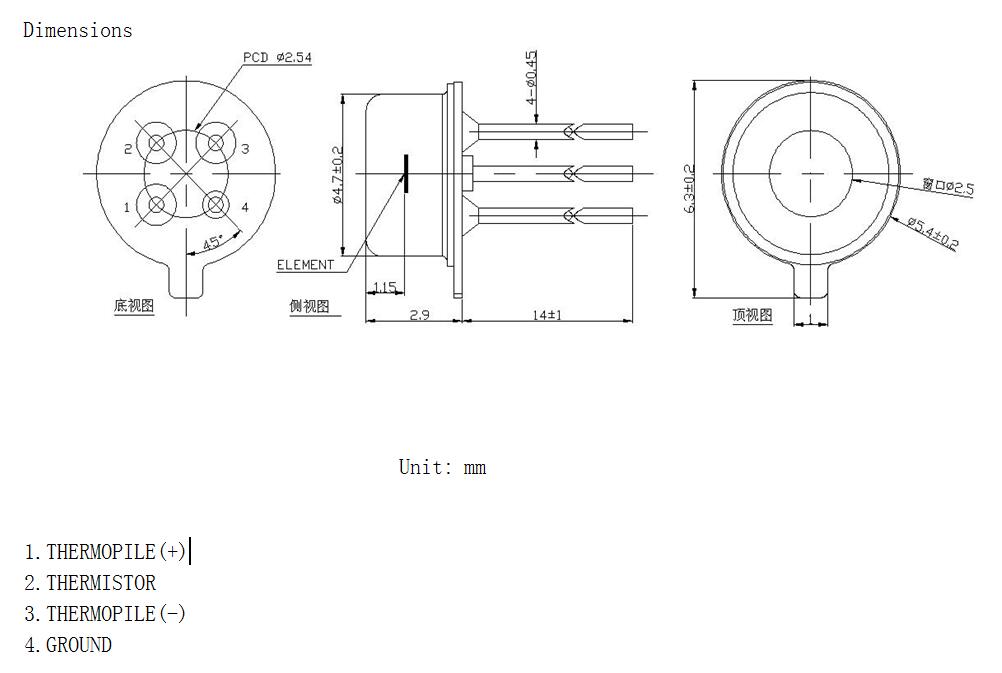

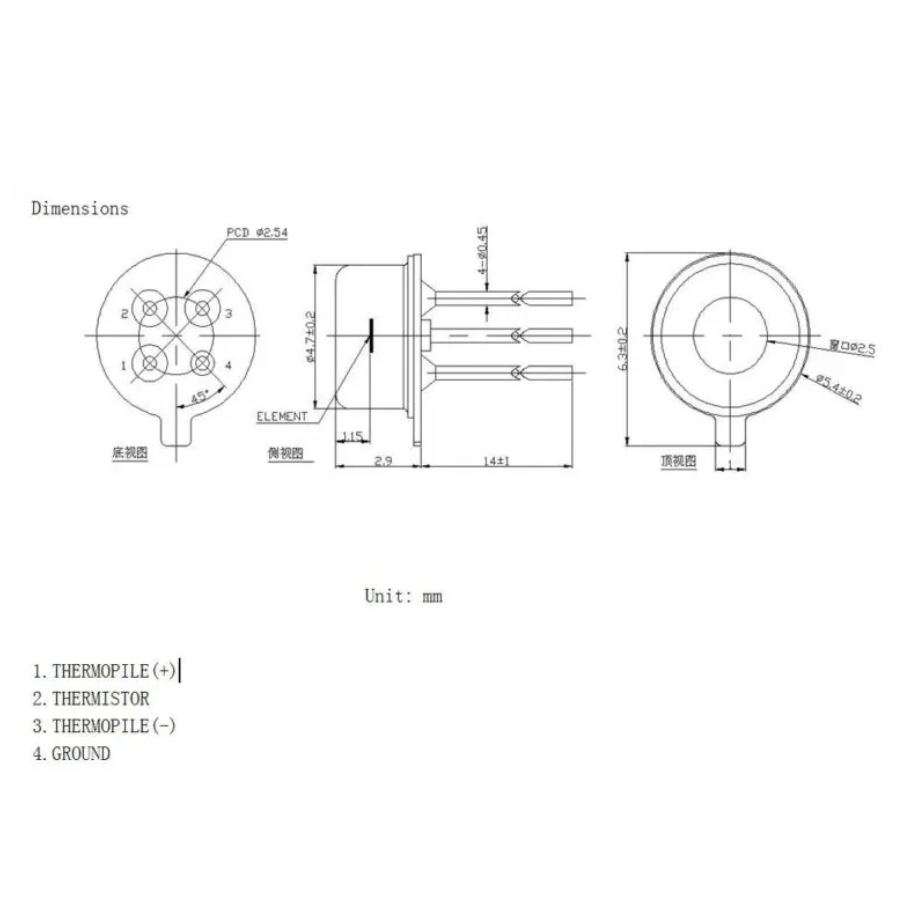

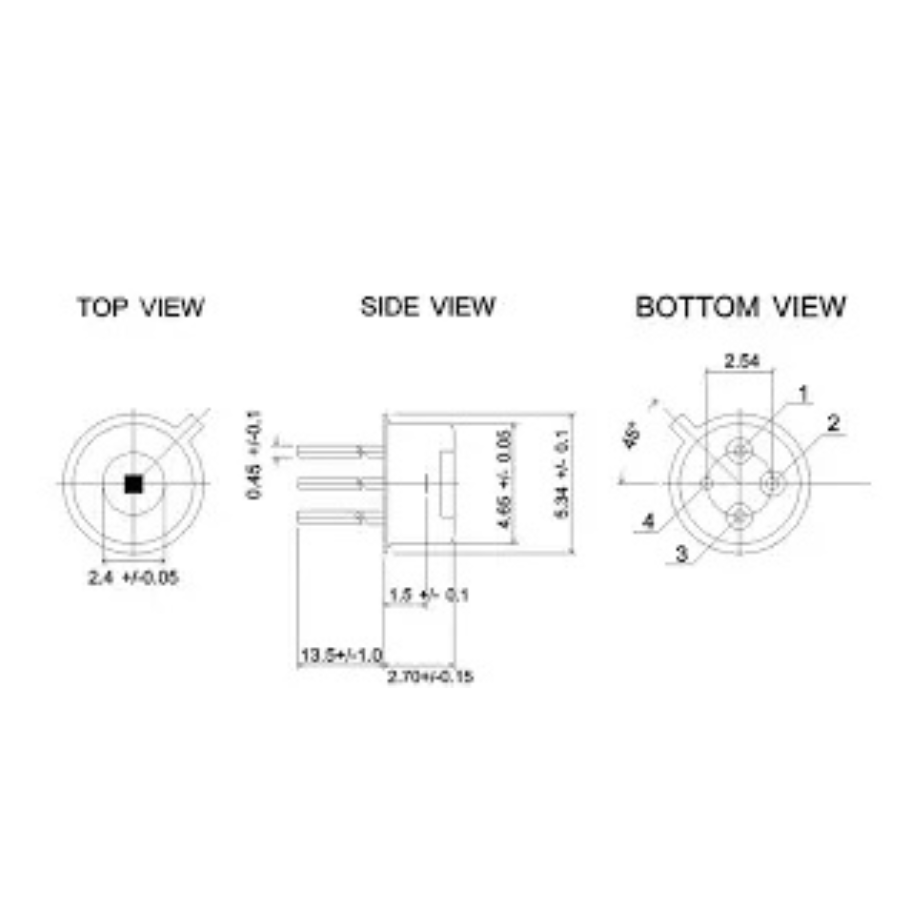

Ts45h Sensor – Technical Data of Infrared Thermopile Sensor ISB-TS45H

Package Include:

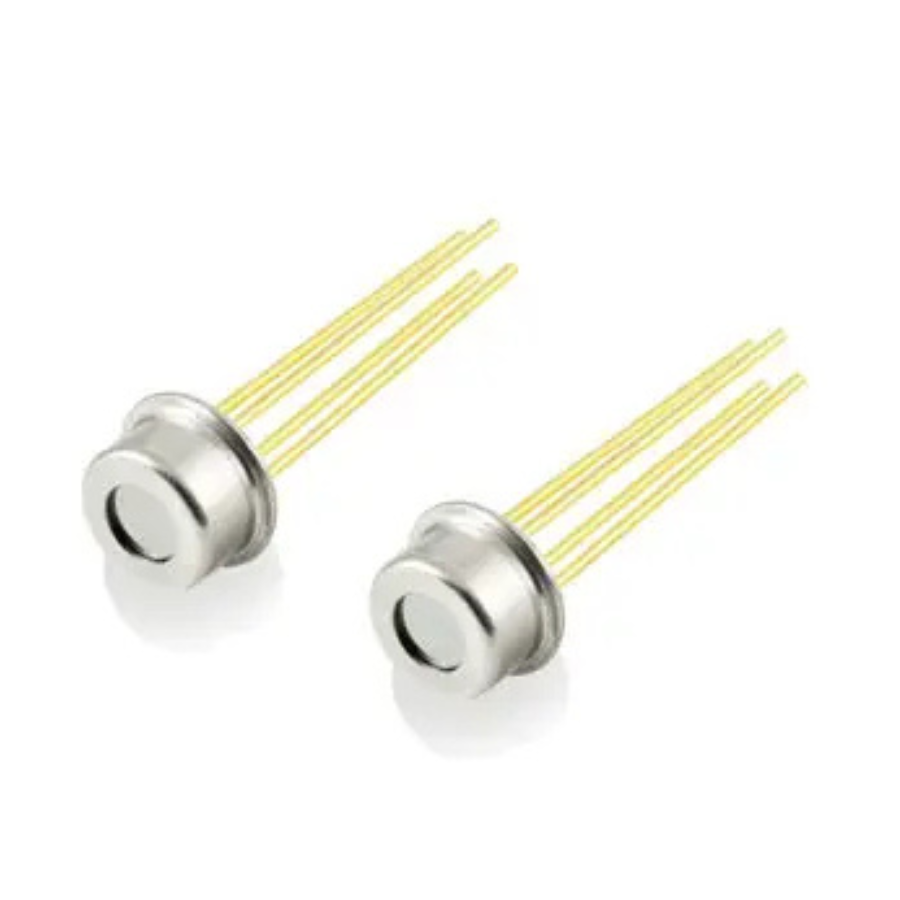

1 x Non Contact Infrared Thermopile sensor ISB TS45H

Datasheet:

Non Contact Infrared Thermopile sensor ISB TS45H Overview

The ISB-TS45H is a non-contact infrared thermopile sensor designed for precise temperature measurement without physical contact. Packaged in a durable metal TO-46 can, it’s ideal for applications such as forehead and ear thermometers, industrial process monitoring, and other scenarios requiring reliable, touch-free temperature sensing.

Key Features of Non Contact Infrared Thermopile sensor ISB TS45H

• Non-contact temperature measurement for safe, hygienic readings
• Wide 90° detection angle for broad-area coverage
• High sensitivity and fast response for real-time monitoring
• Metal TO-46 package offers robust protection and thermal stability
• Integrated 5 μm long-wave pass filter to block undesired wavelengths
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• Forehead and ear digital thermometers
• Industrial machinery temperature monitoring
• HVAC system diagnostics and control
• Automotive climate and engine compartment sensing
• Medical screening devices for quick fever detection

How to Use Non Contact Infrared Thermopile sensor ISB TS45H

Mount the TS45H on your PCB, ensuring the sensing aperture faces the target. Connect the thermopile output to an appropriate amplifier and ADC channel. After power-up, perform an ambient calibration following the manufacturer’s guidelines to convert the voltage output into accurate temperature readings.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the detection angle of the ISB-TS45H sensor?

The TS45H features a 90° field of view for wide-area temperature sensing without contact.

Which package does the TS45H use?

It is housed in a robust metal TO-46 can for enhanced protection and thermal conductivity.

What spectral filter does the TS45H include?

The sensor employs a 5 μm long-wave pass filter to block unwanted wavelengths and ensure accurate thermal readings.
