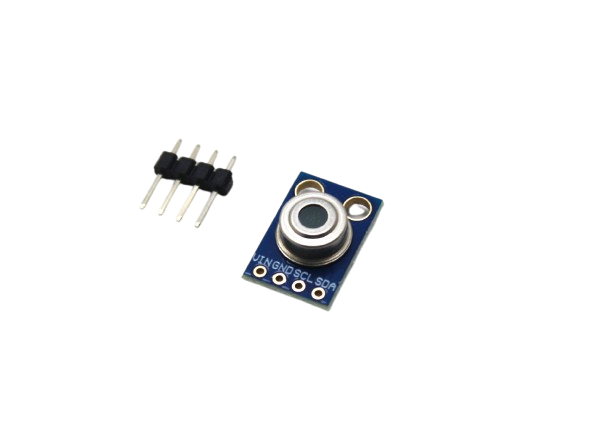

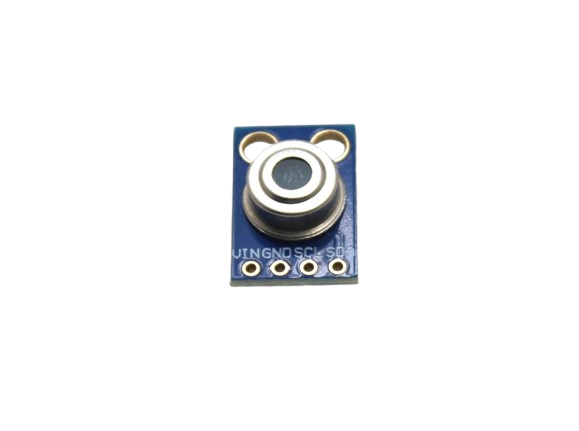

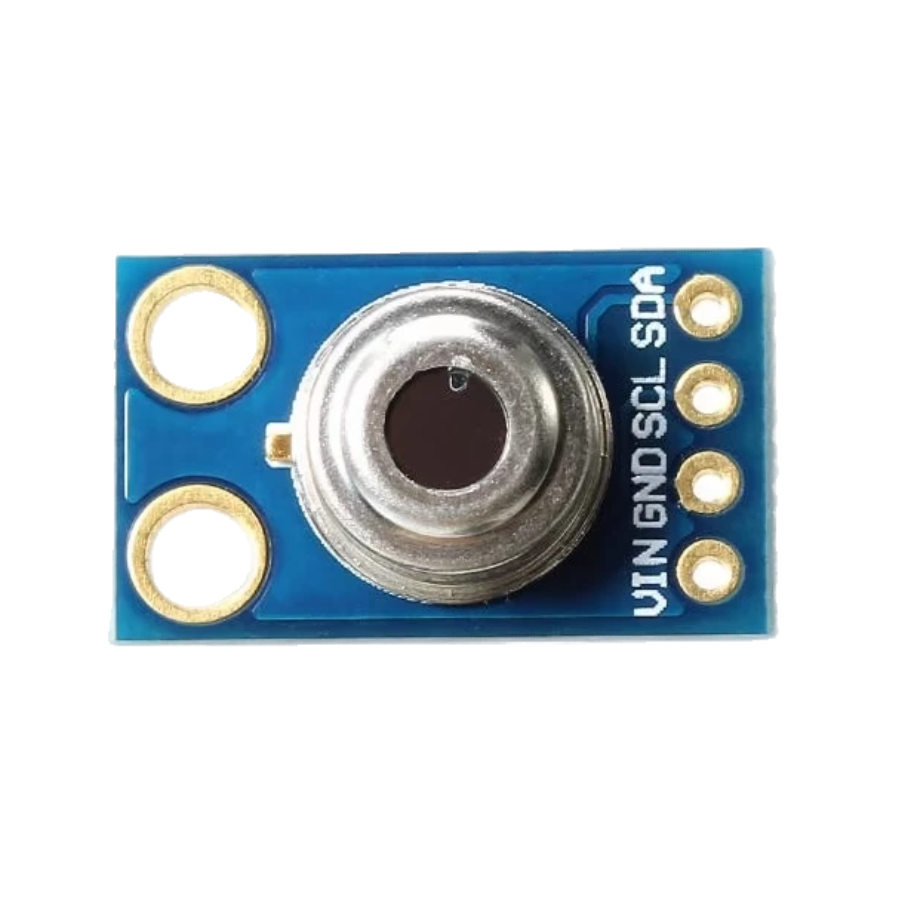

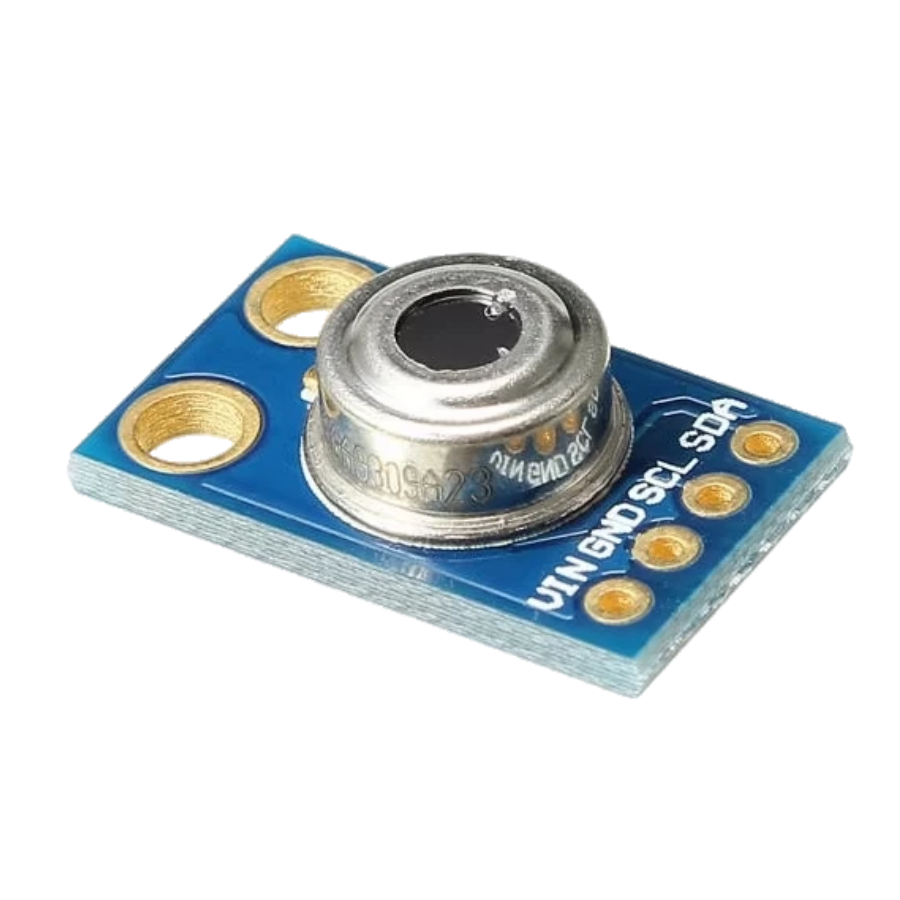

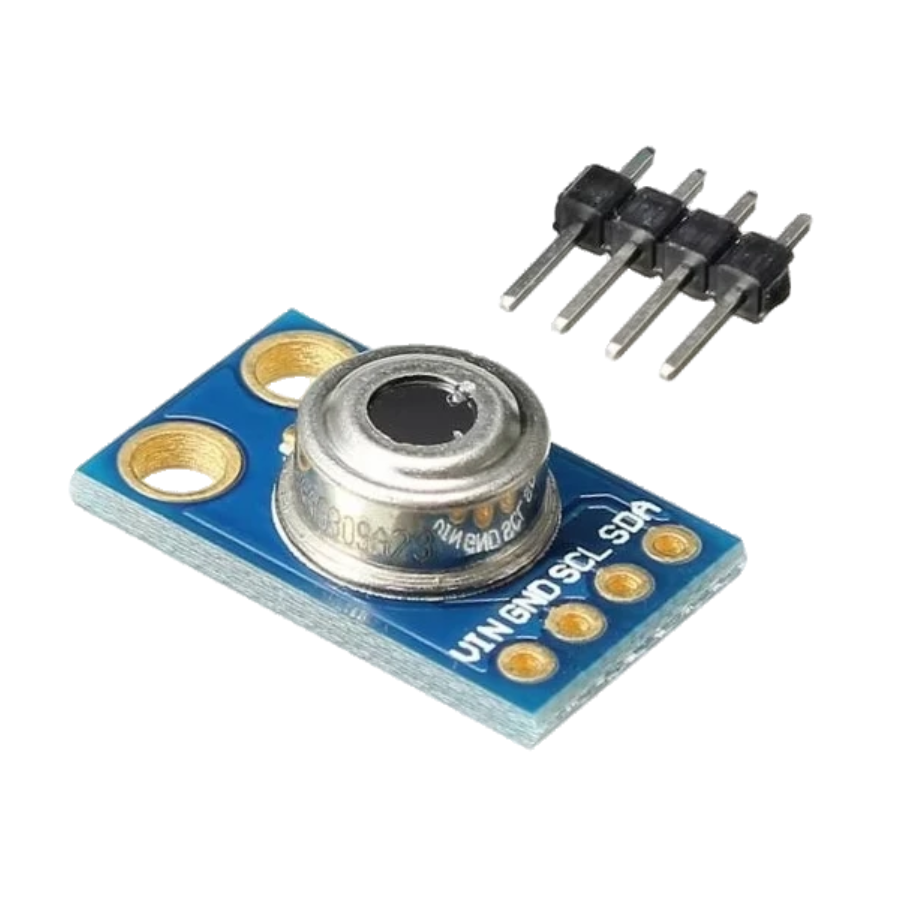

MLX90614ESF-BAA Non Contact Infrared Temperature Sensor

Description

The MLX90614 ESF is an Infra-Red thermometer for non-contact temperature measurements.  Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated into the same TO-39 can. The Integrated MLX90614 GY-906 is a low noise amplifier, 17-bit ADC, and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.

The user can configure the digital output to be PWM. As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in the range of -20 to 120 °C, with an output resolution of 0.14 °C.

Features

• Small size, low cost
•  Easy to integrate
• Factory calibrated in wide temperature range:-40°C +85˚C for sensor temperature and -70°C +380˚C for object temperature.
• High accuracy of 0.5°C in a wide temperature range
• High (medical) accuracy calibration
• Measurement resolution of 0.02°C.
• Single and dual zone versions.
• SM Bus compatible digital interface.
• Customizable PWM output for continuous reading.
• Simple adaptation for 8V…16V applications.
• Sleep mode for reduced power consumption.
• Different package options for applications and measurements versatility

Applications:

1. Due to its high accuracy and precision, it is also used in a wide range of commercial, health care, and household applications like room temperature monitoring, body temperature measurement, etc.
2. The key feature of MLX90614 is that it is a contactless IR temperature sensor with high accuracy. So it can be used in industries to measure the temperature of moving objects like a rotating motor shaft.

Package Includes

• 1 x MLX90614ESF-BAA Non Contact Infrared Temperature Sensor
