Mini ZVS Induction Heating Board Flyback Driver Heater DIY Cooker+ Ignition Coil

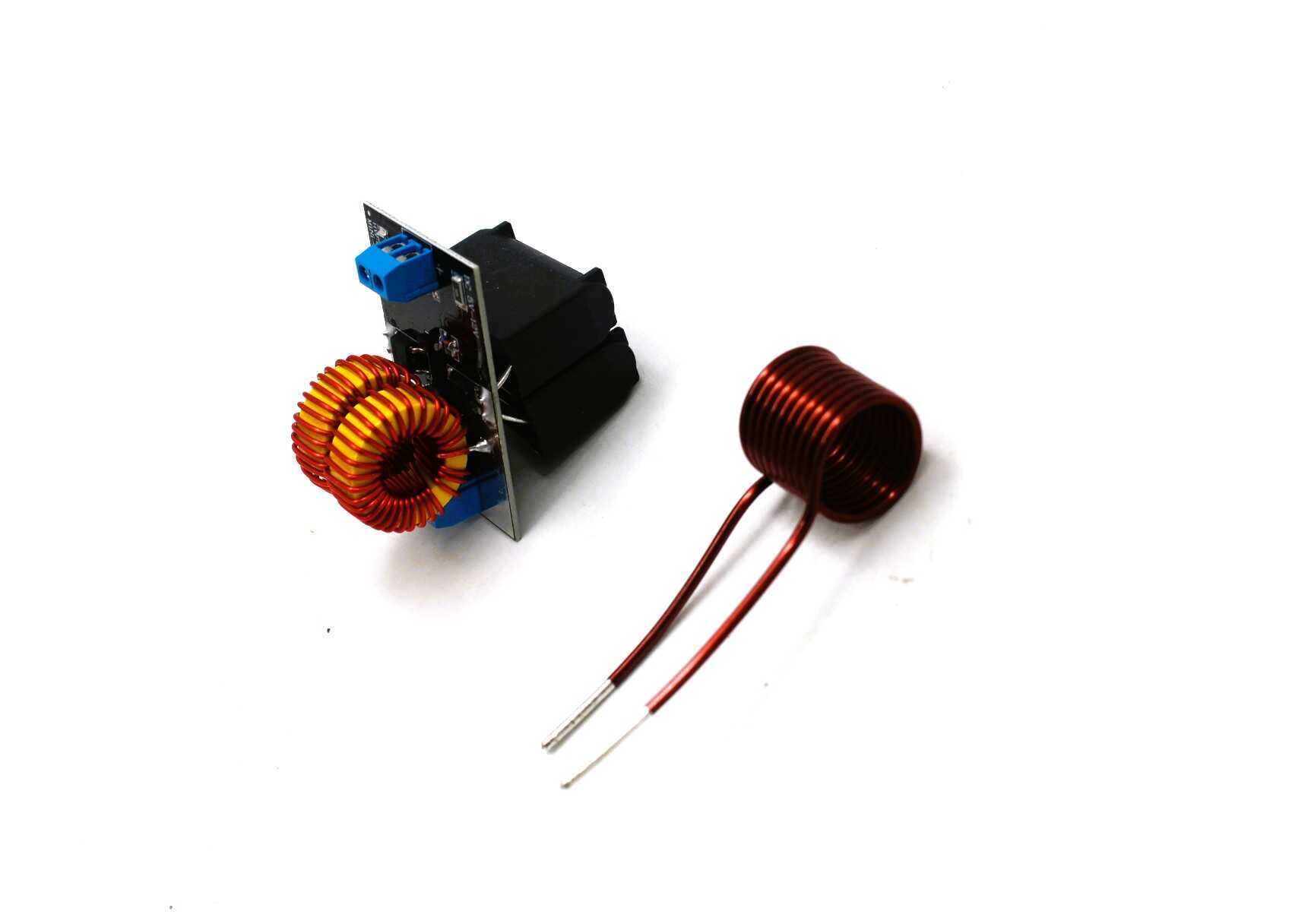

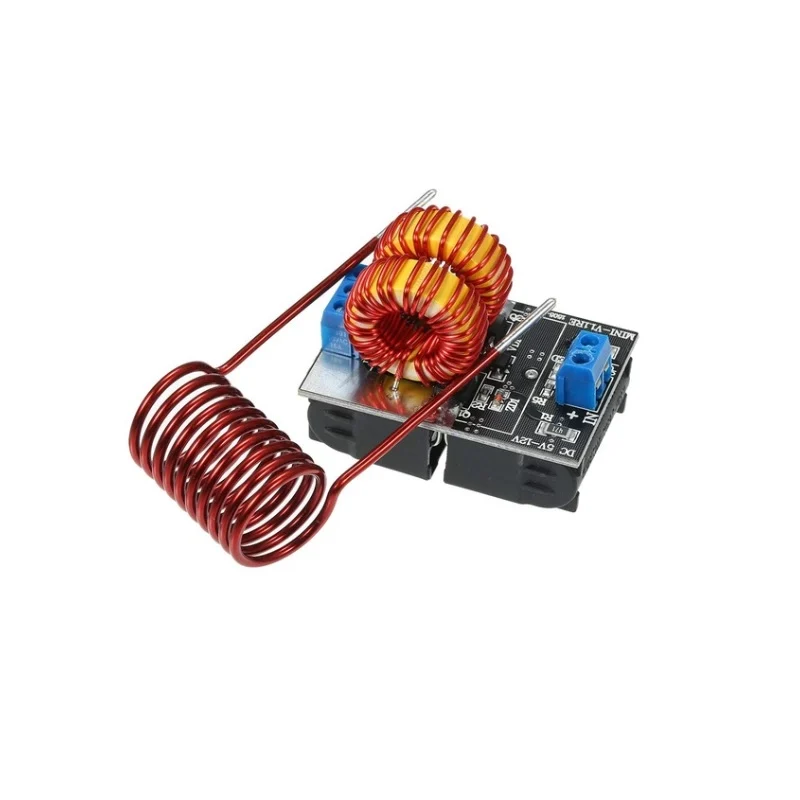

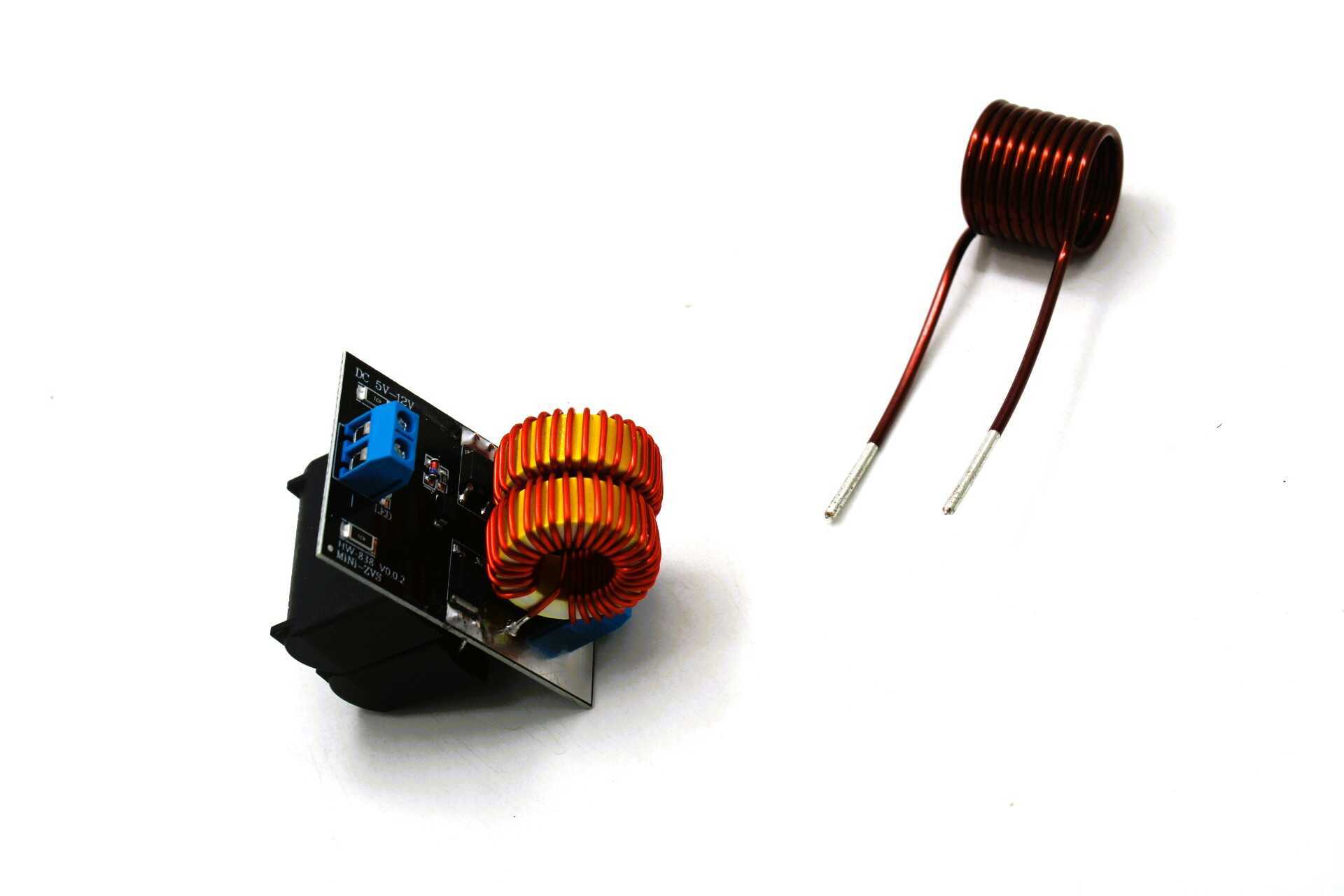

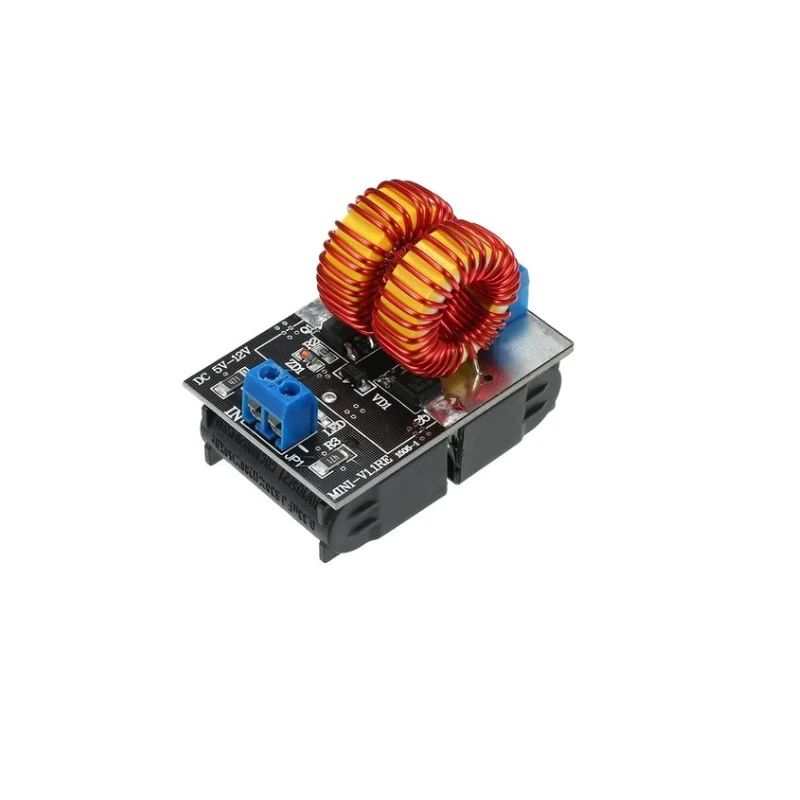

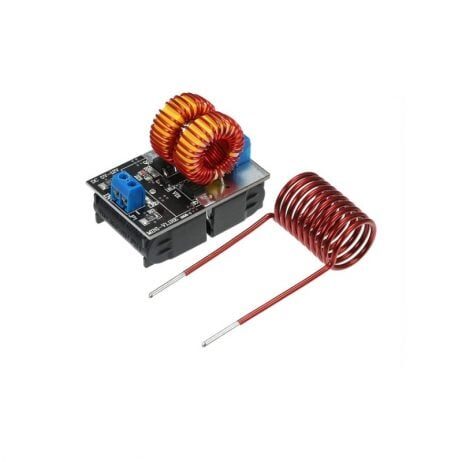

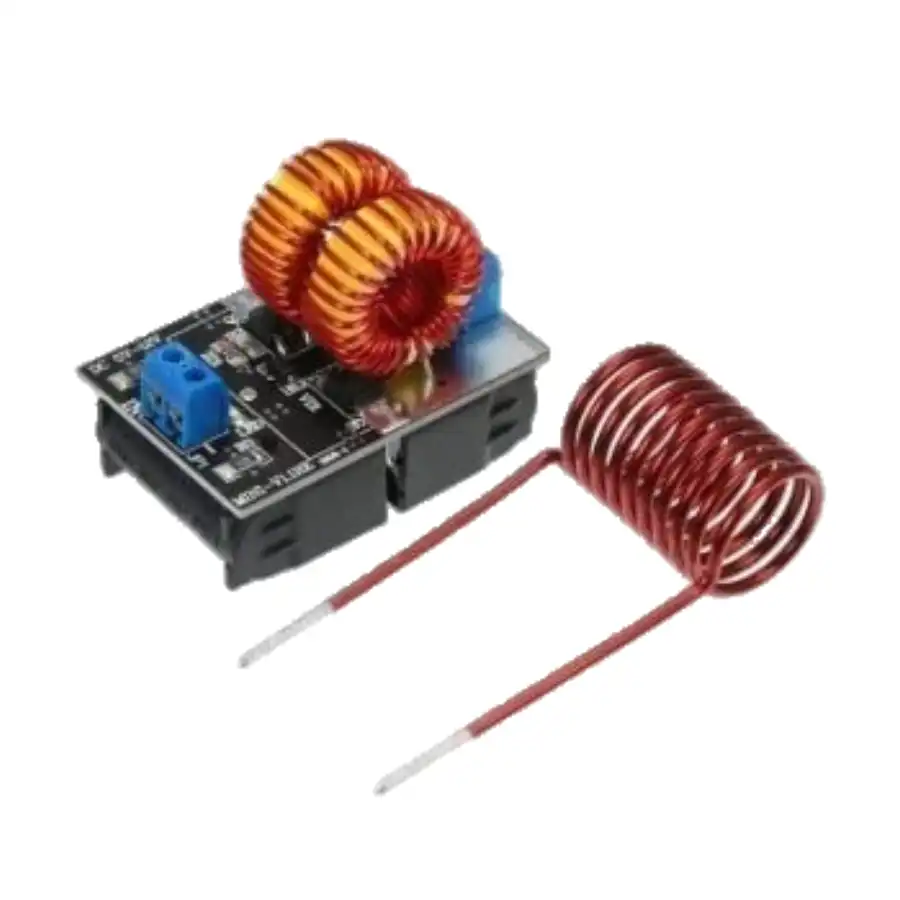

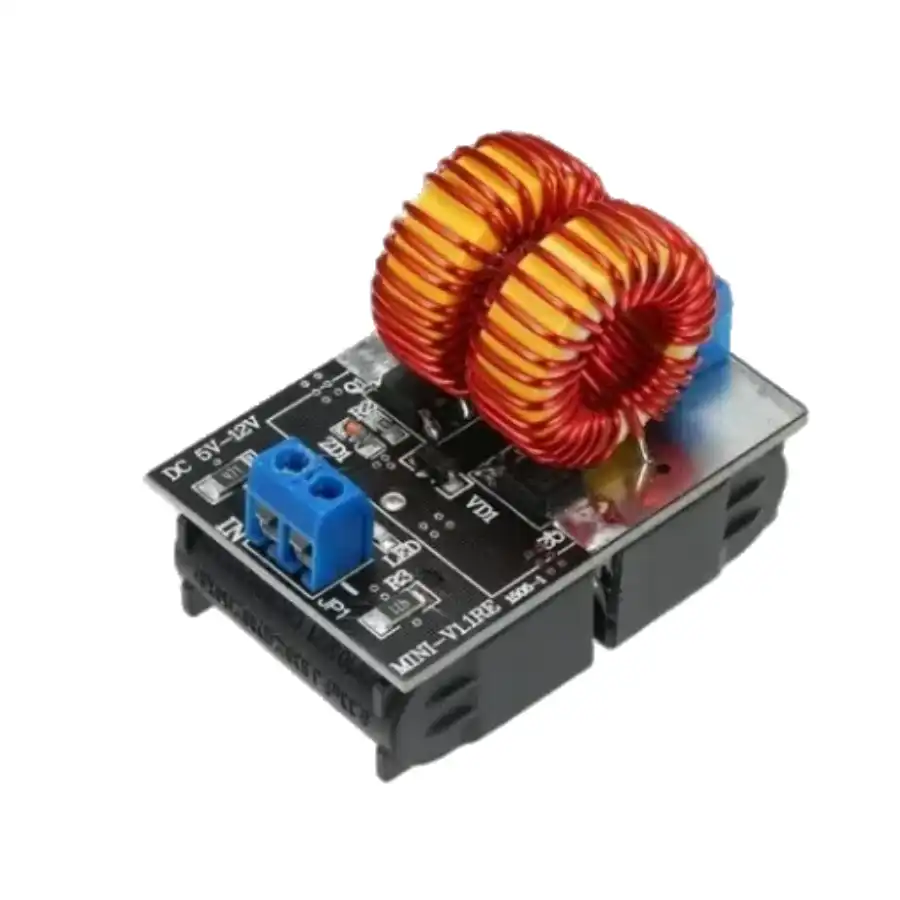

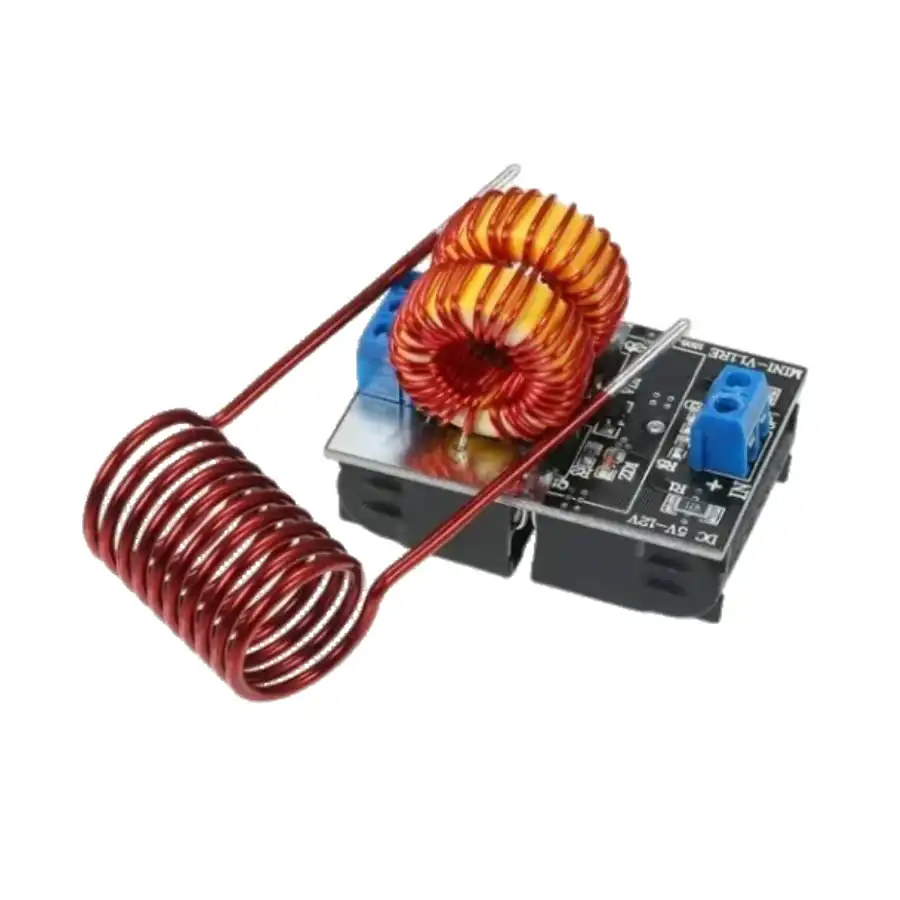

The Mini ZVS Induction Heating Board Flyback Driver Heater DIY Cooker Ignition Coil Kit includes a 5-12V 120W Mini ZVS Induction Heating Board and a Flyback Driver Heater Ignition Coil. When powered with 12V, this kit can generate up to 120W of power, producing substantial heat. By applying 12V to the ignition coil’s primary winding, which has 5 turns, the kit can deliver up to 30W of power.
For safe and efficient operation, it’s essential to carefully solder all components and ensure the correct connection of the power lines, with the negative terminal properly oriented. Once fully assembled and powered, this kit can be used in a variety of DIY projects, including induction heating applications and cooker ignition systems.
Features:
Easy Installation
Plug and Play operation.
Specification:
- Input voltage: 5v-12v
- Maximum power: 120W

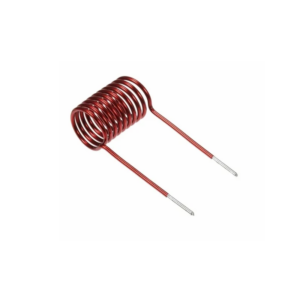

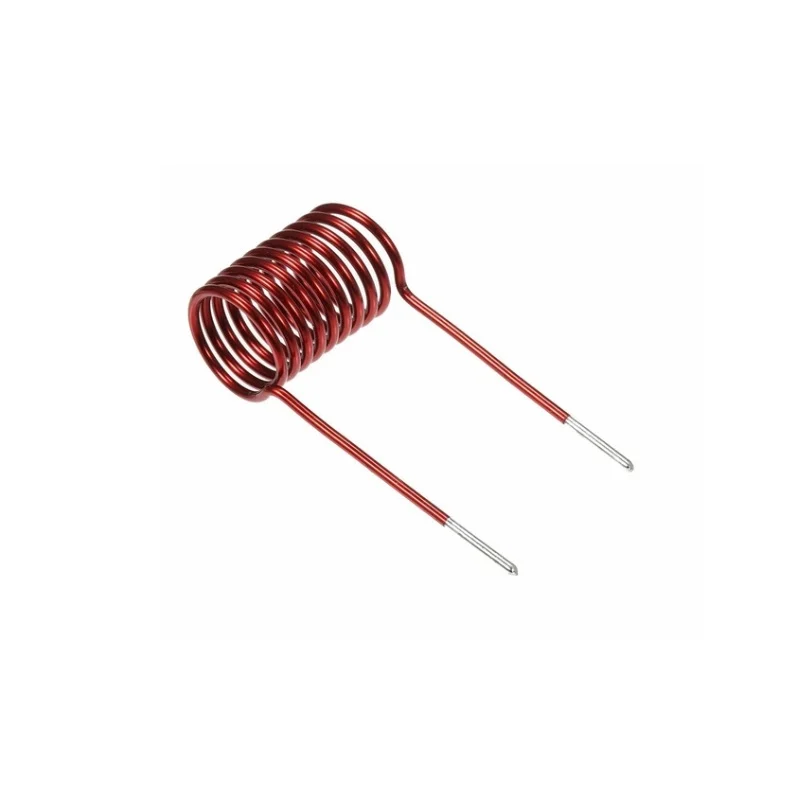

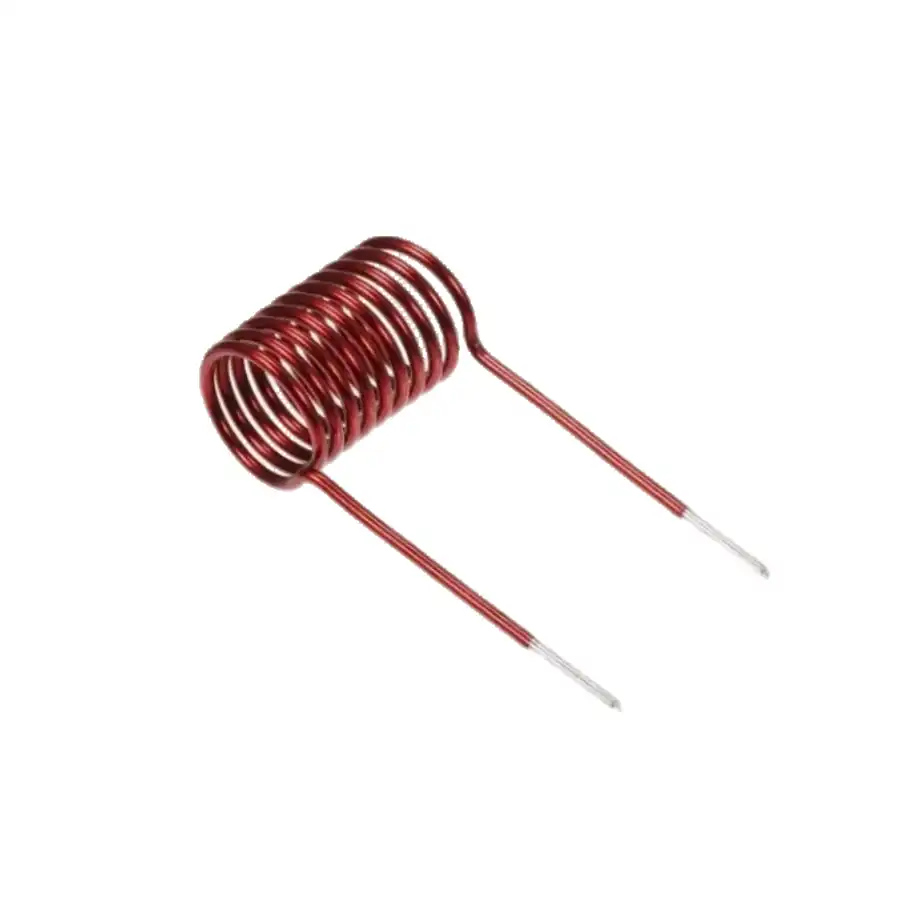

- Coil length:7.5cm
- Coil width: 2.8cm

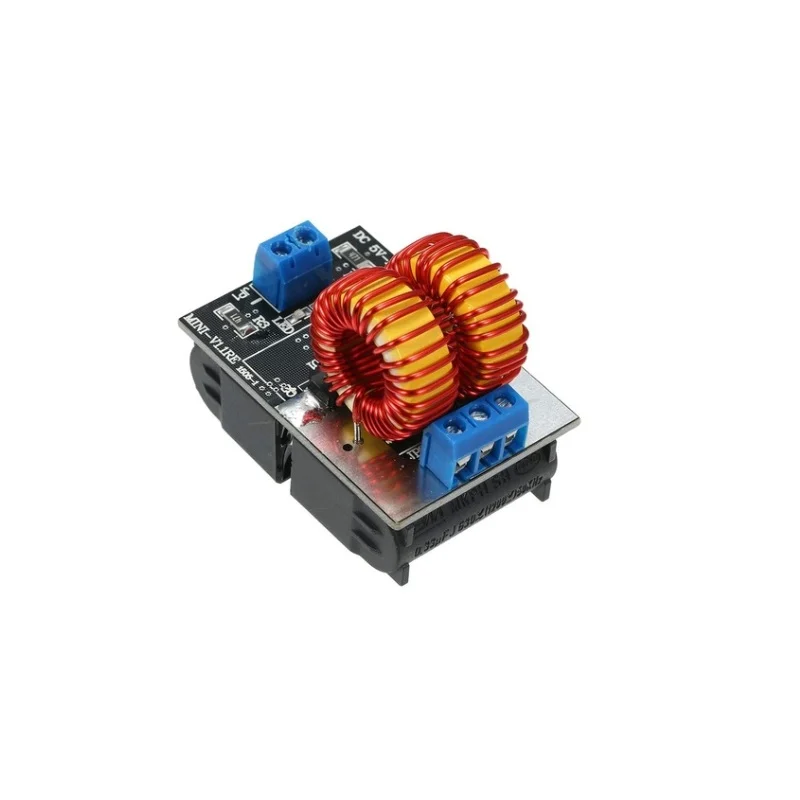

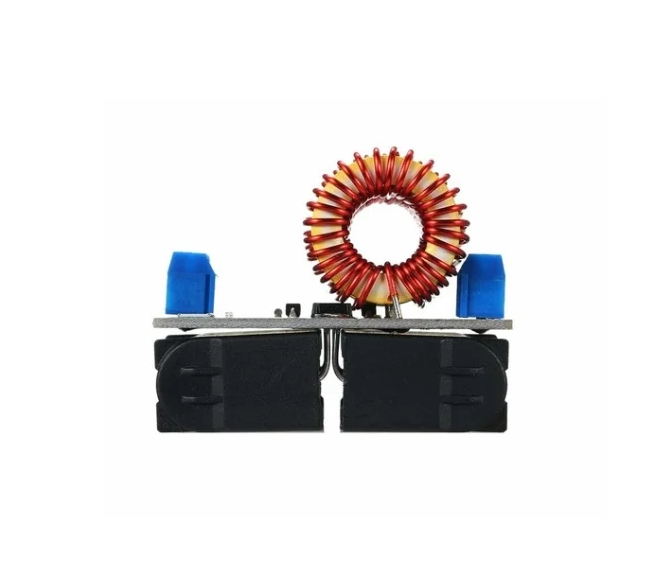

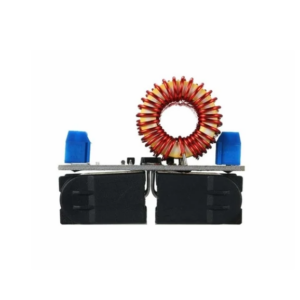

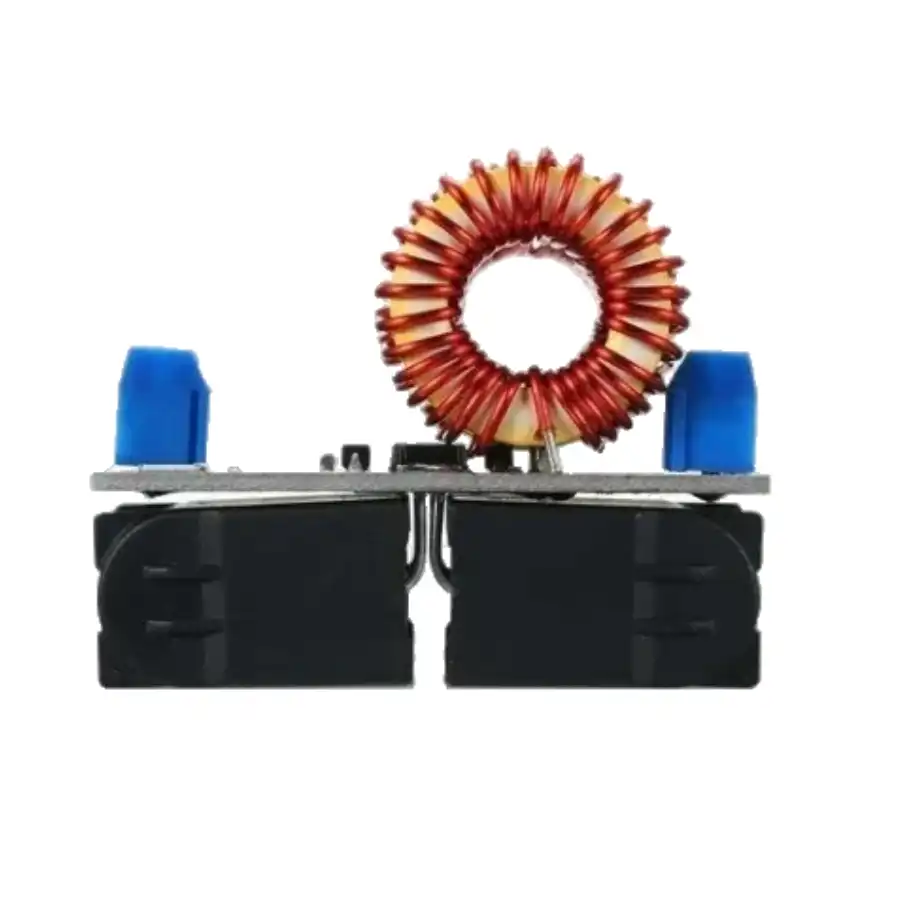

- Module dimensions: 5.5 x 4 x 2 cm(L*W*H)
Technical Specifications
| SKU | AI3465 |
|---|---|
| Weight | 0.15 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Mini ZVS Induction Heating Board Flyback Driver Heater DIY Cooker+ Ignition Coil is a versatile diy hobby project parts used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
