Product Description

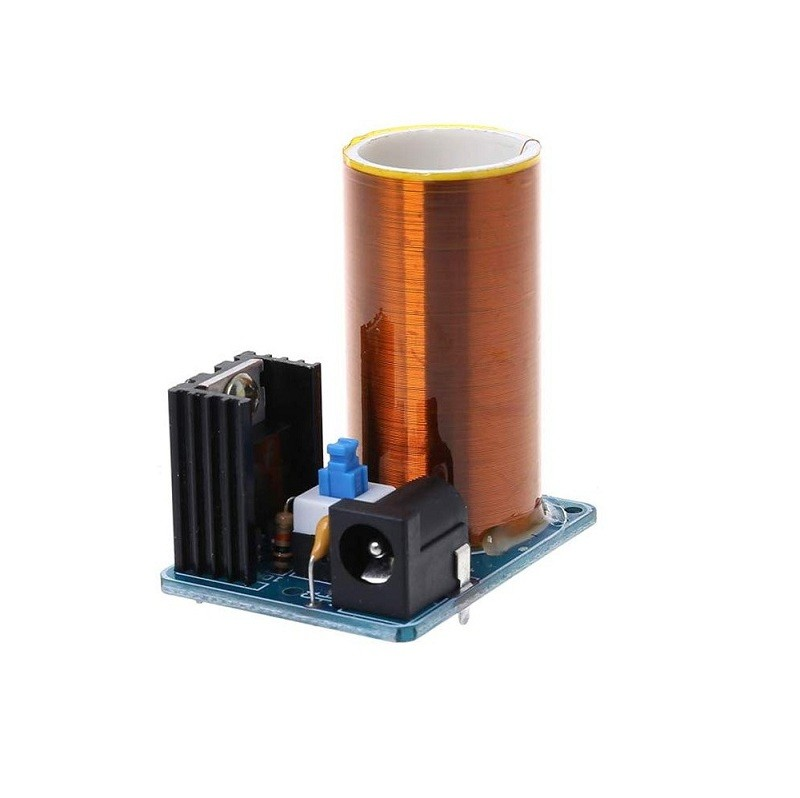

The BD243 DIY Mini Tesla Coil Kit is an unassembled prototype of the famous Tesla Coil, based on the resonant transformer principle developed by Nikola Tesla. This kit allows you to build a working Tesla Coil that can generate high-temperature plasma, ignite objects, wirelessly transmit electricity, and even light up fluorescent lamps.
A newly designed kit, it features a primary coil integrated directly onto the PCB, eliminating the need for external winding. This streamlined design makes assembly easier, faster, and more efficient—perfect for enthusiasts and DIY hobbyists.
Order this compact Tesla Coil prototype to experience and showcase the groundbreaking invention by Nikola Tesla in action!
Features and Specification:
- Type: Diy kits
- Input voltage: 9-12V, can be started with 9V battery, but if there is an arc, the working voltage needs 12V.

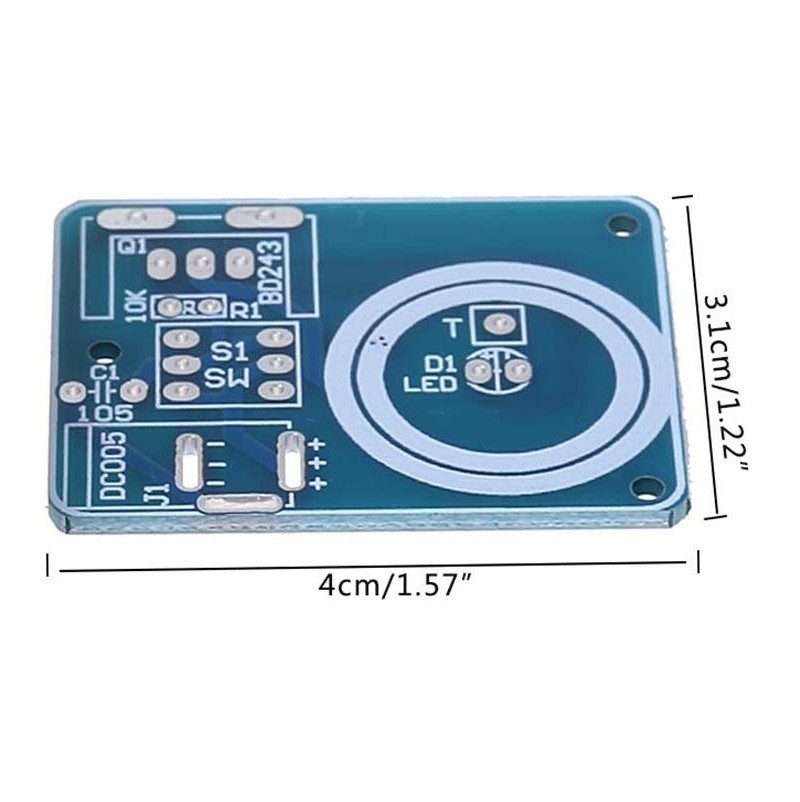

- PCB board size: 3.1x4cm/1.22×1.57inch
- Color: As shown
- Quantity: 1Set
Package Includes:
1 x BD243 DIY Kit Mini Tesla Coil Kit

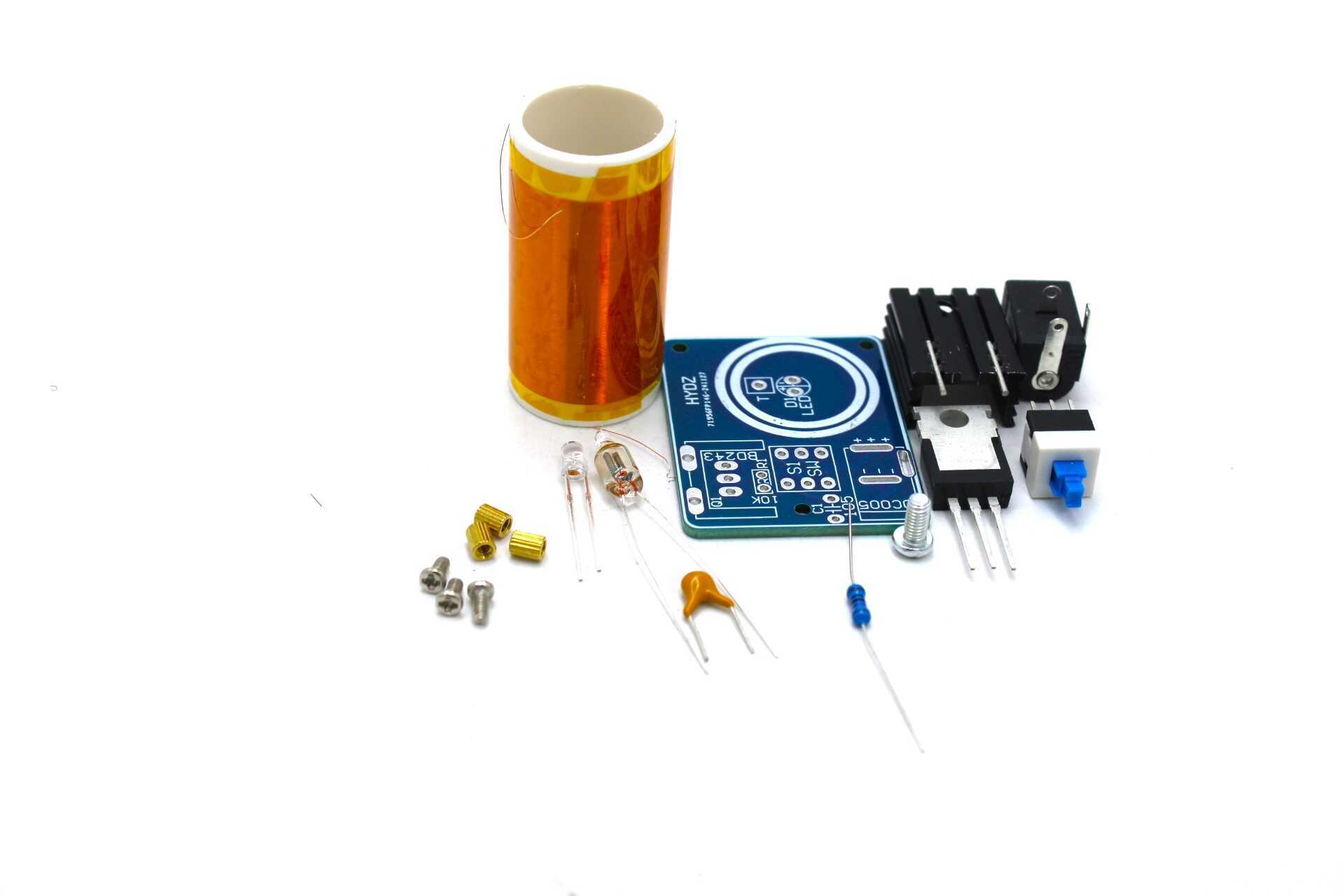

Kit Includes:
1 x PCB board
1 x Coil
1 x 3MM LED Blue
1 x DC005 seat
1 x 105 monolithic capacitor
1 x 8×8 self-locking switch
1 x 10K resistor
1 x 15x10x20 small heat sink
1 x 3×6 screw
1 x BD243
1 x Bubble
4 x M2x4 screw
3 x M2x7 double pass copper column
Video
Technical Specifications
| Model | BD243 |
|---|---|
| SKU | AI3451 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The BD243 DIY Prototyping Kit of Mini Tesla Coil is a versatile diy hobby project parts used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
