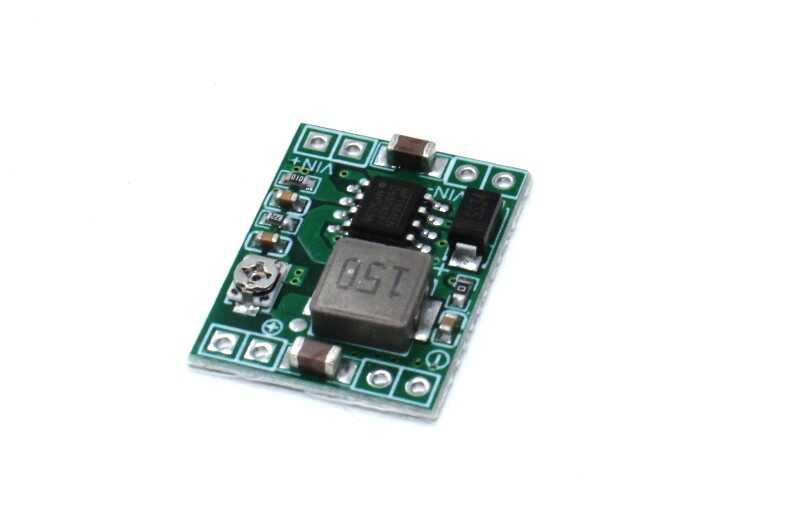

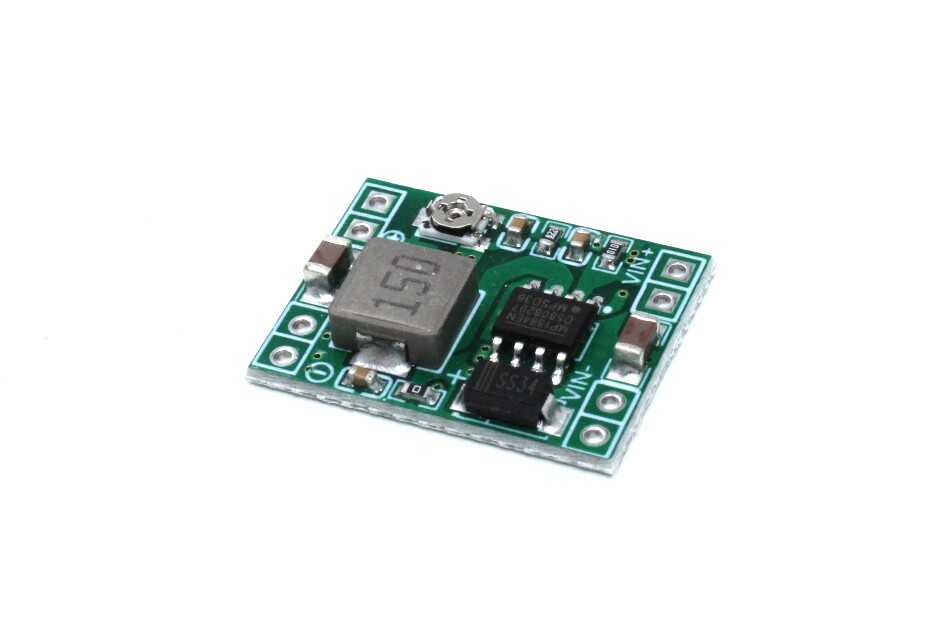

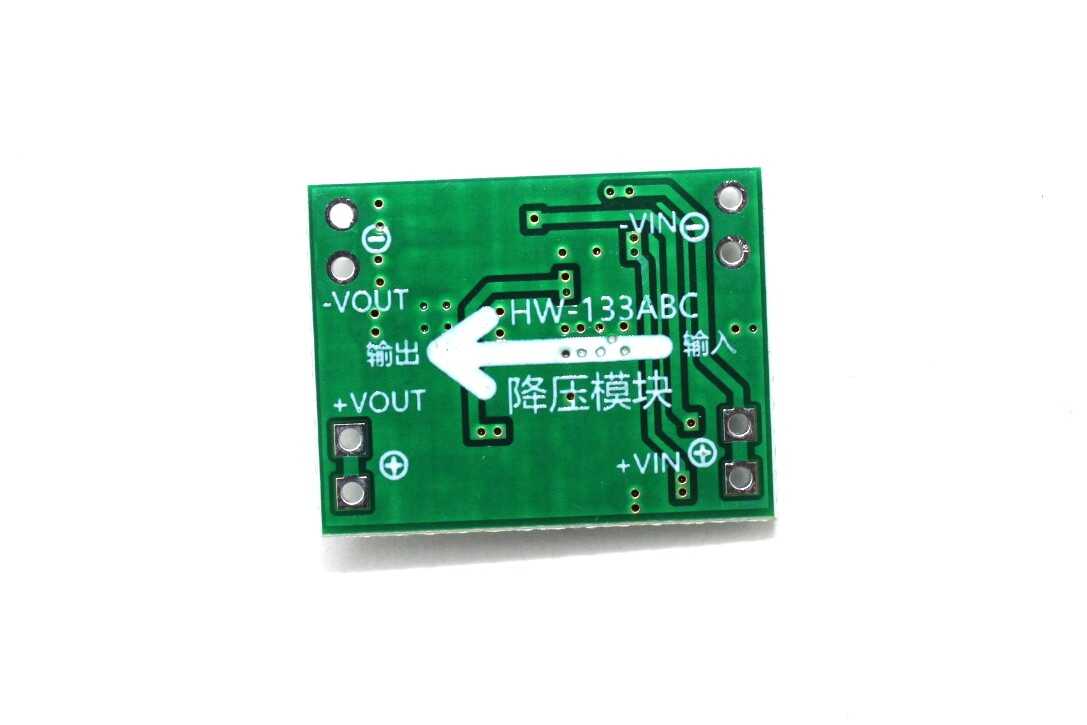

Mini MP1584 DC-DC 3A Adjustable Buck Module
The Mini MP1584 DC-DC 3A Adjustable Buck module is ultra small adjustable 0.8V to 20V output DC to DC step-down Buck converter that uses an MP1584EN high frequency switching regulator and integrated high voltage power MOSFET.
It features a soft start, thermal shutdown, and under-voltage lockout (UVLO) to protect the module from operating at insufficient supply voltage.
Small size, lightweight, low internal power consumption, and wide input voltage range of 4.5V to 28V make this module suitable for a variety of different applications where small size and lightweight voltage conversion is needed, including RC cars and airplanes, quadcopters, robotics, Arduino modules, and DIY devices.
Applications:
- DIY 8051 / AVR / ARM / PIC / Arduino / Raspberry-Pi projects
- Robotics
- Breadboard power supply
- Manual speed adjustment of small DC motors
- Power Supply for RC project planes, cars, helicopters
- Universal Battery Elimination Circuit (UBEC) for 2S-6S lipo battery pack
- Receiver/servo power supply
- Communications equipment power supply
- Mobile equipment power supplies
Note: Set voltage using a voltmeter and adjust to proper output voltage before installing in your device.
Note: PCB board color may be different from the actual product.
Features :
- Wide 4.5V to 28V Operating Input Range
- High-Efficiency Pulse Skipping Mode for Light Load
- Ceramic Capacitor Stable
- Internal Soft-Start
- Internally Set Current Limit without a Current Sensing Resistor
Specifications:
| Typical Switching Frequency(MHz) | 1 |
|---|---|
| Maximum Switching Frequency(MHz) | 1.5 |
| Conversion Efficiency(%) | 96 |
| Output Ripple(mV) | <30 |
| Accuracy | ±0.5% |
| Operating Temperature (°C) | -50 to 85 |
| Length (mm): | 22 |
| Width (mm): | 17 |
| Height (mm): | 4 |
Package Includes :
1 x Mini MP1584 DC-DC 3A Adjustable Buck module
Technical Specifications
| Model | MP1584 |
|---|---|
| Current Rating | 3A |
| Interface / Protocol | BLE |
| SKU | AI5952 |
| Weight | 0.06 kg |
| Availability | In Stock |
Applications & Use Cases
The Mini MP1584 DC-DC 3A Adjustable Buck Module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
