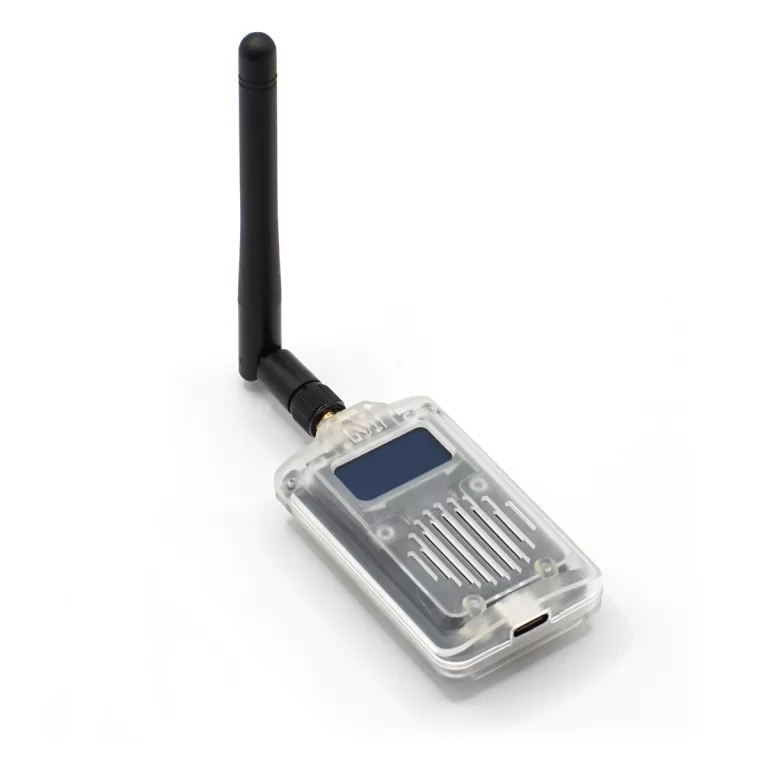

MicoAir TRS-Tx UAV Telemetry Transmitter Module
Description:
The MicoAir TRS-Tx is a long-range 2.4 GHz LoRa transmitter module that combines radio control (RC) and UAV telemetry in one system. It supports bidirectional data communication, frequency hopping for interference resistance, and wireless connection to Android devices through built-in Bluetooth. It is designed for compatible NANO-bay radio controllers and supports UAV ground-control applications.
Specifications:
- 2.4GHz ISM bands
- Transmit power up to 30dBm (1000mW)
- Base on LoRa modulation technology to obtain excellent anti-interference performance
- Frequency hopping spread spectrum (FHSS)
- Data link rate up to 8KB/s
- Radio controler refresh rate up to 150Hz
- Compatible with QGroundControl on Android
- Built in Bluetooth for communication with phone

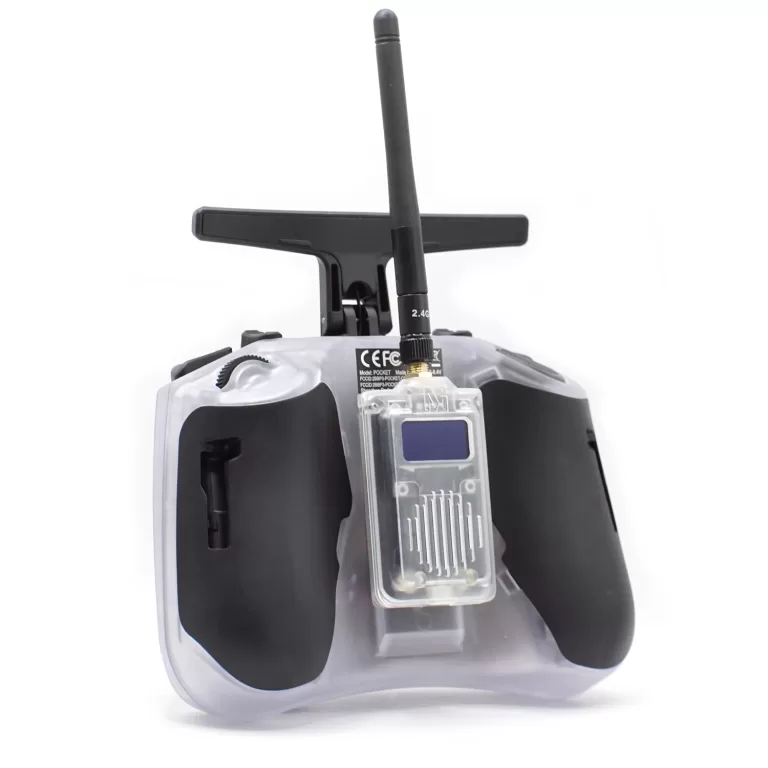

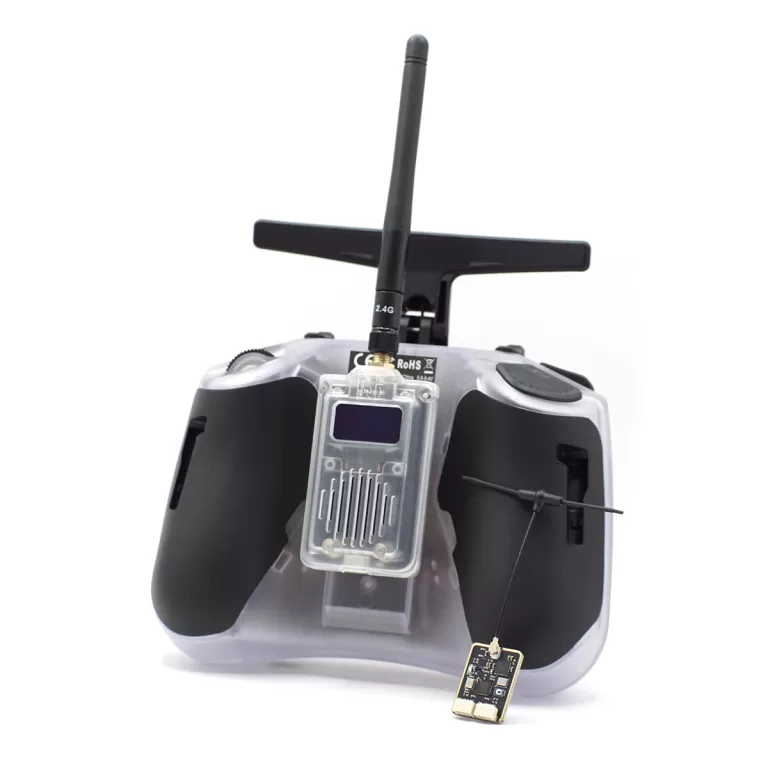

- NANO designed, compatible with most of compact radio controller such as radiomaster pocket, jumper t-pro, etc
| Mode | long-range | standard | high-speed |
| Data Link Rate | 2.4K Byte/s | 4K Byte/s | 8K Byte/s |
| RC Rate | 50Hz | 100Hz | 150Hz |
| Distance | ★★★ | ★★ | ★ |
| Baudrate | 57600 | 57600 | 115200 |

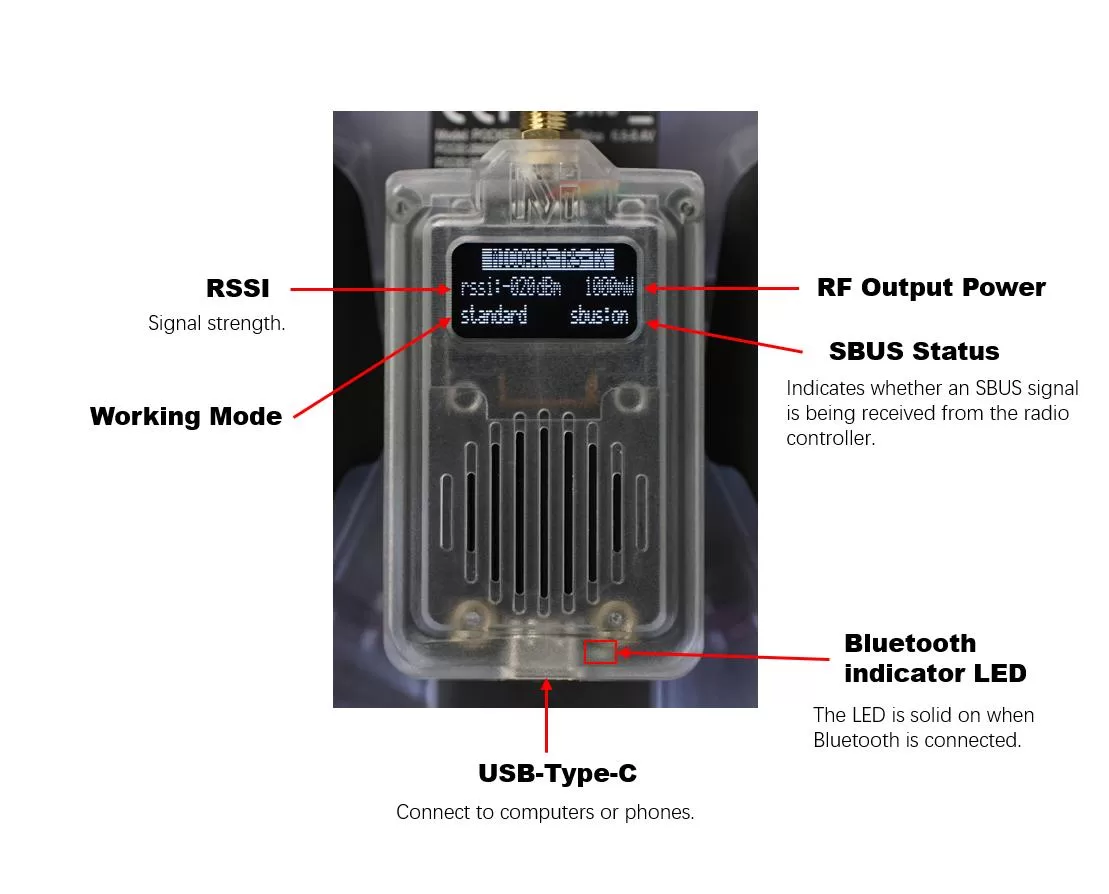

OLED Info:

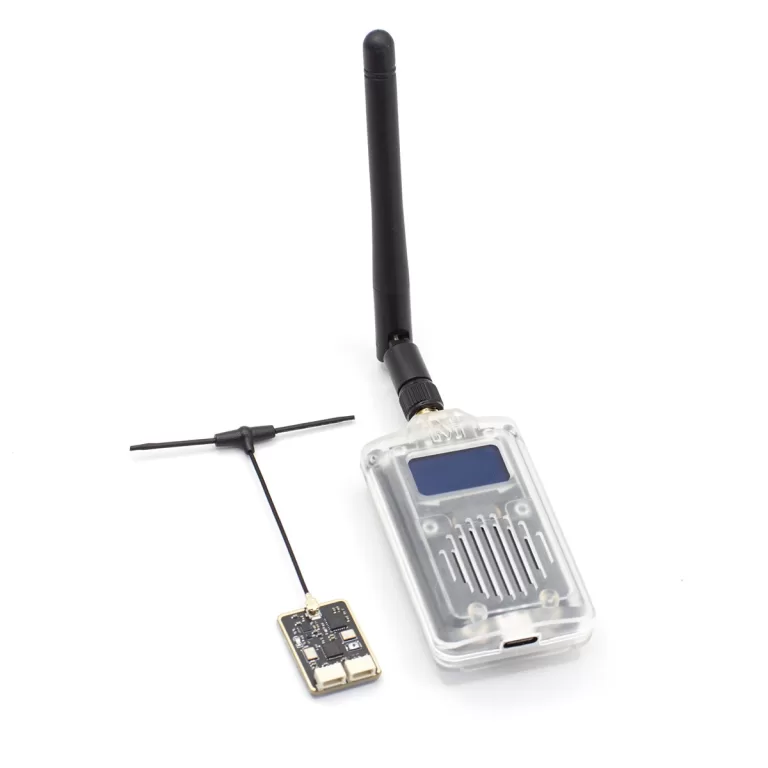

Receiver:
- Max RF Power: 27dBm (500mW)
- LED Indicator: solid on when connected; blinks slowly when disconected; blinks rapidly in matching status
- Bind Button: Keep the button pressed and power on to enter binding mode, the LED will blink rapidly
How to Bind TRS Devices Together:
- STEP1: Keep the bind button on the receiver pressed and power on to enter binding mode, the LED will blink rapidly
- STEP2: Reboot the radio controller with TRS tx module, the tx module and receiver will bind together within few seconds

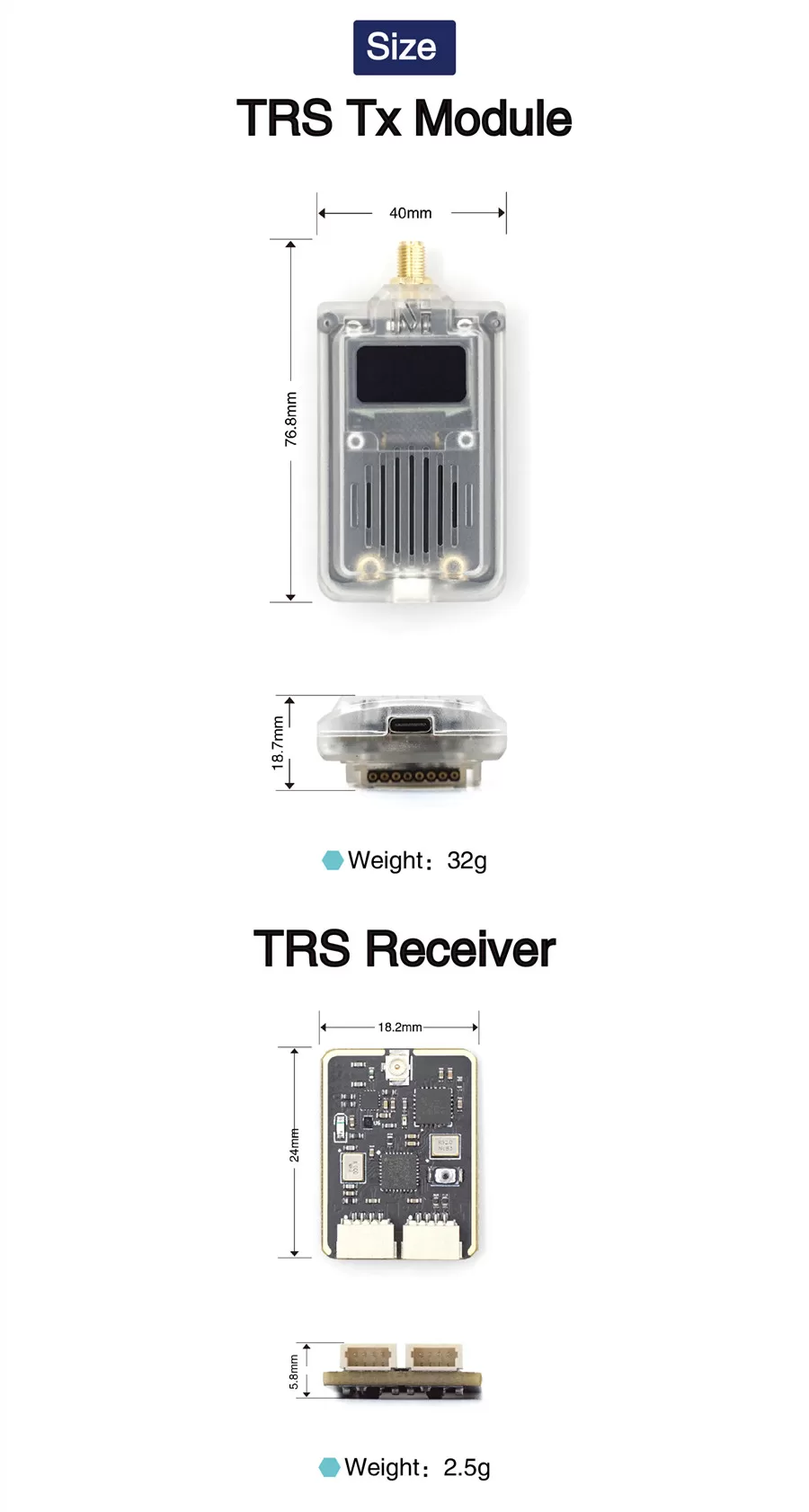

PhysicalTX Module:
- Dimensions: 76.8 x 40 x 18.7 mm
- Weight: 32g
Receiver:
- Dimensions: 24 x 18.2 x 5.8 mm
- Weight: 2.5g
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Fixed Wing RC Plane: Build and Fly Guide India
Table of Contents Understanding Fixed Wing RC Plane Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | MicoAir |
|---|---|
| SKU | AI8327 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MicoAir TRS-Tx UAV Telemetry Transmitter Module is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MicoAir product sourced from authorized channels
