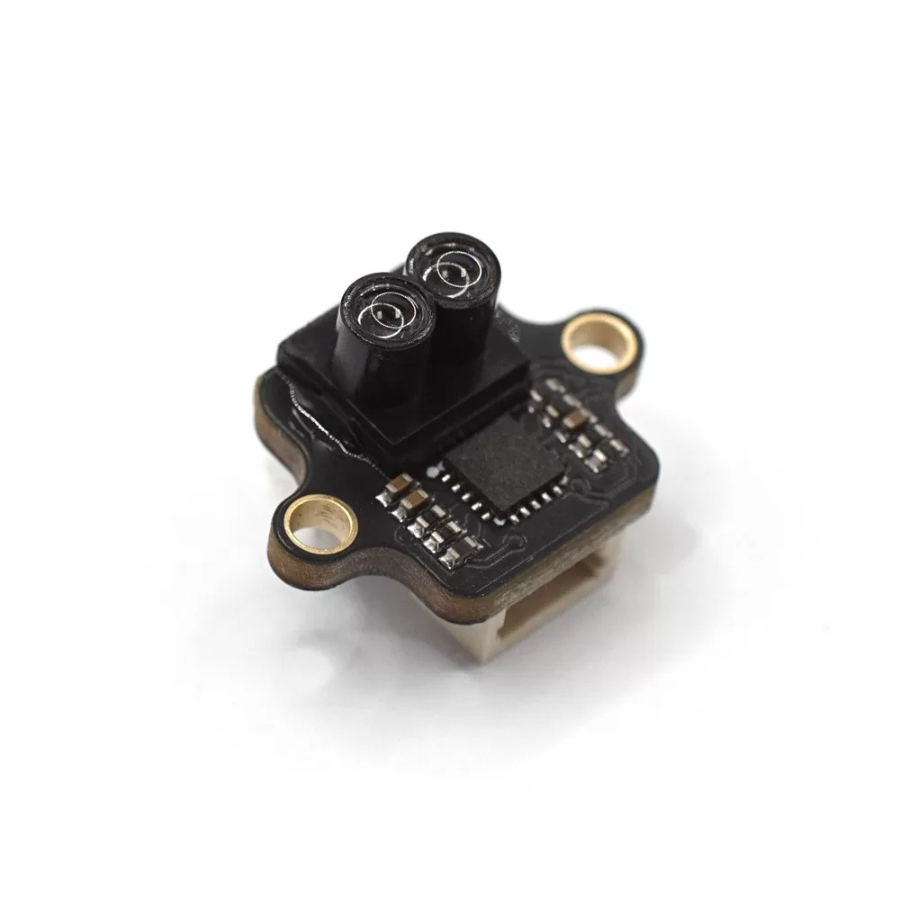

MicoAir MT-06 UAV Drone Optical Flow and Distance Sensor

MicoAir MT-06 UAV Drone Optical Flow and Distance Sensor

Description:

The MicoAir MT-06 is a Time-of-Flight (ToF) rangefinder that delivers precise low-altitude distance measurements up to 6 metres. Bypassing the ground-effect inaccuracies of standard barometers, it feeds reliable, centimetre-level altitude data to your flight controller for autonomous platforms, indoor commercial builds and terrain-following camera rigs in GPS-denied environments.

Key features

• Provides centimetre-level ground-effect immunity where standard barometers drift.
• Feeds low-latency altitude data at 50Hz for automated landing sequences and terrain following.
• Supports UART (Micolink/Mavlink/MSP) and I2C output, with official support for Ardupilot, PX4, INAV and FMT.
• Tiny 16 x 12 x 10mm, 0.8g module works reliably even in sunlight.

Specifications

• Sensor type: Optical Time-of-Flight (ToF)
• Maximum range: 6m @ 90% reflectance
• Ranging accuracy: 4cm (under 2m), 1.5% (over 2m)
• Output rate: 50Hz
• Interface: UART (115200) or I2C
• Supported firmware: Ardupilot, PX4, INAV, FMT
• Power consumption: 100mW at 5V
• Dimensions: 16 x 12 x 10mm

• Interface Mode: UART(115200); I2C;
• Protocol: Micolink/ Mavlink(Default)/ MSP/ I2C/ I2C_NOOPLOOP
• Output Rate: 50Hz
• Firmware Supported: Ardupilot/PX4/INAV/FMT
• TOF Range: 6m@90% reflectance/10KLux;
• Center Wavelength: 940nm
• Dead Zone: 2cm
• Ranging Accuracy: 4cm(<2m@90% reflectance); 1.5%(>2m@90% reflectance)
• Power Consumption: 100mW
• Supply voltage: 5V

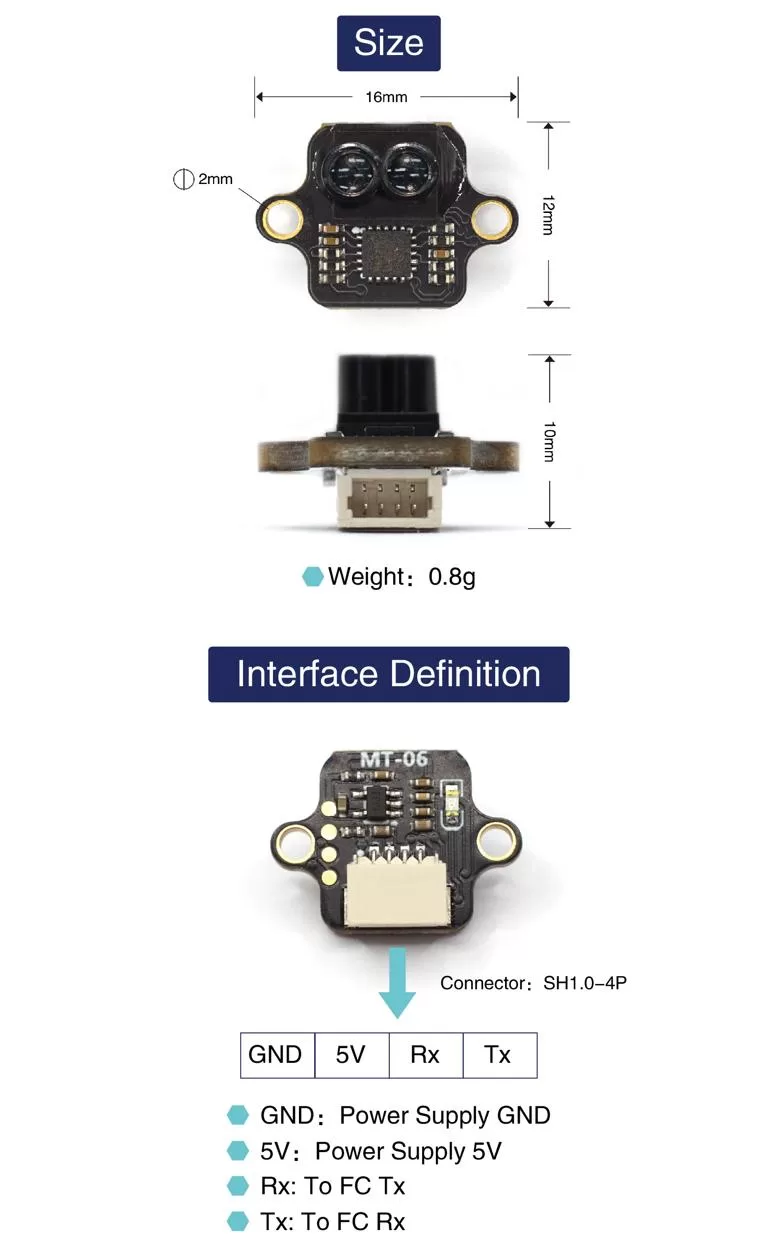

Physical

• Dimensions: 16 x 12 x 10mm
• Weight: 0.8g

In IIC Mode：

• Rx = SDA
• Tx = SCL

Package Includes:

1xMicoAir MT-06 UAV Drone Optical Flow and Distance Sensor
