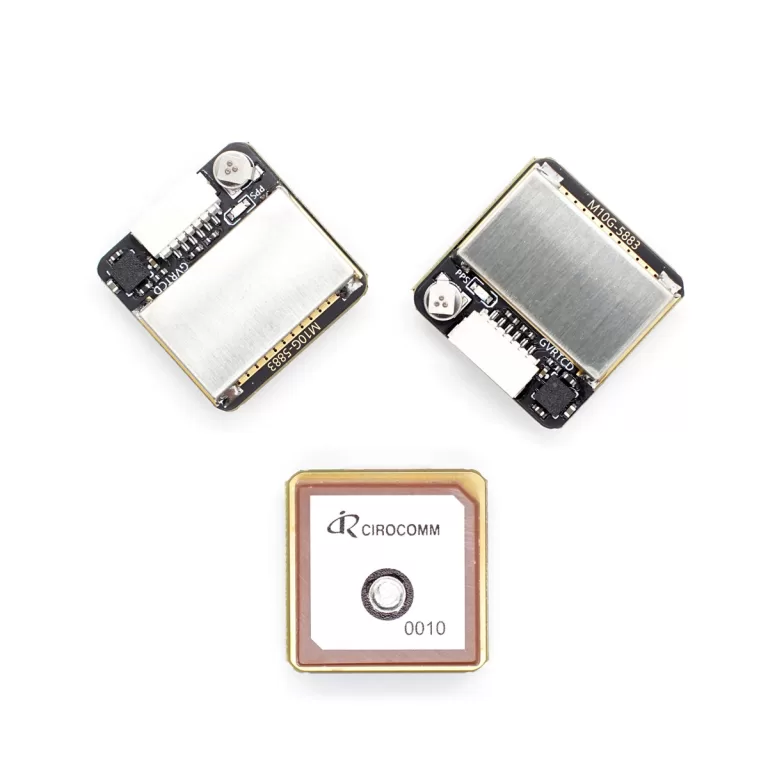

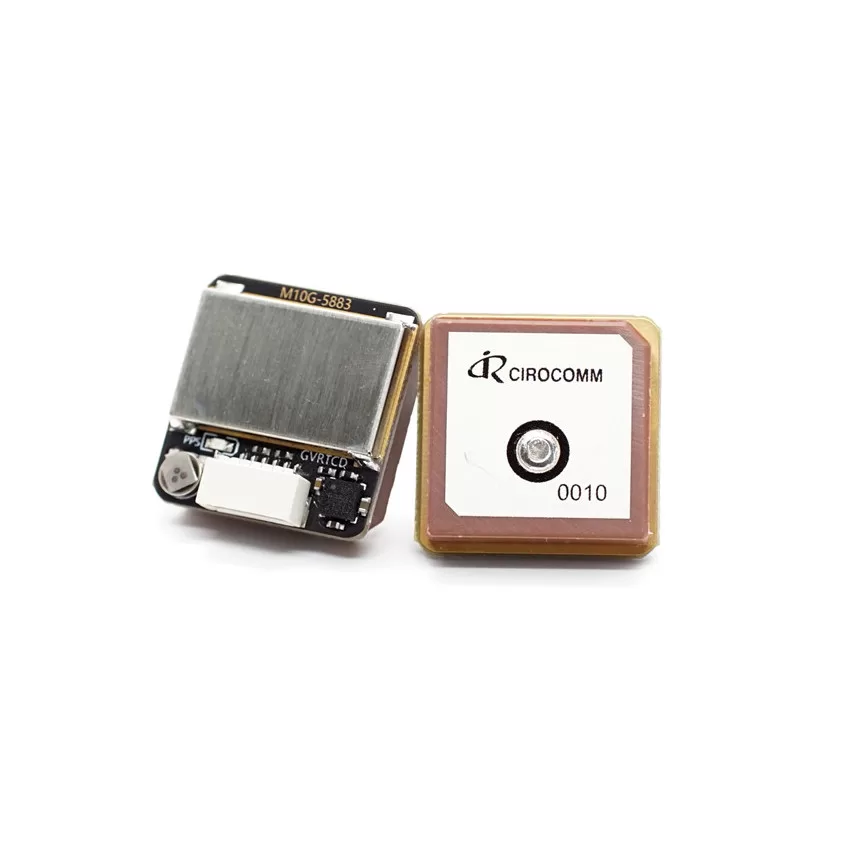

MicoAir M10G-5883 (M10) GNSS GPS Module For UAV Drones

Introduction

• M10G-5883 GNSS module integrates the u-blox 10th generation receiver chip – M10050, and the magnetic sensor – QMC5883L. It supports all L1 GNSS signals (GPS/GLONASS/Galieo/BeiDou) and can use up to 32 satellites simultaneously for navigation.

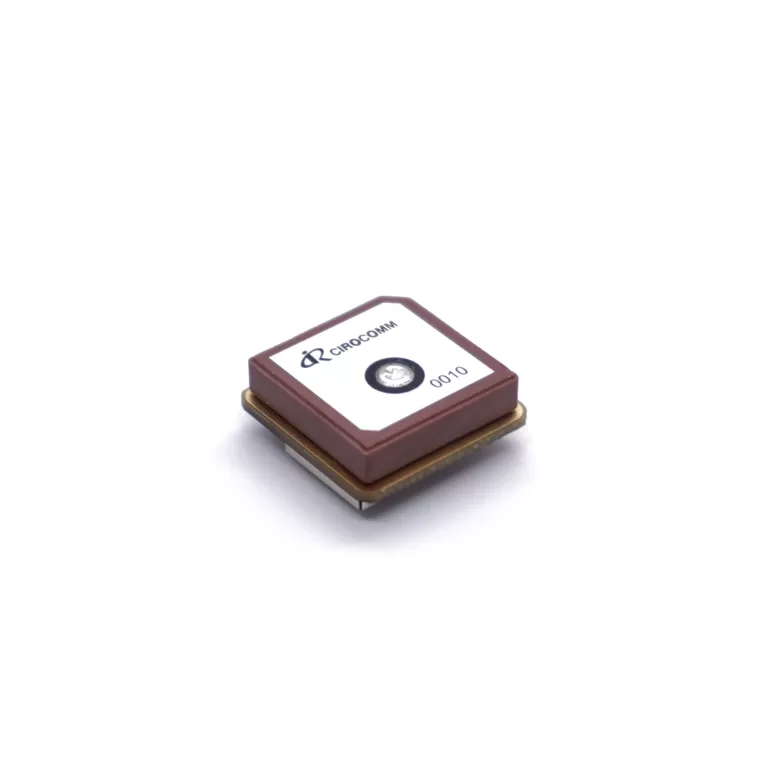

• The high-gain 18 x 18 x 4mm patch antenna provides the best balance between performance and small size.
• Built-in flash, parameters can still be saved when module lost power.

Specifications

• GNSS Receiver: U-BLOX M10 (M10050)
• Magnetic Compass: QMC5883L
• Antenna:  18x18x4mm
• GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A
• Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo
• Max Navigation rate: 5Hz
• Max satelite num: 32

• Input Voltage: 5V
• Current: 30mA
• Output Interface(GPS): UART (3.3V LVTTL)
• Interface(Compass): I2C
• UART Baudrate: 115200(default)
• Output Protocol: UBX-PVT(default)
• PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

Flight Controller Firmware Required

• INAV: >=5.0.0
• Betaflight: >=4.3.0
• Ardupilot: >=4.3.0
• PX4: >= 1.14.0

Physical

• Dimensions: 20 x 20 x 7.8 mm
• Weight: 7g
• Connector: SH1.0-6P 1.0mm pitch
• 3D-printed battery strap GPS mount

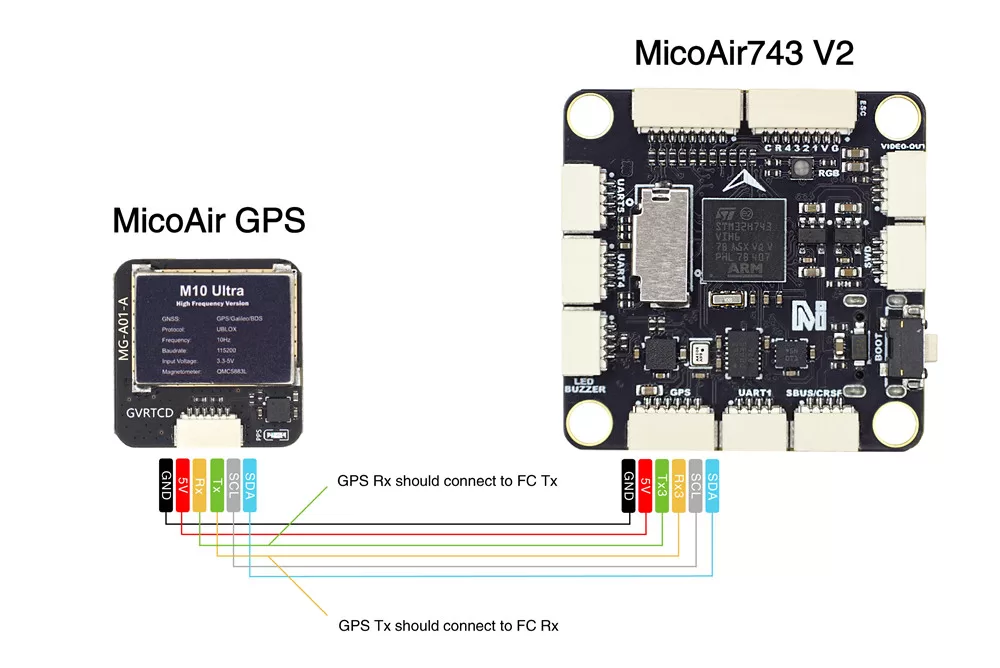

Wiring Diagram

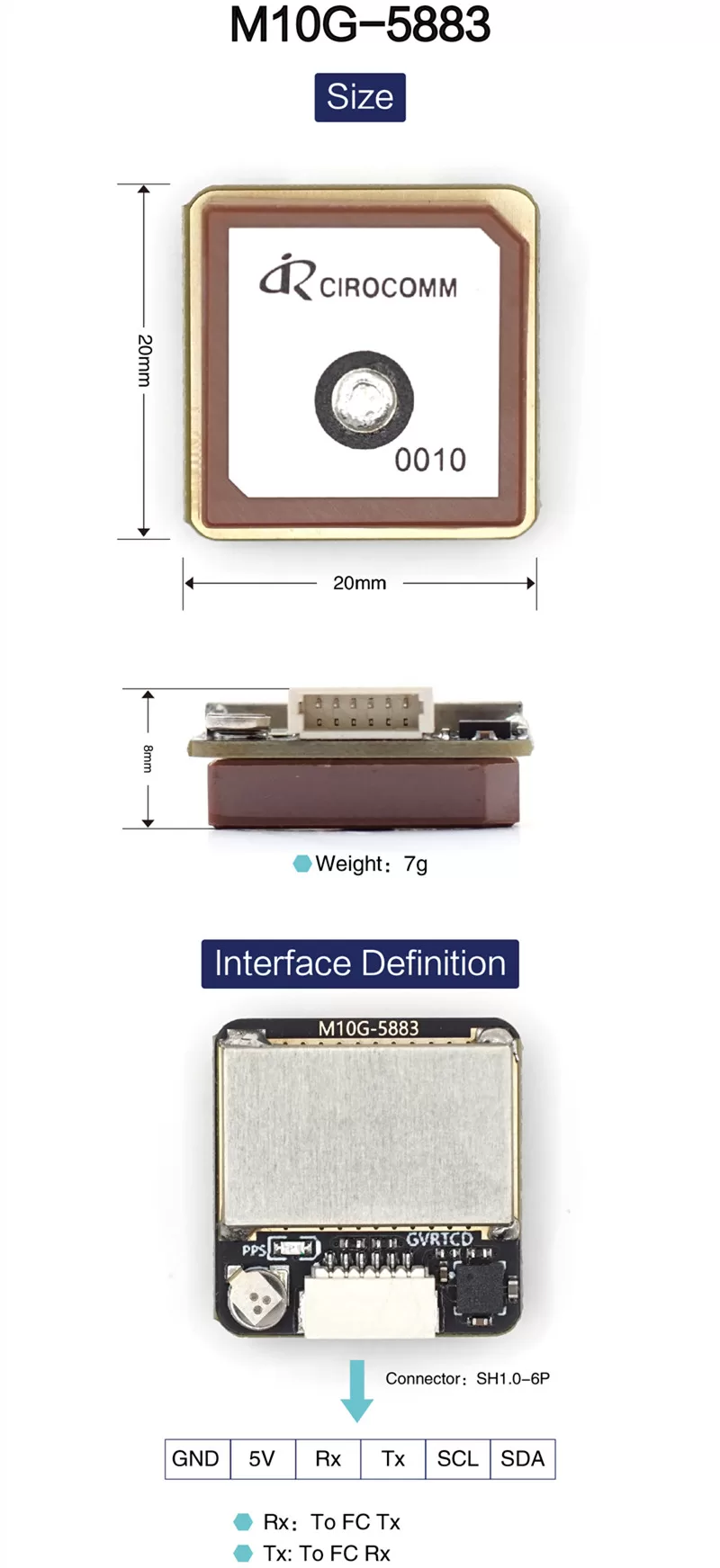

Interface Definition
