Mega2560 Pro ATMEGA2560-16U USB CH340G Development Board
The Mega Pro Embed CH340G / ATmega2560 board is a microcontroller platform featuring the ATmega2560 chip and a USB-UART interface via the CH340G chip. This board is perfect for final projects on a soldering prototype board.
With the same capabilities as the Mega 2560, the Mega Pro Embed is a stable and reliable option, utilizing the original chip and high-quality 16 MHz quartz resonators. The CH340G chip facilitates seamless UART to USB conversion, ensuring stable data transfer at a frequency of 12 MHz (note: a driver must be installed on the computer).
Power the board or its pins through the Micro USB connector. The onboard voltage regulator (LDO) can accept input voltages from 6V to 9V (with a peak tolerance of 18V DC). While the regulator can handle up to 18V, it’s advisable to stay within the recommended voltage range to prevent excessive heat and potential damage to the device.
Features:
The board is compatible with Mega 2560.
excellent solution for developing projects based on ATmega2560.
The board can be powered directly through the Micro USB connector
The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA
specification-
| Microcontroller | ATmega2560 |
| USB-TTL converter | CH340 |
| Memory Size | 256kb |
| Data RAM Type/Size | 8Kb |
| Data ROM Type/Size | 4Kb |
| Interface Type | ISP |
| Digital I/O | 54 |
| Analog I/O | 16 |
| Clock Frequency | 16MHz |
| USB | Micro USB |
| Logic Level | 5V |
| Operating Supply Voltage | 5V |
| Power IN | 5V |
| Power Consumption | 5V 220mA |
| Power Out | 5V-800mA |
| Operating temperature |  −40С°/ 85С° |
Package Includes

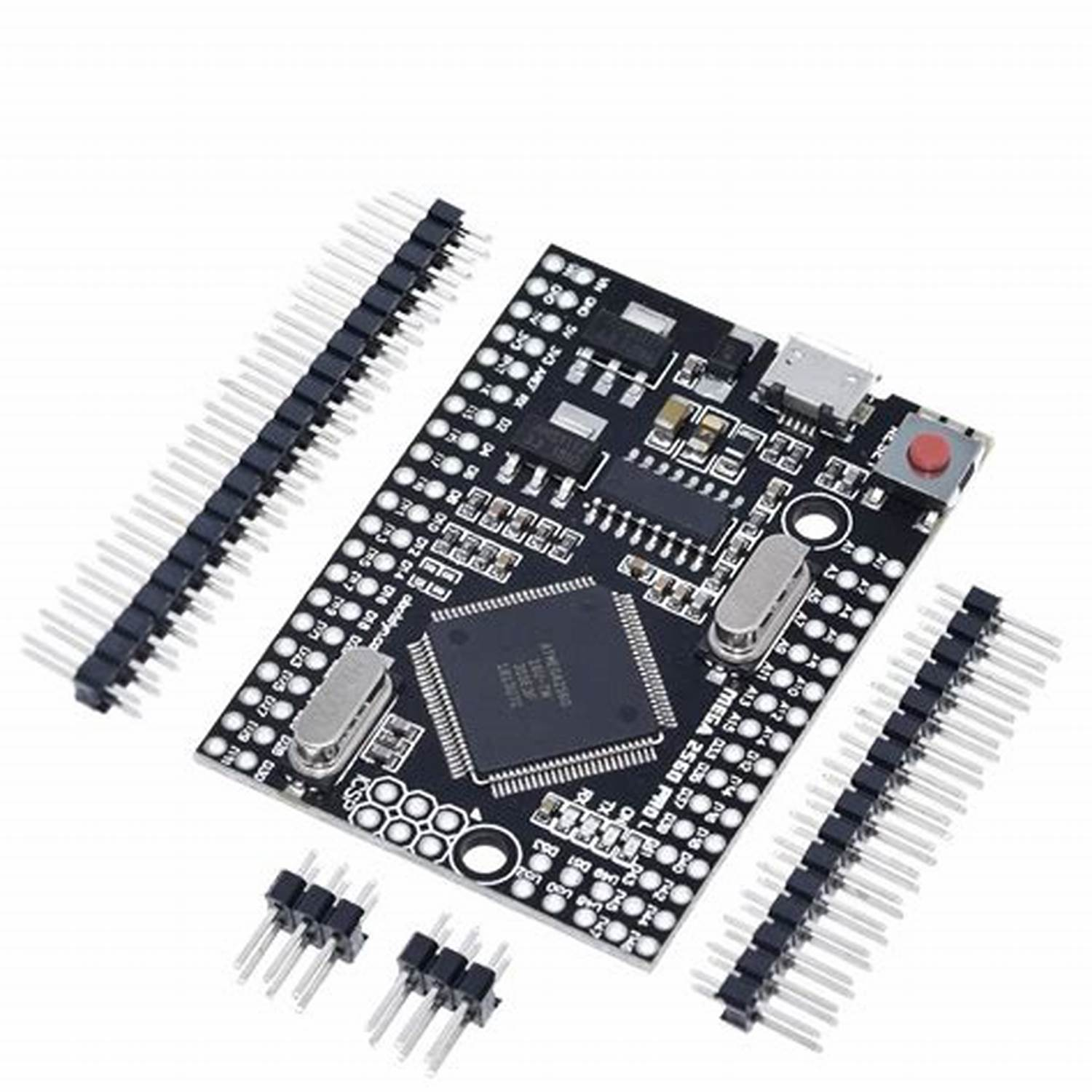

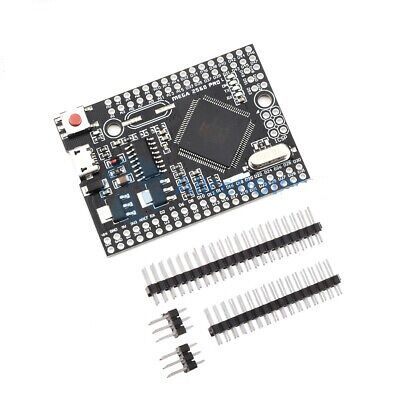

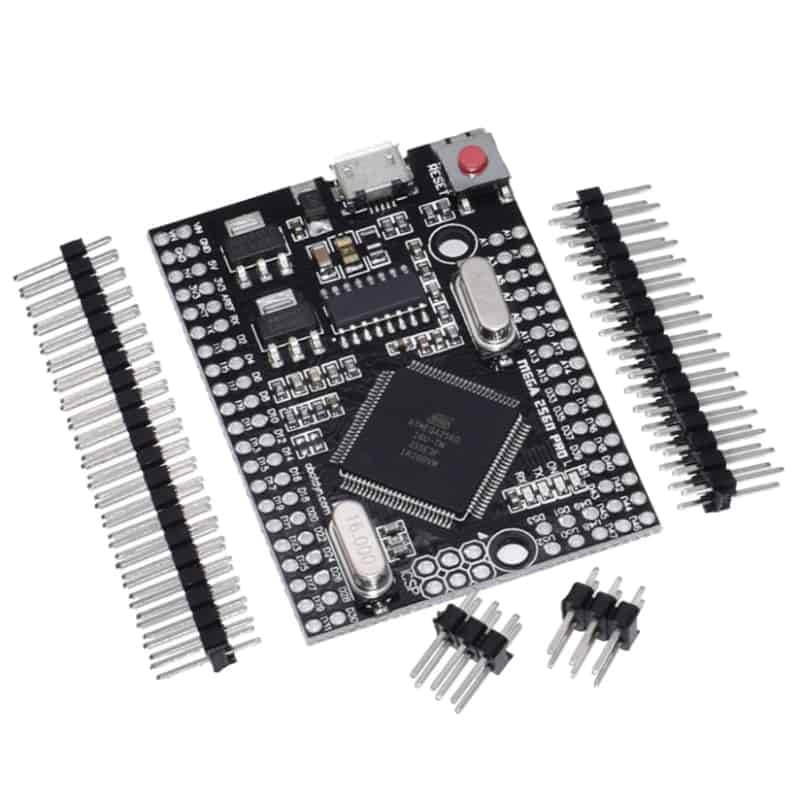

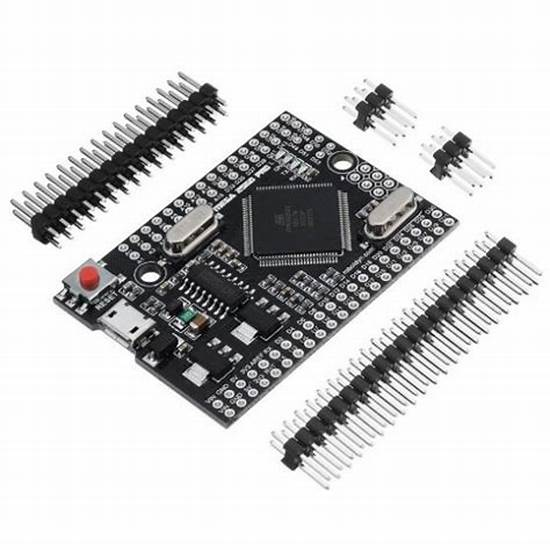

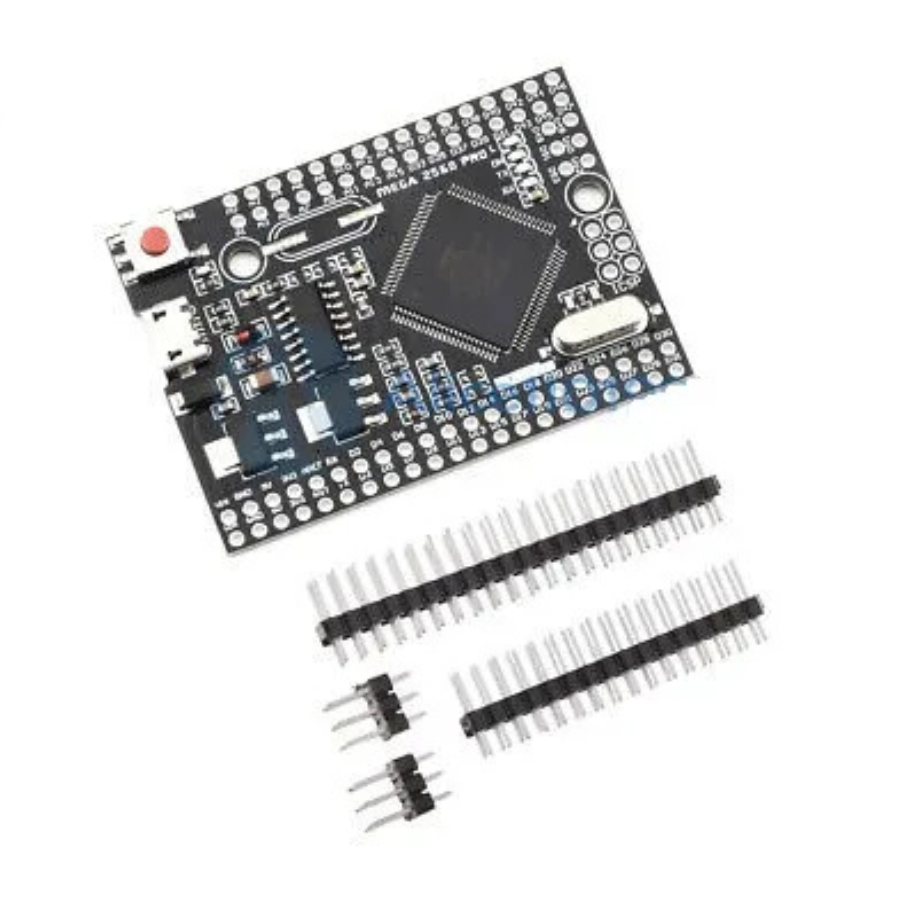

1 x Mega2560 Pro ATMEGA2560-16U USB CH340G Development Board
1 x 20 Pin Headers
Schematic Diagram
PIn Diagram
Dimension diagram
