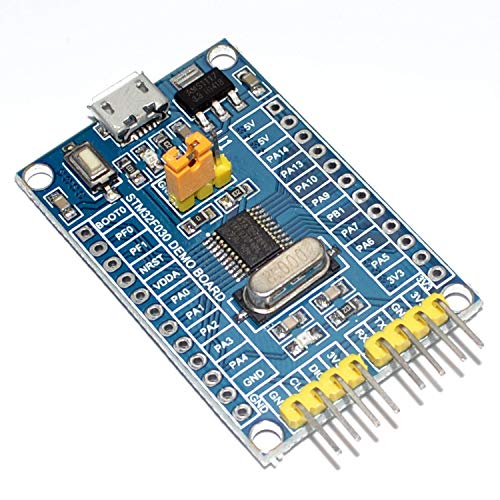

STM32F030F4P6 Core Development Board Core ARM CORTEX-M0
- The STM32F030F4P6 is a microcontroller unit featuring a high-performance ARM Cortex-M0 32-bit RISC core that operates at 48 MHz. It includes high-speed embedded memory and a wide array of enhanced peripherals and I/O options. Each device is equipped with standard communication interfaces, one 12-bit ADC, seven general-purpose 16-bit timers, and an advanced PWM timer for precise control.
Features
- Memories:
- 16 to 64 Kbytes of Flash memory
- 4 to 8 Kbytes of SRAM with HW parity
- Checking:
- CRC calculation unit
- Reset and power management
- Voltage range: 2.4 V to 3.6 V
- Power-on/Power down reset (POR/PDR)
- Low power modes: Sleep, Stop, Standby
- Clock Management
- 4 to 32 MHz crystal oscillator
- 32 kHz oscillator for RTC with calibration
- Internal 8 MHz RC with x6 PLL option
- Internal 40 kHz RC oscillator
- Up to 55 fast I/Os
- All mappable on external interrupt vectors
- Up to 36 I/Os with 5 V tolerant capability
- 5-channel DMA controller
- 1 x 12-bit, 1.0 μs ADC (up to 16 channels)
- Conversion range: 0 to 3.6 V
- Separate analog supply from 2.4 up to 3.6 V
- Up to 10 timers
- One 16-bit 7-channel advanced-control timer for 6 channels PWM output, with deadtime generation and emergency stop
- One 16-bit timer, with up to 4 IC/OC, usable
- for IR control decoding
- One 16-bit timer, with 2 IC/OC, 1 OCN, deadtime generation and emergency stop
- Two 16-bit timers, each with IC/OC and
- OCN, deadtime generation, emergency stop and modulator gate for IR control
- One 16-bit timer with 1 IC/OC
- One 16-bit basic timer
- Independent and system watchdog timers
- SysTick timer: 24-bit down counter
- Calendar RTC with alarm and periodic wake up from Stop/Standby
- Communication interfaces
- Up to two I2C interfaces: one supporting
- Fast Mode Plus (1 Mbit/s) with 20 mA current sink
- Up to two USARTs supporting master
- synchronous SPI and modem control; one with auto baud rate detection
- Up to two SPIs (18 Mbit/s) with 4 to 16
- Programmable bit frame
- Serial Wire Debug (SWD)
Specifications:
| Input Voltage (V) | 3.3 |
|---|---|
| Output Voltage(V) | 3.3 ~ 5 |
| CPU Architecture | RM CORTEX-M0 |
| Microprocessor Model | STM32F030F4P6 |
| Dimensions (LxWxH) mm | 48 x 30 x 8 |
| Weight (g): | 7 |
Package Includes

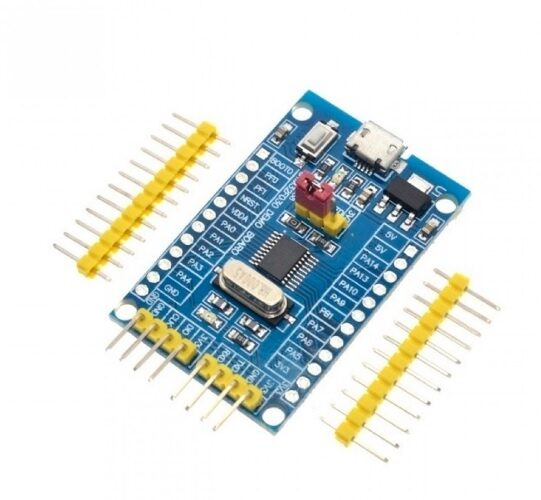

- 1 x STM32F030F4P6 Core Development Board Core ARM CORTEX-M0

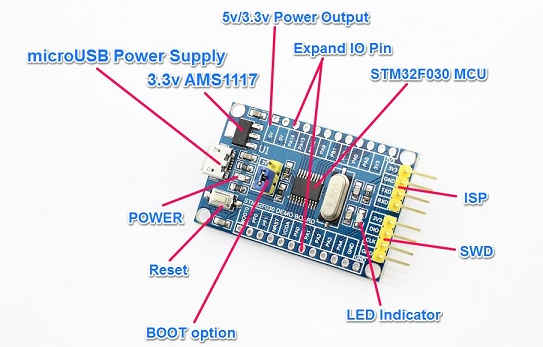

Connection diagram:

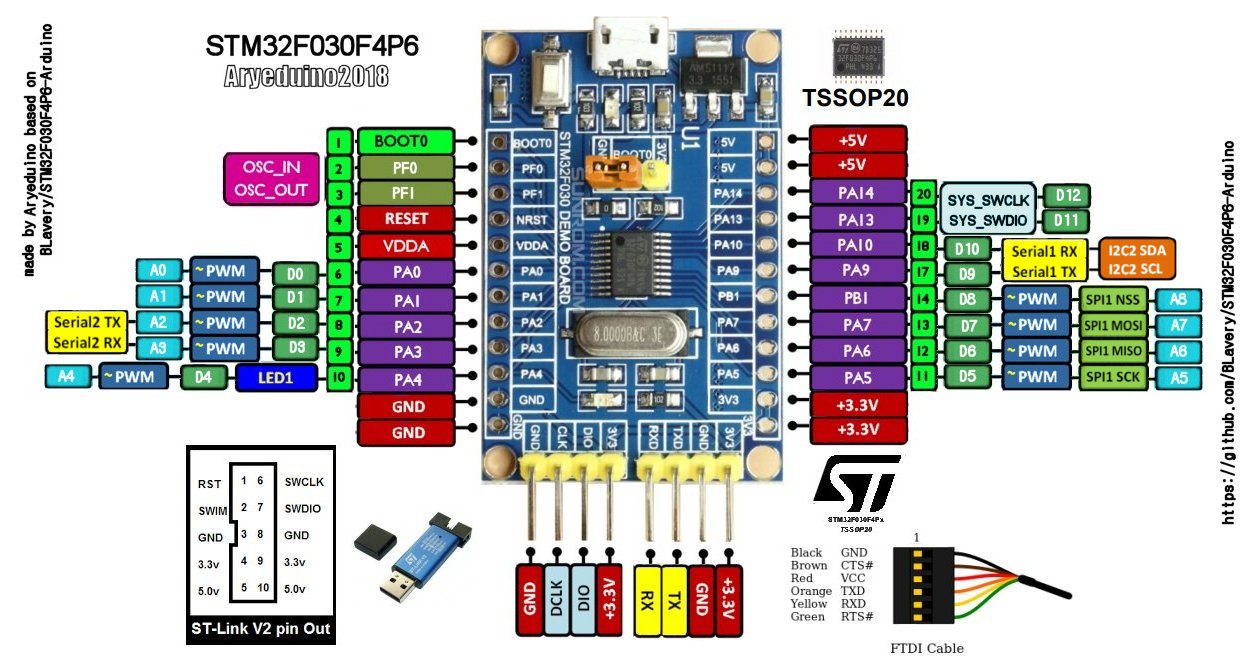

Pin Diagram:
STM32F030F4P6 Core Development Board Core ARM CORTEX-M0 Overview
The STM32F030F4P6 Core Development Board is a compact development platform built around the ARM Cortex-M0 STM32F030F4P6 microcontroller running at 48 MHz. It provides developers and students with a ready-to-use board for prototyping firmware, interfacing peripherals, and testing embedded applications.
Key Features of STM32F030F4P6 Core Development Board Core ARM CORTEX-M0
- ARM Cortex-M0 32-bit RISC core clocked at 48 MHz for efficient processing
- 16 KB on-chip Flash memory and 4 KB SRAM with hardware parity checking
- Integrated 12-bit ADC plus seven general-purpose 16-bit timers and an advanced PWM timer
- Wide supply range (2.4 V to 3.6 V) with 3.3 V regulated input compatibility
- Compact dimensions (48 × 30 × 8 mm) and lightweight (7 g) for space-constrained projects
- Genuine STM32F030F4P6 board with fast shipping from Zbotic
Applications and Use Cases
- Prototyping motor control algorithms with precise PWM outputs
- Sampling analog signals in data-logging and sensor monitoring systems
- Educational labs and microcontroller training exercises
- Developing custom SPI, I²C or UART interface modules
- Implementing timing-critical tasks using onboard timers and CRC unit
How to Use STM32F030F4P6 Core Development Board Core ARM CORTEX-M0
To get started, supply 3.3 V to the board’s power pins or use a compatible regulator, connect an ARM SWD programmer to the debug header, then open your project in STM32CubeIDE or another Cortex-M0 toolchain. Compile your firmware, flash it via the SWD interface, and monitor GPIO, ADC or timer outputs through the exposed header pins for real-time testing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the core clock speed of the STM32F030F4P6 on this board?
The STM32F030F4P6 microcontroller runs at a maximum frequency of 48 MHz, providing a balance of performance and power efficiency for embedded applications.
How much Flash and SRAM memory does this development board provide?
This board features the STM32F030F4P6 MCU, which includes 16 KB of on-chip Flash memory for program storage and 4 KB of SRAM with hardware parity checking for data integrity.
Which peripherals and interfaces are accessible on the development board?
The board exposes a 12-bit ADC, seven 16-bit general-purpose timers, an advanced PWM timer, and standard communication interfaces such as SPI, I²C and USART through the header pins for flexible peripheral integration.
Technical Specifications
| Model | STM32F030F4P6 |
|---|---|
| SKU | AI0252 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The STM32F030F4P6 Core Development Board Core ARM CORTEX-M0 is a versatile arm microcontroller used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
