PRODUCT DESCRIPTION

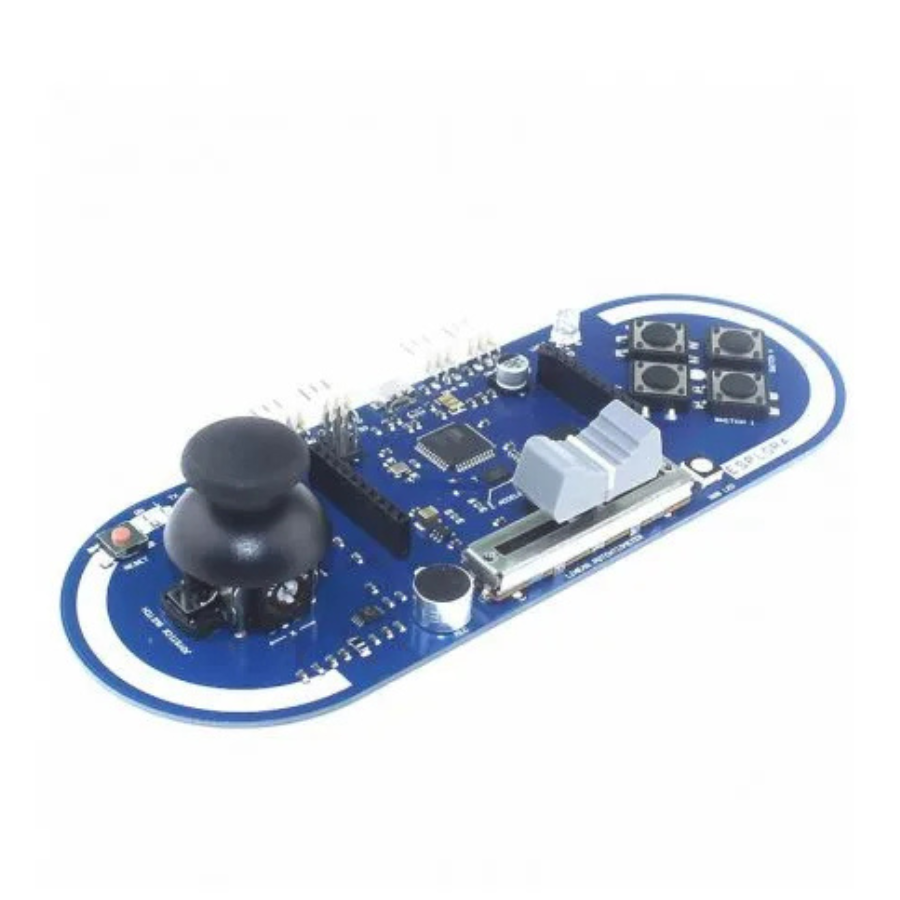

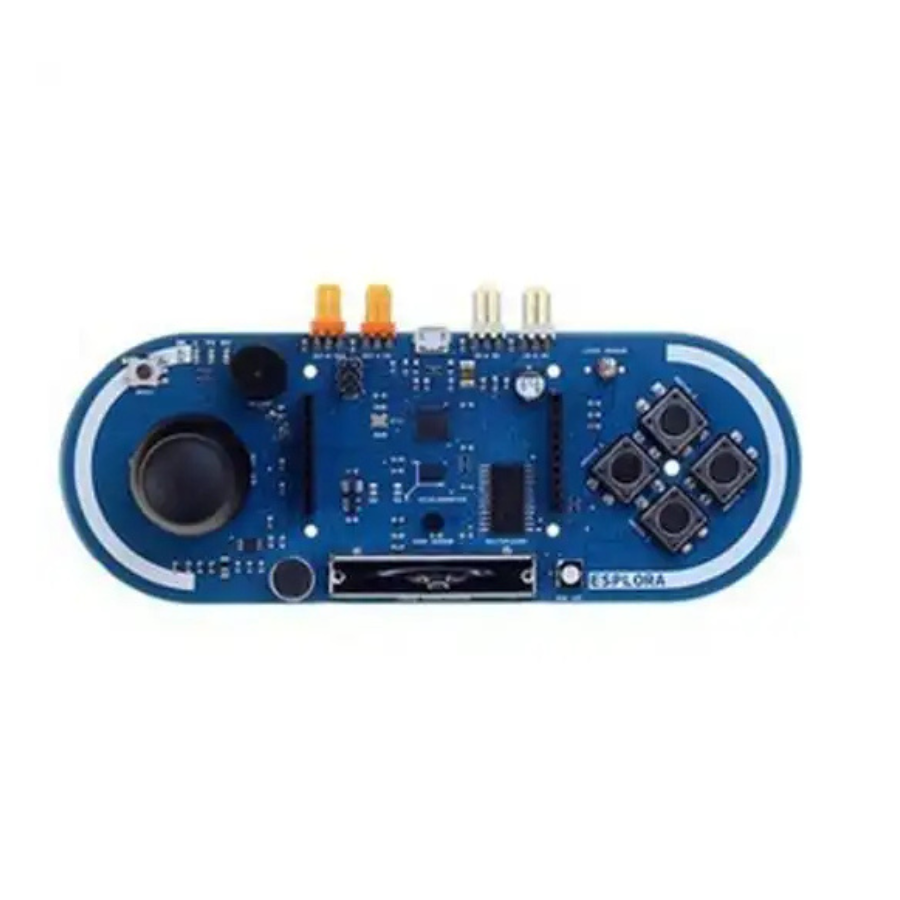

The ESPLORA Joystick Photosensitive Sensor Board is a microcontroller board compatible with Arduino & derived from the Arduino Leonardo. The ESPLORA Joystick Photosensitive Sensor Board differs from all preceding Arduino boards in that it provides a number of built-in; ready-to-use set of onboard sensors for interaction.
It’s designed for people who want to get up and running with Arduino without having to learn about the electronics first. For a step-by-step introduction to the Esplora; check out the Getting Started with Esplora guide.
The ESPLORA Joystick Photosensitive Sensor Board has onboard sound and light outputs, and several input sensors; including a joystick, a slider, a temperature sensor, an accelerometer, a microphone, and a light sensor. It also has the potential to expand its capabilities with two Tinker-kit input and output connectors, and a socket for a color TFT LCD screen.
Like the Leonardo board, the ESPLORA Joystick Photosensitive Sensor Board uses an Atmega32U4 AVR microcontroller with 16 MHz crystal oscillator. And a micro USB connection capable of acting as a USB client device like a mouse or a keyboard. In the upper left corner of the board, there is a reset push button, that you can use to restart the board.
There are four status LEDs
ON [green] indicates whether the board is receiving power supply
L [yellow] connect directly to the micro-controller, accessible through pin 13
RX and TX [yellow] indicates the data being transmit or receive over the USB communication
The board contains everything need to support the microcontroller; simply connect it to a computer with a USB cable to get started. The Esplora has built-in USB communication; it can appear to a connected computer as a mouse or keyboard, in addition to a virtual (CDC) serial / COM port. This has other implications for the behavior of the board; these are detailed on the getting started page. You can find all the information you need to configure your board, use the Arduino Software (IDE); and start to tinker with coding and electronics.
Input and Output

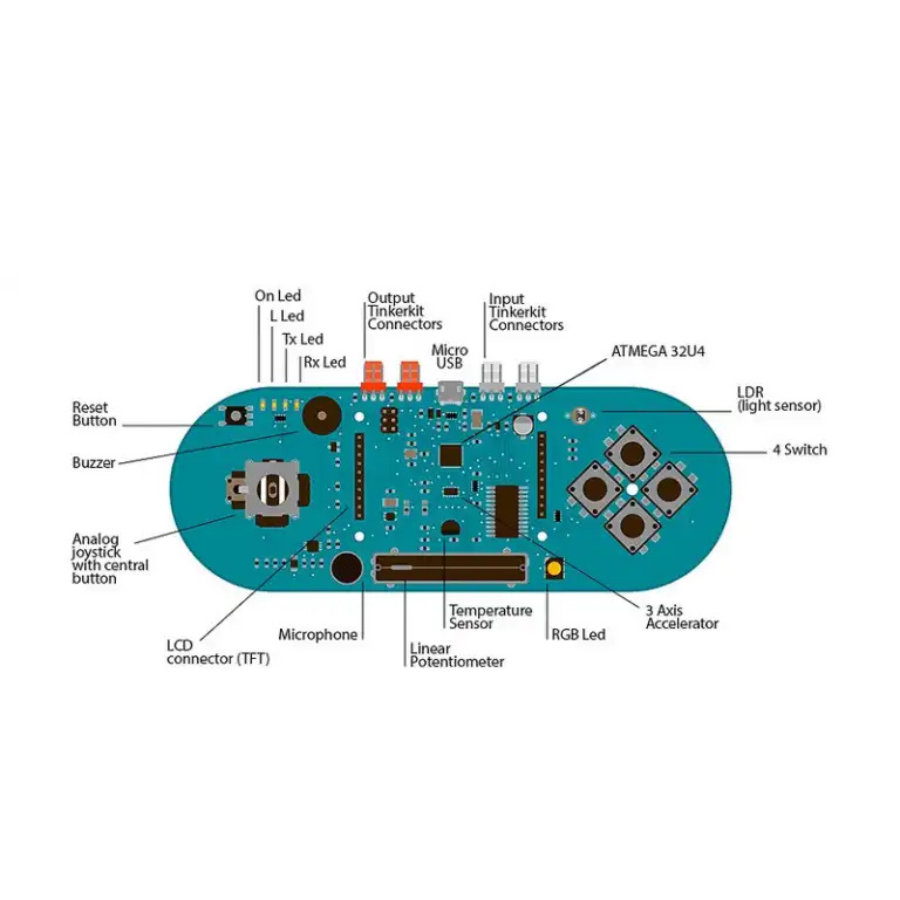

The design of the ESPLORA Joystick Photosensitive Sensor Board recalls traditional gamepad design with an analog joystick on the left and four push buttons on the right. The ESPLORA Joystick Photosensitive Sensor Board has the following onboard inputs and outputs :
Analog joystick with central push-button two axes (X and Y) and a center pushbutton.
4 push-buttons laid out in a diamond pattern.
Linear potentiometer slider near the bottom of the board.
Microphone for getting the loudness (amplitude) of the surrounding environment.
Light sensor for getting the brightness.
Temperature sensor reads the ambient temperature.
Three-axis accelerometer measures the board’s relation to gravity on three axes (X, Y, and Z).
The buzzer can produce square-waves.
RGB led bright LED with Red Green and Blue elements for color mixing.
2 TinkerKit Inputs to connect the TinkerKit sensor modules with the 3-pin connectors.
2 TinkerKit Outputs to connect the TinkerKit actuator modules with the 3-pin connectors.
TFT display connector for an optional color LCD screen; SD card, or other devices that use the SPI protocol.
In order to utilize the total number of available sensors, the board uses an analog multiplexer. This means a single analog input of the microcontroller is shared among all the input channels (except the 3-axis accelerometer). Four additional microcontroller pins choose which channel to read.
Communication :
The Leonardo the ESPLORA Joystick Photosensitive Sensor Board has a number of facilities for communicating with a computer; another Arduino, or other micro-controllers. The ATmega32U4 provides serial (CDC) communication over USB and appears as a virtual com port software on the computer. The chip also acts as a full speed USB 2.0 device, using standard USB COM drivers. On Windows, a .inf file requires.
The Arduino software includes a serial monitor which allows simple textual data to be sent to and from the Arduino board. The RX and TX LEDs on the board will flash when data is transmitting via the USB connection to the computer. The ATmega32U4 also supports SPI communication, that access through the SPI library. The Esplora can appear as a generic keyboard and mouse and can be a program to control these input devices using the Keyboard and Mouse libraries.
Programming :
Automatic (Software) Reset and Bootloader initiation :
USB Overcurrent Protection :
Physical Characteristics :
Package Includes :
This Esplora Joystick Photosensitive Board is a popular choice among hobbyists and professionals. The Esplora Joystick Photosensitive Board offers reliable performance for your projects.
ESPLORA Joystick Photosensitive Sensor Board Compatible Overview
The ESPLORA Joystick Photosensitive Sensor Board is a ready-to-use microcontroller module derived from the Arduino Leonardo platform. Featuring an onboard joystick and light sensor, it’s designed for builders who want rapid prototyping of interactive and light-responsive applications without wiring individual sensors.
Key Features of ESPLORA Joystick Photosensitive Sensor Board Compatible
- Integrated 2-axis joystick for precise directional input
- Onboard photosensitive sensor to detect ambient light changes
- Derived from Arduino Leonardo for seamless USB HID and serial communication
- Dedicated connector for easy interfacing with external LCD modules
- Plug-and-play compatibility with the Arduino IDE and Esplora libraries
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- DIY game controllers that respond to joystick movement
- Light-sensitive lamp or display that adapts to room brightness
- Interactive art installations reacting to user input and ambient light
- Prototype control panels for robots or remote devices
- Educational STEM kits teaching sensor integration
- Portable data-logging systems with external LCD feedback
How to Use ESPLORA Joystick Photosensitive Sensor Board Compatible
Connect the board to your PC via USB, install the Arduino Esplora package in the IDE, and select “Arduino Esplora” under Tools > Board. Load an example sketch to read joystick axes with analogRead() and light levels with the photosensor. Plug a compatible LCD module into the onboard header, include the EsploraLCD library, and upload your code to see live sensor data on the display.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the ESPLORA board ready for programming straight out of the box?
Yes, it comes preloaded with the Esplora bootloader. Simply install the Esplora board package in the Arduino IDE, select “Arduino Esplora,” and upload sketches immediately.
Which type of LCD modules can I connect?
The onboard connector supports standard character and graphic LCDs with Hitachi HD44780-compatible interfaces or similar. Use the EsploraLCD library for easy display control.
Can I power the board without using USB?
Absolutely. Besides USB power, you can feed 5 V into the Vin pin. Ensure the supply is regulated to maintain accurate sensor readings.
