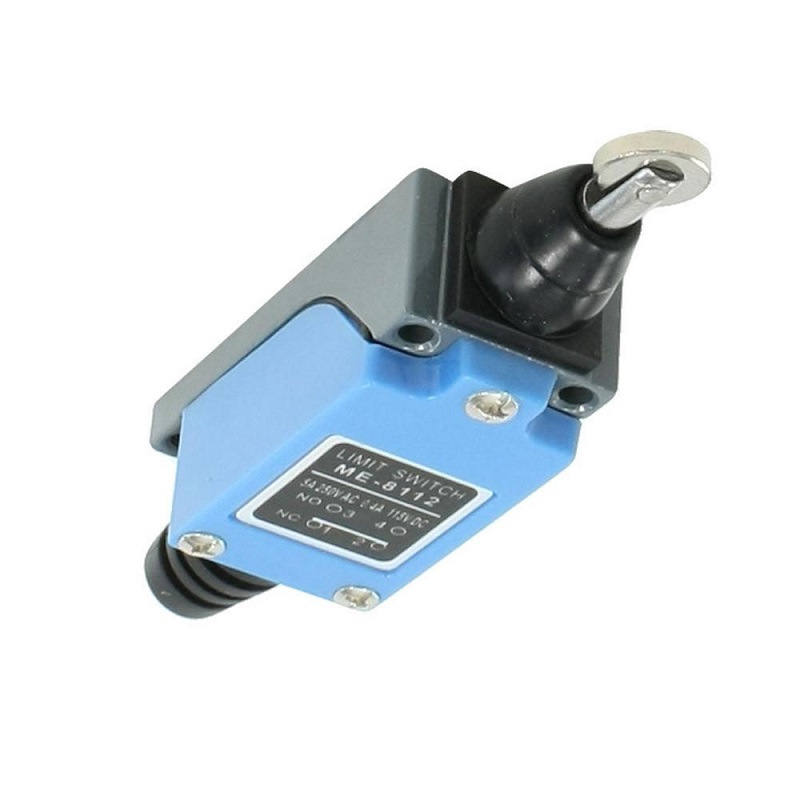

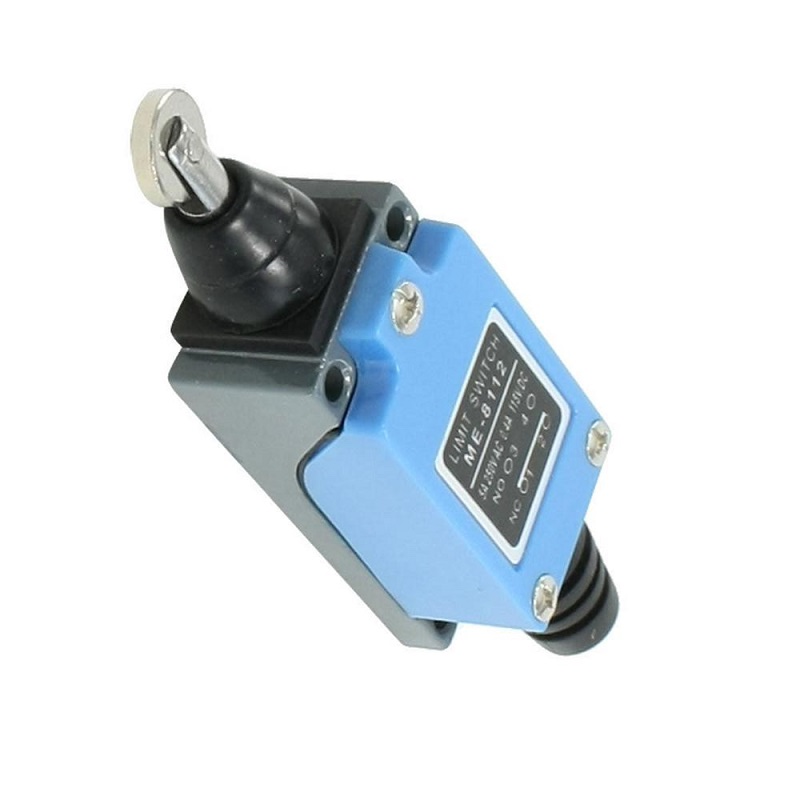

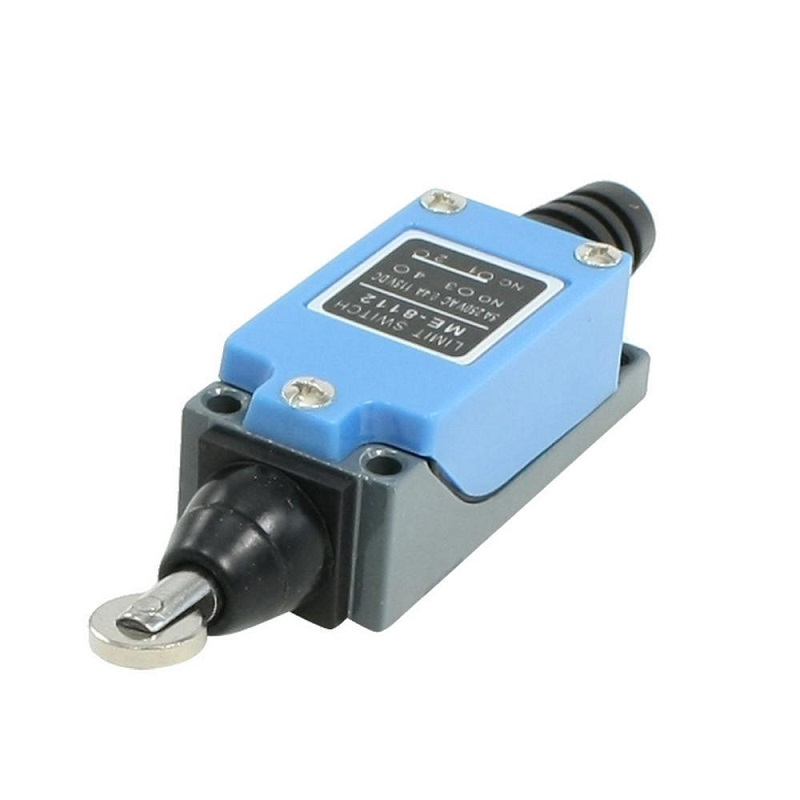

ME-8112 Rotary Adjustable Roller Mini Limit Switch
The ME-8112 Rotary Adjustable Roller Mini Limit Switch, also known as the POSITION SWITCH, is a compact and versatile electrical device commonly used in industrial applications. It detects the movement or position of machinery components and activates the control circuit to perform specific control functions.
This limit switch is ideal for use as an electrical control switch in a wide range of mechanical and industrial sectors. It efficiently monitors the position of moving parts in machines and equipment. To ensure proper operation, it is important to verify that the voltage rating matches the local voltage supply.
Features:
- Actuator action: momentary.
- Actuator-type rotary adjustable lever arm with a roller.
- Contact configuration 2 NC 2 NO(SPDT).
Specifications:
- Model: ME-8112
- Voltage Rating: 5A/380V AC, 10A/250V AC
- Actuator action: Momentary
- Actuator Type: Parallel Roller Plunger
- Contact Type: 2NC 2NO(SPDT)
- Material: Resin, Plastic, Metal
- Roller Wheel Size: 12.5 x 3.8mm
- Mount Screw Hole Diameter: 5mm
- Mount Screw Hole Distance: 21 x 56mm
- Total Size: 113 x 29 x 25mm
- Weight (gm): 120
Specification:
| Model | ME-8112 |
|---|---|
| Voltage Rating | 5A/380V AC, 10A/250V AC |
| Actuator action | Momentary |
| Actuator Type | Parallel Roller Plunger |
| Contact Type | 2NC + 2NO(SPDT) |
| Material | Resin, Plastic, Metal |
| Roller Wheel Size | 12.5 x 3.8mm |
| Mount Screw Hole Diameter | 5mm |
| Mount Screw Hole Distance | 21 x 56mm |
| Total Size | 113 x 29 x 25mm |
| Weight (gm) | 120 |
| Shipping Weight | 0.12 kg |
| Shipping Dimensions | 12 × 3 × 3 cm |
Package Includes:
1 x ME-8112 Rotary Adjustable Roller Mini Limit Switch
Technical Specifications
| Model | ME-8112 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI3411 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The ME-8112 Rotary Adjustable Roller Mini Limit Switch is a versatile limit switch used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
